inet::physicallayer::ITracingObstacleLoss Class Reference

#include <ITracingObstacleLoss.h>

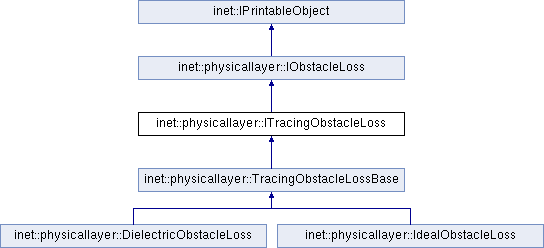

Inheritance diagram for inet::physicallayer::ITracingObstacleLoss:
inet::physicallayer::IObstacleLoss inet::IPrintableObject inet::physicallayer::TracingObstacleLossBase inet::physicallayer::DielectricObstacleLoss inet::physicallayer::IdealObstacleLoss

Classes

class  ObstaclePenetratedEvent


Static Public Attributes

static simsignal_t obstaclePenetratedSignal = cComponent::registerSignal("obstaclePenetrated")


Additional Inherited Members

- Public Types inherited from inet::IPrintableObject
enum  PrintLevel {
  PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,
  PRINT_LEVEL_COMPLETE = INT_MIN
}

enum  PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

- Public Member Functions inherited from inet::physicallayer::IObstacleLoss
virtual double computeObstacleLoss (Hz frequency, const Coord &transmissionPosition, const Coord &receptionPosition) const =0
 Returns the obstacle loss factor caused by physical objects present in the environment as a function of frequency, transmission position, and reception position. More...

- Public Member Functions inherited from inet::IPrintableObject
virtual ~IPrintableObject ()

virtual std::ostream & printToStream (std::ostream &stream, int level, int evFlags=0) const
 Prints this object to the provided output stream. More...

virtual std::string printToString () const

virtual std::string printToString (int level, int evFlags=0) const

virtual std::string getInfoStringRepresentation (int evFlags=0) const

virtual std::string getDetailStringRepresentation (int evFlags=0) const

virtual std::string getDebugStringRepresentation (int evFlags=0) const

virtual std::string getTraceStringRepresentation (int evFlags=0) const

virtual std::string getCompleteStringRepresentation (int evFlags=0) const


Member Data Documentation

◆ obstaclePenetratedSignal

simsignal_t inet::physicallayer::ITracingObstacleLoss::obstaclePenetratedSignal = cComponent::registerSignal("obstaclePenetrated")
static

Referenced by inet::physicallayer::DielectricObstacleLoss::computeObjectLoss(), inet::visualizer::TracingObstacleLossVisualizerBase::receiveSignal(), inet::visualizer::TracingObstacleLossVisualizerBase::subscribe(), and inet::visualizer::TracingObstacleLossVisualizerBase::unsubscribe().

The documentation for this class was generated from the following files:
