inet::physicallayer::ICommunicationCache Class Reference

This interface is used to store the radios and transmissions of the medium. More...

#include <ICommunicationCache.h>

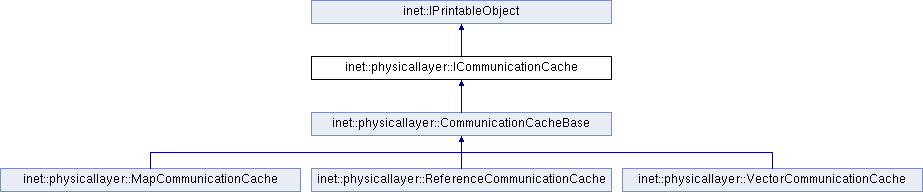

Inheritance diagram for inet::physicallayer::ICommunicationCache:

Public Member Functions
virtual	~ICommunicationCache ()
Radio cache
virtual void	addRadio (const IRadio *radio)=0
virtual void	removeRadio (const IRadio *radio)=0
virtual const IRadio *	getRadio (int id) const =0
virtual void	mapRadios (std::function< void(const IRadio *)> f) const =0
virtual int	getNumRadios () const =0
Transmission cache
virtual void	addTransmission (const ITransmission *transmission)=0
virtual void	removeTransmission (const ITransmission *transmission)=0
virtual const ITransmission *	getTransmission (int id) const =0
virtual void	mapTransmissions (std::function< void(const ITransmission *)> f) const =0
virtual int	getNumTransmissions () const =0
Interference cache
virtual std::vector< const ITransmission * > *	computeInterferingTransmissions (const IRadio *radio, const simtime_t startTime, const simtime_t endTime)=0
virtual void	removeNonInterferingTransmissions (std::function< void(const ITransmission *transmission)> f)=0
virtual const simtime_t	getCachedInterferenceEndTime (const ITransmission *transmission)=0
virtual void	setCachedInterferenceEndTime (const ITransmission *transmission, const simtime_t interferenceEndTime)=0
virtual void	removeCachedInterferenceEndTime (const ITransmission *transmission)=0
virtual const IWirelessSignal *	getCachedSignal (const ITransmission *transmission)=0
virtual void	setCachedSignal (const ITransmission *transmission, const IWirelessSignal *signal)=0
virtual void	removeCachedSignal (const ITransmission *transmission)=0
Reception Cache
virtual const IArrival *	getCachedArrival (const IRadio *receiver, const ITransmission *transmission)=0
virtual void	setCachedArrival (const IRadio *receiver, const ITransmission *transmission, const IArrival *arrival)=0
virtual void	removeCachedArrival (const IRadio *receiver, const ITransmission *transmission)=0
virtual const IntervalTree::Interval *	getCachedInterval (const IRadio *receiver, const ITransmission *transmission)=0
virtual void	setCachedInterval (const IRadio *receiver, const ITransmission *transmission, const IntervalTree::Interval *interval)=0
virtual void	removeCachedInterval (const IRadio *receiver, const ITransmission *transmission)=0
virtual const IListening *	getCachedListening (const IRadio *receiver, const ITransmission *transmission)=0
virtual void	setCachedListening (const IRadio *receiver, const ITransmission *transmission, const IListening *listening)=0
virtual void	removeCachedListening (const IRadio *receiver, const ITransmission *transmission)=0
virtual const IReception *	getCachedReception (const IRadio *receiver, const ITransmission *transmission)=0
virtual void	setCachedReception (const IRadio *receiver, const ITransmission *transmission, const IReception *reception)=0
virtual void	removeCachedReception (const IRadio *receiver, const ITransmission *transmission)=0
virtual const IInterference *	getCachedInterference (const IRadio *receiver, const ITransmission *transmission)=0
virtual void	setCachedInterference (const IRadio *receiver, const ITransmission *transmission, const IInterference *interference)=0
virtual void	removeCachedInterference (const IRadio *receiver, const ITransmission *transmission)=0
virtual const INoise *	getCachedNoise (const IRadio *receiver, const ITransmission *transmission)=0
virtual void	setCachedNoise (const IRadio *receiver, const ITransmission *transmission, const INoise *noise)=0
virtual void	removeCachedNoise (const IRadio *receiver, const ITransmission *transmission)=0
virtual const ISnir *	getCachedSNIR (const IRadio *receiver, const ITransmission *transmission)=0
virtual void	setCachedSNIR (const IRadio *receiver, const ITransmission *transmission, const ISnir *snir)=0
virtual void	removeCachedSNIR (const IRadio *receiver, const ITransmission *transmission)=0
virtual const IReceptionDecision *	getCachedReceptionDecision (const IRadio *receiver, const ITransmission *transmission, IRadioSignal::SignalPart part)=0
virtual void	setCachedReceptionDecision (const IRadio *receiver, const ITransmission *transmission, IRadioSignal::SignalPart part, const IReceptionDecision *receptionDecision)=0
virtual void	removeCachedReceptionDecision (const IRadio *receiver, const ITransmission *transmission, IRadioSignal::SignalPart part)=0
virtual const IReceptionResult *	getCachedReceptionResult (const IRadio *receiver, const ITransmission *transmission)=0
virtual void	setCachedReceptionResult (const IRadio *receiver, const ITransmission *transmission, const IReceptionResult *receptionResult)=0
virtual void	removeCachedReceptionResult (const IRadio *receiver, const ITransmission *transmission)=0
virtual const IWirelessSignal *	getCachedSignal (const IRadio *receiver, const ITransmission *transmission)=0
virtual void	setCachedSignal (const IRadio *receiver, const ITransmission *transmission, const IWirelessSignal *signal)=0
virtual void	removeCachedSignal (const IRadio *receiver, const ITransmission *transmission)=0
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

This interface is used to store the radios and transmissions of the medium.

It also provides caching for various intermediate computation results related to the communication on the medium.

Constructor & Destructor Documentation

~ICommunicationCache()

virtual inet::physicallayer::ICommunicationCache::~ICommunicationCache ( )

inlinevirtual

{}

Member Function Documentation

addRadio()

virtual void inet::physicallayer::ICommunicationCache::addRadio ( const IRadio *  radio )

pure virtual

Implemented in inet::physicallayer::VectorCommunicationCache, inet::physicallayer::MapCommunicationCache, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::addRadio().

addTransmission()

virtual void inet::physicallayer::ICommunicationCache::addTransmission ( const ITransmission *  transmission )

pure virtual

Implemented in inet::physicallayer::VectorCommunicationCache, inet::physicallayer::MapCommunicationCache, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::addTransmission().

computeInterferingTransmissions()

virtual std::vector<const ITransmission *>* inet::physicallayer::ICommunicationCache::computeInterferingTransmissions ( const IRadio *  radio, const simtime_t  startTime, const simtime_t  endTime  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::computeInterferingReceptions().

getCachedArrival()

virtual const IArrival* inet::physicallayer::ICommunicationCache::getCachedArrival ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::getArrival().

getCachedInterference()

virtual const IInterference* inet::physicallayer::ICommunicationCache::getCachedInterference ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::getInterference().

getCachedInterferenceEndTime()

virtual const simtime_t inet::physicallayer::ICommunicationCache::getCachedInterferenceEndTime ( const ITransmission *  transmission )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::addTransmission(), and inet::physicallayer::RadioMedium::removeNonInterferingTransmissions().

getCachedInterval()

virtual const IntervalTree::Interval* inet::physicallayer::ICommunicationCache::getCachedInterval ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

getCachedListening()

virtual const IListening* inet::physicallayer::ICommunicationCache::getCachedListening ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::getInterference(), inet::physicallayer::RadioMedium::getListening(), inet::physicallayer::RadioMedium::getNoise(), inet::physicallayer::RadioMedium::receivePacket(), and inet::physicallayer::RadioMedium::receiveSignal().

getCachedNoise()

virtual const INoise* inet::physicallayer::ICommunicationCache::getCachedNoise ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::getNoise().

getCachedReception()

virtual const IReception* inet::physicallayer::ICommunicationCache::getCachedReception ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::getReception().

getCachedReceptionDecision()

virtual const IReceptionDecision* inet::physicallayer::ICommunicationCache::getCachedReceptionDecision ( const IRadio *  receiver, const ITransmission *  transmission, IRadioSignal::SignalPart  part  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::getReceptionDecision().

getCachedReceptionResult()

virtual const IReceptionResult* inet::physicallayer::ICommunicationCache::getCachedReceptionResult ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::getReceptionResult().

getCachedSignal() [1/2]

virtual const IWirelessSignal* inet::physicallayer::ICommunicationCache::getCachedSignal ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

getCachedSignal() [2/2]

virtual const IWirelessSignal* inet::physicallayer::ICommunicationCache::getCachedSignal ( const ITransmission *  transmission )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::pickUpSignals().

getCachedSNIR()

virtual const ISnir* inet::physicallayer::ICommunicationCache::getCachedSNIR ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::getSNIR().

getNumRadios()

virtual int inet::physicallayer::ICommunicationCache::getNumRadios ( ) const

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase, inet::physicallayer::MapCommunicationCache, and inet::physicallayer::ReferenceCommunicationCache.

getNumTransmissions()

virtual int inet::physicallayer::ICommunicationCache::getNumTransmissions ( ) const

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase, inet::physicallayer::MapCommunicationCache, and inet::physicallayer::ReferenceCommunicationCache.

getRadio()

virtual const IRadio* inet::physicallayer::ICommunicationCache::getRadio ( int  id ) const

pure virtual

Implemented in inet::physicallayer::VectorCommunicationCache, inet::physicallayer::MapCommunicationCache, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::getRadio().

getTransmission()

virtual const ITransmission* inet::physicallayer::ICommunicationCache::getTransmission ( int  id ) const

pure virtual

Implemented in inet::physicallayer::VectorCommunicationCache, inet::physicallayer::MapCommunicationCache, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::getTransmission().

mapRadios()

virtual void inet::physicallayer::ICommunicationCache::mapRadios ( std::function< void(const IRadio *)>  f ) const

pure virtual

Implemented in inet::physicallayer::VectorCommunicationCache, inet::physicallayer::MapCommunicationCache, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::addTransmission(), inet::physicallayer::CommunicationCacheBase::getNumRadios(), and inet::physicallayer::RadioMedium::sendToAllRadios().

mapTransmissions()

virtual void inet::physicallayer::ICommunicationCache::mapTransmissions ( std::function< void(const ITransmission *)>  f ) const

pure virtual

Implemented in inet::physicallayer::VectorCommunicationCache, inet::physicallayer::MapCommunicationCache, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::addRadio(), inet::physicallayer::CommunicationCacheBase::getNumTransmissions(), inet::physicallayer::RadioMedium::pickUpSignals(), inet::physicallayer::RadioMedium::receiveSignal(), and inet::physicallayer::RadioMedium::removeNonInterferingTransmissions().

removeCachedArrival()

virtual void inet::physicallayer::ICommunicationCache::removeCachedArrival ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

removeCachedInterference()

virtual void inet::physicallayer::ICommunicationCache::removeCachedInterference ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

removeCachedInterferenceEndTime()

virtual void inet::physicallayer::ICommunicationCache::removeCachedInterferenceEndTime ( const ITransmission *  transmission )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

removeCachedInterval()

virtual void inet::physicallayer::ICommunicationCache::removeCachedInterval ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

removeCachedListening()

virtual void inet::physicallayer::ICommunicationCache::removeCachedListening ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

removeCachedNoise()

virtual void inet::physicallayer::ICommunicationCache::removeCachedNoise ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

removeCachedReception()

virtual void inet::physicallayer::ICommunicationCache::removeCachedReception ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

removeCachedReceptionDecision()

virtual void inet::physicallayer::ICommunicationCache::removeCachedReceptionDecision ( const IRadio *  receiver, const ITransmission *  transmission, IRadioSignal::SignalPart  part  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

removeCachedReceptionResult()

virtual void inet::physicallayer::ICommunicationCache::removeCachedReceptionResult ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::receivePacket().

removeCachedSignal() [1/2]

virtual void inet::physicallayer::ICommunicationCache::removeCachedSignal ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

removeCachedSignal() [2/2]

virtual void inet::physicallayer::ICommunicationCache::removeCachedSignal ( const ITransmission *  transmission )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

removeCachedSNIR()

virtual void inet::physicallayer::ICommunicationCache::removeCachedSNIR ( const IRadio *  receiver, const ITransmission *  transmission  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

removeNonInterferingTransmissions()

virtual void inet::physicallayer::ICommunicationCache::removeNonInterferingTransmissions ( std::function< void(const ITransmission *transmission)>  f )

pure virtual

Implemented in inet::physicallayer::VectorCommunicationCache, inet::physicallayer::MapCommunicationCache, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::removeNonInterferingTransmissions().

removeRadio()

virtual void inet::physicallayer::ICommunicationCache::removeRadio ( const IRadio *  radio )

pure virtual

Implemented in inet::physicallayer::VectorCommunicationCache, inet::physicallayer::MapCommunicationCache, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::removeRadio().

removeTransmission()

virtual void inet::physicallayer::ICommunicationCache::removeTransmission ( const ITransmission *  transmission )

pure virtual

Implemented in inet::physicallayer::VectorCommunicationCache, inet::physicallayer::MapCommunicationCache, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::removeTransmission().

setCachedArrival()

virtual void inet::physicallayer::ICommunicationCache::setCachedArrival ( const IRadio *  receiver, const ITransmission *  transmission, const IArrival *  arrival  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::addRadio().

setCachedInterference()

virtual void inet::physicallayer::ICommunicationCache::setCachedInterference ( const IRadio *  receiver, const ITransmission *  transmission, const IInterference *  interference  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::getInterference().

setCachedInterferenceEndTime()

virtual void inet::physicallayer::ICommunicationCache::setCachedInterferenceEndTime ( const ITransmission *  transmission, const simtime_t  interferenceEndTime  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::addTransmission().

setCachedInterval()

virtual void inet::physicallayer::ICommunicationCache::setCachedInterval ( const IRadio *  receiver, const ITransmission *  transmission, const IntervalTree::Interval *  interval  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

setCachedListening()

virtual void inet::physicallayer::ICommunicationCache::setCachedListening ( const IRadio *  receiver, const ITransmission *  transmission, const IListening *  listening  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::addRadio(), and inet::physicallayer::RadioMedium::receiveSignal().

setCachedNoise()

virtual void inet::physicallayer::ICommunicationCache::setCachedNoise ( const IRadio *  receiver, const ITransmission *  transmission, const INoise *  noise  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::getNoise().

setCachedReception()

virtual void inet::physicallayer::ICommunicationCache::setCachedReception ( const IRadio *  receiver, const ITransmission *  transmission, const IReception *  reception  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::getReception().

setCachedReceptionDecision()

virtual void inet::physicallayer::ICommunicationCache::setCachedReceptionDecision ( const IRadio *  receiver, const ITransmission *  transmission, IRadioSignal::SignalPart  part, const IReceptionDecision *  receptionDecision  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::getReceptionDecision().

setCachedReceptionResult()

virtual void inet::physicallayer::ICommunicationCache::setCachedReceptionResult ( const IRadio *  receiver, const ITransmission *  transmission, const IReceptionResult *  receptionResult  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::getReceptionResult().

setCachedSignal() [1/2]

virtual void inet::physicallayer::ICommunicationCache::setCachedSignal ( const IRadio *  receiver, const ITransmission *  transmission, const IWirelessSignal *  signal  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

setCachedSignal() [2/2]

virtual void inet::physicallayer::ICommunicationCache::setCachedSignal ( const ITransmission *  transmission, const IWirelessSignal *  signal  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase.

Referenced by inet::physicallayer::RadioMedium::pickUpSignals(), inet::physicallayer::RadioMedium::sendToRadio(), and inet::physicallayer::RadioMedium::transmitPacket().

setCachedSNIR()

virtual void inet::physicallayer::ICommunicationCache::setCachedSNIR ( const IRadio *  receiver, const ITransmission *  transmission, const ISnir *  snir  )

pure virtual

Implemented in inet::physicallayer::CommunicationCacheBase, and inet::physicallayer::ReferenceCommunicationCache.

Referenced by inet::physicallayer::RadioMedium::getSNIR().

---

The documentation for this class was generated from the following file:

• ICommunicationCache.h
