#include <DimensionalBackgroundNoise.h>

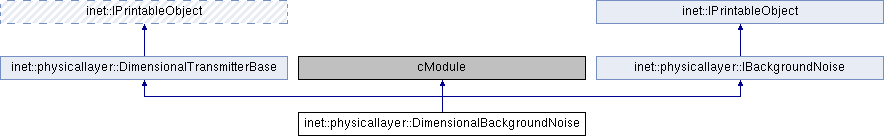

Inheritance diagram for inet::physicallayer::DimensionalBackgroundNoise:

Public Member Functions
	DimensionalBackgroundNoise ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const INoise *	computeNoise (const IListening *listening) const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

Protected Member Functions inherited from inet::physicallayer::DimensionalTransmitterBase
template<typename T >
std::vector< GainEntry< T > >	parseGains (const char *text) const

virtual void	parseTimeGains (const char *text)

virtual void	parseFrequencyGains (const char *text)

template<typename T >
const Ptr< const IFunction< double, Domain< T > > >	normalize (const Ptr< const IFunction< double, Domain< T >>> &function, const char *normalization) const

virtual Ptr< const IFunction< double, Domain< simsec, Hz > > >	createGainFunction (const simtime_t startTime, const simtime_t endTime, Hz centerFrequency, Hz bandwidth) const

virtual Ptr< const IFunction< WpHz, Domain< simsec, Hz > > >	createPowerFunction (const simtime_t startTime, const simtime_t endTime, Hz centerFrequency, Hz bandwidth, W power) const

Protected Attributes
W	power

Protected Attributes inherited from inet::physicallayer::DimensionalTransmitterBase
const IInterpolator< simsec, double > *	firstTimeInterpolator = nullptr

const IInterpolator< Hz, double > *	firstFrequencyInterpolator = nullptr

std::vector< GainEntry< simsec > >	timeGains

std::vector< GainEntry< Hz > >	frequencyGains

const char *	timeGainsNormalization = nullptr

const char *	frequencyGainsNormalization = nullptr

int	gainFunctionCacheLimit = -1

std::map< std::tuple< simtime_t, Hz, Hz >, Ptr< const IFunction< double, Domain< simsec, Hz > > > >	gainFunctionCache

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ DimensionalBackgroundNoise()

inet::physicallayer::DimensionalBackgroundNoise::DimensionalBackgroundNoise ( )

                                                        :
     power(W(NaN))
 {
 }

Member Function Documentation

◆ computeNoise()

const INoise * inet::physicallayer::DimensionalBackgroundNoise::computeNoise ( const IListening * listening ) const

overridevirtual

Implements inet::physicallayer::IBackgroundNoise.

 {
     const BandListening *bandListening = check_and_cast<const BandListening *>(listening);
     const simtime_t startTime = listening->getStartTime();
     const simtime_t endTime = listening->getEndTime();
     Hz centerFrequency = bandListening->getCenterFrequency();
     Hz bandwidth = bandListening->getBandwidth();
     const auto& powerFunction = createPowerFunction(startTime, endTime, centerFrequency, bandwidth, power);
     return new DimensionalNoise(startTime, endTime, centerFrequency, bandwidth, powerFunction);
 }

◆ initialize()

void inet::physicallayer::DimensionalBackgroundNoise::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::DimensionalTransmitterBase.

 {
     DimensionalTransmitterBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         power = mW(dBmW2mW(par("power")));
     }
 }

◆ printToStream()

std::ostream & inet::physicallayer::DimensionalBackgroundNoise::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::DimensionalTransmitterBase.

 {
     stream << "DimensionalBackgroundNoise";
     return DimensionalTransmitterBase::printToStream(stream, level);
 }

Member Data Documentation

◆ power

W inet::physicallayer::DimensionalBackgroundNoise::power

protected

Referenced by computeNoise(), and initialize().

The documentation for this class was generated from the following files:
