inet::SocketTagBase Class Reference

Class generated from inet/common/socket/SocketTag.msg:13 by opp_msgtool. More...

#include <SocketTag_m.h>

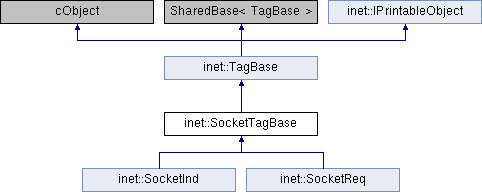

Inheritance diagram for inet::SocketTagBase:

Public Member Functions
	SocketTagBase ()
	SocketTagBase (const SocketTagBase &other)
virtual	~SocketTagBase ()
SocketTagBase &	operator= (const SocketTagBase &other)
virtual SocketTagBase *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual int	getSocketId () const
virtual void	setSocketId (int socketId)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const SocketTagBase &)=delete

Protected Attributes
int	socketId = -1

Private Member Functions
void	copy (const SocketTagBase &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/common/socket/SocketTag.msg:13 by opp_msgtool.

class SocketTagBase extends TagBase
{
    int socketId = -1; // a locally unique (network node) identifier that determines the application socket
}

Constructor & Destructor Documentation

SocketTagBase() [1/2]

inet::SocketTagBase::SocketTagBase

(

)

SocketTagBase() [2/2]

inet::SocketTagBase::SocketTagBase

(

const SocketTagBase &

other

)

~SocketTagBase()

virtual inet::SocketTagBase::~SocketTagBase ( )

virtual

Member Function Documentation

copy()

void inet::SocketTagBase::copy ( const SocketTagBase &  other )

private

dup()

virtual SocketTagBase* inet::SocketTagBase::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::SocketInd, and inet::SocketReq.

{return new SocketTagBase(*this);}

getSocketId()

virtual int inet::SocketTagBase::getSocketId ( ) const

virtual

Referenced by inet::SocketBase::belongsToSocket(), inet::UdpSocket::belongsToSocket(), inet::TcpSocket::belongsToSocket(), inet::MessageDispatcher::handleMessage(), inet::MessageDispatcher::handlePacket(), inet::Tun::handleUpperPacket(), and inet::Udp::handleUpperPacket().

operator=()

SocketTagBase& inet::SocketTagBase::operator=

(

const SocketTagBase &

other

)

operator==()

bool inet::SocketTagBase::operator== ( const SocketTagBase &  )

protecteddelete

parsimPack()

virtual void inet::SocketTagBase::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::SocketInd, and inet::SocketReq.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::SocketTagBase::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::SocketInd, and inet::SocketReq.

Referenced by inet::doParsimUnpacking().

setSocketId()

virtual void inet::SocketTagBase::setSocketId ( int  socketId )

virtual

Member Data Documentation

socketId

int inet::SocketTagBase::socketId = -1

protected

---

The documentation for this class was generated from the following file:

• SocketTag_m.h
