inet::SocketInd Class Reference

Class generated from inet/common/socket/SocketTag.msg:28 by opp_msgtool. More...

#include <SocketTag_m.h>

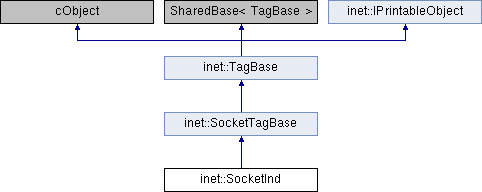

Inheritance diagram for inet::SocketInd:

Public Member Functions
	SocketInd ()
	SocketInd (const SocketInd &other)
virtual	~SocketInd ()
SocketInd &	operator= (const SocketInd &other)
virtual SocketInd *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::SocketTagBase
	SocketTagBase ()
	SocketTagBase (const SocketTagBase &other)
virtual	~SocketTagBase ()
SocketTagBase &	operator= (const SocketTagBase &other)
virtual int	getSocketId () const
virtual void	setSocketId (int socketId)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const SocketInd &)=delete
Protected Member Functions inherited from inet::SocketTagBase
bool	operator== (const SocketTagBase &)=delete

Private Member Functions
void	copy (const SocketInd &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::SocketTagBase
int	socketId = -1

Detailed Description

Class generated from inet/common/socket/SocketTag.msg:28 by opp_msgtool.

//
// Specifies the application socket of an incoming packet, received by the application.
//
class SocketInd extends SocketTagBase
{
}

Constructor & Destructor Documentation

SocketInd() [1/2]

inet::SocketInd::SocketInd

(

)

SocketInd() [2/2]

inet::SocketInd::SocketInd

(

const SocketInd &

other

)

~SocketInd()

virtual inet::SocketInd::~SocketInd ( )

virtual

Member Function Documentation

copy()

void inet::SocketInd::copy ( const SocketInd &  other )

private

dup()

virtual SocketInd* inet::SocketInd::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::SocketTagBase.

{return new SocketInd(*this);}

operator=()

SocketInd& inet::SocketInd::operator=

(

const SocketInd &

other

)

operator==()

bool inet::SocketInd::operator== ( const SocketInd &  )

protecteddelete

parsimPack()

virtual void inet::SocketInd::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::SocketTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::SocketInd::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::SocketTagBase.

Referenced by inet::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• SocketTag_m.h
