inet::SocketBase Class Reference

#include <SocketBase.h>

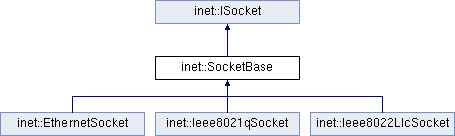

Inheritance diagram for inet::SocketBase:

Public Member Functions
	SocketBase ()
virtual	~SocketBase ()
Setting up a socket
void	setOutputGate (cGate *gate)
	Sets the gate on which to send messages. More...
int	getSocketId () const override
	Returns the internal socket Id. More...
Opening and closing connections, sending data
virtual void	send (Packet *packet) override
	Sends a data packet to the address and port specified previously in a connect() call. More...
virtual bool	isOpen () const override
	Returns true if the socket is open. More...
virtual void	close () override
	Unbinds the socket. More...
virtual void	destroy () override
	Notify the protocol that the owner of ISocket has destroyed the socket. More...
Handling of messages
virtual bool	belongsToSocket (cMessage *msg) const override
	Returns true if the message belongs to this socket instance. More...
User data
void *	getUserData () const
void	setUserData (void *userData)
Public Member Functions inherited from inet::ISocket
virtual	~ISocket ()
virtual void	processMessage (cMessage *msg)=0
	Examines the message, takes ownership, and updates socket state. More...

Protected Member Functions
virtual void	sendOut (cMessage *msg)

Protected Attributes
cGate *	outputGate = nullptr
int	socketId = -1
bool	isOpen_ = false
void *	userData = nullptr

Constructor & Destructor Documentation

SocketBase()

inet::SocketBase::SocketBase

(

)

{
    // don't allow user-specified socketIds because they may conflict with
    // automatically assigned ones.
    socketId = getEnvir()->getUniqueNumber();
    outputGate = nullptr;
}

~SocketBase()

virtual inet::SocketBase::~SocketBase ( )

inlinevirtual

{}

Member Function Documentation

belongsToSocket()

bool inet::SocketBase::belongsToSocket ( cMessage *  msg ) const

overridevirtual

Returns true if the message belongs to this socket instance.

Implements inet::ISocket.

{
    auto& tags = check_and_cast<ITaggedObject *>(msg)->getTags();
    const auto& socketInd = tags.findTag<SocketInd>();
    return socketInd != nullptr && socketInd->getSocketId() == socketId;
}

Referenced by inet::EthernetSocketIo::handleMessageWhenUp(), inet::Ieee8022LlcSocketIo::handleMessageWhenUp(), inet::Ieee8022LlcSocket::processMessage(), inet::EthernetSocket::processMessage(), and inet::Ieee8021qSocket::processMessage().

close()

void inet::SocketBase::close ( )

overridevirtual

Unbinds the socket.

Once closed, a closed socket may be bound to another (or the same) port, and reused.

Implements inet::ISocket.

{
    auto request = new Request("CLOSE", SOCKET_C_CLOSE);
    auto *ctrl = new SocketCloseCommand();
    request->setControlInfo(ctrl);
    isOpen_ = true;
    sendOut(request);
}

Referenced by inet::EthernetSocketIo::handleStopOperation(), inet::EtherAppServer::handleStopOperation(), inet::Ieee8022LlcSocketIo::handleStopOperation(), inet::EtherTrafGen::handleStopOperation(), and inet::EtherAppClient::handleStopOperation().

destroy()

void inet::SocketBase::destroy ( )

overridevirtual

Notify the protocol that the owner of ISocket has destroyed the socket.

Typically used when the owner of ISocket has crashed.

Implements inet::ISocket.

{
    auto request = new Request("destroy", SOCKET_C_DESTROY);
    auto *ctrl = new SocketDestroyCommand();
    request->setControlInfo(ctrl);
    sendOut(request);
    isOpen_ = false;
}

Referenced by inet::EthernetSocketIo::handleCrashOperation(), inet::EtherAppServer::handleCrashOperation(), inet::Ieee8022LlcSocketIo::handleCrashOperation(), inet::EtherTrafGen::handleCrashOperation(), and inet::EtherAppClient::handleCrashOperation().

getSocketId()

int inet::SocketBase::getSocketId ( ) const

inlineoverridevirtual

Returns the internal socket Id.

Implements inet::ISocket.

{ return socketId; }

getUserData()

void* inet::SocketBase::getUserData ( ) const

inline

{ return userData; }

isOpen()

virtual bool inet::SocketBase::isOpen ( ) const

inlineoverridevirtual

Returns true if the socket is open.

Implements inet::ISocket.

{ return isOpen_; }

Referenced by inet::EtherAppServer::socketClosed(), and inet::EtherAppClient::socketClosed().

send()

void inet::SocketBase::send ( Packet *  packet )

overridevirtual

Sends a data packet to the address and port specified previously in a connect() call.

Implements inet::ISocket.

{
    packet->setKind(SOCKET_C_DATA);
    isOpen_ = true;
    sendOut(packet);
}

Referenced by inet::EthernetSocketIo::handleMessageWhenUp(), inet::Ieee8022LlcSocketIo::handleMessageWhenUp(), inet::EtherAppServer::sendPacket(), and inet::EtherAppClient::sendPacket().

sendOut()

void inet::SocketBase::sendOut ( cMessage *  msg )

protectedvirtual

Reimplemented in inet::Ieee8021qSocket, inet::EthernetSocket, and inet::Ieee8022LlcSocket.

{
    if (!isOpen_)
        throw cRuntimeError("Socket is closed");
    if (!outputGate)
        throw cRuntimeError("Socket output gate is not set");
    EV_DEBUG << "Sending message" << EV_FIELD(msg) << EV_ENDL;
    auto& tags = check_and_cast<ITaggedObject *>(msg)->getTags();
    tags.addTagIfAbsent<SocketReq>()->setSocketId(socketId);
    check_and_cast<cSimpleModule *>(outputGate->getOwnerModule())->send(msg, outputGate);
}

Referenced by close(), destroy(), send(), inet::Ieee8022LlcSocket::sendOut(), inet::EthernetSocket::sendOut(), and inet::Ieee8021qSocket::sendOut().

setOutputGate()

void inet::SocketBase::setOutputGate ( cGate *  gate )

inline

Sets the gate on which to send messages.

Must be invoked before socket can be used. Example: socket.setOutputGate(gate("out"));

{ this->outputGate = gate; }

Referenced by inet::EthernetSocketIo::handleStartOperation(), inet::Ieee8022LlcSocketIo::handleStartOperation(), inet::EtherAppServer::initialize(), inet::EtherAppClient::initialize(), and inet::EtherTrafGen::initialize().

setUserData()

void inet::SocketBase::setUserData ( void *  userData )

inline

{ this->userData = userData; }

Member Data Documentation

isOpen_

bool inet::SocketBase::isOpen_ = false

protected

Referenced by inet::EthernetSocket::bind(), inet::Ieee8021qSocket::bind(), close(), destroy(), inet::Ieee8022LlcSocket::open(), inet::Ieee8022LlcSocket::processMessage(), inet::EthernetSocket::processMessage(), inet::Ieee8021qSocket::processMessage(), send(), and sendOut().

outputGate

cGate* inet::SocketBase::outputGate = nullptr

protected

Referenced by sendOut(), and SocketBase().

socketId

int inet::SocketBase::socketId = -1

protected

Referenced by belongsToSocket(), sendOut(), and SocketBase().

userData

void* inet::SocketBase::userData = nullptr

protected

---

The documentation for this class was generated from the following files:

• SocketBase.h
• SocketBase.cc
