inet::ISocket Class Reference

This class provides an interface that should be implemented by all sockets. More...

#include <ISocket.h>

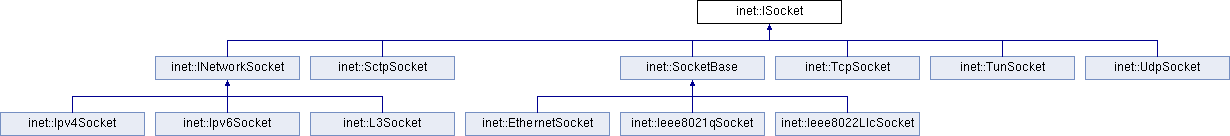

Inheritance diagram for inet::ISocket:

Public Member Functions
virtual	~ISocket ()
virtual int	getSocketId () const =0
	Returns the socket Id which is unique within the network node. More...
virtual bool	belongsToSocket (cMessage *msg) const =0
	Returns true if the message belongs to this socket. More...
virtual void	processMessage (cMessage *msg)=0
	Examines the message, takes ownership, and updates socket state. More...
virtual void	send (Packet *packet)=0
virtual void	close ()=0
	Close the socket. More...
virtual void	destroy ()=0
	Notify the protocol that the owner of ISocket has destroyed the socket. More...
virtual bool	isOpen () const =0

Detailed Description

This class provides an interface that should be implemented by all sockets.

Constructor & Destructor Documentation

~ISocket()

virtual inet::ISocket::~ISocket ( )

inlinevirtual

{}

Member Function Documentation

belongsToSocket()

virtual bool inet::ISocket::belongsToSocket ( cMessage *  msg ) const

pure virtual

Returns true if the message belongs to this socket.

Implemented in inet::TcpSocket, inet::SctpSocket, inet::UdpSocket, inet::TunSocket, inet::SocketBase, inet::L3Socket, inet::Ipv4Socket, and inet::Ipv6Socket.

Referenced by inet::VirtualTunnel::handleMessage().

close()

virtual void inet::ISocket::close ( )

pure virtual

Close the socket.

Implemented in inet::INetworkSocket, inet::TcpSocket, inet::SctpSocket, inet::UdpSocket, inet::TunSocket, inet::L3Socket, inet::Ipv4Socket, inet::Ipv6Socket, and inet::SocketBase.

destroy()

virtual void inet::ISocket::destroy ( )

pure virtual

Notify the protocol that the owner of ISocket has destroyed the socket.

Typically used when the owner of ISocket has crashed.

Implemented in inet::SctpSocket, inet::TcpSocket, inet::UdpSocket, inet::TunSocket, inet::L3Socket, inet::Ipv4Socket, inet::Ipv6Socket, and inet::SocketBase.

Referenced by inet::PingApp::handleCrashOperation().

getSocketId()

virtual int inet::ISocket::getSocketId ( ) const

pure virtual

Returns the socket Id which is unique within the network node.

Implemented in inet::TcpSocket, inet::SctpSocket, inet::UdpSocket, inet::TunSocket, inet::L3Socket, inet::Ipv4Socket, inet::Ipv6Socket, and inet::SocketBase.

Referenced by inet::SocketMap::addSocket(), and inet::SocketMap::removeSocket().

isOpen()

virtual bool inet::ISocket::isOpen ( ) const

pure virtual

Implemented in inet::TcpSocket, inet::SctpSocket, inet::UdpSocket, inet::TunSocket, inet::L3Socket, inet::Ipv4Socket, inet::Ipv6Socket, and inet::SocketBase.

processMessage()

virtual void inet::ISocket::processMessage ( cMessage *  msg )

pure virtual

Examines the message, takes ownership, and updates socket state.

Implemented in inet::TcpSocket, inet::SctpSocket, inet::UdpSocket, inet::Ieee8021qSocket, inet::TunSocket, inet::EthernetSocket, inet::Ieee8022LlcSocket, inet::L3Socket, inet::Ipv4Socket, and inet::Ipv6Socket.

Referenced by inet::VirtualTunnel::handleMessage(), and inet::Ldp::handleMessageWhenUp().

send()

virtual void inet::ISocket::send ( Packet *  packet )

pure virtual

Implemented in inet::SctpSocket, inet::TunSocket, inet::L3Socket, inet::Ipv4Socket, inet::Ipv6Socket, inet::SocketBase, inet::TcpSocket, and inet::UdpSocket.

Referenced by inet::VirtualTunnel::handleMessage(), and inet::PingApp::sendPingRequest().

---

The documentation for this class was generated from the following file:

• ISocket.h
