inet::Ipv6Route Class Reference

Represents a route in the route table. More...

#include <Ipv6Route.h>

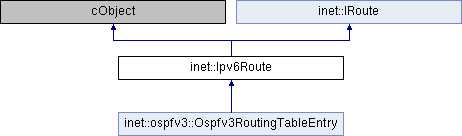

Inheritance diagram for inet::Ipv6Route:

Public Types
enum	RouteAdminDist {   dDirectlyConnected = 0, dStatic = 1, dEIGRPSummary = 5, dBGPExternal = 20,   dEIGRPInternal = 90, dIGRP = 100, dOSPF = 110, dISIS = 115,   dRIP = 120, dEGP = 140, dODR = 160, dEIGRPExternal = 170,   dBGPInternal = 200, dDHCPlearned = 254, dBABEL = 125, dLISP = 210,   dUnknown = 255 }
	Cisco like administrative distances (includes Ipv4 protocols) More...
Public Types inherited from inet::IRoute
enum	SourceType {   MANUAL, IFACENETMASK, ROUTER_ADVERTISEMENT, OWN_ADV_PREFIX,   ICMP_REDIRECT, RIP, OSPF, BGP,   ZEBRA, MANET, MANET2, DYMO,   AODV, EIGRP, LISP, BABEL,   ODR, UNKNOWN, ISIS }
	Specifies where the route comes from. More...
enum	ChangeCodes {   F_DESTINATION, F_PREFIX_LENGTH, F_NEXTHOP, F_IFACE,   F_SOURCE, F_TYPE, F_ADMINDIST, F_METRIC,   F_EXPIRYTIME, F_LAST }
	Field codes for NB_ROUTE_CHANGED notifications. More...
enum	RouteAdminDist {   dDirectlyConnected = 0, dStatic = 1, dEIGRPSummary = 5, dBGPExternal = 20,   dEIGRPInternal = 90, dIGRP = 100, dOSPF = 110, dISIS = 115,   dRIP = 120, dEGP = 140, dODR = 160, dEIGRPExternal = 170,   dBGPInternal = 200, dDHCPlearned = 254, dBABEL = 125, dLISP = 210,   dUnknown = 255 }
	Cisco like administrative distances. More...

Public Member Functions
	Ipv6Route (Ipv6Address destPrefix, int prefixLength, SourceType sourceType)
	Constructor. More...
virtual	~Ipv6Route ()
virtual std::string	str () const override
virtual std::string	detailedInfo () const
virtual void	setRoutingTable (Ipv6RoutingTable *rt)
	To be called by the routing table when this route is added or removed from it. More...
Ipv6RoutingTable *	getRoutingTable () const
void	setNextHop (const Ipv6Address &nextHop)
void	setExpiryTime (simtime_t expiryTime)
void	setMetric (int metric) override
void	setAdminDist (unsigned int adminDist) override
const Ipv6Address &	getDestPrefix () const
virtual int	getPrefixLength () const override
	Represents length of prefix to match. More...
virtual SourceType	getSourceType () const override
	Source type of the route. More...
const Ipv6Address &	getNextHop () const
simtime_t	getExpiryTime () const
virtual int	getMetric () const override
	Cost to reach the destination. More...
unsigned int	getAdminDist () const
virtual IRoutingTable *	getRoutingTableAsGeneric () const override
	The routing table in which this route is inserted, or nullptr. More...
virtual void	setDestination (const L3Address &dest) override
virtual void	setPrefixLength (int prefixLength) override
virtual void	setNextHop (const L3Address &nextHop) override
virtual void	setSource (cObject *source) override
virtual void	setSourceType (SourceType type) override
const char *	getSourceTypeAbbreviation () const
virtual L3Address	getDestinationAsGeneric () const override
	Destination address prefix to match. More...
virtual L3Address	getNextHopAsGeneric () const override
	Next hop address. More...
virtual NetworkInterface *	getInterface () const override
	Next hop interface. More...
virtual void	setInterface (NetworkInterface *ie) override
virtual cObject *	getSource () const override
	Source of route. More...
virtual cObject *	getProtocolData () const override
virtual void	setProtocolData (cObject *protocolData) override
Public Member Functions inherited from inet::IRoute
virtual	~IRoute ()

Protected Member Functions
void	changed (int fieldCode)
	Routing Protocol specific data. More...

Protected Attributes
Ipv6RoutingTable *	_rt
Ipv6Address	_destPrefix
short	_prefixLength
SourceType	_sourceType
NetworkInterface *	_interfacePtr
Ipv6Address	_nextHop
simtime_t	_expiryTime
int	_metric
unsigned int	_adminDist
cObject *	_source
cObject *	_protocolData
	Object identifying the source. More...

Additional Inherited Members
Static Public Member Functions inherited from inet::IRoute
static const char *	sourceTypeName (SourceType sourceType)

Detailed Description

Represents a route in the route table.

Routes with sourceType=ROUTER_ADVERTISEMENT represent on-link prefixes advertised by routers.

Member Enumeration Documentation

RouteAdminDist

enum inet::Ipv6Route::RouteAdminDist

Cisco like administrative distances (includes Ipv4 protocols)

Enumerator
dDirectlyConnected
dStatic
dEIGRPSummary
dBGPExternal
dEIGRPInternal
dIGRP
dOSPF
dISIS
dRIP
dEGP
dODR
dEIGRPExternal
dBGPInternal
dDHCPlearned
dBABEL
dLISP
dUnknown

                        {
        dDirectlyConnected = 0,
        dStatic            = 1,
        dEIGRPSummary      = 5,
        dBGPExternal       = 20,
        dEIGRPInternal     = 90,
        dIGRP              = 100,
        dOSPF              = 110,
        dISIS              = 115,
        dRIP               = 120,
        dEGP               = 140,
        dODR               = 160,
        dEIGRPExternal     = 170,
        dBGPInternal       = 200,
        dDHCPlearned       = 254,
        dBABEL             = 125,
        dLISP              = 210,
        dUnknown           = 255
    };

Constructor & Destructor Documentation

Ipv6Route()

inet::Ipv6Route::Ipv6Route ( Ipv6Address  destPrefix, int  prefixLength, SourceType  sourceType  )

inline

Constructor.

The destination prefix and the route source is passed to the constructor and cannot be changed afterwards.

    {
        _rt = nullptr;
        _destPrefix = destPrefix;
        _prefixLength = prefixLength;
        _sourceType = sourceType;
        _interfacePtr = nullptr;
        _expiryTime = 0;
        _metric = 0;
        _adminDist = dUnknown;
        _source = nullptr;
        _protocolData = nullptr;
    }

~Ipv6Route()

virtual inet::Ipv6Route::~Ipv6Route ( )

inlinevirtual

{ delete _protocolData; }

Member Function Documentation

changed()

void inet::Ipv6Route::changed ( int  fieldCode )

protected

Routing Protocol specific data.

{
    if (_rt)
        _rt->routeChanged(this, fieldCode);
}

detailedInfo()

std::string inet::Ipv6Route::detailedInfo ( ) const

virtual

{
    return std::string();
}

getAdminDist()

unsigned int inet::Ipv6Route::getAdminDist ( ) const

inline

{ return _adminDist; }

Referenced by getSourceTypeAbbreviation(), inet::eigrp::EigrpIpv6Pdm::isRTSafeForAdd(), inet::eigrp::EigrpIpv6Pdm::processRTRouteDel(), inet::Ipv6RoutingTable::routeLessThan(), and str().

getDestinationAsGeneric()

virtual L3Address inet::Ipv6Route::getDestinationAsGeneric ( ) const

inlineoverridevirtual

Destination address prefix to match.

Implements inet::IRoute.

{ return getDestPrefix(); } // TODO rename Ipv6 method

Referenced by inet::ospfv3::operator<<(), inet::ospfv3::Ospfv3RoutingTableEntry::operator==(), and inet::ospfv3::Ospfv3RoutingTableEntry::Ospfv3RoutingTableEntry().

getDestPrefix()

const Ipv6Address& inet::Ipv6Route::getDestPrefix ( ) const

inline

{ return _destPrefix; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), getSourceTypeAbbreviation(), inet::ospfv3::Ospfv3Process::isInRoutingTable6(), inet::eigrp::EigrpIpv6Pdm::processIfaceStateChange(), inet::eigrp::EigrpIpv6Pdm::processRTRouteDel(), inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs(), and str().

getExpiryTime()

simtime_t inet::Ipv6Route::getExpiryTime ( ) const

inline

{ return _expiryTime; }

Referenced by inet::Ipv6NeighbourDiscovery::determineNextHop(), and inet::Ipv6::determineOutputInterface().

getInterface()

virtual NetworkInterface* inet::Ipv6Route::getInterface ( ) const

inlineoverridevirtual

Next hop interface.

Implements inet::IRoute.

{ return _interfacePtr; }

Referenced by inet::Ipv6RoutingTable::deleteInterfaceRoutes(), inet::Ipv6NeighbourDiscovery::determineNextHop(), inet::Ipv6::determineOutputInterface(), inet::ospfv3::operator<<(), inet::ospfv3::Ospfv3RoutingTableEntry::Ospfv3RoutingTableEntry(), inet::eigrp::EigrpIpv6Pdm::processIfaceStateChange(), and str().

getMetric()

virtual int inet::Ipv6Route::getMetric ( ) const

inlineoverridevirtual

Cost to reach the destination.

Implements inet::IRoute.

{ return _metric; }

Referenced by inet::eigrp::EigrpIpv6Pdm::installRouteToRT(), inet::ospfv3::Ospfv3RoutingTableEntry::Ospfv3RoutingTableEntry(), inet::Ipv6RoutingTable::routeLessThan(), and str().

getNextHop()

const Ipv6Address& inet::Ipv6Route::getNextHop ( ) const

inline

{ return _nextHop; }

Referenced by inet::Ipv6NeighbourDiscovery::determineNextHop(), inet::Ipv6::determineOutputInterface(), inet::eigrp::EigrpIpv6Pdm::processIfaceStateChange(), inet::eigrp::EigrpIpv6Pdm::processRTRouteDel(), and str().

getNextHopAsGeneric()

virtual L3Address inet::Ipv6Route::getNextHopAsGeneric ( ) const

inlineoverridevirtual

Next hop address.

Implements inet::IRoute.

{ return getNextHop(); }

getPrefixLength()

virtual int inet::Ipv6Route::getPrefixLength ( ) const

inlineoverridevirtual

Represents length of prefix to match.

Implements inet::IRoute.

{ return _prefixLength; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::Ospfv3Process::isInRoutingTable6(), inet::ospfv3::operator<<(), inet::ospfv3::Ospfv3RoutingTableEntry::operator==(), inet::eigrp::EigrpIpv6Pdm::processRTRouteDel(), inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs(), inet::Ipv6RoutingTable::routeLessThan(), and str().

getProtocolData()

virtual cObject* inet::Ipv6Route::getProtocolData ( ) const

inlineoverridevirtual

Implements inet::IRoute.

{ return _protocolData; }

getRoutingTable()

Ipv6RoutingTable* inet::Ipv6Route::getRoutingTable ( ) const

inline

{ return _rt; }

Referenced by getRoutingTableAsGeneric(), inet::Ipv6RoutingTable::internalAddRoute(), and inet::Ipv6RoutingTable::internalRemoveRoute().

getRoutingTableAsGeneric()

IRoutingTable * inet::Ipv6Route::getRoutingTableAsGeneric ( ) const

overridevirtual

The routing table in which this route is inserted, or nullptr.

Implements inet::IRoute.

{
    return getRoutingTable();
}

getSource()

virtual cObject* inet::Ipv6Route::getSource ( ) const

inlineoverridevirtual

Source of route.

Implements inet::IRoute.

{ return _source; }

getSourceType()

virtual SourceType inet::Ipv6Route::getSourceType ( ) const

inlineoverridevirtual

Source type of the route.

Implements inet::IRoute.

{ return _sourceType; }

Referenced by inet::eigrp::EigrpIpv6Pdm::installRouteToRT(), inet::ospfv3::Ospfv3RoutingTableEntry::Ospfv3RoutingTableEntry(), inet::ospfv3::Ospfv3Process::rebuildRoutingTable(), and inet::eigrp::EigrpIpv6Pdm::removeRouteFromRT().

getSourceTypeAbbreviation()

const char * inet::Ipv6Route::getSourceTypeAbbreviation

(

)

const

                                                           {
    switch (_sourceType) {
        case IFACENETMASK:
            return "C";
        case MANUAL:
            return getDestPrefix().isUnspecified() ? "S*" : "S";
        case ROUTER_ADVERTISEMENT:
            return "ra";
        case RIP:
            return "R";
        case OSPF:
            return "O";
        case BGP:
            return "B";
        case EIGRP:
            return getAdminDist() < Ipv6Route::dEIGRPExternal ? "D" : "D EX";
        case LISP:
            return "l";
        case BABEL:
            return "ba";
        case ODR:
            return "o";
        default:
            return "???";
    }
}

Referenced by str().

setAdminDist()

void inet::Ipv6Route::setAdminDist ( unsigned int  adminDist )

inlineoverridevirtual

Implements inet::IRoute.

{ if (_adminDist != adminDist) { _adminDist = adminDist; changed(F_ADMINDIST); } }

Referenced by inet::Ipv6RoutingTable::addDefaultRoute(), inet::Ipv6RoutingTable::addOrUpdateOnLinkPrefix(), inet::Ipv6RoutingTable::addOrUpdateOwnAdvPrefix(), inet::Ipv6RoutingTable::addStaticRoute(), inet::eigrp::EigrpIpv6Pdm::createRTRoute(), inet::ospfv3::Ospfv3Process::parseConfig(), and inet::ospfv3::Ospfv3Process::rebuildRoutingTable().

setDestination()

virtual void inet::Ipv6Route::setDestination ( const L3Address &  dest )

inlineoverridevirtual

Implements inet::IRoute.

{ if (_destPrefix != dest.toIpv6()) { _destPrefix = dest.toIpv6(); changed(F_DESTINATION); } }

Referenced by inet::ospfv3::Ospfv3RoutingTableEntry::Ospfv3RoutingTableEntry().

setExpiryTime()

void inet::Ipv6Route::setExpiryTime ( simtime_t  expiryTime )

inline

{ if (expiryTime != _expiryTime) { _expiryTime = expiryTime; changed(F_EXPIRYTIME); } }

Referenced by inet::Ipv6RoutingTable::addDefaultRoute(), inet::Ipv6RoutingTable::addOrUpdateOnLinkPrefix(), inet::Ipv6RoutingTable::addOrUpdateOwnAdvPrefix(), inet::ospfv3::Ospfv3Process::parseConfig(), and inet::ospfv3::Ospfv3Process::rebuildRoutingTable().

setInterface()

virtual void inet::Ipv6Route::setInterface ( NetworkInterface *  ie )

inlineoverridevirtual

Implements inet::IRoute.

{ if (_interfacePtr != ie) { _interfacePtr = ie; changed(F_IFACE); } }

Referenced by inet::Ipv6RoutingTable::addDefaultRoute(), inet::ospfv3::Ospfv3RoutingTableEntry::addNextHop(), inet::Ipv6RoutingTable::addOrUpdateOnLinkPrefix(), inet::Ipv6RoutingTable::addOrUpdateOwnAdvPrefix(), inet::Ipv6RoutingTable::addStaticRoute(), inet::eigrp::EigrpIpv6Pdm::createRTRoute(), inet::ospfv3::Ospfv3RoutingTableEntry::Ospfv3RoutingTableEntry(), inet::ospfv3::Ospfv3Process::parseConfig(), and inet::ospfv3::Ospfv3Process::rebuildRoutingTable().

setMetric()

void inet::Ipv6Route::setMetric ( int  metric )

inlineoverridevirtual

Implements inet::IRoute.

{ if (_metric != metric) { _metric = metric; changed(F_METRIC); } }

Referenced by inet::Ipv6RoutingTable::addDefaultRoute(), inet::Ipv6RoutingTable::addOrUpdateOnLinkPrefix(), inet::Ipv6RoutingTable::addOrUpdateOwnAdvPrefix(), inet::Ipv6RoutingTable::addStaticRoute(), inet::ospfv3::Ospfv3RoutingTableEntry::Ospfv3RoutingTableEntry(), inet::ospfv3::Ospfv3Process::parseConfig(), inet::ospfv3::Ospfv3Process::rebuildRoutingTable(), inet::ospfv3::Ospfv3RoutingTableEntry::setCost(), inet::ospfv3::Ospfv3RoutingTableEntry::setPathType(), inet::eigrp::EigrpIpv6Pdm::setRTRouteMetric(), and inet::ospfv3::Ospfv3RoutingTableEntry::setType2Cost().

setNextHop() [1/2]

void inet::Ipv6Route::setNextHop ( const Ipv6Address &  nextHop )

inline

{ if (_nextHop != nextHop) { _nextHop = nextHop; changed(F_NEXTHOP); } }

Referenced by inet::Ipv6RoutingTable::addDefaultRoute(), inet::Ipv6RoutingTable::addStaticRoute(), inet::eigrp::EigrpIpv6Pdm::createRTRoute(), and inet::ospfv3::Ospfv3Process::rebuildRoutingTable().

setNextHop() [2/2]

virtual void inet::Ipv6Route::setNextHop ( const L3Address &  nextHop )

inlineoverridevirtual

Implements inet::IRoute.

{ if (_nextHop != nextHop.toIpv6()) { _nextHop = nextHop.toIpv6(); changed(F_NEXTHOP); } }

setPrefixLength()

virtual void inet::Ipv6Route::setPrefixLength ( int  prefixLength )

inlineoverridevirtual

Implements inet::IRoute.

{ if (_prefixLength != prefixLength) { _prefixLength = prefixLength; changed(F_PREFIX_LENGTH); } }

Referenced by inet::ospfv3::Ospfv3RoutingTableEntry::Ospfv3RoutingTableEntry().

setProtocolData()

virtual void inet::Ipv6Route::setProtocolData ( cObject *  protocolData )

inlineoverridevirtual

Implements inet::IRoute.

{ _protocolData = protocolData; }

setRoutingTable()

virtual void inet::Ipv6Route::setRoutingTable ( Ipv6RoutingTable *  rt )

inlinevirtual

To be called by the routing table when this route is added or removed from it.

{ _rt = rt; }

Referenced by inet::Ipv6RoutingTable::internalAddRoute(), and inet::Ipv6RoutingTable::internalRemoveRoute().

setSource()

virtual void inet::Ipv6Route::setSource ( cObject *  source )

inlineoverridevirtual

Implements inet::IRoute.

{ if (_source != source) { _source = source; changed(F_SOURCE); } }

setSourceType()

virtual void inet::Ipv6Route::setSourceType ( SourceType  type )

inlineoverridevirtual

Implements inet::IRoute.

{ if (_sourceType != type) { _sourceType = type; changed(F_TYPE); } }

Referenced by inet::ospfv3::Ospfv3RoutingTableEntry::Ospfv3RoutingTableEntry().

str()

std::string inet::Ipv6Route::str ( ) const

overridevirtual

{
    std::stringstream out;
    out << getSourceTypeAbbreviation();
    if (getDestPrefix().isUnspecified())
        out << " ::";
    else
        out << " " << getDestPrefix();
    out << "/" << getPrefixLength();
    if (getNextHop().isUnspecified()) {
        out << " is directly connected";
    }
    else {
        out << " [" << getAdminDist() << "/" << getMetric() << "]";
        out << " via ";
        out << getNextHop();
    }
    out << ", " << getInterface()->getInterfaceName();
    return out.str();
}

Member Data Documentation

_adminDist

unsigned int inet::Ipv6Route::_adminDist

protected

_destPrefix

Ipv6Address inet::Ipv6Route::_destPrefix

protected

_expiryTime

simtime_t inet::Ipv6Route::_expiryTime

protected

_interfacePtr

NetworkInterface* inet::Ipv6Route::_interfacePtr

protected

_metric

int inet::Ipv6Route::_metric

protected

_nextHop

Ipv6Address inet::Ipv6Route::_nextHop

protected

_prefixLength

short inet::Ipv6Route::_prefixLength

protected

_protocolData

cObject* inet::Ipv6Route::_protocolData

protected

Object identifying the source.

_rt

Ipv6RoutingTable* inet::Ipv6Route::_rt

protected

Referenced by changed().

_source

cObject* inet::Ipv6Route::_source

protected

_sourceType

SourceType inet::Ipv6Route::_sourceType

protected

Referenced by getSourceTypeAbbreviation().

---

The documentation for this class was generated from the following files:

• Ipv6Route.h
• Ipv6Route.cc
