#include <Ospfv3RoutingTableEntry.h>

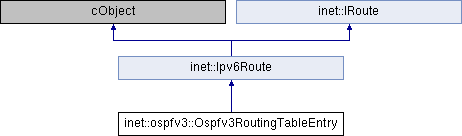

Inheritance diagram for inet::ospfv3::Ospfv3RoutingTableEntry:

Public Types
enum	RoutingPathType { INTRAAREA = 0, INTERAREA = 1, TYPE1_EXTERNAL = 2, TYPE2_EXTERNAL = 3 }

typedef unsigned char	RoutingDestinationType

Public Types inherited from inet::Ipv6Route
enum	RouteAdminDist { dDirectlyConnected = 0, dStatic = 1, dEIGRPSummary = 5, dBGPExternal = 20, dEIGRPInternal = 90, dIGRP = 100, dOSPF = 110, dISIS = 115, dRIP = 120, dEGP = 140, dODR = 160, dEIGRPExternal = 170, dBGPInternal = 200, dDHCPlearned = 254, dBABEL = 125, dLISP = 210, dUnknown = 255 }
	Cisco like administrative distances (includes Ipv4 protocols) More...

Public Types inherited from inet::IRoute
enum	SourceType { MANUAL, IFACENETMASK, ROUTER_ADVERTISEMENT, OWN_ADV_PREFIX, ICMP_REDIRECT, RIP, OSPF, BGP, ZEBRA, MANET, MANET2, DYMO, AODV, EIGRP, LISP, BABEL, ODR, UNKNOWN, ISIS }
	Specifies where the route comes from. More...

enum	ChangeCodes { F_DESTINATION, F_PREFIX_LENGTH, F_NEXTHOP, F_IFACE, F_SOURCE, F_TYPE, F_ADMINDIST, F_METRIC, F_EXPIRYTIME, F_LAST }
	Field codes for NB_ROUTE_CHANGED notifications. More...

enum	RouteAdminDist { dDirectlyConnected = 0, dStatic = 1, dEIGRPSummary = 5, dBGPExternal = 20, dEIGRPInternal = 90, dIGRP = 100, dOSPF = 110, dISIS = 115, dRIP = 120, dEGP = 140, dODR = 160, dEIGRPExternal = 170, dBGPInternal = 200, dDHCPlearned = 254, dBABEL = 125, dLISP = 210, dUnknown = 255 }
	Cisco like administrative distances. More...

Public Member Functions
	Ospfv3RoutingTableEntry (const Ospfv3RoutingTableEntry &entry, Ipv6Address destPrefix, int prefixLength, SourceType sourceType)

	Ospfv3RoutingTableEntry (IInterfaceTable *ift, Ipv6Address destPrefix, int prefixLength, SourceType sourceType)

virtual	~Ospfv3RoutingTableEntry ()

bool	operator== (const Ospfv3RoutingTableEntry &entry) const

bool	operator!= (const Ospfv3RoutingTableEntry &entry) const

void	setDestinationType (RoutingDestinationType type)

RoutingDestinationType	getDestinationType () const

void	setOptionalCapabilities (Ospfv3Options options)

Ospfv3Options	getOptionalCapabilities () const

void	setArea (AreaID source)

AreaID	getArea () const

void	setPathType (RoutingPathType type)

RoutingPathType	getPathType () const

void	setCost (Metric pathCost)

Metric	getCost () const

void	setType2Cost (Metric pathCost)

Metric	getType2Cost () const

void	setLinkStateOrigin (const Ospfv3Lsa *lsa)

const Ospfv3Lsa *	getLinkStateOrigin () const

void	addNextHop (NextHop hop)

void	clearNextHops ()

unsigned int	getNextHopCount () const

NextHop	getNextHop (unsigned int index) const

Public Member Functions inherited from inet::Ipv6Route
	Ipv6Route (Ipv6Address destPrefix, int prefixLength, SourceType sourceType)
	Constructor. More...

virtual	~Ipv6Route ()

virtual std::string	str () const override

virtual std::string	detailedInfo () const

virtual void	setRoutingTable (Ipv6RoutingTable *rt)
	To be called by the routing table when this route is added or removed from it. More...

Ipv6RoutingTable *	getRoutingTable () const

void	setNextHop (const Ipv6Address &nextHop)

void	setExpiryTime (simtime_t expiryTime)

void	setMetric (int metric) override

void	setAdminDist (unsigned int adminDist) override

const Ipv6Address &	getDestPrefix () const

virtual int	getPrefixLength () const override
	Represents length of prefix to match. More...

virtual SourceType	getSourceType () const override
	Source type of the route. More...

const Ipv6Address &	getNextHop () const

simtime_t	getExpiryTime () const

virtual int	getMetric () const override
	Cost to reach the destination. More...

unsigned int	getAdminDist () const

virtual IRoutingTable *	getRoutingTableAsGeneric () const override
	The routing table in which this route is inserted, or nullptr. More...

virtual void	setDestination (const L3Address &dest) override

virtual void	setPrefixLength (int prefixLength) override

virtual void	setNextHop (const L3Address &nextHop) override

virtual void	setSource (cObject *source) override

virtual void	setSourceType (SourceType type) override

const char *	getSourceTypeAbbreviation () const

virtual L3Address	getDestinationAsGeneric () const override
	Destination address prefix to match. More...

virtual L3Address	getNextHopAsGeneric () const override
	Next hop address. More...

virtual NetworkInterface *	getInterface () const override
	Next hop interface. More...

virtual void	setInterface (NetworkInterface *ie) override

virtual cObject *	getSource () const override
	Source of route. More...

virtual cObject *	getProtocolData () const override

virtual void	setProtocolData (cObject *protocolData) override

Public Member Functions inherited from inet::IRoute
virtual	~IRoute ()

Static Public Attributes
static const unsigned char	NETWORK_DESTINATION = 0

static const unsigned char	AREA_BORDER_ROUTER_DESTINATION = 1

static const unsigned char	AS_BOUNDARY_ROUTER_DESTINATION = 2

Private Attributes
IInterfaceTable *	ift = nullptr

RoutingDestinationType	destinationType = 0

Ospfv3Options	optionalCapabilities

AreaID	area

RoutingPathType	pathType = (RoutingPathType) - 1

Metric	cost = 0

Metric	type2Cost = 0

const Ospfv3Lsa *	linkStateOrigin = nullptr

std::vector< NextHop >	nextHops

Additional Inherited Members
Static Public Member Functions inherited from inet::IRoute
static const char *	sourceTypeName (SourceType sourceType)

Protected Member Functions inherited from inet::Ipv6Route
void	changed (int fieldCode)
	Routing Protocol specific data. More...

Protected Attributes inherited from inet::Ipv6Route
Ipv6RoutingTable *	_rt

Ipv6Address	_destPrefix

short	_prefixLength

SourceType	_sourceType

NetworkInterface *	_interfacePtr

Ipv6Address	_nextHop

simtime_t	_expiryTime

int	_metric

unsigned int	_adminDist

cObject *	_source

cObject *	_protocolData
	Object identifying the source. More...

Member Typedef Documentation

◆ RoutingDestinationType

typedef unsigned char inet::ospfv3::Ospfv3RoutingTableEntry::RoutingDestinationType

Member Enumeration Documentation

◆ RoutingPathType

enum inet::ospfv3::Ospfv3RoutingTableEntry::RoutingPathType

Enumerator
INTRAAREA
INTERAREA
TYPE1_EXTERNAL
TYPE2_EXTERNAL

                          {
         INTRAAREA      = 0,
         INTERAREA      = 1,
         TYPE1_EXTERNAL = 2,
         TYPE2_EXTERNAL = 3
     };

Constructor & Destructor Documentation

◆ Ospfv3RoutingTableEntry() [1/2]

inet::ospfv3::Ospfv3RoutingTableEntry::Ospfv3RoutingTableEntry	(	const Ospfv3RoutingTableEntry &	entry,
		Ipv6Address	destPrefix,
		int	prefixLength,
		SourceType	sourceType
	)

                                                                                                                                                       :
     Ipv6Route(destPrefix, prefixLength, sourceType),
     destinationType(entry.destinationType),
     optionalCapabilities(entry.optionalCapabilities),
     area(entry.area),
     pathType(entry.pathType),
     cost(entry.cost),
     type2Cost(entry.type2Cost),
     linkStateOrigin(entry.linkStateOrigin),
     nextHops(entry.nextHops)
 {
     this->setDestination(entry.getDestinationAsGeneric());
     this->setPrefixLength(prefixLength);
     this->setInterface(entry.getInterface());
     this->setSourceType(entry.getSourceType());
     this->setMetric(entry.getMetric());
 }

◆ Ospfv3RoutingTableEntry() [2/2]

inet::ospfv3::Ospfv3RoutingTableEntry::Ospfv3RoutingTableEntry	(	IInterfaceTable *	ift,
		Ipv6Address	destPrefix,
		int	prefixLength,
		SourceType	sourceType
	)

                                                                                                                                       :
     Ipv6Route(destPrefix, prefixLength, sourceType),
     ift(ift),
     area(BACKBONE_AREAID),
     pathType(Ospfv3RoutingTableEntry::INTRAAREA)
 {
     this->setPrefixLength(prefixLength);
     this->setSourceType(IRoute::OSPF);
 }

◆ ~Ospfv3RoutingTableEntry()

virtual inet::ospfv3::Ospfv3RoutingTableEntry::~Ospfv3RoutingTableEntry ( )

inlinevirtual

49 {}

Member Function Documentation

◆ addNextHop()

void inet::ospfv3::Ospfv3RoutingTableEntry::addNextHop ( NextHop hop )

 {
     if (nextHops.size() == 0) {
         NetworkInterface *routingInterface = ift->getInterfaceById(hop.ifIndex);

         setInterface(routingInterface);
         // TODO this used to be commented out, but it seems we need it
         // otherwise gateways will never be filled in and gateway is needed for broadcast networks
 //        setGateway(hop.hopAddress);
     }
     nextHops.push_back(hop);
 }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ clearNextHops()

void inet::ospfv3::Ospfv3RoutingTableEntry::clearNextHops ( )

inline

69 { nextHops.clear(); }

Referenced by inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getArea()

AreaID inet::ospfv3::Ospfv3RoutingTableEntry::getArea ( ) const

inline

59 { return area; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getCost()

Metric inet::ospfv3::Ospfv3RoutingTableEntry::getCost ( ) const

inline

63 { return cost; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getDestinationType()

RoutingDestinationType inet::ospfv3::Ospfv3RoutingTableEntry::getDestinationType ( ) const

inline

55 { return destinationType; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getLinkStateOrigin()

const Ospfv3Lsa* inet::ospfv3::Ospfv3RoutingTableEntry::getLinkStateOrigin ( ) const

inline

67 { return linkStateOrigin; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::operator<<().

◆ getNextHop()

NextHop inet::ospfv3::Ospfv3RoutingTableEntry::getNextHop ( unsigned int index ) const

inline

71 { return nextHops[index]; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getNextHopCount()

unsigned int inet::ospfv3::Ospfv3RoutingTableEntry::getNextHopCount ( ) const

inline

70 { return nextHops.size(); }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getOptionalCapabilities()

Ospfv3Options inet::ospfv3::Ospfv3RoutingTableEntry::getOptionalCapabilities ( ) const

inline

57 { return optionalCapabilities; }

◆ getPathType()

RoutingPathType inet::ospfv3::Ospfv3RoutingTableEntry::getPathType ( ) const

inline

61 { return pathType; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getType2Cost()

Metric inet::ospfv3::Ospfv3RoutingTableEntry::getType2Cost ( ) const

inline

65 { return type2Cost; }

Referenced by inet::ospfv3::operator<<().

◆ operator!=()

bool inet::ospfv3::Ospfv3RoutingTableEntry::operator!= ( const Ospfv3RoutingTableEntry & entry ) const

inline

52 { return !((*this) == entry); }

◆ operator==()

bool inet::ospfv3::Ospfv3RoutingTableEntry::operator== ( const Ospfv3RoutingTableEntry & entry ) const

 {
     unsigned int hopCount = nextHops.size();
     unsigned int i = 0;

     if (hopCount != entry.nextHops.size()) {
         return false;
     }
     for (i = 0; i < hopCount; i++) {
         if ((nextHops[i] != entry.nextHops[i])) {
             return false;
         }
     }

     return (this->destinationType == entry.destinationType) &&
            (this->getDestinationAsGeneric() == entry.getDestinationAsGeneric()) &&
            (this->getPrefixLength() == entry.getPrefixLength()) &&
            (this->optionalCapabilities == entry.optionalCapabilities) &&
            (this->area == entry.area) &&
            (this->pathType == entry.pathType) &&
            (this->cost == entry.cost) &&
            (this->type2Cost == entry.type2Cost) &&
            (this->linkStateOrigin == entry.linkStateOrigin);
 }

◆ setArea()

void inet::ospfv3::Ospfv3RoutingTableEntry::setArea ( AreaID source )

inline

58 { area = source; }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA().

◆ setCost()

void inet::ospfv3::Ospfv3RoutingTableEntry::setCost ( Metric pathCost )

 {
     cost = pathCost;
     // FIXME this is a hack. But the correct way to do it is to implement a separate IIPv4RoutingTable module for OSPF...
     if (pathType == Ospfv3RoutingTableEntry::TYPE2_EXTERNAL) {
         setMetric(cost + type2Cost * 1000);
     }
     else {
         setMetric(cost);
     }
 }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA().

◆ setDestinationType()

void inet::ospfv3::Ospfv3RoutingTableEntry::setDestinationType ( RoutingDestinationType type )

inline

54 { destinationType = type; }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA().

◆ setLinkStateOrigin()

void inet::ospfv3::Ospfv3RoutingTableEntry::setLinkStateOrigin ( const Ospfv3Lsa * lsa )

inline

66 { linkStateOrigin = lsa; }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA().

◆ setOptionalCapabilities()

void inet::ospfv3::Ospfv3RoutingTableEntry::setOptionalCapabilities ( Ospfv3Options options )

inline

56 { optionalCapabilities = options; }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), and inet::ospfv3::Ospfv3Area::calculateShortestPathTree().

◆ setPathType()

void inet::ospfv3::Ospfv3RoutingTableEntry::setPathType ( RoutingPathType type )

 {
     pathType = type;
     // FIXME this is a hack. But the correct way to do it is to implement a separate IIPv4RoutingTable module for OSPF...
     if (pathType == Ospfv3RoutingTableEntry::TYPE2_EXTERNAL) {
         setMetric(cost + type2Cost * 1000);
     }
     else {
         setMetric(cost);
     }
 }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA().

◆ setType2Cost()

void inet::ospfv3::Ospfv3RoutingTableEntry::setType2Cost ( Metric pathCost )

 {
     type2Cost = pathCost;
     // FIXME this is a hack. But the correct way to do it is to implement a separate IIPv4RoutingTable module for OSPF...
     if (pathType == Ospfv3RoutingTableEntry::TYPE2_EXTERNAL) {
         setMetric(cost + type2Cost * 1000);
     }
     else {
         setMetric(cost);
     }
 }

Member Data Documentation

◆ area

AreaID inet::ospfv3::Ospfv3RoutingTableEntry::area

private

Referenced by operator==().

◆ AREA_BORDER_ROUTER_DESTINATION

const unsigned char inet::ospfv3::Ospfv3RoutingTableEntry::AREA_BORDER_ROUTER_DESTINATION = 1

static

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ AS_BOUNDARY_ROUTER_DESTINATION

const unsigned char inet::ospfv3::Ospfv3RoutingTableEntry::AS_BOUNDARY_ROUTER_DESTINATION = 2

static

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ cost

Metric inet::ospfv3::Ospfv3RoutingTableEntry::cost = 0

private

Referenced by operator==(), setCost(), setPathType(), and setType2Cost().

◆ destinationType

RoutingDestinationType inet::ospfv3::Ospfv3RoutingTableEntry::destinationType = 0

private

Referenced by operator==().

◆ ift

IInterfaceTable* inet::ospfv3::Ospfv3RoutingTableEntry::ift = nullptr

private

Referenced by addNextHop().

◆ linkStateOrigin

const Ospfv3Lsa* inet::ospfv3::Ospfv3RoutingTableEntry::linkStateOrigin = nullptr

private

Referenced by operator==().

◆ NETWORK_DESTINATION

const unsigned char inet::ospfv3::Ospfv3RoutingTableEntry::NETWORK_DESTINATION = 0

static

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), inet::ospfv3::Ospfv3Process::rebuildRoutingTable(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ nextHops

std::vector<NextHop> inet::ospfv3::Ospfv3RoutingTableEntry::nextHops

private

Referenced by addNextHop(), and operator==().

◆ optionalCapabilities

Ospfv3Options inet::ospfv3::Ospfv3RoutingTableEntry::optionalCapabilities

private

Referenced by operator==().

◆ pathType

RoutingPathType inet::ospfv3::Ospfv3RoutingTableEntry::pathType = (RoutingPathType) - 1

private

Referenced by operator==(), setCost(), setPathType(), and setType2Cost().

◆ type2Cost

Metric inet::ospfv3::Ospfv3RoutingTableEntry::type2Cost = 0

private

Referenced by operator==(), setCost(), setPathType(), and setType2Cost().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Attributes

Private Attributes

Additional Inherited Members

Member Typedef Documentation

◆ RoutingDestinationType

Member Enumeration Documentation

◆ RoutingPathType

Constructor & Destructor Documentation

◆ Ospfv3RoutingTableEntry() [1/2]

◆ Ospfv3RoutingTableEntry() [2/2]

◆ ~Ospfv3RoutingTableEntry()

Member Function Documentation

◆ addNextHop()

◆ clearNextHops()

◆ getArea()

◆ getCost()

◆ getDestinationType()

◆ getLinkStateOrigin()

◆ getNextHop()

◆ getNextHopCount()

◆ getOptionalCapabilities()

◆ getPathType()

◆ getType2Cost()

◆ operator!=()

◆ operator==()

◆ setArea()

◆ setCost()

◆ setDestinationType()

◆ setLinkStateOrigin()

◆ setOptionalCapabilities()

◆ setPathType()

◆ setType2Cost()

Member Data Documentation

◆ area

◆ AREA_BORDER_ROUTER_DESTINATION

◆ AS_BOUNDARY_ROUTER_DESTINATION

◆ cost

◆ destinationType

◆ ift

◆ linkStateOrigin

◆ NETWORK_DESTINATION

◆ nextHops

◆ optionalCapabilities

◆ pathType

◆ type2Cost
