inet::Ipv6InterfaceData Class Reference

Ipv6-specific data for NetworkInterface. More...

#include <Ipv6InterfaceData.h>

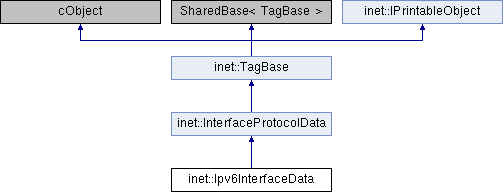

Inheritance diagram for inet::Ipv6InterfaceData:

Classes
struct	AddressData
struct	AdvPrefix
	For routers: advertised prefix configuration. More...
struct	HostConstants
struct	HostMulticastData
struct	HostVariables
struct	NodeConstants
struct	NodeVariables
struct	RouterConstants
struct	RouterMulticastData
struct	RouterVariables

Public Types
enum	{ F_IP_ADDRESS, F_MULTICAST_ADDRESSES, F_MULTICAST_LISTENERS }
typedef std::vector< Ipv6Address >	Ipv6AddressVector
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Public Member Functions
	Ipv6InterfaceData ()
virtual	~Ipv6InterfaceData ()
std::string	str () const override
std::string	detailedInfo () const
Addresses
virtual void	assignAddress (const Ipv6Address &addr, bool tentative, simtime_t expiryTime, simtime_t prefExpiryTime)
	Assigns the given address to the interface. More...
virtual void	updateMatchingAddressExpiryTimes (const Ipv6Address &prefix, int length, simtime_t expiryTime=SIMTIME_ZERO, simtime_t prefExpiryTime=SIMTIME_ZERO)
	Update expiry times of addresses. More...
int	getNumAddresses () const
	Returns the number of addresses the interface has. More...
const Ipv6Address &	getAddress (int i) const
	Returns ith address of the interface. More...
const Ipv6Address &	getGlblAddress () const
bool	isTentativeAddress (int i) const
	Returns true if the ith address of the interface is tentative. More...
bool	hasAddress (const Ipv6Address &addr) const
	Returns true if the given address is one of the addresses assigned, regardless whether it is tentative or not. More...
bool	matchesSolicitedNodeMulticastAddress (const Ipv6Address &solNodeAddr) const
	Returns true if the interface has an address matching the given solicited-node multicast addresses. More...
bool	isTentativeAddress (const Ipv6Address &addr) const
	Returns true if the interface has the given address and it is tentative. More...
virtual void	permanentlyAssign (const Ipv6Address &addr)
	Clears the "tentative" flag of an existing interface address. More...
const Ipv6AddressVector &	getJoinedMulticastGroups () const
const Ipv6AddressVector &	getReportedMulticastGroups () const
bool	isMemberOfMulticastGroup (const Ipv6Address &multicastAddress) const
virtual void	joinMulticastGroup (const Ipv6Address &multicastAddress)
virtual void	leaveMulticastGroup (const Ipv6Address &multicastAddress)
bool	hasMulticastListener (const Ipv6Address &multicastAddress) const
virtual void	addMulticastListener (const Ipv6Address &multicastAddress)
virtual void	removeMulticastListener (const Ipv6Address &multicastAddress)
const Ipv6Address &	getPreferredAddress () const
	Chooses a preferred address for the interface and returns it. More...
const Ipv6Address &	getLinkLocalAddress () const
	Returns the first valid link-local address of the interface, or UNSPECIFIED_ADDRESS if there's none. More...
virtual void	removeAddress (const Ipv6Address &address)
	Removes the address. More...
simtime_t	_getMaxInitialRtrAdvertInterval () const
	Getters/Setters for all variables and constants defined in RFC 2461/2462 can be found here. More...
uint	_getMaxInitialRtrAdvertisements () const
uint	_getMaxFinalRtrAdvertisements () const
simtime_t	_getMinDelayBetweenRAs () const
simtime_t	_getMaxRaDelayTime () const
virtual void	_setMaxInitialRtrAdvertInterval (simtime_t d)
virtual void	_setMaxInitialRtrAdvertisements (uint d)
virtual void	_setMaxFinalRtrAdvertisements (uint d)
virtual void	_setMinDelayBetweenRAs (simtime_t d)
virtual void	_setMaxRaDelayTime (simtime_t d)
simtime_t	_getMaxRtrSolicitationDelay () const
simtime_t	_getRtrSolicitationInterval () const
uint	_getMaxRtrSolicitations () const
virtual void	_setMaxRtrSolicitationDelay (simtime_t d)
virtual void	_setRtrSolicitationInterval (simtime_t d)
virtual void	_setMaxRtrSolicitations (uint d)
uint	_getMaxMulticastSolicit () const
uint	_getMaxUnicastSolicit () const
simtime_t	_getMaxAnycastDelayTime () const
uint	_getMaxNeighbourAdvertisement () const
simtime_t	_getReachableTime () const
simtime_t	_getRetransTimer () const
simtime_t	_getDelayFirstProbeTime () const
double	_getMinRandomFactor () const
double	_getMaxRandomFactor () const
virtual void	_setMaxMulticastSolicit (uint d)
virtual void	_setMaxUnicastSolicit (uint d)
virtual void	_setMaxAnycastDelayTime (simtime_t d)
virtual void	_setMaxNeighbourAdvertisement (uint d)
virtual void	_setReachableTime (simtime_t d)
virtual void	_setRetransTimer (simtime_t d)
virtual void	_setDelayFirstProbeTime (simtime_t d)
virtual void	_setMinRandomFactor (double d)
virtual void	_setMaxRandomFactor (double d)
int	getDupAddrDetectTransmits () const
virtual void	setDupAddrDetectTransmits (int d)
uint	getLinkMtu () const
short	getCurHopLimit () const
uint	getBaseReachableTime () const
simtime_t	getReachableTime () const
uint	getRetransTimer () const
virtual void	setLinkMtu (uint d)
virtual void	setCurHopLimit (short d)
virtual void	setBaseReachableTime (uint d)
virtual void	setReachableTime (simtime_t d)
virtual void	setRetransTimer (uint d)
bool	getAdvSendAdvertisements () const
simtime_t	getMaxRtrAdvInterval () const
simtime_t	getMinRtrAdvInterval () const
bool	getAdvManagedFlag () const
bool	getAdvOtherConfigFlag () const
int	getAdvLinkMtu () const
int	getAdvReachableTime () const
int	getAdvRetransTimer () const
short	getAdvCurHopLimit () const
simtime_t	getAdvDefaultLifetime () const
virtual void	setAdvSendAdvertisements (bool d)
virtual void	setMaxRtrAdvInterval (simtime_t d)
virtual void	setMinRtrAdvInterval (simtime_t d)
virtual void	setAdvManagedFlag (bool d)
virtual void	setAdvOtherConfigFlag (bool d)
virtual void	setAdvLinkMtu (int d)
virtual void	setAdvReachableTime (int d)
virtual void	setAdvRetransTimer (int d)
virtual void	setAdvCurHopLimit (short d)
virtual void	setAdvDefaultLifetime (simtime_t d)
Router advertised prefixes
virtual void	addAdvPrefix (const AdvPrefix &advPrefix)
	Adds the given advertised prefix to the interface. More...
int	getNumAdvPrefixes () const
	Returns the number of advertised prefixes on the interface. More...
const AdvPrefix &	getAdvPrefix (int i) const
	Returns the ith advertised prefix on the interface. More...
virtual void	setAdvPrefix (int i, const AdvPrefix &advPrefix)
	Changes the configuration of the ith advertised prefix on the interface. More...
virtual void	removeAdvPrefix (int i)
	Remove the ith advertised prefix on the interface. More...
virtual simtime_t	generateReachableTime (double MIN_RANDOM_FACTOR, double MAX_RANDOM_FACTOR, uint baseReachableTime)
	This method randomly generates a reachableTime given the MIN_RANDOM_FACTOR MAX_RANDOM_FACTOR and baseReachableTime. More...
virtual simtime_t	generateReachableTime ()
	Arg-less version. More...
Public Member Functions inherited from inet::InterfaceProtocolData
	InterfaceProtocolData (int id)
NetworkInterface *	getNetworkInterface () const
	Returns the NetworkInterface that contains this data object, or nullptr. More...
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Public Attributes
RouterConstants	routerConstants
HostConstants	hostConstants
NodeConstants	nodeConstants

Protected Types
typedef std::vector< AddressData >	AddressDataVector
typedef std::vector< AdvPrefix >	AdvPrefixList

Protected Member Functions
int	findAddress (const Ipv6Address &addr) const
void	choosePreferredAddress ()
void	changed1 (int fieldId)
HostMulticastData *	getHostData ()
const HostMulticastData *	getHostData () const
RouterMulticastData *	getRouterData ()
const RouterMulticastData *	getRouterData () const
Protected Member Functions inherited from inet::InterfaceProtocolData
virtual void	changed (simsignal_t signalID, int fieldId)

Static Protected Member Functions
static bool	addrLess (const AddressData &a, const AddressData &b)

Protected Attributes
HostMulticastData *	hostMcastData = nullptr
RouterMulticastData *	routerMcastData = nullptr
AddressDataVector	addresses
Ipv6Address	preferredAddr
simtime_t	preferredAddrExpiryTime
NodeVariables	nodeVars
HostVariables	hostVars
RouterVariables	rtrVars
Protected Attributes inherited from inet::InterfaceProtocolData
NetworkInterface *	ownerp = nullptr
int	id

Detailed Description

Ipv6-specific data for NetworkInterface.

Most of this comes from section 6.2.1 of RFC 2461 (Ipv6 Neighbor Discovery, Router Configuration Variables).

Member Typedef Documentation

AddressDataVector

typedef std::vector<AddressData> inet::Ipv6InterfaceData::AddressDataVector

protected

AdvPrefixList

typedef std::vector<AdvPrefix> inet::Ipv6InterfaceData::AdvPrefixList

protected

Ipv6AddressVector

typedef std::vector<Ipv6Address> inet::Ipv6InterfaceData::Ipv6AddressVector

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
F_IP_ADDRESS
F_MULTICAST_ADDRESSES
F_MULTICAST_LISTENERS

{ F_IP_ADDRESS, F_MULTICAST_ADDRESSES, F_MULTICAST_LISTENERS }; // FIXME missed field IDs and missed notifications in setter functions

Constructor & Destructor Documentation

Ipv6InterfaceData()

inet::Ipv6InterfaceData::Ipv6InterfaceData

(

)

    : InterfaceProtocolData(NetworkInterface::F_IPV6_DATA)
{
#ifdef INET_WITH_xMIPv6
//    rt6 = IPv6RoutingTableAccess().get();
#endif /* INET_WITH_xMIPv6 */
    /*******************Setting host/node/router Protocol Constants************/
    routerConstants.maxInitialRtrAdvertInterval = IPv6_MAX_INITIAL_RTR_ADVERT_INTERVAL;
    routerConstants.maxInitialRtrAdvertisements = IPv6_MAX_INITIAL_RTR_ADVERTISEMENTS;
    routerConstants.maxFinalRtrAdvertisements = IPv6_MAX_FINAL_RTR_ADVERTISEMENTS;
    routerConstants.minDelayBetweenRAs = IPv6_MIN_DELAY_BETWEEN_RAS;
    routerConstants.maxRADelayTime = IPv6_MAX_RA_DELAY_TIME;

    hostConstants.maxRtrSolicitationDelay = IPv6_MAX_RTR_SOLICITATION_DELAY;
    hostConstants.rtrSolicitationInterval = IPv6_RTR_SOLICITATION_INTERVAL;
    hostConstants.maxRtrSolicitations = IPv6_MAX_RTR_SOLICITATIONS;

#ifdef INET_WITH_xMIPv6
    hostConstants.initialBindAckTimeout = MIPv6_INITIAL_BINDACK_TIMEOUT; // MIPv6: added by Zarrar Yousaf @ CNI UniDo 17.06.07
    hostConstants.maxBindAckTimeout = MIPv6_MAX_BINDACK_TIMEOUT; // MIPv6: added by Zarrar Yousaf @ CNI UniDo 17.06.07
    hostConstants.initialBindAckTimeoutFirst = MIPv6_INITIAL_BINDACK_TIMEOUT_FIRST; // MIPv6: 12.9.07 - CB
    hostConstants.maxRRBindingLifeTime = MIPv6_MAX_RR_BINDING_LIFETIME; // 14.9.07 - CB
    hostConstants.maxHABindingLifeTime = MIPv6_MAX_HA_BINDING_LIFETIME; // 14.9.07 - CB
    hostConstants.maxTokenLifeTime = MIPv6_MAX_TOKEN_LIFETIME; // 14.9.07 - CB
#endif /* INET_WITH_xMIPv6 */

    nodeConstants.maxMulticastSolicit = IPv6_MAX_MULTICAST_SOLICIT;
    nodeConstants.maxUnicastSolicit = IPv6_MAX_UNICAST_SOLICIT;
    nodeConstants.maxAnycastDelayTime = IPv6_MAX_ANYCAST_DELAY_TIME;
    nodeConstants.maxNeighbourAdvertisement = IPv6_MAX_NEIGHBOUR_ADVERTISEMENT;
    nodeConstants.reachableTime = IPv6_REACHABLE_TIME;
    nodeConstants.retransTimer = IPv6_RETRANS_TIMER;
    nodeConstants.delayFirstProbeTime = IPv6_DELAY_FIRST_PROBE_TIME;
    nodeConstants.minRandomFactor = IPv6_MIN_RANDOM_FACTOR;
    nodeConstants.maxRandomFactor = IPv6_MAX_RANDOM_FACTOR;

    /*******************Setting host/node/router variables*********************/
    nodeVars.dupAddrDetectTransmits = IPv6_DEFAULT_DUPADDRDETECTTRANSMITS;

    hostVars.linkMTU = IPv6_MIN_MTU;
    hostVars.curHopLimit = IPv6_DEFAULT_ADVCURHOPLIMIT; // value specified in RFC 1700-can't find it
    hostVars.baseReachableTime = IPv6_REACHABLE_TIME;
    hostVars.reachableTime = generateReachableTime(_getMinRandomFactor(),
                _getMaxRandomFactor(), getBaseReachableTime());
    hostVars.retransTimer = IPv6_RETRANS_TIMER;

    // rtrVars.advSendAdvertisements is set in Ipv6RoutingTable.cc:line 143
    rtrVars.maxRtrAdvInterval = IPv6_DEFAULT_MAX_RTR_ADV_INT;
    rtrVars.minRtrAdvInterval = 0.33 * rtrVars.maxRtrAdvInterval;
    rtrVars.advManagedFlag = false;
    rtrVars.advOtherConfigFlag = false;

#ifdef INET_WITH_xMIPv6
    rtrVars.advHomeAgentFlag = false; // Zarrar Yousaf Feb-March 2007
#endif /* INET_WITH_xMIPv6 */

    rtrVars.advLinkMTU = IPv6_MIN_MTU;
    rtrVars.advReachableTime = IPv6_DEFAULT_ADV_REACHABLE_TIME;
    rtrVars.advRetransTimer = IPv6_DEFAULT_ADV_RETRANS_TIMER;
    rtrVars.advCurHopLimit = IPv6_DEFAULT_ADVCURHOPLIMIT;
    rtrVars.advDefaultLifetime = 3 * rtrVars.maxRtrAdvInterval;

#if USE_MOBILITY
    if (rtrVars.advDefaultLifetime < 1)
        rtrVars.advDefaultLifetime = 1;
#endif // if USE_MOBILITY
}

~Ipv6InterfaceData()

inet::Ipv6InterfaceData::~Ipv6InterfaceData ( )

virtual

{
    delete hostMcastData;
    delete routerMcastData;
}

Member Function Documentation

_getDelayFirstProbeTime()

simtime_t inet::Ipv6InterfaceData::_getDelayFirstProbeTime ( ) const

inline

{ return nodeConstants.delayFirstProbeTime; }

Referenced by inet::Ipv6NeighbourDiscovery::initiateNeighbourUnreachabilityDetection().

_getMaxAnycastDelayTime()

simtime_t inet::Ipv6InterfaceData::_getMaxAnycastDelayTime ( ) const

inline

{ return nodeConstants.maxAnycastDelayTime; }

_getMaxFinalRtrAdvertisements()

uint inet::Ipv6InterfaceData::_getMaxFinalRtrAdvertisements ( ) const

inline

{ return routerConstants.maxFinalRtrAdvertisements; }

_getMaxInitialRtrAdvertInterval()

simtime_t inet::Ipv6InterfaceData::_getMaxInitialRtrAdvertInterval ( ) const

inline

Getters/Setters for all variables and constants defined in RFC 2461/2462 can be found here.

Operations responsible for protocol constants are marked with a "_" prefix. Constants in this class are stored as instance variables. Default values for certain variables are defined at the top of this file, while certain variables have to be generated. Protocol constants are subject to change as specified in RFC2461:section 10 depending on different link layer operation. Getters and setters have been implemented for protocol constants so that a wireless interface may be set to a different set of constant values. (ie. changed by the Ipv4FlatNetworkConfigurator) Such a design allows both wired and wireless networks to co-exist within a simulation run.

{ return routerConstants.maxInitialRtrAdvertInterval; }

Referenced by inet::Ipv6NeighbourDiscovery::sendPeriodicRa().

_getMaxInitialRtrAdvertisements()

uint inet::Ipv6InterfaceData::_getMaxInitialRtrAdvertisements ( ) const

inline

{ return routerConstants.maxInitialRtrAdvertisements; }

Referenced by inet::Ipv6NeighbourDiscovery::sendPeriodicRa().

_getMaxMulticastSolicit()

uint inet::Ipv6InterfaceData::_getMaxMulticastSolicit ( ) const

inline

{ return nodeConstants.maxMulticastSolicit; }

Referenced by inet::Ipv6NeighbourDiscovery::processArTimeout().

_getMaxNeighbourAdvertisement()

uint inet::Ipv6InterfaceData::_getMaxNeighbourAdvertisement ( ) const

inline

{ return nodeConstants.maxNeighbourAdvertisement; }

_getMaxRaDelayTime()

simtime_t inet::Ipv6InterfaceData::_getMaxRaDelayTime ( ) const

inline

{ return routerConstants.maxRADelayTime; }

Referenced by inet::Ipv6NeighbourDiscovery::processRsPacket().

_getMaxRandomFactor()

double inet::Ipv6InterfaceData::_getMaxRandomFactor ( ) const

inline

{ return nodeConstants.maxRandomFactor; }

Referenced by generateReachableTime(), and Ipv6InterfaceData().

_getMaxRtrSolicitationDelay()

simtime_t inet::Ipv6InterfaceData::_getMaxRtrSolicitationDelay ( ) const

inline

{ return hostConstants.maxRtrSolicitationDelay; }

Referenced by inet::Ipv6NeighbourDiscovery::makeTentativeAddressPermanent(), and inet::Ipv6NeighbourDiscovery::processRdTimeout().

_getMaxRtrSolicitations()

uint inet::Ipv6InterfaceData::_getMaxRtrSolicitations ( ) const

inline

{ return hostConstants.maxRtrSolicitations; }

Referenced by inet::Ipv6NeighbourDiscovery::processRdTimeout().

_getMaxUnicastSolicit()

uint inet::Ipv6InterfaceData::_getMaxUnicastSolicit ( ) const

inline

{ return nodeConstants.maxUnicastSolicit; }

Referenced by inet::Ipv6NeighbourDiscovery::processNudTimeout().

_getMinDelayBetweenRAs()

simtime_t inet::Ipv6InterfaceData::_getMinDelayBetweenRAs ( ) const

inline

{ return routerConstants.minDelayBetweenRAs; }

_getMinRandomFactor()

double inet::Ipv6InterfaceData::_getMinRandomFactor ( ) const

inline

{ return nodeConstants.minRandomFactor; }

Referenced by generateReachableTime(), and Ipv6InterfaceData().

_getReachableTime()

simtime_t inet::Ipv6InterfaceData::_getReachableTime ( ) const

inline

{ return nodeConstants.reachableTime; }

_getRetransTimer()

simtime_t inet::Ipv6InterfaceData::_getRetransTimer ( ) const

inline

{ return nodeConstants.retransTimer; }

Referenced by inet::Ipv6NeighbourDiscovery::initiateAddressResolution(), inet::Ipv6NeighbourDiscovery::processArTimeout(), and inet::Ipv6NeighbourDiscovery::processNudTimeout().

_getRtrSolicitationInterval()

simtime_t inet::Ipv6InterfaceData::_getRtrSolicitationInterval ( ) const

inline

{ return hostConstants.rtrSolicitationInterval; }

Referenced by inet::Ipv6NeighbourDiscovery::initiateRouterDiscovery(), and inet::Ipv6NeighbourDiscovery::processRdTimeout().

_setDelayFirstProbeTime()

virtual void inet::Ipv6InterfaceData::_setDelayFirstProbeTime ( simtime_t  d )

inlinevirtual

{ nodeConstants.delayFirstProbeTime = d; }

_setMaxAnycastDelayTime()

virtual void inet::Ipv6InterfaceData::_setMaxAnycastDelayTime ( simtime_t  d )

inlinevirtual

{ nodeConstants.maxAnycastDelayTime = d; }

_setMaxFinalRtrAdvertisements()

virtual void inet::Ipv6InterfaceData::_setMaxFinalRtrAdvertisements ( uint  d )

inlinevirtual

{ routerConstants.maxFinalRtrAdvertisements = d; }

_setMaxInitialRtrAdvertInterval()

virtual void inet::Ipv6InterfaceData::_setMaxInitialRtrAdvertInterval ( simtime_t  d )

inlinevirtual

{ routerConstants.maxInitialRtrAdvertInterval = d; }

_setMaxInitialRtrAdvertisements()

virtual void inet::Ipv6InterfaceData::_setMaxInitialRtrAdvertisements ( uint  d )

inlinevirtual

{ routerConstants.maxInitialRtrAdvertisements = d; }

_setMaxMulticastSolicit()

virtual void inet::Ipv6InterfaceData::_setMaxMulticastSolicit ( uint  d )

inlinevirtual

{ nodeConstants.maxMulticastSolicit = d; }

_setMaxNeighbourAdvertisement()

virtual void inet::Ipv6InterfaceData::_setMaxNeighbourAdvertisement ( uint  d )

inlinevirtual

{ nodeConstants.maxNeighbourAdvertisement = d; }

_setMaxRaDelayTime()

virtual void inet::Ipv6InterfaceData::_setMaxRaDelayTime ( simtime_t  d )

inlinevirtual

{ routerConstants.maxRADelayTime = d; }

_setMaxRandomFactor()

virtual void inet::Ipv6InterfaceData::_setMaxRandomFactor ( double  d )

inlinevirtual

{ nodeConstants.maxRandomFactor = d; }

_setMaxRtrSolicitationDelay()

virtual void inet::Ipv6InterfaceData::_setMaxRtrSolicitationDelay ( simtime_t  d )

inlinevirtual

{ hostConstants.maxRtrSolicitationDelay = d; }

_setMaxRtrSolicitations()

virtual void inet::Ipv6InterfaceData::_setMaxRtrSolicitations ( uint  d )

inlinevirtual

{ hostConstants.maxRtrSolicitations = d; }

_setMaxUnicastSolicit()

virtual void inet::Ipv6InterfaceData::_setMaxUnicastSolicit ( uint  d )

inlinevirtual

{ nodeConstants.maxUnicastSolicit = d; }

_setMinDelayBetweenRAs()

virtual void inet::Ipv6InterfaceData::_setMinDelayBetweenRAs ( simtime_t  d )

inlinevirtual

{ routerConstants.minDelayBetweenRAs = d; }

_setMinRandomFactor()

virtual void inet::Ipv6InterfaceData::_setMinRandomFactor ( double  d )

inlinevirtual

{ nodeConstants.minRandomFactor = d; }

_setReachableTime()

virtual void inet::Ipv6InterfaceData::_setReachableTime ( simtime_t  d )

inlinevirtual

{ nodeConstants.reachableTime = d; }

_setRetransTimer()

virtual void inet::Ipv6InterfaceData::_setRetransTimer ( simtime_t  d )

inlinevirtual

{ nodeConstants.retransTimer = d; }

_setRtrSolicitationInterval()

virtual void inet::Ipv6InterfaceData::_setRtrSolicitationInterval ( simtime_t  d )

inlinevirtual

{ hostConstants.rtrSolicitationInterval = d; }

addAdvPrefix()

void inet::Ipv6InterfaceData::addAdvPrefix ( const AdvPrefix &  advPrefix )

virtual

Adds the given advertised prefix to the interface.

{
    rtrVars.advPrefixList.push_back(advPrefix);
}

addMulticastListener()

void inet::Ipv6InterfaceData::addMulticastListener ( const Ipv6Address &  multicastAddress )

virtual

{
    if (!multicastAddress.isMulticast())
        throw cRuntimeError("Ipv6InterfaceData::addMulticastListener(): multicast address expected, received %s.", multicastAddress.str().c_str());

    if (!hasMulticastListener(multicastAddress)) {
        getRouterData()->reportedMulticastGroups.push_back(multicastAddress);
        changed1(F_MULTICAST_LISTENERS);
    }
}

addrLess()

bool inet::Ipv6InterfaceData::addrLess ( const AddressData &  a, const AddressData &  b  )

staticprotected

{
    // This method is used in choosePreferredAddress().
    // sort() produces increasing order, so "better" addresses should
    // compare as "less", to make them appear first in the array
    if (a.tentative != b.tentative)
        return !a.tentative; // tentative=false is better
    if (a.address.getScope() != b.address.getScope())
        return a.address.getScope() > b.address.getScope(); // bigger scope is better

#ifdef INET_WITH_xMIPv6
    // FIXME  check a.address.isGlobal() != b.address.isGlobal()

    if (a.address.isGlobal() && b.address.isGlobal() && a.addrType != b.addrType)
        return a.addrType == CoA; // HoA is better than CoA, 24.9.07 - CB
#endif /* INET_WITH_xMIPv6 */

    return (a.expiryTime == SIMTIME_ZERO && b.expiryTime != SIMTIME_ZERO) || a.expiryTime > b.expiryTime; // longer expiry time is better
}

Referenced by choosePreferredAddress().

assignAddress()

void inet::Ipv6InterfaceData::assignAddress ( const Ipv6Address &  addr, bool  tentative, simtime_t  expiryTime, simtime_t  prefExpiryTime  )

virtual

Assigns the given address to the interface.

{
    addresses.push_back(AddressData());
    AddressData& a = addresses.back();
    a.address = addr;
    a.tentative = tentative;
    a.expiryTime = expiryTime;
    a.prefExpiryTime = prefExpiryTime;

#ifdef INET_WITH_xMIPv6
    if (addr.isGlobal()) { // only tag a global scope address as HoA or CoA, depending on the status of the H-Flag
        if (hFlag == true)
            a.addrType = HoA; // if H-Flag is set then the auto-conf address is the Home address -.....
        else
            a.addrType = CoA; // else it is a care of address (CoA)
    }
    // FIXME else a.addrType = ???;
#endif /* INET_WITH_xMIPv6 */

    choosePreferredAddress();
    changed1(F_IP_ADDRESS);
}

Referenced by inet::eigrp::EigrpIpv6Pdm::enableInterface().

changed1()

void inet::Ipv6InterfaceData::changed1 ( int  fieldId )

inlineprotected

{ changed(interfaceIpv6ConfigChangedSignal, fieldId); }

Referenced by addMulticastListener(), joinMulticastGroup(), leaveMulticastGroup(), removeAddress(), and removeMulticastListener().

choosePreferredAddress()

void inet::Ipv6InterfaceData::choosePreferredAddress ( )

protected

{
    // do we have addresses?
    if (addresses.size() == 0) {
        preferredAddr = Ipv6Address();
        return;
    }

    // FIXME shouldn't we stick to the current preferredAddress if its prefLifetime
    // hasn't expired yet?

    // FIXME TODO throw out expired addresses! 0 should be treated as infinity

    // sort addresses by scope and expiry time, then pick the first one
    std::stable_sort(addresses.begin(), addresses.end(), addrLess);
    // choose first unicast address
    for (auto& elem : addresses) {
        if (elem.address.isUnicast()) {
            preferredAddr = elem.address;
            preferredAddrExpiryTime = elem.expiryTime;
            return;
        }
    }
    preferredAddr = Ipv6Address::UNSPECIFIED_ADDRESS;
}

Referenced by permanentlyAssign(), removeAddress(), and updateMatchingAddressExpiryTimes().

detailedInfo()

std::string inet::Ipv6InterfaceData::detailedInfo

(

)

const

{
    return str(); // TODO this could be improved: multi-line text, etc
}

findAddress()

int inet::Ipv6InterfaceData::findAddress ( const Ipv6Address &  addr ) const

protected

{
    for (AddressDataVector::const_iterator it = addresses.begin(); it != addresses.end(); it++)
        if (it->address == addr)
            return it - addresses.begin();

    return -1;
}

Referenced by hasAddress(), isTentativeAddress(), permanentlyAssign(), and removeAddress().

generateReachableTime() [1/2]

simtime_t inet::Ipv6InterfaceData::generateReachableTime ( )

virtual

Arg-less version.

{
    return RNGCONTEXT uniform(_getMinRandomFactor(), _getMaxRandomFactor()) * getBaseReachableTime();
}

Referenced by Ipv6InterfaceData().

generateReachableTime() [2/2]

simtime_t inet::Ipv6InterfaceData::generateReachableTime ( double  MIN_RANDOM_FACTOR, double  MAX_RANDOM_FACTOR, uint  baseReachableTime  )

virtual

This method randomly generates a reachableTime given the MIN_RANDOM_FACTOR MAX_RANDOM_FACTOR and baseReachableTime.

Refer to RFC 2461: Section 6.3.2

{
    return RNGCONTEXT uniform(MIN_RANDOM_FACTOR, MAX_RANDOM_FACTOR) * baseReachableTime;
}

Referenced by inet::Ipv6NeighbourDiscovery::processRaForRouterUpdates().

getAddress()

const Ipv6Address & inet::Ipv6InterfaceData::getAddress

(

int

i

)

const

Returns ith address of the interface.

{
    ASSERT(i >= 0 && i < (int)addresses.size());
    return addresses[i].address;
}

Referenced by inet::ospfv3::Ospfv3Process::isInInterfaceTable6(), inet::Ipv6NeighbourDiscovery::processRaPrefixInfoForAddrAutoConf(), str(), and inet::InterfaceTable::updateLinkDisplayString().

getAdvCurHopLimit()

short inet::Ipv6InterfaceData::getAdvCurHopLimit ( ) const

inline

{ return rtrVars.advCurHopLimit; }

Referenced by inet::Ipv6NeighbourDiscovery::createAndSendRaPacket().

getAdvDefaultLifetime()

simtime_t inet::Ipv6InterfaceData::getAdvDefaultLifetime ( ) const

inline

{ return rtrVars.advDefaultLifetime; }

Referenced by inet::Ipv6NeighbourDiscovery::createAndSendRaPacket().

getAdvLinkMtu()

int inet::Ipv6InterfaceData::getAdvLinkMtu ( ) const

inline

{ return rtrVars.advLinkMTU; }

Referenced by inet::Ipv6NeighbourDiscovery::createAndSendRaPacket().

getAdvManagedFlag()

bool inet::Ipv6InterfaceData::getAdvManagedFlag ( ) const

inline

{ return rtrVars.advManagedFlag; }

Referenced by inet::Ipv6NeighbourDiscovery::createAndSendRaPacket().

getAdvOtherConfigFlag()

bool inet::Ipv6InterfaceData::getAdvOtherConfigFlag ( ) const

inline

{ return rtrVars.advOtherConfigFlag; }

Referenced by inet::Ipv6NeighbourDiscovery::createAndSendRaPacket().

getAdvPrefix()

const Ipv6InterfaceData::AdvPrefix & inet::Ipv6InterfaceData::getAdvPrefix

(

int

i

)

const

Returns the ith advertised prefix on the interface.

{
    ASSERT(i >= 0 && i < (int)rtrVars.advPrefixList.size());
    return rtrVars.advPrefixList[i];
}

Referenced by inet::Ipv6RoutingTable::initialize(), and str().

getAdvReachableTime()

int inet::Ipv6InterfaceData::getAdvReachableTime ( ) const

inline

{ return rtrVars.advReachableTime; }

Referenced by inet::Ipv6NeighbourDiscovery::createAndSendRaPacket().

getAdvRetransTimer()

int inet::Ipv6InterfaceData::getAdvRetransTimer ( ) const

inline

{ return rtrVars.advRetransTimer; }

Referenced by inet::Ipv6NeighbourDiscovery::createAndSendRaPacket().

getAdvSendAdvertisements()

bool inet::Ipv6InterfaceData::getAdvSendAdvertisements ( ) const

inline

{ return rtrVars.advSendAdvertisements; }

Referenced by inet::Ipv6NeighbourDiscovery::createAndSendRaPacket(), inet::Ipv6NeighbourDiscovery::createAndSendRsPacket(), inet::Ipv6NeighbourDiscovery::initialize(), inet::Ipv6NeighbourDiscovery::makeTentativeAddressPermanent(), inet::Ipv6NeighbourDiscovery::processRaPacket(), and inet::Ipv6NeighbourDiscovery::processRsPacket().

getBaseReachableTime()

uint inet::Ipv6InterfaceData::getBaseReachableTime ( ) const

inline

{ return hostVars.baseReachableTime; }

Referenced by generateReachableTime(), and Ipv6InterfaceData().

getCurHopLimit()

short inet::Ipv6InterfaceData::getCurHopLimit ( ) const

inline

{ return hostVars.curHopLimit; }

getDupAddrDetectTransmits()

int inet::Ipv6InterfaceData::getDupAddrDetectTransmits ( ) const

inline

{ return nodeVars.dupAddrDetectTransmits; }

Referenced by inet::Ipv6NeighbourDiscovery::assignLinkLocalAddress(), and inet::Ipv6NeighbourDiscovery::processDadTimeout().

getGlblAddress()

const Ipv6Address & inet::Ipv6InterfaceData::getGlblAddress

(

)

const

{
    for (const auto& elem : addresses)
        if (elem.address.isGlobal())
            return elem.address;

    return Ipv6Address::UNSPECIFIED_ADDRESS;
}

getHostData() [1/2]

HostMulticastData* inet::Ipv6InterfaceData::getHostData ( )

inlineprotected

{ if (!hostMcastData) hostMcastData = new HostMulticastData(); return hostMcastData; }

Referenced by joinMulticastGroup(), and leaveMulticastGroup().

getHostData() [2/2]

const HostMulticastData* inet::Ipv6InterfaceData::getHostData ( ) const

inlineprotected

{ return const_cast<Ipv6InterfaceData *>(this)->getHostData(); }

Referenced by getHostData().

getJoinedMulticastGroups()

const Ipv6AddressVector& inet::Ipv6InterfaceData::getJoinedMulticastGroups ( ) const

inline

{ return getHostData()->joinedMulticastGroups; }

Referenced by isMemberOfMulticastGroup().

getLinkLocalAddress()

const Ipv6Address & inet::Ipv6InterfaceData::getLinkLocalAddress

(

)

const

Returns the first valid link-local address of the interface, or UNSPECIFIED_ADDRESS if there's none.

{
    for (const auto& elem : addresses)
        if (elem.address.isLinkLocal()) // FIXME and valid
            return elem.address;

    return Ipv6Address::UNSPECIFIED_ADDRESS;
}

Referenced by inet::ospfv3::Ospfv3Interface::detailedInfo().

getLinkMtu()

uint inet::Ipv6InterfaceData::getLinkMtu ( ) const

inline

{ return hostVars.linkMTU; }

getMaxRtrAdvInterval()

simtime_t inet::Ipv6InterfaceData::getMaxRtrAdvInterval ( ) const

inline

{ return rtrVars.maxRtrAdvInterval; }

Referenced by inet::Ipv6NeighbourDiscovery::createRaTimer(), and inet::Ipv6NeighbourDiscovery::sendPeriodicRa().

getMinRtrAdvInterval()

simtime_t inet::Ipv6InterfaceData::getMinRtrAdvInterval ( ) const

inline

{ return rtrVars.minRtrAdvInterval; }

Referenced by inet::Ipv6NeighbourDiscovery::createRaTimer(), and inet::Ipv6NeighbourDiscovery::sendPeriodicRa().

getNumAddresses()

int inet::Ipv6InterfaceData::getNumAddresses ( ) const

inline

Returns the number of addresses the interface has.

{ return addresses.size(); }

Referenced by inet::ospfv3::Ospfv3Area::originateIntraAreaPrefixLSA(), and str().

getNumAdvPrefixes()

int inet::Ipv6InterfaceData::getNumAdvPrefixes ( ) const

inline

Returns the number of advertised prefixes on the interface.

{ return rtrVars.advPrefixList.size(); }

Referenced by str().

getPreferredAddress()

const Ipv6Address& inet::Ipv6InterfaceData::getPreferredAddress ( ) const

inline

Chooses a preferred address for the interface and returns it.

This is the address that should be used as source address for outgoing datagrams, if one is not explicitly specified.

Selection is based on scope (globally routable addresses are preferred), then on lifetime (the one that expires last is chosen). See private choosePreferredAddress() function.

FIXME turn into preferredGLOBALAddress()!

{ return preferredAddr; } // FIXME TODO check expiry time!

Referenced by inet::Ipv6NeighbourDiscovery::processNudTimeout().

getReachableTime()

simtime_t inet::Ipv6InterfaceData::getReachableTime ( ) const

inline

{ return hostVars.reachableTime; }

Referenced by inet::Ipv6NeighbourDiscovery::processRaForRouterUpdates().

getReportedMulticastGroups()

const Ipv6AddressVector& inet::Ipv6InterfaceData::getReportedMulticastGroups ( ) const

inline

{ return getRouterData()->reportedMulticastGroups; }

getRetransTimer()

uint inet::Ipv6InterfaceData::getRetransTimer ( ) const

inline

{ return hostVars.retransTimer; }

Referenced by inet::Ipv6NeighbourDiscovery::initiateDad(), and inet::Ipv6NeighbourDiscovery::processDadTimeout().

getRouterData() [1/2]

RouterMulticastData* inet::Ipv6InterfaceData::getRouterData ( )

inlineprotected

{ if (!routerMcastData) routerMcastData = new RouterMulticastData(); return routerMcastData; }

Referenced by addMulticastListener(), hasMulticastListener(), and removeMulticastListener().

getRouterData() [2/2]

const RouterMulticastData* inet::Ipv6InterfaceData::getRouterData ( ) const

inlineprotected

{ return const_cast<Ipv6InterfaceData *>(this)->getRouterData(); }

Referenced by getRouterData().

hasAddress()

bool inet::Ipv6InterfaceData::hasAddress

(

const Ipv6Address &

addr

)

const

Returns true if the given address is one of the addresses assigned, regardless whether it is tentative or not.

{
    return findAddress(addr) != -1;
}

Referenced by inet::Ipv6NeighbourDiscovery::initiateAddressResolution(), inet::Ipv6NeighbourDiscovery::processNsPacket(), and inet::eigrp::EigrpIpv6Pdm::setPassive().

hasMulticastListener()

bool inet::Ipv6InterfaceData::hasMulticastListener

(

const Ipv6Address &

multicastAddress

)

const

{
    const Ipv6AddressVector& multicastGroups = getRouterData()->reportedMulticastGroups;
    return contains(multicastGroups, multicastAddress);
}

Referenced by addMulticastListener().

isMemberOfMulticastGroup()

bool inet::Ipv6InterfaceData::isMemberOfMulticastGroup

(

const Ipv6Address &

multicastAddress

)

const

{
    const Ipv6AddressVector& multicastGroups = getJoinedMulticastGroups();
    return contains(multicastGroups, multicastAddress);
}

isTentativeAddress() [1/2]

bool inet::Ipv6InterfaceData::isTentativeAddress

(

const Ipv6Address &

addr

)

const

Returns true if the interface has the given address and it is tentative.

{
    int k = findAddress(addr);
    return k != -1 && addresses[k].tentative;
}

isTentativeAddress() [2/2]

bool inet::Ipv6InterfaceData::isTentativeAddress

(

int

i

)

const

Returns true if the ith address of the interface is tentative.

{
    ASSERT(i >= 0 && i < (int)addresses.size());
    return addresses[i].tentative;
}

Referenced by inet::Ipv6NeighbourDiscovery::assignLinkLocalAddress(), inet::Ipv6NeighbourDiscovery::createAndSendRsPacket(), inet::Ipv6::fragmentAndSend(), inet::Ipv6::handleMessage(), inet::Ipv6NeighbourDiscovery::processNaPacket(), inet::Ipv6NeighbourDiscovery::processNsPacket(), and str().

joinMulticastGroup()

void inet::Ipv6InterfaceData::joinMulticastGroup ( const Ipv6Address &  multicastAddress )

virtual

{
    if (!multicastAddress.isMulticast())
        throw cRuntimeError("Ipv6InterfaceData::joinMulticastGroup(): multicast address expected, received %s.", multicastAddress.str().c_str());

    Ipv6AddressVector& multicastGroups = getHostData()->joinedMulticastGroups;

    std::vector<int>& refCounts = getHostData()->refCounts;
    for (int i = 0; i < (int)multicastGroups.size(); ++i) {
        if (multicastGroups[i] == multicastAddress) {
            refCounts[i]++;
            return;
        }
    }

    multicastGroups.push_back(multicastAddress);
    refCounts.push_back(1);

    changed1(F_MULTICAST_ADDRESSES);

    cModule *m = ownerp ? dynamic_cast<cModule *>(ownerp->getInterfaceTable()) : nullptr;
    if (m) {
        Ipv6MulticastGroupInfo info(ownerp, multicastAddress);
        m->emit(ipv6MulticastGroupJoinedSignal, &info);
    }
}

Referenced by inet::ospfv3::Ospfv3InterfaceState::changeState(), inet::eigrp::EigrpIpv6Pdm::enableInterface(), and inet::ospfv3::Ospfv3Splitter::parseConfig().

leaveMulticastGroup()

void inet::Ipv6InterfaceData::leaveMulticastGroup ( const Ipv6Address &  multicastAddress )

virtual

{
    if (!multicastAddress.isMulticast())
        throw cRuntimeError("Ipv6InterfaceData::leaveMulticastGroup(): multicast address expected, received %s.", multicastAddress.str().c_str());

    Ipv6AddressVector& multicastGroups = getHostData()->joinedMulticastGroups;
    std::vector<int>& refCounts = getHostData()->refCounts;
    for (int i = 0; i < (int)multicastGroups.size(); ++i) {
        if (multicastGroups[i] == multicastAddress) {
            if (--refCounts[i] == 0) {
                multicastGroups.erase(multicastGroups.begin() + i);
                refCounts.erase(refCounts.begin() + i);

                changed1(F_MULTICAST_ADDRESSES);

                cModule *m = ownerp ? dynamic_cast<cModule *>(ownerp->getInterfaceTable()) : nullptr;
                if (m) {
                    Ipv6MulticastGroupInfo info(ownerp, multicastAddress);
                    m->emit(ipv6MulticastGroupLeftSignal, &info);
                }
            }
        }
    }
}

Referenced by inet::ospfv3::Ospfv3InterfaceState::changeState(), inet::eigrp::EigrpIpv6Pdm::disableInterface(), and inet::eigrp::EigrpIpv6Pdm::setPassive().

matchesSolicitedNodeMulticastAddress()

bool inet::Ipv6InterfaceData::matchesSolicitedNodeMulticastAddress

(

const Ipv6Address &

solNodeAddr

)

const

Returns true if the interface has an address matching the given solicited-node multicast addresses.

{
    for (const auto& elem : addresses)
        if (elem.address.formSolicitedNodeMulticastAddress() == solNodeAddr)
            return true;

    return false;
}

Referenced by inet::Ipv6RoutingTable::isLocalAddress().

permanentlyAssign()

void inet::Ipv6InterfaceData::permanentlyAssign ( const Ipv6Address &  addr )

virtual

Clears the "tentative" flag of an existing interface address.

{
    int k = findAddress(addr);
    ASSERT(k != -1);
    addresses[k].tentative = false;
    choosePreferredAddress();
}

removeAddress()

void inet::Ipv6InterfaceData::removeAddress ( const Ipv6Address &  address )

virtual

Removes the address.

Called when the valid lifetime expires.

{
    int k = findAddress(address);
    ASSERT(k != -1);
    addresses.erase(addresses.begin() + k);
    choosePreferredAddress();
    changed1(F_IP_ADDRESS);
}

Referenced by inet::eigrp::EigrpIpv6Pdm::disableInterface(), inet::Ipv6NeighbourDiscovery::makeTentativeAddressPermanent(), and inet::eigrp::EigrpIpv6Pdm::setPassive().

removeAdvPrefix()

void inet::Ipv6InterfaceData::removeAdvPrefix ( int  i )

virtual

Remove the ith advertised prefix on the interface.

Prefixes at larger indices will shift down.

{
    ASSERT(i >= 0 && i < (int)rtrVars.advPrefixList.size());
    rtrVars.advPrefixList.erase(rtrVars.advPrefixList.begin() + i);
}

removeMulticastListener()

void inet::Ipv6InterfaceData::removeMulticastListener ( const Ipv6Address &  multicastAddress )

virtual

{
    Ipv6AddressVector& multicastGroups = getRouterData()->reportedMulticastGroups;

    int n = multicastGroups.size();
    int i;
    for (i = 0; i < n; i++)
        if (multicastGroups[i] == multicastAddress)
            break;

    if (i != n) {
        multicastGroups.erase(multicastGroups.begin() + i);
        changed1(F_MULTICAST_LISTENERS);
    }
}

setAdvCurHopLimit()

virtual void inet::Ipv6InterfaceData::setAdvCurHopLimit ( short  d )

inlinevirtual

{ rtrVars.advCurHopLimit = d; }

setAdvDefaultLifetime()

virtual void inet::Ipv6InterfaceData::setAdvDefaultLifetime ( simtime_t  d )

inlinevirtual

{ rtrVars.advDefaultLifetime = d; }

setAdvLinkMtu()

virtual void inet::Ipv6InterfaceData::setAdvLinkMtu ( int  d )

inlinevirtual

{ rtrVars.advLinkMTU = d; }

setAdvManagedFlag()

virtual void inet::Ipv6InterfaceData::setAdvManagedFlag ( bool  d )

inlinevirtual

{ rtrVars.advManagedFlag = d; }

setAdvOtherConfigFlag()

virtual void inet::Ipv6InterfaceData::setAdvOtherConfigFlag ( bool  d )

inlinevirtual

{ rtrVars.advOtherConfigFlag = d; }

setAdvPrefix()

void inet::Ipv6InterfaceData::setAdvPrefix ( int  i, const AdvPrefix &  advPrefix  )

virtual

Changes the configuration of the ith advertised prefix on the interface.

The prefix itself should stay the same.

{
    ASSERT(i >= 0 && i < (int)rtrVars.advPrefixList.size());
    ASSERT(rtrVars.advPrefixList[i].prefix == advPrefix.prefix);
    ASSERT(rtrVars.advPrefixList[i].prefixLength == advPrefix.prefixLength);
    rtrVars.advPrefixList[i] = advPrefix;
}

setAdvReachableTime()

virtual void inet::Ipv6InterfaceData::setAdvReachableTime ( int  d )

inlinevirtual

{ rtrVars.advReachableTime = d; }

setAdvRetransTimer()

virtual void inet::Ipv6InterfaceData::setAdvRetransTimer ( int  d )

inlinevirtual

{ rtrVars.advRetransTimer = d; }

setAdvSendAdvertisements()

virtual void inet::Ipv6InterfaceData::setAdvSendAdvertisements ( bool  d )

inlinevirtual

{ rtrVars.advSendAdvertisements = d; }

Referenced by inet::Ipv6RoutingTable::configureInterfaceForIpv6(), and inet::Ipv6RoutingTable::configureInterfaceFromXml().

setBaseReachableTime()

virtual void inet::Ipv6InterfaceData::setBaseReachableTime ( uint  d )

inlinevirtual

{ hostVars.baseReachableTime = d; }

setCurHopLimit()

virtual void inet::Ipv6InterfaceData::setCurHopLimit ( short  d )

inlinevirtual

{ hostVars.curHopLimit = d; }

setDupAddrDetectTransmits()

virtual void inet::Ipv6InterfaceData::setDupAddrDetectTransmits ( int  d )

inlinevirtual

{ nodeVars.dupAddrDetectTransmits = d; }

setLinkMtu()

virtual void inet::Ipv6InterfaceData::setLinkMtu ( uint  d )

inlinevirtual

{ hostVars.linkMTU = d; }

setMaxRtrAdvInterval()

virtual void inet::Ipv6InterfaceData::setMaxRtrAdvInterval ( simtime_t  d )

inlinevirtual

{ rtrVars.maxRtrAdvInterval = d; }

setMinRtrAdvInterval()

virtual void inet::Ipv6InterfaceData::setMinRtrAdvInterval ( simtime_t  d )

inlinevirtual

{ rtrVars.minRtrAdvInterval = d; }

setReachableTime()

virtual void inet::Ipv6InterfaceData::setReachableTime ( simtime_t  d )

inlinevirtual

{ hostVars.reachableTime = d; }

setRetransTimer()

virtual void inet::Ipv6InterfaceData::setRetransTimer ( uint  d )

inlinevirtual

{ hostVars.retransTimer = d; }

str()

std::string inet::Ipv6InterfaceData::str ( ) const

overridevirtual

Reimplemented from inet::TagBase.

{
    // FIXME FIXME FIXME FIXME info() should never print a newline
    std::ostringstream os;
    os << "Ipv6:{" << endl;
    for (int i = 0; i < getNumAddresses(); i++) {
        os << (i ? "\t            , " : "\tAddrs:") << getAddress(i)
           << "(" << Ipv6Address::scopeName(getAddress(i).getScope())
           << (isTentativeAddress(i) ? " tent" : "") << ") "

#ifdef INET_WITH_xMIPv6
// TODO revise, routing table is not that simple to access
//           << ((rt6->isMobileNode() && getAddress(i).isGlobal())
//               ? (addresses[i].addrType==HoA ? "HoA" : "CoA") : "")
#endif /* INET_WITH_xMIPv6 */

           << " expiryTime: " << (addresses[i].expiryTime == SIMTIME_ZERO ? "inf" : SIMTIME_STR(addresses[i].expiryTime))
           << " prefExpiryTime: " << (addresses[i].prefExpiryTime == SIMTIME_ZERO ? "inf" : SIMTIME_STR(addresses[i].prefExpiryTime))
           << endl;
    }

    if (hostMcastData)
        os << hostMcastData->str();

    for (int i = 0; i < getNumAdvPrefixes(); i++) {
        const AdvPrefix& a = getAdvPrefix(i);
        os << (i ? ", " : "\tAdvPrefixes: ") << a.prefix << "/" << a.prefixLength << "("
           << (a.advOnLinkFlag ? "" : "off-link ")
           << (a.advAutonomousFlag ? "" : "non-auto ");

#ifdef INET_WITH_xMIPv6
        os << "R-Flag = " << (a.advRtrAddr ? "1 " : "0 ");
#endif /* INET_WITH_xMIPv6 */

        if (a.advValidLifetime == SIMTIME_ZERO)
            os << "lifetime:inf";
        else if (a.advValidLifetime > SIMTIME_ZERO)
            os << "expires:" << a.advValidLifetime;
        else
            os << "lifetime:+" << (-1 * a.advValidLifetime);
        os << ")" << endl;
    }
    os << " ";

    if (routerMcastData)
        os << routerMcastData->str();

    // uncomment the following as needed!
    os << "\tNode:";
    os << " dupAddrDetectTrans=" << nodeVars.dupAddrDetectTransmits;
//    os << " curHopLimit=" << hostVars.curHopLimit;
//    os << " retransTimer=" << hostVars.retransTimer;
//    os << " baseReachableTime=" << hostVars.baseReachableTime;
    os << " reachableTime=" << hostVars.reachableTime << endl;

#ifdef INET_WITH_xMIPv6
    // the following is for MIPv6 support
    // 4.9.07 - Zarrar, CB
// TODO revise, routing table is not that simple to access
//    if ( rt6->isMobileNode() )
//        os << "\tHome Network Info: " << " HoA="<< homeInfo.HoA << ", HA=" << homeInfo.homeAgentAddr
//           << ", home prefix=" << homeInfo.prefix/*.prefix()*/ << "\n";
#endif /* INET_WITH_xMIPv6 */

    if (rtrVars.advSendAdvertisements) {
        os << "\tRouter:";
        os << " maxRtrAdvInt=" << rtrVars.maxRtrAdvInterval;
        os << " minRtrAdvInt=" << rtrVars.minRtrAdvInterval << endl;
//        os << " advManagedFlag=" << rtrVars.advManagedFlag;
//        os << " advOtherFlag=" << rtrVars.advOtherFlag;
//        os << " advLinkMTU=" << rtrVars.advLinkMTU;
//        os << " advReachableTime=" << rtrVars.advReachableTime;
//        os << " advRetransTimer=" << rtrVars.advRetransTimer;
//        os << " advCurHopLimit=" << rtrVars.advCurHopLimit;
//        os << " advDefaultLifetime=" << rtrVars.advDefaultLifetime;
    }

    os << "   }" << endl;
    return os.str();
}

Referenced by detailedInfo().

updateMatchingAddressExpiryTimes()

void inet::Ipv6InterfaceData::updateMatchingAddressExpiryTimes ( const Ipv6Address &  prefix, int  length, simtime_t  expiryTime = SIMTIME_ZERO, simtime_t  prefExpiryTime = SIMTIME_ZERO  )

virtual

Update expiry times of addresses.

Expiry times possibly come from prefixes (with on-link flag set to either zero or one) in Router Advertisements. Zero expiry time means infinity.

{
    for (auto& elem : addresses) {
        if (elem.address.matches(prefix, length)) {
            elem.expiryTime = expiryTime;
            elem.prefExpiryTime = prefExpiryTime;
        }
    }
    choosePreferredAddress();
}

Member Data Documentation

addresses

AddressDataVector inet::Ipv6InterfaceData::addresses

protected

Referenced by choosePreferredAddress(), findAddress(), getAddress(), getGlblAddress(), getLinkLocalAddress(), isTentativeAddress(), matchesSolicitedNodeMulticastAddress(), permanentlyAssign(), removeAddress(), str(), and updateMatchingAddressExpiryTimes().

hostConstants

HostConstants inet::Ipv6InterfaceData::hostConstants

Referenced by Ipv6InterfaceData().

hostMcastData

HostMulticastData* inet::Ipv6InterfaceData::hostMcastData = nullptr

protected

Referenced by str(), and ~Ipv6InterfaceData().

hostVars

HostVariables inet::Ipv6InterfaceData::hostVars

protected

Referenced by Ipv6InterfaceData(), and str().

nodeConstants

NodeConstants inet::Ipv6InterfaceData::nodeConstants

Referenced by Ipv6InterfaceData().

nodeVars

NodeVariables inet::Ipv6InterfaceData::nodeVars

protected

Referenced by Ipv6InterfaceData(), and str().

preferredAddr

Ipv6Address inet::Ipv6InterfaceData::preferredAddr

protected

Referenced by choosePreferredAddress().

preferredAddrExpiryTime

simtime_t inet::Ipv6InterfaceData::preferredAddrExpiryTime

protected

Referenced by choosePreferredAddress().

routerConstants

RouterConstants inet::Ipv6InterfaceData::routerConstants

Referenced by Ipv6InterfaceData().

routerMcastData

RouterMulticastData* inet::Ipv6InterfaceData::routerMcastData = nullptr

protected

Referenced by str(), and ~Ipv6InterfaceData().

rtrVars

RouterVariables inet::Ipv6InterfaceData::rtrVars

protected

Referenced by addAdvPrefix(), getAdvPrefix(), Ipv6InterfaceData(), removeAdvPrefix(), setAdvPrefix(), and str().

---

The documentation for this class was generated from the following files:

• Ipv6InterfaceData.h
• Ipv6InterfaceData.cc
