Base class for protocol-specific data on an interface. More...

#include <NetworkInterface.h>

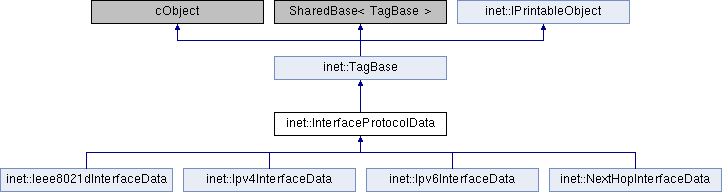

Inheritance diagram for inet::InterfaceProtocolData:

Public Member Functions
	InterfaceProtocolData (int id)

NetworkInterface *	getNetworkInterface () const
	Returns the NetworkInterface that contains this data object, or nullptr. More...

Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const

virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const

virtual void	parsimPack (cCommBuffer *buffer) const override

virtual void	parsimUnpack (cCommBuffer *buffer) override

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...

virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const

virtual std::string	str () const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	changed (simsignal_t signalID, int fieldId)

Protected Attributes
NetworkInterface *	ownerp = nullptr

int	id

Friends
class	NetworkInterface

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Base class for protocol-specific data on an interface.

Notable subclasses are Ipv4InterfaceData and Ipv6InterfaceData.

Constructor & Destructor Documentation

◆ InterfaceProtocolData()

inet::InterfaceProtocolData::InterfaceProtocolData ( int id )

inline

62 : id(id) {}

Member Function Documentation

◆ changed()

void inet::InterfaceProtocolData::changed	(	simsignal_t	signalID,
		int	fieldId
	)

protectedvirtual

 {
     // notify the containing NetworkInterface that something changed
     if (ownerp)
         ownerp->changed(signalID, fieldId);
 }

Referenced by inet::Ipv4InterfaceData::changeMulticastGroupMembership().

◆ getNetworkInterface()

NetworkInterface* inet::InterfaceProtocolData::getNetworkInterface ( ) const

inline

Returns the NetworkInterface that contains this data object, or nullptr.

67 { return ownerp; }

Referenced by inet::Ipv4InterfaceData::addMulticastListener(), and inet::Ipv4InterfaceData::removeMulticastListener().

Friends And Related Function Documentation

◆ NetworkInterface

friend class NetworkInterface

friend

Member Data Documentation

◆ id

int inet::InterfaceProtocolData::id

protected

Referenced by inet::NetworkInterface::clearProtocolDataSet().

◆ ownerp

NetworkInterface* inet::InterfaceProtocolData::ownerp = nullptr

protected

Referenced by changed(), inet::Ipv4InterfaceData::changeMulticastGroupMembership(), inet::Ipv6InterfaceData::joinMulticastGroup(), and inet::Ipv6InterfaceData::leaveMulticastGroup().

The documentation for this class was generated from the following files:
