inet::Ipv4InterfaceData Class Reference

Ipv4-specific data in an NetworkInterface. More...

#include <Ipv4InterfaceData.h>

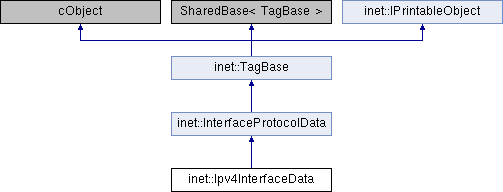

Inheritance diagram for inet::Ipv4InterfaceData:

Classes
struct	HostMulticastData
struct	HostMulticastGroupData
struct	RouterMulticastData
struct	RouterMulticastGroupData

Public Types
enum	{   F_IP_ADDRESS, F_NETMASK, F_METRIC, F_MULTICAST_TTL_THRESHOLD,   F_MULTICAST_ADDRESSES, F_MULTICAST_LISTENERS }
typedef std::vector< Ipv4Address >	Ipv4AddressVector
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Public Member Functions
	Ipv4InterfaceData ()
virtual	~Ipv4InterfaceData ()
virtual std::string	str () const override
virtual std::string	detailedInfo () const
Getters
Ipv4Address	getIPAddress () const
Ipv4Address	getNetmask () const
Ipv4Address	getNetworkBroadcastAddress () const
int	getMetric () const
int	getMulticastTtlThreshold () const
int	getNumOfJoinedMulticastGroups () const
Ipv4Address	getJoinedMulticastGroup (int index) const
const Ipv4MulticastSourceList &	getJoinedMulticastSources (int index)
int	getNumOfReportedMulticastGroups () const
Ipv4Address	getReportedMulticastGroup (int index) const
const Ipv4MulticastSourceList &	getReportedMulticastSources (int index) const
bool	isMemberOfMulticastGroup (const Ipv4Address &multicastAddress) const
bool	hasMulticastListener (Ipv4Address multicastAddress) const
bool	hasMulticastListener (Ipv4Address multicastAddress, Ipv4Address sourceAddress) const
Setters
virtual void	setIPAddress (Ipv4Address a)
virtual void	setNetmask (Ipv4Address m)
virtual void	setMetric (int m)
virtual void	setMulticastTtlThreshold (int threshold)
virtual void	joinMulticastGroup (const Ipv4Address &multicastAddress)
virtual void	leaveMulticastGroup (const Ipv4Address &multicastAddress)
virtual void	changeMulticastGroupMembership (Ipv4Address multicastAddress, McastSourceFilterMode oldFilterMode, const Ipv4AddressVector &oldSourceList, McastSourceFilterMode newFilterMode, const Ipv4AddressVector &newSourceList)
	This method is called by sockets to register their multicast group membership changes in the interface. More...
virtual void	addMulticastListener (const Ipv4Address &multicastAddress)
virtual void	addMulticastListener (Ipv4Address multicastAddress, Ipv4Address sourceAddress)
virtual void	removeMulticastListener (const Ipv4Address &multicastAddress)
virtual void	removeMulticastListener (Ipv4Address multicastAddress, Ipv4Address sourceAddress)
virtual void	setMulticastListeners (Ipv4Address multicastAddress, McastSourceFilterMode filterMode, const Ipv4AddressVector &sourceList)
Public Member Functions inherited from inet::InterfaceProtocolData
	InterfaceProtocolData (int id)
NetworkInterface *	getNetworkInterface () const
	Returns the NetworkInterface that contains this data object, or nullptr. More...
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Types
typedef std::vector< HostMulticastGroupData * >	HostMulticastGroupVector
typedef std::vector< RouterMulticastGroupData * >	RouterMulticastGroupVector

Protected Member Functions
void	changed1 (int fieldId)
HostMulticastData *	getHostData ()
const HostMulticastData *	getHostData () const
HostMulticastGroupData *	findHostGroupData (Ipv4Address multicastAddress)
bool	removeHostGroupData (Ipv4Address multicastAddress)
RouterMulticastData *	getRouterData ()
const RouterMulticastData *	getRouterData () const
RouterMulticastGroupData *	findRouterGroupData (Ipv4Address multicastAddress) const
bool	removeRouterGroupData (Ipv4Address multicastAddress)
Protected Member Functions inherited from inet::InterfaceProtocolData
virtual void	changed (simsignal_t signalID, int fieldId)

Protected Attributes
Ipv4Address	inetAddr
	Ipv4 address of interface. More...
Ipv4Address	netmask
	netmask More...
int	metric
	link "cost"; see e.g. MS KB article Q299540 More...
HostMulticastData *	hostData
RouterMulticastData *	routerData
Protected Attributes inherited from inet::InterfaceProtocolData
NetworkInterface *	ownerp = nullptr
int	id

Private Member Functions
	Ipv4InterfaceData (const Ipv4InterfaceData &obj)
Ipv4InterfaceData &	operator= (const Ipv4InterfaceData &obj)

Detailed Description

Ipv4-specific data in an NetworkInterface.

Stores interface Ipv4 address, netmask, metric, etc.

See also

NetworkInterface

Member Typedef Documentation

HostMulticastGroupVector

typedef std::vector<HostMulticastGroupData *> inet::Ipv4InterfaceData::HostMulticastGroupVector

protected

Ipv4AddressVector

typedef std::vector<Ipv4Address> inet::Ipv4InterfaceData::Ipv4AddressVector

RouterMulticastGroupVector

typedef std::vector<RouterMulticastGroupData *> inet::Ipv4InterfaceData::RouterMulticastGroupVector

protected

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
F_IP_ADDRESS
F_NETMASK
F_METRIC
F_MULTICAST_TTL_THRESHOLD
F_MULTICAST_ADDRESSES
F_MULTICAST_LISTENERS

{ F_IP_ADDRESS, F_NETMASK, F_METRIC, F_MULTICAST_TTL_THRESHOLD, F_MULTICAST_ADDRESSES, F_MULTICAST_LISTENERS };

Constructor & Destructor Documentation

Ipv4InterfaceData() [1/2]

inet::Ipv4InterfaceData::Ipv4InterfaceData ( const Ipv4InterfaceData &  obj )

private

Ipv4InterfaceData() [2/2]

inet::Ipv4InterfaceData::Ipv4InterfaceData

(

)

    : InterfaceProtocolData(NetworkInterface::F_IPV4_DATA)
{
    netmask = Ipv4Address::ALLONES_ADDRESS;
    metric = 0;
    hostData = nullptr;
    routerData = nullptr;
}

~Ipv4InterfaceData()

inet::Ipv4InterfaceData::~Ipv4InterfaceData ( )

virtual

{
    delete hostData;
    delete routerData;
}

Member Function Documentation

addMulticastListener() [1/2]

void inet::Ipv4InterfaceData::addMulticastListener ( const Ipv4Address &  multicastAddress )

virtual

{
    if (!multicastAddress.isMulticast())
        throw cRuntimeError("Ipv4InterfaceData::addMulticastListener(): multicast address expected, received %s.", multicastAddress.str().c_str());

    RouterMulticastGroupData *groupData = findRouterGroupData(multicastAddress);
    if (!groupData) {
        groupData = new RouterMulticastGroupData(multicastAddress);
        getRouterData()->reportedMulticastGroups.push_back(groupData);

        Ipv4MulticastGroupInfo info(getNetworkInterface(), multicastAddress);
        check_and_cast<cModule *>(getNetworkInterface()->getInterfaceTable())->emit(ipv4MulticastGroupRegisteredSignal, &info);
    }

    if (!groupData->sourceList.containsAll()) {
        groupData->sourceList = Ipv4MulticastSourceList::ALL_SOURCES;
        changed1(F_MULTICAST_LISTENERS);
    }
}

addMulticastListener() [2/2]

void inet::Ipv4InterfaceData::addMulticastListener ( Ipv4Address  multicastAddress, Ipv4Address  sourceAddress  )

virtual

{
    if (!multicastAddress.isMulticast())
        throw cRuntimeError("Ipv4InterfaceData::addMulticastListener(): multicast address expected, received %s.", multicastAddress.str().c_str());

    RouterMulticastGroupData *groupData = findRouterGroupData(multicastAddress);
    if (!groupData) {
        groupData = new RouterMulticastGroupData(multicastAddress);
        getRouterData()->reportedMulticastGroups.push_back(groupData);

        Ipv4MulticastGroupInfo info(getNetworkInterface(), multicastAddress);
        check_and_cast<cModule *>(getNetworkInterface()->getInterfaceTable())->emit(ipv4MulticastGroupRegisteredSignal, &info);
    }

    if (!groupData->sourceList.contains(sourceAddress)) {
        groupData->sourceList.add(sourceAddress);
        changed1(F_MULTICAST_LISTENERS);
    }
}

changed1()

void inet::Ipv4InterfaceData::changed1 ( int  fieldId )

inlineprotected

{ changed(interfaceIpv4ConfigChangedSignal, fieldId); }

Referenced by addMulticastListener(), changeMulticastGroupMembership(), removeMulticastListener(), and setMulticastListeners().

changeMulticastGroupMembership()

void inet::Ipv4InterfaceData::changeMulticastGroupMembership ( Ipv4Address  multicastAddress, McastSourceFilterMode  oldFilterMode, const Ipv4AddressVector &  oldSourceList, McastSourceFilterMode  newFilterMode, const Ipv4AddressVector &  newSourceList  )

virtual

This method is called by sockets to register their multicast group membership changes in the interface.

{
    if (!multicastAddress.isMulticast())
        throw cRuntimeError("Ipv4InterfaceData::changeMulticastGroupMembership(): multicast address expected, received %s.", multicastAddress.str().c_str());

    HostMulticastGroupData *entry = findHostGroupData(multicastAddress);
    if (!entry) {
        ASSERT(oldFilterMode == MCAST_INCLUDE_SOURCES && oldSourceList.empty());
        HostMulticastData *data = getHostData();
        data->joinedMulticastGroups.push_back(new HostMulticastGroupData(multicastAddress));
        entry = data->joinedMulticastGroups.back();
    }

    std::map<Ipv4Address, int> *counts = oldFilterMode == MCAST_INCLUDE_SOURCES ? &entry->includeCounts : &entry->excludeCounts;
    for (const auto& elem : oldSourceList) {
        auto count = counts->find(elem);
        if (count == counts->end())
            throw cRuntimeError("Inconsistent reference counts in Ipv4InterfaceData.");
        else if (count->second == 1)
            counts->erase(count);
        else
            count->second--;
    }

    counts = newFilterMode == MCAST_INCLUDE_SOURCES ? &entry->includeCounts : &entry->excludeCounts;
    for (const auto& elem : newSourceList) {
        auto count = counts->find(elem);
        if (count == counts->end())
            (*counts)[elem] = 1;
        else
            count->second++;
    }

    // update number of EXCLUDE mode sockets
    if (oldFilterMode == MCAST_INCLUDE_SOURCES && newFilterMode == MCAST_EXCLUDE_SOURCES)
        entry->numOfExcludeModeSockets++;
    else if (oldFilterMode == MCAST_EXCLUDE_SOURCES && newFilterMode == MCAST_INCLUDE_SOURCES)
        entry->numOfExcludeModeSockets--;

    // compute filterMode and sourceList
    bool changed = entry->updateSourceList();

    if (changed) {
        changed1(F_MULTICAST_ADDRESSES);

        cModule *m = ownerp ? dynamic_cast<cModule *>(ownerp->getInterfaceTable()) : nullptr;
        if (m) {
            Ipv4MulticastGroupSourceInfo info(ownerp, multicastAddress, entry->sourceList);
            m->emit(ipv4MulticastChangeSignal, &info);
        }

        // Legacy notifications
        if (oldFilterMode != newFilterMode && oldSourceList.empty() && newSourceList.empty()) {
            cModule *m = ownerp ? dynamic_cast<cModule *>(ownerp->getInterfaceTable()) : nullptr;
            if (m) {
                Ipv4MulticastGroupInfo info2(ownerp, multicastAddress);
                m->emit(newFilterMode == MCAST_EXCLUDE_SOURCES ? ipv4MulticastGroupJoinedSignal : ipv4MulticastGroupLeftSignal, &info2);
            }
        }

        // remove group data if it is INCLUDE(empty)
        if (entry->sourceList.isEmpty()) {
            removeHostGroupData(multicastAddress);
        }
    }
}

Referenced by joinMulticastGroup(), and leaveMulticastGroup().

detailedInfo()

std::string inet::Ipv4InterfaceData::detailedInfo ( ) const

virtual

{
    std::stringstream out;
    out << "inet addr:" << getIPAddress() << "\tMask: " << getNetmask() << "\n";
    out << "Metric: " << getMetric() << "\n";
    if (hostData)
        out << hostData->detailedInfo();
    if (routerData)
        out << routerData->detailedInfo();
    return out.str();
}

findHostGroupData()

Ipv4InterfaceData::HostMulticastGroupData * inet::Ipv4InterfaceData::findHostGroupData ( Ipv4Address  multicastAddress )

protected

{
    ASSERT(multicastAddress.isMulticast());
    HostMulticastGroupVector& entries = getHostData()->joinedMulticastGroups;
    for (auto& entrie : entries)
        if ((entrie)->multicastGroup == multicastAddress)
            return entrie;

    return nullptr;
}

Referenced by changeMulticastGroupMembership().

findRouterGroupData()

Ipv4InterfaceData::RouterMulticastGroupData * inet::Ipv4InterfaceData::findRouterGroupData ( Ipv4Address  multicastAddress ) const

protected

{
    ASSERT(multicastAddress.isMulticast());
    const RouterMulticastGroupVector& entries = getRouterData()->reportedMulticastGroups;
    for (const auto& entrie : entries)
        if ((entrie)->multicastGroup == multicastAddress)
            return entrie;

    return nullptr;
}

Referenced by addMulticastListener(), hasMulticastListener(), and setMulticastListeners().

getHostData() [1/2]

HostMulticastData* inet::Ipv4InterfaceData::getHostData ( )

inlineprotected

{ if (!hostData) hostData = new HostMulticastData(); return hostData; }

Referenced by changeMulticastGroupMembership(), findHostGroupData(), isMemberOfMulticastGroup(), and removeHostGroupData().

getHostData() [2/2]

const HostMulticastData* inet::Ipv4InterfaceData::getHostData ( ) const

inlineprotected

{ return const_cast<Ipv4InterfaceData *>(this)->getHostData(); }

Referenced by getHostData().

getIPAddress()

Ipv4Address inet::Ipv4InterfaceData::getIPAddress ( ) const

inline

{ return inetAddr; }

Referenced by inet::DhcpClient::chooseInterface(), inet::Ipv4RoutingTable::configureRouterId(), inet::sctp::SctpNatHook::datagramForwardHook(), detailedInfo(), inet::ospfv3::Ospfv3Interface::detailedInfo(), inet::bgp::BgpConfigReader::findMyAS(), inet::Ipv4::fragmentPostRouting(), inet::Ipv4RoutingTable::gatherAddresses(), inet::Dsdv::handleMessageWhenUp(), inet::LinkStateRouting::initialize(), inet::Ted::initializeTED(), inet::bgp::BgpConfigReader::isInInterfaceTable(), inet::PimDm::multicastPacketArrivedOnNonRpfInterface(), inet::PimSm::multicastPacketArrivedOnNonRpfInterface(), inet::bgp::BgpRouter::openTCPConnectionToPeer(), inet::Icmp::possiblyLocalBroadcast(), inet::Ipv4::preroutingFinish(), inet::Ipv4RoutingTable::printRoutingTable(), inet::PimDm::processAssert(), inet::PimSm::processAssertG(), inet::PimSm::processAssertSG(), inet::DhcpServer::processDhcpMessage(), inet::PimDm::processGraftAckPacket(), inet::PimDm::processJoin(), inet::PimSm::processJoinG(), inet::PimSm::processJoinSG(), inet::PimDm::processPrune(), inet::PimSm::processPruneG(), inet::PimSm::processPruneSG(), inet::Igmpv3::processQuery(), inet::DhcpServer::sendAck(), inet::DhcpServer::sendNak(), inet::DhcpServer::sendOffer(), inet::RsvpTe::setupHello(), str(), inet::InterfaceTable::updateLinkDisplayString(), and inet::bgp::BgpRouter::updateSendProcess().

getJoinedMulticastGroup()

Ipv4Address inet::Ipv4InterfaceData::getJoinedMulticastGroup ( int  index ) const

inline

{ return getHostData()->joinedMulticastGroups[index]->multicastGroup; }

getJoinedMulticastSources()

const Ipv4MulticastSourceList& inet::Ipv4InterfaceData::getJoinedMulticastSources ( int  index )

inline

{ return getHostData()->joinedMulticastGroups[index]->sourceList; }

getMetric()

int inet::Ipv4InterfaceData::getMetric ( ) const

inline

{ return metric; }

Referenced by detailedInfo(), and inet::Ted::initializeTED().

getMulticastTtlThreshold()

int inet::Ipv4InterfaceData::getMulticastTtlThreshold ( ) const

inline

{ return getRouterData()->multicastTtlThreshold; }

getNetmask()

Ipv4Address inet::Ipv4InterfaceData::getNetmask ( ) const

inline

{ return netmask; }

Referenced by detailedInfo(), inet::Ipv4RoutingTable::findInterfaceByLocalBroadcastAddress(), inet::Ipv4RoutingTable::isLocalBroadcastAddress(), inet::Ipv4::routeLocalBroadcastPacket(), and str().

getNetworkBroadcastAddress()

Ipv4Address inet::Ipv4InterfaceData::getNetworkBroadcastAddress ( ) const

inline

{ return inetAddr.makeBroadcastAddress(netmask); }

Referenced by inet::Ipv4::resolveNextHopMacAddress().

getNumOfJoinedMulticastGroups()

int inet::Ipv4InterfaceData::getNumOfJoinedMulticastGroups ( ) const

inline

{ return getHostData()->joinedMulticastGroups.size(); }

Referenced by inet::InterfaceTable::collectMulticastGroups(), and inet::Ipv4NetworkConfigurator::dumpConfig().

getNumOfReportedMulticastGroups()

int inet::Ipv4InterfaceData::getNumOfReportedMulticastGroups ( ) const

inline

{ return getRouterData()->reportedMulticastGroups.size(); }

getReportedMulticastGroup()

Ipv4Address inet::Ipv4InterfaceData::getReportedMulticastGroup ( int  index ) const

inline

{ return getRouterData()->reportedMulticastGroups[index]->multicastGroup; }

getReportedMulticastSources()

const Ipv4MulticastSourceList& inet::Ipv4InterfaceData::getReportedMulticastSources ( int  index ) const

inline

{ return getRouterData()->reportedMulticastGroups[index]->sourceList; }

getRouterData() [1/2]

RouterMulticastData* inet::Ipv4InterfaceData::getRouterData ( )

inlineprotected

{ if (!routerData) routerData = new RouterMulticastData(); return routerData; }

Referenced by addMulticastListener(), findRouterGroupData(), removeMulticastListener(), removeRouterGroupData(), and setMulticastListeners().

getRouterData() [2/2]

const RouterMulticastData* inet::Ipv4InterfaceData::getRouterData ( ) const

inlineprotected

{ return const_cast<Ipv4InterfaceData *>(this)->getRouterData(); }

Referenced by getRouterData().

hasMulticastListener() [1/2]

bool inet::Ipv4InterfaceData::hasMulticastListener

(

Ipv4Address

multicastAddress

)

const

{
    RouterMulticastGroupData *groupData = findRouterGroupData(multicastAddress);
    return groupData && !groupData->sourceList.isEmpty();
}

Referenced by inet::Ipv4::forwardMulticastPacket().

hasMulticastListener() [2/2]

bool inet::Ipv4InterfaceData::hasMulticastListener	(	Ipv4Address	multicastAddress,
		Ipv4Address	sourceAddress
	)		const

{
    RouterMulticastGroupData *groupData = findRouterGroupData(multicastAddress);
    return groupData && !groupData->sourceList.contains(sourceAddress);
}

isMemberOfMulticastGroup()

bool inet::Ipv4InterfaceData::isMemberOfMulticastGroup

(

const Ipv4Address &

multicastAddress

)

const

{
    HostMulticastGroupVector groups = getHostData()->joinedMulticastGroups;
    for (HostMulticastGroupVector::const_iterator it = groups.begin(); it != groups.end(); ++it)
        if ((*it)->multicastGroup == multicastAddress)
            return true;

    return false;
}

Referenced by inet::Ipv4RoutingTable::isLocalMulticastAddress(), and inet::Ipv4::preroutingFinish().

joinMulticastGroup()

void inet::Ipv4InterfaceData::joinMulticastGroup ( const Ipv4Address &  multicastAddress )

virtual

{
    Ipv4AddressVector empty;
    changeMulticastGroupMembership(multicastAddress, MCAST_INCLUDE_SOURCES, empty, MCAST_EXCLUDE_SOURCES, empty);
}

Referenced by inet::eigrp::EigrpIpv4Pdm::enableInterface(), and inet::ospfv2::Ospfv2ConfigReader::joinMulticastGroups().

leaveMulticastGroup()

void inet::Ipv4InterfaceData::leaveMulticastGroup ( const Ipv4Address &  multicastAddress )

virtual

{
    Ipv4AddressVector empty;
    changeMulticastGroupMembership(multicastAddress, MCAST_EXCLUDE_SOURCES, empty, MCAST_INCLUDE_SOURCES, empty);
}

Referenced by inet::eigrp::EigrpIpv4Pdm::disableInterface(), and inet::eigrp::EigrpIpv4Pdm::setPassive().

operator=()

Ipv4InterfaceData& inet::Ipv4InterfaceData::operator= ( const Ipv4InterfaceData &  obj )

private

removeHostGroupData()

bool inet::Ipv4InterfaceData::removeHostGroupData ( Ipv4Address  multicastAddress )

protected

{
    ASSERT(multicastAddress.isMulticast());
    HostMulticastGroupVector& entries = getHostData()->joinedMulticastGroups;
    for (auto it = entries.begin(); it != entries.end(); ++it)
        if ((*it)->multicastGroup == multicastAddress) {
            delete *it;
            entries.erase(it);
            return true;
        }
    return false;
}

Referenced by changeMulticastGroupMembership().

removeMulticastListener() [1/2]

void inet::Ipv4InterfaceData::removeMulticastListener ( const Ipv4Address &  multicastAddress )

virtual

{
    RouterMulticastGroupVector& multicastGroups = getRouterData()->reportedMulticastGroups;

    int n = multicastGroups.size();
    int i;
    for (i = 0; i < n; i++)
        if (multicastGroups[i]->multicastGroup == multicastAddress)
            break;

    if (i != n) {
        delete multicastGroups[i];
        multicastGroups.erase(multicastGroups.begin() + i);
        changed1(F_MULTICAST_LISTENERS);

        Ipv4MulticastGroupInfo info(getNetworkInterface(), multicastAddress);
        check_and_cast<cModule *>(getNetworkInterface()->getInterfaceTable())->emit(ipv4MulticastGroupUnregisteredSignal, &info);
    }
}

removeMulticastListener() [2/2]

void inet::Ipv4InterfaceData::removeMulticastListener ( Ipv4Address  multicastAddress, Ipv4Address  sourceAddress  )

virtual

{
    RouterMulticastGroupVector& multicastGroups = getRouterData()->reportedMulticastGroups;

    int n = multicastGroups.size();
    int i;
    for (i = 0; i < n; i++)
        if (multicastGroups[i]->multicastGroup == multicastAddress)
            break;

    if (i != n) {
        multicastGroups[i]->sourceList.remove(sourceAddress);
        if (multicastGroups[i]->sourceList.isEmpty()) {
            delete multicastGroups[i];
            multicastGroups.erase(multicastGroups.begin() + i);

            Ipv4MulticastGroupInfo info(getNetworkInterface(), multicastAddress);
            check_and_cast<cModule *>(getNetworkInterface()->getInterfaceTable())->emit(ipv4MulticastGroupUnregisteredSignal, &info);
        }
        changed1(F_MULTICAST_LISTENERS);
    }
}

removeRouterGroupData()

bool inet::Ipv4InterfaceData::removeRouterGroupData ( Ipv4Address  multicastAddress )

protected

{
    ASSERT(multicastAddress.isMulticast());
    RouterMulticastGroupVector& entries = getRouterData()->reportedMulticastGroups;
    for (auto it = entries.begin(); it != entries.end(); ++it)
        if ((*it)->multicastGroup == multicastAddress) {
            delete *it;
            entries.erase(it);
            return true;
        }
    return false;
}

Referenced by setMulticastListeners().

setIPAddress()

virtual void inet::Ipv4InterfaceData::setIPAddress ( Ipv4Address  a )

inlinevirtual

{ inetAddr = a; changed1(F_IP_ADDRESS); }

Referenced by inet::Ipv4FlatNetworkConfigurator::assignAddresses(), inet::DhcpClient::bindLease(), inet::Ipv4RoutingTable::configureRouterId(), inet::Ipv4NodeConfigurator::prepareInterface(), and inet::HostAutoConfigurator::setupNetworkLayer().

setMetric()

virtual void inet::Ipv4InterfaceData::setMetric ( int  m )

inlinevirtual

{ metric = m; changed1(F_METRIC); }

setMulticastListeners()

void inet::Ipv4InterfaceData::setMulticastListeners ( Ipv4Address  multicastAddress, McastSourceFilterMode  filterMode, const Ipv4AddressVector &  sourceList  )

virtual

{
    if (!multicastAddress.isMulticast())
        throw cRuntimeError("Ipv4InterfaceData::setMulticastListeners(): multicast address expected, received %s.", multicastAddress.str().c_str());

    RouterMulticastGroupData *groupData = findRouterGroupData(multicastAddress);
    if (!groupData) {
        groupData = new RouterMulticastGroupData(multicastAddress);
        getRouterData()->reportedMulticastGroups.push_back(groupData);
    }

    if (filterMode != groupData->sourceList.filterMode || sourceList != groupData->sourceList.sources) {
        if (filterMode != MCAST_INCLUDE_SOURCES || !sourceList.empty()) {
            groupData->sourceList.filterMode = filterMode;
            groupData->sourceList.sources = sourceList;
        }
        else
            removeRouterGroupData(multicastAddress);

        changed1(F_MULTICAST_LISTENERS);
    }
}

setMulticastTtlThreshold()

virtual void inet::Ipv4InterfaceData::setMulticastTtlThreshold ( int  threshold )

inlinevirtual

{ getRouterData()->multicastTtlThreshold = threshold; changed1(F_MULTICAST_TTL_THRESHOLD); }

setNetmask()

virtual void inet::Ipv4InterfaceData::setNetmask ( Ipv4Address  m )

inlinevirtual

{ netmask = m; changed1(F_NETMASK); }

str()

std::string inet::Ipv4InterfaceData::str ( ) const

overridevirtual

Reimplemented from inet::TagBase.

{
    std::stringstream out;
    out << "Ipv4:{inet_addr:" << getIPAddress() << "/" << getNetmask().getNetmaskLength();
    if (hostData)
        out << hostData->str();
    if (routerData)
        out << routerData->str();
    out << "}";
    return out.str();
}

Member Data Documentation

hostData

HostMulticastData* inet::Ipv4InterfaceData::hostData

protected

Referenced by detailedInfo(), Ipv4InterfaceData(), str(), and ~Ipv4InterfaceData().

inetAddr

Ipv4Address inet::Ipv4InterfaceData::inetAddr

protected

Ipv4 address of interface.

metric

int inet::Ipv4InterfaceData::metric

protected

link "cost"; see e.g. MS KB article Q299540

Referenced by Ipv4InterfaceData().

netmask

Ipv4Address inet::Ipv4InterfaceData::netmask

protected

netmask

Referenced by Ipv4InterfaceData().

routerData

RouterMulticastData* inet::Ipv4InterfaceData::routerData

protected

Referenced by detailedInfo(), Ipv4InterfaceData(), str(), and ~Ipv4InterfaceData().

---

The documentation for this class was generated from the following files:

• Ipv4InterfaceData.h
• Ipv4InterfaceData.cc
