inet::queueing::IPacketSink Class Reference
This class defines the interface for packet sinks which can be both passive and active. More...
#include <IPacketSink.h>

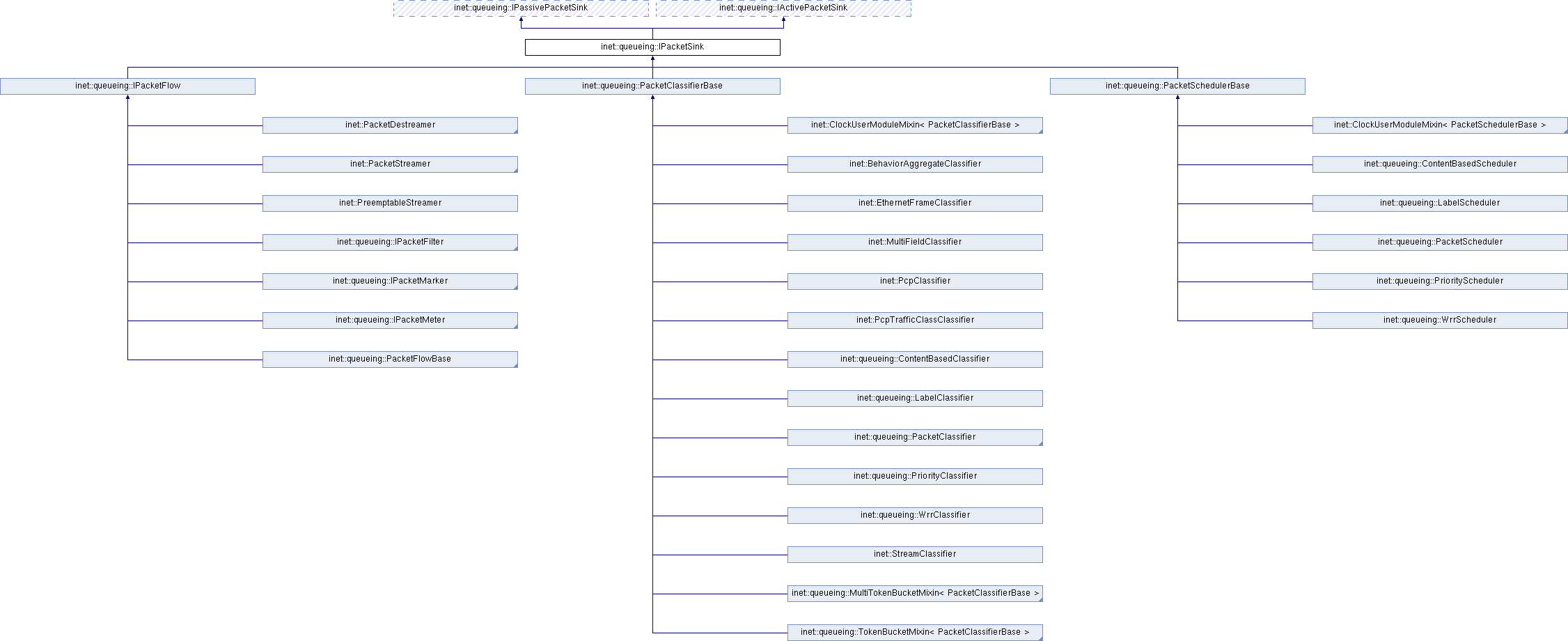

Inheritance diagram for inet::queueing::IPacketSink:
Additional Inherited Members | |
 Public Member Functions inherited from inet::queueing::IPassivePacketSink | |
| virtual | ~IPassivePacketSink () |
| virtual bool | canPushSomePacket (cGate *gate) const =0 |
| Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error. More... | |
| virtual bool | canPushPacket (Packet *packet, cGate *gate) const =0 |
| Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error. More... | |
| virtual void | pushPacket (Packet *packet, cGate *gate)=0 |
| Pushes the packet into the packet sink at the given gate. More... | |
| virtual void | pushPacketStart (Packet *packet, cGate *gate, bps datarate)=0 |
| Starts pushing the packet into the packet sink at the given gate. More... | |
| virtual void | pushPacketEnd (Packet *packet, cGate *gate)=0 |
| Ends pushing the packet into the packet sink at the given gate. More... | |
| virtual void | pushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength=b(0))=0 |
| Progresses pushing the packet into the packet sink at the given gate. More... | |
| Public Member Functions inherited from inet::queueing::IActivePacketSink | |
| virtual | ~IActivePacketSink () |
| virtual IPassivePacketSource * | getProvider (cGate *gate)=0 |
| Returns the passive packet source from where packets are pulled or nullptr if the connected module doesn't implement the interface. More... | |
| virtual void | handleCanPullPacketChanged (cGate *gate)=0 |
| Notifies about a change in the possibility of pulling some packet from the passive packet source at the given gate. More... | |
| virtual void | handlePullPacketProcessed (Packet *packet, cGate *gate, bool successful)=0 |
| Notifies about the completion of the packet processing for a packet that was pulled earlier independently whether the packet is passed or streamed. More... | |
Detailed Description
This class defines the interface for packet sinks which can be both passive and active.
The documentation for this class was generated from the following file:
