inet::queueing::IPacketMeter Class Referenceabstract
This class defines the interface for packet meters. More...
#include <IPacketMeter.h>

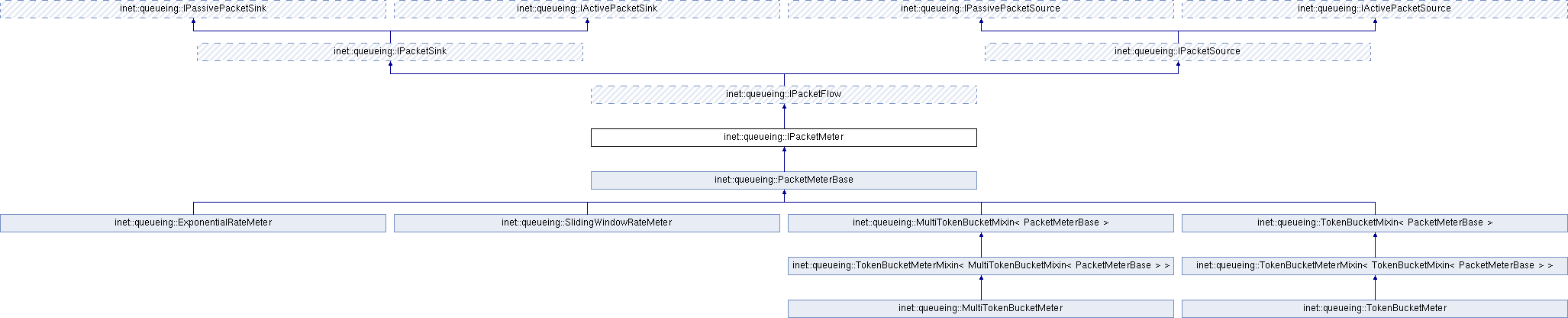

Inheritance diagram for inet::queueing::IPacketMeter:
Public Member Functions | |
| virtual void | meterPacket (Packet *packet)=0 |
| Meters the packet and attaches the result. More... | |
 Public Member Functions inherited from inet::queueing::IPassivePacketSink | |
| virtual | ~IPassivePacketSink () |
| virtual bool | canPushSomePacket (cGate *gate) const =0 |
| Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error. More... | |
| virtual bool | canPushPacket (Packet *packet, cGate *gate) const =0 |
| Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error. More... | |
| virtual void | pushPacket (Packet *packet, cGate *gate)=0 |
| Pushes the packet into the packet sink at the given gate. More... | |
| virtual void | pushPacketStart (Packet *packet, cGate *gate, bps datarate)=0 |
| Starts pushing the packet into the packet sink at the given gate. More... | |
| virtual void | pushPacketEnd (Packet *packet, cGate *gate)=0 |
| Ends pushing the packet into the packet sink at the given gate. More... | |
| virtual void | pushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength=b(0))=0 |
| Progresses pushing the packet into the packet sink at the given gate. More... | |
| Public Member Functions inherited from inet::queueing::IActivePacketSink | |
| virtual | ~IActivePacketSink () |
| virtual IPassivePacketSource * | getProvider (cGate *gate)=0 |
| Returns the passive packet source from where packets are pulled or nullptr if the connected module doesn't implement the interface. More... | |
| virtual void | handleCanPullPacketChanged (cGate *gate)=0 |
| Notifies about a change in the possibility of pulling some packet from the passive packet source at the given gate. More... | |
| virtual void | handlePullPacketProcessed (Packet *packet, cGate *gate, bool successful)=0 |
| Notifies about the completion of the packet processing for a packet that was pulled earlier independently whether the packet is passed or streamed. More... | |
| Public Member Functions inherited from inet::queueing::IPassivePacketSource | |
| virtual | ~IPassivePacketSource () |
| virtual bool | canPullSomePacket (cGate *gate) const =0 |
| Returns false if the packet source is empty at the given gate and no more packets can be pulled from it without raising an error. More... | |
| virtual Packet * | canPullPacket (cGate *gate) const =0 |
| Returns the packet that can be pulled at the given gate. More... | |
| virtual Packet * | pullPacket (cGate *gate)=0 |
| Pulls the packet from the packet source at the given gate. More... | |
| virtual Packet * | pullPacketStart (cGate *gate, bps datarate)=0 |
| Starts pulling the packet from the packet source at the given gate. More... | |
| virtual Packet * | pullPacketEnd (cGate *gate)=0 |
| Ends pulling the packet from the packet source at the given gate. More... | |
| virtual Packet * | pullPacketProgress (cGate *gate, bps datarate, b position, b extraProcessableLength)=0 |
| Progresses pulling the packet from the packet source at the given gate. More... | |
| Public Member Functions inherited from inet::queueing::IActivePacketSource | |
| virtual | ~IActivePacketSource () |
| virtual IPassivePacketSink * | getConsumer (cGate *gate)=0 |
| Returns the passive packet sink where packets are pushed or nullptr if the connected module doesn't implement the interface. More... | |
| virtual void | handleCanPushPacketChanged (cGate *gate)=0 |
| Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate. More... | |
| virtual void | handlePushPacketProcessed (Packet *packet, cGate *gate, bool successful)=0 |
| Notifies about the completion of the packet processing for a packet that was pushed earlier independently whether the packet is passed or streamed. More... | |
Detailed Description
This class defines the interface for packet meters.
Member Function Documentation
◆ meterPacket()
|
pure virtual |
Meters the packet and attaches the result.
Implemented in inet::queueing::SlidingWindowRateMeter, inet::queueing::ExponentialRateMeter, inet::queueing::MultiTokenBucketMeter, and inet::queueing::TokenBucketMeter.
Referenced by inet::queueing::PacketMeterBase::processPacket().
The documentation for this class was generated from the following file:
