inet::queueing::IPacketDuplicator Class Referenceabstract
This class defines the interface for packet duplicators. More...
#include <IPacketDuplicator.h>

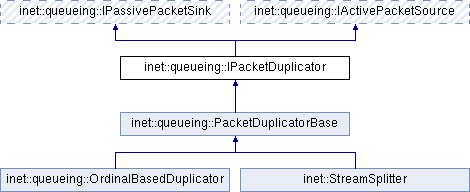

Inheritance diagram for inet::queueing::IPacketDuplicator:
Public Member Functions | |
| virtual int | getNumPacketDuplicates (Packet *packet)=0 |
| Returns the number of duplicates to be generated. More... | |
 Public Member Functions inherited from inet::queueing::IPassivePacketSink | |
| virtual | ~IPassivePacketSink () |
| virtual bool | canPushSomePacket (cGate *gate) const =0 |
| Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error. More... | |
| virtual bool | canPushPacket (Packet *packet, cGate *gate) const =0 |
| Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error. More... | |
| virtual void | pushPacket (Packet *packet, cGate *gate)=0 |
| Pushes the packet into the packet sink at the given gate. More... | |
| virtual void | pushPacketStart (Packet *packet, cGate *gate, bps datarate)=0 |
| Starts pushing the packet into the packet sink at the given gate. More... | |
| virtual void | pushPacketEnd (Packet *packet, cGate *gate)=0 |
| Ends pushing the packet into the packet sink at the given gate. More... | |
| virtual void | pushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength=b(0))=0 |
| Progresses pushing the packet into the packet sink at the given gate. More... | |
| Public Member Functions inherited from inet::queueing::IActivePacketSource | |
| virtual | ~IActivePacketSource () |
| virtual IPassivePacketSink * | getConsumer (cGate *gate)=0 |
| Returns the passive packet sink where packets are pushed or nullptr if the connected module doesn't implement the interface. More... | |
| virtual void | handleCanPushPacketChanged (cGate *gate)=0 |
| Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate. More... | |
| virtual void | handlePushPacketProcessed (Packet *packet, cGate *gate, bool successful)=0 |
| Notifies about the completion of the packet processing for a packet that was pushed earlier independently whether the packet is passed or streamed. More... | |
Detailed Description
This class defines the interface for packet duplicators.
Member Function Documentation
◆ getNumPacketDuplicates()
|
pure virtual |
Returns the number of duplicates to be generated.
Implemented in inet::queueing::OrdinalBasedDuplicator, and inet::StreamSplitter.
Referenced by inet::queueing::PacketDuplicatorBase::pushPacket().
The documentation for this class was generated from the following file:
