inet::physicallayer::SignalBitModel Class Reference

#include <SignalBitModel.h>

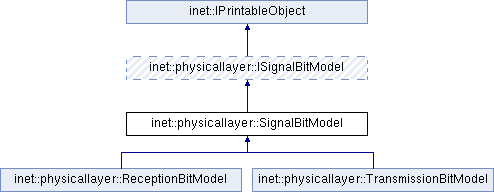

Inheritance diagram for inet::physicallayer::SignalBitModel:

Public Member Functions
	SignalBitModel (b headerLength, bps headerBitRate, b dataLength, bps dataBitRate, const BitVector *bits)
virtual	~SignalBitModel ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual b	getHeaderLength () const override
virtual bps	getHeaderBitRate () const override
	Returns the gross (physical) bitrate of the PHY frame header. More...
virtual b	getDataLength () const override
virtual bps	getDataBitRate () const override
	Returns the gross (physical) bitrate of the PHY frame data. More...
virtual const BitVector *	getBits () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const BitVector *	bits
const b	headerLength
const bps	headerBitRate
const b	dataLength
const bps	dataBitRate

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

SignalBitModel()

inet::physicallayer::SignalBitModel::SignalBitModel	(	b	headerLength,
		bps	headerBitRate,
		b	dataLength,
		bps	dataBitRate,
		const BitVector *	bits
	)

                                                                                                                      :
    bits(bits),
    headerLength(headerLength),
    headerBitRate(headerBitRate),
    dataLength(dataLength),
    dataBitRate(dataBitRate)
{
}

~SignalBitModel()

inet::physicallayer::SignalBitModel::~SignalBitModel ( )

virtual

{
    delete bits;
}

Member Function Documentation

getBits()

virtual const BitVector* inet::physicallayer::SignalBitModel::getBits ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ISignalBitModel.

{ return bits; }

Referenced by inet::physicallayer::LayeredErrorModelBase::computeBitModel().

getDataBitRate()

virtual bps inet::physicallayer::SignalBitModel::getDataBitRate ( ) const

inlineoverridevirtual

Returns the gross (physical) bitrate of the PHY frame data.

Implements inet::physicallayer::ISignalBitModel.

{ return dataBitRate; }

Referenced by inet::physicallayer::LayeredErrorModelBase::computeBitModel().

getDataLength()

virtual b inet::physicallayer::SignalBitModel::getDataLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ISignalBitModel.

{ return dataLength; }

Referenced by inet::physicallayer::LayeredErrorModelBase::computeBitModel().

getHeaderBitRate()

virtual bps inet::physicallayer::SignalBitModel::getHeaderBitRate ( ) const

inlineoverridevirtual

Returns the gross (physical) bitrate of the PHY frame header.

Implements inet::physicallayer::ISignalBitModel.

{ return headerBitRate; }

Referenced by inet::physicallayer::LayeredErrorModelBase::computeBitModel().

getHeaderLength()

virtual b inet::physicallayer::SignalBitModel::getHeaderLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ISignalBitModel.

{ return headerLength; }

Referenced by inet::physicallayer::LayeredErrorModelBase::computeBitModel().

printToStream()

std::ostream & inet::physicallayer::SignalBitModel::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    stream << "SignalBitModel";
    if (level <= PRINT_LEVEL_TRACE)
        stream << EV_FIELD(headerLength)
               << EV_FIELD(headerBitRate)
               << EV_FIELD(dataLength)
               << EV_FIELD(dataBitRate);
    return stream;
}

Member Data Documentation

bits

const BitVector* inet::physicallayer::SignalBitModel::bits

protected

Referenced by ~SignalBitModel().

dataBitRate

const bps inet::physicallayer::SignalBitModel::dataBitRate

protected

Referenced by printToStream().

dataLength

const b inet::physicallayer::SignalBitModel::dataLength

protected

Referenced by printToStream().

headerBitRate

const bps inet::physicallayer::SignalBitModel::headerBitRate

protected

Referenced by printToStream().

headerLength

const b inet::physicallayer::SignalBitModel::headerLength

protected

Referenced by printToStream().

---

The documentation for this class was generated from the following files:

• SignalBitModel.h
• SignalBitModel.cc
