inet::physicallayer::ISignalBitModel Class Reference

This purely virtual interface provides an abstraction for different radio signal models in the bit domain. More...

#include <ISignalBitModel.h>

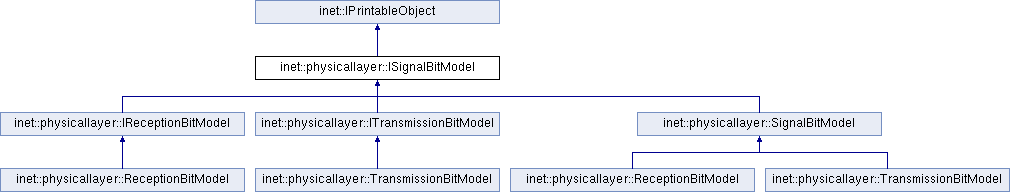

Inheritance diagram for inet::physicallayer::ISignalBitModel:

Public Member Functions
virtual b	getHeaderLength () const =0
virtual bps	getHeaderBitRate () const =0
	Returns the gross (physical) bitrate of the PHY frame header. More...
virtual b	getDataLength () const =0
virtual bps	getDataBitRate () const =0
	Returns the gross (physical) bitrate of the PHY frame data. More...
virtual const BitVector *	getBits () const =0
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

This purely virtual interface provides an abstraction for different radio signal models in the bit domain.

Member Function Documentation

getBits()

virtual const BitVector* inet::physicallayer::ISignalBitModel::getBits ( ) const

pure virtual

Implemented in inet::physicallayer::SignalBitModel.

Referenced by inet::physicallayer::Ieee80211OfdmErrorModel::computeBitModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createBitModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createCompleteBitModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createDataFieldBitModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createSignalFieldBitModel(), inet::physicallayer::ApskDecoder::decode(), inet::physicallayer::Ieee80211OfdmDecoder::decode(), inet::physicallayer::ApskModulator::modulate(), and inet::physicallayer::Ieee80211OfdmModulator::modulate().

getDataBitRate()

virtual bps inet::physicallayer::ISignalBitModel::getDataBitRate ( ) const

pure virtual

Returns the gross (physical) bitrate of the PHY frame data.

Implemented in inet::physicallayer::SignalBitModel.

Referenced by inet::physicallayer::ApskLayeredErrorModel::computeBitModel(), inet::physicallayer::Ieee80211OfdmErrorModel::computeBitModel(), inet::physicallayer::ApskLayeredErrorModel::computePacketModel(), inet::physicallayer::ApskLayeredErrorModel::computeSymbolModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createCompleteBitModel(), and inet::physicallayer::Ieee80211LayeredOfdmReceiver::createDataFieldBitModel().

getDataLength()

virtual b inet::physicallayer::ISignalBitModel::getDataLength ( ) const

pure virtual

Implemented in inet::physicallayer::SignalBitModel.

Referenced by inet::physicallayer::Ieee80211OfdmErrorModel::computeBitModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createCompleteBitModel(), and inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel().

getHeaderBitRate()

virtual bps inet::physicallayer::ISignalBitModel::getHeaderBitRate ( ) const

pure virtual

Returns the gross (physical) bitrate of the PHY frame header.

Implemented in inet::physicallayer::SignalBitModel.

Referenced by inet::physicallayer::Ieee80211OfdmErrorModel::computeBitModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createCompleteBitModel(), and inet::physicallayer::Ieee80211LayeredOfdmReceiver::createSignalFieldBitModel().

getHeaderLength()

virtual b inet::physicallayer::ISignalBitModel::getHeaderLength ( ) const

pure virtual

Implemented in inet::physicallayer::SignalBitModel.

Referenced by inet::physicallayer::Ieee80211OfdmErrorModel::computeBitModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createCompleteBitModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createDataFieldBitModel(), and inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel().

---

The documentation for this class was generated from the following file:

• ISignalBitModel.h
