inet::physicallayer::Ieee80211VhtMode Class Reference

#include <Ieee80211VhtMode.h>

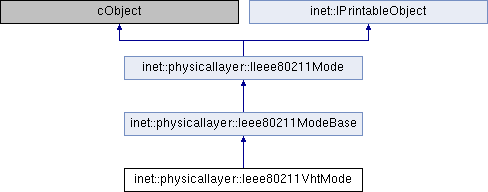

Inheritance diagram for inet::physicallayer::Ieee80211VhtMode:

Public Types
enum	BandMode { BAND_2_4GHZ, BAND_5GHZ }
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Public Member Functions
	Ieee80211VhtMode (const char *name, const Ieee80211VhtPreambleMode *preambleMode, const Ieee80211VhtDataMode *dataMode, const BandMode centerFrequencyMode)
virtual	~Ieee80211VhtMode ()
virtual const Ieee80211VhtDataMode *	getDataMode () const override
virtual const Ieee80211VhtPreambleMode *	getPreambleMode () const override
virtual const Ieee80211VhtSignalMode *	getHeaderMode () const override
virtual const Ieee80211OfdmSignalMode *	getLegacySignalMode () const
virtual const simtime_t	getSlotTime () const override
virtual const simtime_t	getShortSlotTime () const
virtual const simtime_t	getSifsTime () const override
virtual const simtime_t	getRifsTime () const override
virtual const simtime_t	getCcaTime () const override
virtual const simtime_t	getPhyRxStartDelay () const override
virtual const simtime_t	getRxTxTurnaroundTime () const override
virtual const simtime_t	getPreambleLength () const override
virtual const simtime_t	getPlcpHeaderLength () const override
virtual int	getMpduMaxLength () const override
virtual BandMode	getCenterFrequencyMode () const
virtual const simtime_t	getDuration (b dataBitLength) const override
Public Member Functions inherited from inet::physicallayer::Ieee80211ModeBase
	Ieee80211ModeBase (const char *name)
virtual const char *	getName () const override
Public Member Functions inherited from inet::physicallayer::IIeee80211Mode
IIeee80211PreambleMode *	_getPreambleMode () const
IIeee80211HeaderMode *	_getHeaderMode () const
IIeee80211DataMode *	_getDataMode () const
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual int	getLegacyCwMin () const override
virtual int	getLegacyCwMax () const override

Protected Attributes
const Ieee80211VhtPreambleMode *	preambleMode
const Ieee80211VhtDataMode *	dataMode
const BandMode	centerFrequencyMode

Member Enumeration Documentation

BandMode

enum inet::physicallayer::Ieee80211VhtMode::BandMode

Enumerator
BAND_2_4GHZ
BAND_5GHZ

                  {
        BAND_2_4GHZ,
        BAND_5GHZ
    };

Constructor & Destructor Documentation

Ieee80211VhtMode()

inet::physicallayer::Ieee80211VhtMode::Ieee80211VhtMode	(	const char *	name,
		const Ieee80211VhtPreambleMode *	preambleMode,
		const Ieee80211VhtDataMode *	dataMode,
		const BandMode	centerFrequencyMode
	)

                                                                                                                                                                           :
    Ieee80211ModeBase(name),
    preambleMode(preambleMode),
    dataMode(dataMode),
    centerFrequencyMode(centerFrequencyMode)
{
}

~Ieee80211VhtMode()

virtual inet::physicallayer::Ieee80211VhtMode::~Ieee80211VhtMode ( )

inlinevirtual

{ delete preambleMode; delete dataMode; }

Member Function Documentation

getCcaTime()

virtual const simtime_t inet::physicallayer::Ieee80211VhtMode::getCcaTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 4E-6; } // < 4

getCenterFrequencyMode()

virtual BandMode inet::physicallayer::Ieee80211VhtMode::getCenterFrequencyMode ( ) const

inlinevirtual

{ return centerFrequencyMode; }

getDataMode()

virtual const Ieee80211VhtDataMode* inet::physicallayer::Ieee80211VhtMode::getDataMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return dataMode; }

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211VhtMode::getDuration ( b  dataBitLength ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return preambleMode->getDuration() + dataMode->getDuration(dataBitLength); }

getHeaderMode()

virtual const Ieee80211VhtSignalMode* inet::physicallayer::Ieee80211VhtMode::getHeaderMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return preambleMode->getSignalMode(); }

getLegacyCwMax()

virtual int inet::physicallayer::Ieee80211VhtMode::getLegacyCwMax ( ) const

inlineoverrideprotectedvirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 1023; }

getLegacyCwMin()

virtual int inet::physicallayer::Ieee80211VhtMode::getLegacyCwMin ( ) const

inlineoverrideprotectedvirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 15; }

getLegacySignalMode()

virtual const Ieee80211OfdmSignalMode* inet::physicallayer::Ieee80211VhtMode::getLegacySignalMode ( ) const

inlinevirtual

{ return preambleMode->getLegacySignalMode(); }

getMpduMaxLength()

virtual int inet::physicallayer::Ieee80211VhtMode::getMpduMaxLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 65535; } // in octets

getPhyRxStartDelay()

virtual const simtime_t inet::physicallayer::Ieee80211VhtMode::getPhyRxStartDelay ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 33E-6; }

getPlcpHeaderLength()

virtual const simtime_t inet::physicallayer::Ieee80211VhtMode::getPlcpHeaderLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 4E-6; }

getPreambleLength()

virtual const simtime_t inet::physicallayer::Ieee80211VhtMode::getPreambleLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 16E-6; }

getPreambleMode()

virtual const Ieee80211VhtPreambleMode* inet::physicallayer::Ieee80211VhtMode::getPreambleMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return preambleMode; }

getRifsTime()

virtual const simtime_t inet::physicallayer::Ieee80211VhtMode::getRifsTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 2E-6; }

getRxTxTurnaroundTime()

virtual const simtime_t inet::physicallayer::Ieee80211VhtMode::getRxTxTurnaroundTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 2E-6; } // < 2

getShortSlotTime()

const simtime_t inet::physicallayer::Ieee80211VhtMode::getShortSlotTime ( ) const

virtual

{
    return 9E-6;
}

getSifsTime()

const simtime_t inet::physicallayer::Ieee80211VhtMode::getSifsTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{
    if (centerFrequencyMode == BAND_5GHZ)
        return 16E-6;
    else
        throw cRuntimeError("Sifs time is not defined for this carrier frequency"); // TODO
}

getSlotTime()

const simtime_t inet::physicallayer::Ieee80211VhtMode::getSlotTime ( ) const

overridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{
    if (centerFrequencyMode == BAND_5GHZ)
        return 9E-6;
    else
        throw cRuntimeError("Unsupported carrier frequency");
}

Member Data Documentation

centerFrequencyMode

const BandMode inet::physicallayer::Ieee80211VhtMode::centerFrequencyMode

protected

Referenced by getSifsTime(), and getSlotTime().

dataMode

const Ieee80211VhtDataMode* inet::physicallayer::Ieee80211VhtMode::dataMode

protected

preambleMode

const Ieee80211VhtPreambleMode* inet::physicallayer::Ieee80211VhtMode::preambleMode

protected

---

The documentation for this class was generated from the following files:

• Ieee80211VhtMode.h
• Ieee80211VhtMode.cc
