inet::physicallayer::Ieee80211DsssMode Class Reference

Represents a Direct Sequence Spread Spectrum PHY mode as described in IEEE 802.11-2012 specification clause 16. More...

#include <Ieee80211DsssMode.h>

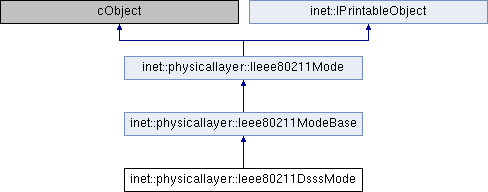

Inheritance diagram for inet::physicallayer::Ieee80211DsssMode:

Public Member Functions
	Ieee80211DsssMode (const char *name, const Ieee80211DsssPreambleMode *preambleMode, const Ieee80211DsssHeaderMode *headerMode, const Ieee80211DsssDataMode *dataMode)
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const IIeee80211PreambleMode *	getPreambleMode () const override
virtual const IIeee80211HeaderMode *	getHeaderMode () const override
virtual const IIeee80211DataMode *	getDataMode () const override
virtual Hz	getChannelSpacing () const
virtual Hz	getBandwidth () const
virtual const simtime_t	getDuration (b dataLength) const override
virtual const simtime_t	getSlotTime () const override
virtual const simtime_t	getShortSlotTime () const
virtual const simtime_t	getSifsTime () const override
virtual const simtime_t	getRifsTime () const override
virtual const simtime_t	getCcaTime () const override
virtual const simtime_t	getPhyRxStartDelay () const override
virtual const simtime_t	getRxTxTurnaroundTime () const override
virtual const simtime_t	getPreambleLength () const override
virtual const simtime_t	getPlcpHeaderLength () const override
virtual int	getMpduMaxLength () const override
Public Member Functions inherited from inet::physicallayer::Ieee80211ModeBase
	Ieee80211ModeBase (const char *name)
virtual const char *	getName () const override
Public Member Functions inherited from inet::physicallayer::IIeee80211Mode
IIeee80211PreambleMode *	_getPreambleMode () const
IIeee80211HeaderMode *	_getHeaderMode () const
IIeee80211DataMode *	_getDataMode () const
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual int	getLegacyCwMin () const override
virtual int	getLegacyCwMax () const override

Protected Attributes
const Ieee80211DsssPreambleMode *	preambleMode
const Ieee80211DsssHeaderMode *	headerMode
const Ieee80211DsssDataMode *	dataMode

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Represents a Direct Sequence Spread Spectrum PHY mode as described in IEEE 802.11-2012 specification clause 16.

Constructor & Destructor Documentation

Ieee80211DsssMode()

inet::physicallayer::Ieee80211DsssMode::Ieee80211DsssMode	(	const char *	name,
		const Ieee80211DsssPreambleMode *	preambleMode,
		const Ieee80211DsssHeaderMode *	headerMode,
		const Ieee80211DsssDataMode *	dataMode
	)

                                                                                                                                                                                      :
    Ieee80211ModeBase(name),
    preambleMode(preambleMode),
    headerMode(headerMode),
    dataMode(dataMode)
{
}

Member Function Documentation

getBandwidth()

virtual Hz inet::physicallayer::Ieee80211DsssMode::getBandwidth ( ) const

inlinevirtual

{ return MHz(22); }

getCcaTime()

virtual const simtime_t inet::physicallayer::Ieee80211DsssMode::getCcaTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 15E-6; }

getChannelSpacing()

virtual Hz inet::physicallayer::Ieee80211DsssMode::getChannelSpacing ( ) const

inlinevirtual

{ return MHz(5); }

getDataMode()

virtual const IIeee80211DataMode* inet::physicallayer::Ieee80211DsssMode::getDataMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return dataMode; }

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211DsssMode::getDuration ( b  dataLength ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return preambleMode->getDuration() + headerMode->getDuration() + dataMode->getDuration(dataLength); }

getHeaderMode()

virtual const IIeee80211HeaderMode* inet::physicallayer::Ieee80211DsssMode::getHeaderMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return headerMode; }

getLegacyCwMax()

virtual int inet::physicallayer::Ieee80211DsssMode::getLegacyCwMax ( ) const

inlineoverrideprotectedvirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 1023; }

getLegacyCwMin()

virtual int inet::physicallayer::Ieee80211DsssMode::getLegacyCwMin ( ) const

inlineoverrideprotectedvirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 31; }

getMpduMaxLength()

virtual int inet::physicallayer::Ieee80211DsssMode::getMpduMaxLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 8191; }

getPhyRxStartDelay()

virtual const simtime_t inet::physicallayer::Ieee80211DsssMode::getPhyRxStartDelay ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 192E-6; }

getPlcpHeaderLength()

virtual const simtime_t inet::physicallayer::Ieee80211DsssMode::getPlcpHeaderLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return headerMode->getDuration(); }

getPreambleLength()

virtual const simtime_t inet::physicallayer::Ieee80211DsssMode::getPreambleLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return preambleMode->getDuration(); }

getPreambleMode()

virtual const IIeee80211PreambleMode* inet::physicallayer::Ieee80211DsssMode::getPreambleMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return preambleMode; }

getRifsTime()

const simtime_t inet::physicallayer::Ieee80211DsssMode::getRifsTime ( ) const

overridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{
    return -1;
}

getRxTxTurnaroundTime()

virtual const simtime_t inet::physicallayer::Ieee80211DsssMode::getRxTxTurnaroundTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 5E-6; }

getShortSlotTime()

virtual const simtime_t inet::physicallayer::Ieee80211DsssMode::getShortSlotTime ( ) const

inlinevirtual

{ return 9E-6; }

getSifsTime()

virtual const simtime_t inet::physicallayer::Ieee80211DsssMode::getSifsTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 10E-6; }

getSlotTime()

virtual const simtime_t inet::physicallayer::Ieee80211DsssMode::getSlotTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 20E-6; }

printToStream()

virtual std::ostream& inet::physicallayer::Ieee80211DsssMode::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

inlineoverridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{ return stream << "Ieee80211DsssMode"; }

Member Data Documentation

dataMode

const Ieee80211DsssDataMode* inet::physicallayer::Ieee80211DsssMode::dataMode

protected

headerMode

const Ieee80211DsssHeaderMode* inet::physicallayer::Ieee80211DsssMode::headerMode

protected

preambleMode

const Ieee80211DsssPreambleMode* inet::physicallayer::Ieee80211DsssMode::preambleMode

protected

---

The documentation for this class was generated from the following files:

• Ieee80211DsssMode.h
• Ieee80211DsssMode.cc
