inet::physicallayer::Ieee80211DsssDataMode Class Reference

#include <Ieee80211DsssMode.h>

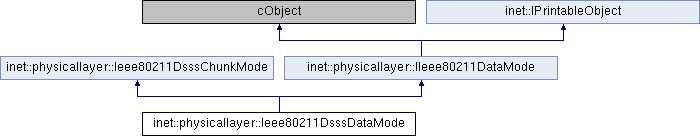

Inheritance diagram for inet::physicallayer::Ieee80211DsssDataMode:

Public Member Functions
	Ieee80211DsssDataMode (const DpskModulationBase *modulation)
virtual Hz	getBandwidth () const override
virtual bps	getNetBitrate () const override
virtual bps	getGrossBitrate () const override
virtual b	getPaddingLength (b dataLength) const override
virtual b	getCompleteLength (b dataLength) const override
virtual const simtime_t	getDuration (b length) const override
virtual const DpskModulationBase *	getModulation () const override
virtual int	getNumberOfSpatialStreams () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const DpskModulationBase *	modulation

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Ieee80211DsssDataMode()

inet::physicallayer::Ieee80211DsssDataMode::Ieee80211DsssDataMode

(

const DpskModulationBase *

modulation

)

                                                                                 :
    modulation(modulation)
{
}

Member Function Documentation

getBandwidth()

virtual Hz inet::physicallayer::Ieee80211DsssDataMode::getBandwidth ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return MHz(22); }

getCompleteLength()

virtual b inet::physicallayer::Ieee80211DsssDataMode::getCompleteLength ( b  dataLength ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return dataLength; }

getDuration()

const simtime_t inet::physicallayer::Ieee80211DsssDataMode::getDuration ( b  length ) const

overridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{
    return (simtime_t)(lrint(ceil((double)length.get() / getGrossBitrate().get() * 1E+6))) / 1E+6;
}

Referenced by inet::physicallayer::Ieee80211DsssMode::getDuration().

getGrossBitrate()

virtual bps inet::physicallayer::Ieee80211DsssDataMode::getGrossBitrate ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return getNetBitrate(); }

Referenced by getDuration().

getModulation()

virtual const DpskModulationBase* inet::physicallayer::Ieee80211DsssDataMode::getModulation ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return modulation; }

getNetBitrate()

virtual bps inet::physicallayer::Ieee80211DsssDataMode::getNetBitrate ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return Mbps(1) * modulation->getConstellationSize() / 2; }

getNumberOfSpatialStreams()

virtual int inet::physicallayer::Ieee80211DsssDataMode::getNumberOfSpatialStreams ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return 1; }

getPaddingLength()

virtual b inet::physicallayer::Ieee80211DsssDataMode::getPaddingLength ( b  dataLength ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return b(0); }

Member Data Documentation

modulation

const DpskModulationBase* inet::physicallayer::Ieee80211DsssDataMode::modulation

protected

---

The documentation for this class was generated from the following files:

• Ieee80211DsssMode.h
• Ieee80211DsssMode.cc
