inet::ieee80211::AlternativesFs Class Reference

#include <GenericFrameSequences.h>

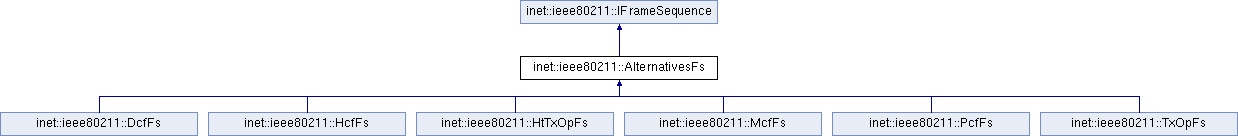

Inheritance diagram for inet::ieee80211::AlternativesFs:

Public Member Functions
virtual	~AlternativesFs ()
	AlternativesFs (std::vector< IFrameSequence * > elements, std::function< int(AlternativesFs *, FrameSequenceContext *)> selector)
virtual int	getStep ()
virtual int	selectSequence (FrameSequenceContext *context)
virtual void	startSequence (FrameSequenceContext *context, int firstStep) override
virtual IFrameSequenceStep *	prepareStep (FrameSequenceContext *context) override
virtual bool	completeStep (FrameSequenceContext *context) override
virtual std::string	getHistory () const override
Public Member Functions inherited from inet::ieee80211::IFrameSequence
virtual	~IFrameSequence ()

Protected Attributes
int	firstStep = -1
int	step = -1
int	elementIndex = -1
std::vector< IFrameSequence * >	elements
std::function< int(AlternativesFs *, FrameSequenceContext *)>	selector

Constructor & Destructor Documentation

~AlternativesFs()

inet::ieee80211::AlternativesFs::~AlternativesFs ( )

virtual

{
    for (auto element : elements)
        delete element;
}

AlternativesFs()

inet::ieee80211::AlternativesFs::AlternativesFs	(	std::vector< IFrameSequence * >	elements,
		std::function< int(AlternativesFs *, FrameSequenceContext *)>	selector
	)

                                                                                                                                        :
    elements(elements),
    selector(selector)
{
}

Referenced by inet::ieee80211::DcfFs::DcfFs(), inet::ieee80211::HcfFs::HcfFs(), and inet::ieee80211::TxOpFs::TxOpFs().

Member Function Documentation

completeStep()

bool inet::ieee80211::AlternativesFs::completeStep ( FrameSequenceContext *  context )

overridevirtual

Implements inet::ieee80211::IFrameSequence.

{
    step++;
    return elements[elementIndex]->completeStep(context);
}

getHistory()

std::string inet::ieee80211::AlternativesFs::getHistory ( ) const

overridevirtual

Implements inet::ieee80211::IFrameSequence.

{
    ASSERT(step != -1);
    ASSERT(0 <= elementIndex && (size_t)elementIndex < elements.size());
    return elements[elementIndex]->getHistory();
}

getStep()

virtual int inet::ieee80211::AlternativesFs::getStep ( )

inlinevirtual

{ return firstStep + step; }

prepareStep()

IFrameSequenceStep * inet::ieee80211::AlternativesFs::prepareStep ( FrameSequenceContext *  context )

overridevirtual

Implements inet::ieee80211::IFrameSequence.

{
    return elements[elementIndex]->prepareStep(context);
}

selectSequence()

virtual int inet::ieee80211::AlternativesFs::selectSequence ( FrameSequenceContext *  context )

inlinevirtual

{ return selector(this, context); }

Referenced by startSequence().

startSequence()

void inet::ieee80211::AlternativesFs::startSequence ( FrameSequenceContext *  context, int  firstStep  )

overridevirtual

Implements inet::ieee80211::IFrameSequence.

{
    this->firstStep = firstStep;
    step = 0;
    elementIndex = selectSequence(context);
    elements[elementIndex]->startSequence(context, firstStep);
}

Member Data Documentation

elementIndex

int inet::ieee80211::AlternativesFs::elementIndex = -1

protected

Referenced by completeStep(), getHistory(), prepareStep(), and startSequence().

elements

std::vector<IFrameSequence *> inet::ieee80211::AlternativesFs::elements

protected

Referenced by completeStep(), getHistory(), prepareStep(), startSequence(), and ~AlternativesFs().

firstStep

int inet::ieee80211::AlternativesFs::firstStep = -1

protected

Referenced by startSequence().

selector

std::function<int(AlternativesFs *, FrameSequenceContext *)> inet::ieee80211::AlternativesFs::selector

protected

step

int inet::ieee80211::AlternativesFs::step = -1

protected

Referenced by completeStep(), getHistory(), and startSequence().

---

The documentation for this class was generated from the following files:

• GenericFrameSequences.h
• GenericFrameSequences.cc
