inet::ieee80211::IFrameSequenceStep Class Reference

#include <IFrameSequence.h>

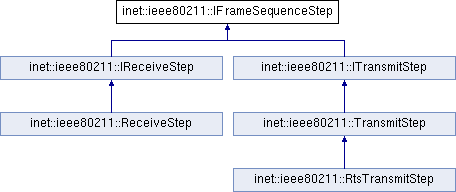

Inheritance diagram for inet::ieee80211::IFrameSequenceStep:

Public Types
enum	Type { Type::TRANSMIT, Type::RECEIVE }
enum	Completion { Completion::UNDEFINED, Completion::ACCEPTED, Completion::REJECTED, Completion::EXPIRED }

Public Member Functions
virtual	~IFrameSequenceStep ()
virtual Type	getType ()=0
virtual Completion	getCompletion ()=0
virtual void	setCompletion (Completion completion)=0

Member Enumeration Documentation

Completion

enum inet::ieee80211::IFrameSequenceStep::Completion

strong

Enumerator
UNDEFINED
ACCEPTED
REJECTED
EXPIRED

                          {
        UNDEFINED,
        ACCEPTED,
        REJECTED,
        EXPIRED,
    };

Type

enum inet::ieee80211::IFrameSequenceStep::Type

strong

Enumerator
TRANSMIT
RECEIVE

                    {
        TRANSMIT,
        RECEIVE,
    };

Constructor & Destructor Documentation

~IFrameSequenceStep()

virtual inet::ieee80211::IFrameSequenceStep::~IFrameSequenceStep ( )

inlinevirtual

{}

Member Function Documentation

getCompletion()

virtual Completion inet::ieee80211::IFrameSequenceStep::getCompletion ( )

pure virtual

Implemented in inet::ieee80211::ReceiveStep, and inet::ieee80211::TransmitStep.

getType()

virtual Type inet::ieee80211::IFrameSequenceStep::getType ( )

pure virtual

Implemented in inet::ieee80211::IReceiveStep, and inet::ieee80211::ITransmitStep.

setCompletion()

virtual void inet::ieee80211::IFrameSequenceStep::setCompletion ( Completion  completion )

pure virtual

---

The documentation for this class was generated from the following file:

• IFrameSequence.h
