This class provides Dynamic MANET On-demand (Dymo also known as AODVv2) Routing based on the IETF draft at http://tools.ietf.org/html/draft-ietf-manet-dymo-24. More...

#include <Dymo.h>

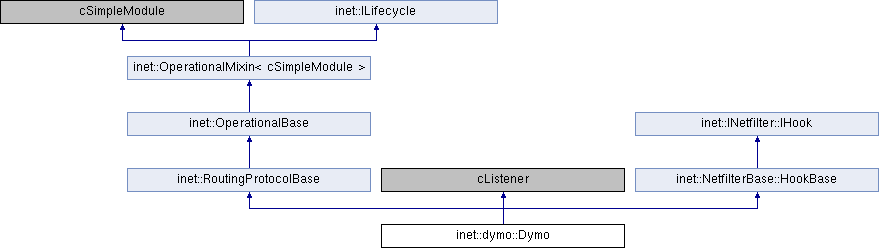

Inheritance diagram for inet::dymo::Dymo:

Public Member Functions
	Dymo ()

virtual	~Dymo ()

Public Member Functions inherited from inet::RoutingProtocolBase
	RoutingProtocolBase ()

Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...

Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Public Member Functions inherited from inet::NetfilterBase::HookBase
virtual	~HookBase ()

void	registeredTo (INetfilter *nf)

void	unregisteredFrom (INetfilter *nf)

bool	isRegisteredHook (INetfilter *nf)

Public Member Functions inherited from inet::INetfilter::IHook
virtual	~IHook ()

Protected Member Functions
virtual int	numInitStages () const override

void	initialize (int stage) override

void	handleMessageWhenUp (cMessage *message) override

Protected Member Functions inherited from inet::RoutingProtocolBase
virtual bool	isInitializeStage (int stage) const override

virtual bool	isModuleStartStage (int stage) const override

virtual bool	isModuleStopStage (int stage) const override

Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handleMessage (cMessage *msg) override

virtual void	handleMessageWhenDown (cMessage *msg)

virtual bool	handleOperationStage (LifecycleOperation operation, IDoneCallback doneCallback) override
	Perform one stage of a lifecycle operation. More...

virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...

virtual void	handleActiveOperationTimeout (cMessage *message)

virtual bool	isUp () const
	utility functions More...

virtual bool	isDown () const

virtual void	setOperationalState (State newState)

virtual void	scheduleOperationTimeout (simtime_t timeout)

virtual void	setupActiveOperation (LifecycleOperation operation, IDoneCallback doneCallback, State)

virtual void	delayActiveOperationFinish (simtime_t timeout)

virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)

virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)

virtual void	finishActiveOperation ()

Private Member Functions
void	processSelfMessage (cMessage *message)

void	processMessage (cMessage *message)

void	startRouteDiscovery (const L3Address &target)

void	retryRouteDiscovery (const L3Address &target, int retryCount)

void	completeRouteDiscovery (const L3Address &target)

void	cancelRouteDiscovery (const L3Address &target)

bool	hasOngoingRouteDiscovery (const L3Address &target)

void	delayDatagram (Packet *datagram)

void	reinjectDelayedDatagram (Packet *datagram)

void	dropDelayedDatagram (Packet *datagram)

void	eraseDelayedDatagrams (const L3Address &target)

bool	hasDelayedDatagrams (const L3Address &target)

void	cancelRreqTimer (const L3Address &target)

void	deleteRreqTimer (const L3Address &target)

void	eraseRreqTimer (const L3Address &target)

RreqWaitRrepTimer *	createRreqWaitRrepTimer (const L3Address &target, int retryCount)

void	scheduleRreqWaitRrepTimer (RreqWaitRrepTimer *message)

void	processRreqWaitRrepTimer (RreqWaitRrepTimer *message)

RreqBackoffTimer *	createRreqBackoffTimer (const L3Address &target, int retryCount)

void	scheduleRreqBackoffTimer (RreqBackoffTimer *message)

void	processRreqBackoffTimer (RreqBackoffTimer *message)

simtime_t	computeRreqBackoffTime (int retryCount)

RreqHolddownTimer *	createRreqHolddownTimer (const L3Address &target)

void	scheduleRreqHolddownTimer (RreqHolddownTimer *message)

void	processRreqHolddownTimer (RreqHolddownTimer *message)

void	sendUdpPacket (cPacket *packet)

void	cancelJitterTimerPacket (PacketJitterTimer *msg)

void	eraseJitterTimerPacket (PacketJitterTimer *msg)

void	scheduleJitterTimerPacket (cPacket *packet, double delay)

void	processJitterTimerPacket (PacketJitterTimer *msg)

void	processUdpPacket (Packet *packet)

void	sendDymoPacket (const Ptr< DymoPacket > &packet, const NetworkInterface *networkInterface, const L3Address &nextHop, double delay)

void	processDymoPacket (Packet *packet, const Ptr< const DymoPacket > &dymoPacket)

bool	permissibleRteMsg (Packet *packet, const Ptr< const RteMsg > &rteMsg)

void	processRteMsg (Packet *packet, const Ptr< const RteMsg > &rteMsg)

b	computeRteMsgLength (const Ptr< RteMsg > &rteMsg)

const Ptr< Rreq >	createRreq (const L3Address &target, int retryCount)

void	sendRreq (const Ptr< Rreq > &rreq)

void	processRreq (Packet *packet, const Ptr< const Rreq > &rreq)

b	computeRreqLength (const Ptr< Rreq > &rreq)

const Ptr< Rrep >	createRrep (const Ptr< const RteMsg > &rteMsg)

const Ptr< Rrep >	createRrep (const Ptr< const RteMsg > &rteMsg, IRoute *route)

void	sendRrep (const Ptr< Rrep > &rrep)

void	sendRrep (const Ptr< Rrep > &rrep, IRoute *route)

void	processRrep (Packet *packet, const Ptr< const Rrep > &rrep)

b	computeRrepLength (const Ptr< Rrep > &rrep)

const Ptr< Rerr >	createRerr (std::vector< L3Address > &addresses)

void	sendRerr (const Ptr< Rerr > &rerr)

void	sendRerrForUndeliverablePacket (const L3Address &destination)

void	sendRerrForBrokenLink (const NetworkInterface *networkInterface, const L3Address &nextHop)

void	processRerr (Packet *packet, const Ptr< const Rerr > &rerr)

b	computeRerrLength (const Ptr< Rerr > &rerr)

IRoute *	createRoute (Packet *packet, const Ptr< const RteMsg > &rteMsg, const AddressBlock &addressBlock)

void	updateRoutes (Packet *packet, const Ptr< const RteMsg > &rteMsg, const AddressBlock &addressBlock)

void	updateRoute (Packet packet, const Ptr< const RteMsg > &rteMsg, const AddressBlock &addressBlock, IRoute route)

int	getLinkCost (const NetworkInterface *networkInterface, DymoMetricType metricType)

bool	isLoopFree (const Ptr< const RteMsg > &rteMsg, IRoute *route)

void	processExpungeTimer ()

void	scheduleExpungeTimer ()

void	expungeRoutes ()

simtime_t	getNextExpungeTime ()

DymoRouteState	getRouteState (DymoRouteData *routeData)

void	configureInterfaces ()

L3Address	getSelfAddress ()

bool	isClientAddress (const L3Address &address)

void	addSelfNode (const Ptr< RteMsg > &rteMsg)

void	addNode (const Ptr< RteMsg > &rteMsg, AddressBlock &addressBlock)

void	incrementSequenceNumber ()

Result	ensureRouteForDatagram (Packet *datagram)

virtual Result	datagramPreRoutingHook (Packet *datagram) override
	This is the first hook called by the network protocol before it routes a datagram that was received from the lower layer. More...

virtual Result	datagramForwardHook (Packet *datagram) override
	This is the second hook called by the network protocol before it sends a datagram to the lower layer. More...

virtual Result	datagramPostRoutingHook (Packet *datagram) override
	This is the last hook called by the network protocol before it sends a datagram to the lower layer. More...

virtual Result	datagramLocalInHook (Packet *datagram) override
	This is the last hook called by the network protocol before it sends a datagram to the upper layer. More...

virtual Result	datagramLocalOutHook (Packet *datagram) override
	This is the first hook called by the network protocol before it routes a datagram that was received from the upper layer. More...

virtual void	handleStartOperation (LifecycleOperation *operation) override

virtual void	handleStopOperation (LifecycleOperation *operation) override

virtual void	handleCrashOperation (LifecycleOperation *operation) override

virtual void	receiveSignal (cComponent source, simsignal_t signalID, cObject obj, cObject *details) override

Private Attributes
const char *	clientAddresses

bool	useMulticastRREP

const char *	interfaces

double	activeInterval

double	maxIdleTime

double	maxSequenceNumberLifetime

double	routeRREQWaitTime

double	rreqHolddownTime

int	maxHopCount

int	discoveryAttemptsMax

bool	appendInformation

int	bufferSizePackets

int	bufferSizeBytes

simtime_t	maxJitter

bool	sendIntermediateRREP

int	minHopLimit

int	maxHopLimit

cModule *	host

IL3AddressType *	addressType

ModuleRefByPar< IInterfaceTable >	interfaceTable

ModuleRefByPar< IRoutingTable >	routingTable

ModuleRefByPar< INetfilter >	networkProtocol

cMessage *	expungeTimer

DymoSequenceNumber	sequenceNumber

std::map< L3Address, DymoSequenceNumber >	targetAddressToSequenceNumber

std::map< L3Address, RreqTimer * >	targetAddressToRREQTimer

std::multimap< L3Address, Packet * >	targetAddressToDelayedPackets

std::set< PacketJitterTimer * >	packetJitterTimers

std::vector< std::pair< L3Address, int > >	clientAddressAndPrefixLengthPairs

Additional Inherited Members
Public Types inherited from inet::INetfilter::IHook
enum	Type { PREROUTING, LOCALIN, FORWARD, POSTROUTING, LOCALOUT }

enum	Result { ACCEPT, DROP, QUEUE, STOLEN }

Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState

simtime_t	lastChange

Operation	activeOperation

cMessage *	activeOperationTimeout

cMessage *	activeOperationExtraTimer

Protected Attributes inherited from inet::NetfilterBase::HookBase
std::vector< INetfilter * >	netfilters

Detailed Description

This class provides Dynamic MANET On-demand (Dymo also known as AODVv2) Routing based on the IETF draft at http://tools.ietf.org/html/draft-ietf-manet-dymo-24.

Optional features implemented:

7.1. Route Discovery Retries and Buffering To reduce congestion in a network, repeated attempts at route discovery for a particular Target Node SHOULD utilize a binary exponential backoff.
13.1. Expanding Rings Multicast Increase hop limit from min to max with each retry.
13.2. Intermediate RREP Allow intermediate Dymo routers to reply with RREP.
13.6. Message Aggregation RFC5148 add jitter to broadcasts

Constructor & Destructor Documentation

◆ Dymo()

inet::dymo::Dymo::Dymo ( )

            :
     clientAddresses(nullptr),
     useMulticastRREP(false),
     interfaces(nullptr),
     activeInterval(NaN),
     maxIdleTime(NaN),
     maxSequenceNumberLifetime(NaN),
     routeRREQWaitTime(NaN),
     rreqHolddownTime(NaN),
     maxHopCount(-1),
     discoveryAttemptsMax(-1),
     appendInformation(false),
     bufferSizePackets(-1),
     bufferSizeBytes(-1),
     maxJitter(NaN),
     sendIntermediateRREP(false),
     minHopLimit(-1),
     maxHopLimit(-1),
     host(nullptr),
     addressType(nullptr),
     expungeTimer(nullptr),
     sequenceNumber(0)
 {
 }

◆ ~Dymo()

inet::dymo::Dymo::~Dymo ( )

virtual

 {
     for (auto& elem : targetAddressToRREQTimer)
         cancelAndDelete(elem.second);
     for (auto& pkt_timer : packetJitterTimers) {
         cancelAndDelete(pkt_timer);
     }
     cancelAndDelete(expungeTimer);
 }

Member Function Documentation

◆ addNode()

void inet::dymo::Dymo::addNode	(	const Ptr< RteMsg > &	rteMsg,
		AddressBlock &	addressBlock
	)

private

 {
     int size = rteMsg->getAddedNodeArraySize();
     rteMsg->setAddedNodeArraySize(size + 1);
     rteMsg->setAddedNode(size, addressBlock);
 }

Referenced by addSelfNode().

◆ addSelfNode()

void inet::dymo::Dymo::addSelfNode ( const Ptr< RteMsg > & rteMsg )

private

 {
     const L3Address& address = getSelfAddress();
     AddressBlock addressBlock;
     addressBlock.setAddress(address);
     addressBlock.setPrefixLength(addressType->getMaxPrefixLength());
     addressBlock.setHasValidityTime(false);
     addressBlock.setValidityTime(-1);
     addressBlock.setHasMetric(true);
     addressBlock.setMetric(0);
     addressBlock.setHasMetricType(true);
     addressBlock.setMetricType(HOP_COUNT);
     addressBlock.setHasSequenceNumber(true);
     addressBlock.setSequenceNumber(sequenceNumber);
     addNode(rteMsg, addressBlock);
 }

Referenced by processRrep(), and processRreq().

◆ cancelJitterTimerPacket()

void inet::dymo::Dymo::cancelJitterTimerPacket ( PacketJitterTimer * msg )

private

                                                          {
     packetJitterTimers.erase(msg);
     cancelAndDelete(msg);
 }

◆ cancelRouteDiscovery()

void inet::dymo::Dymo::cancelRouteDiscovery ( const L3Address & target )

private

 {
     EV_INFO << "Canceling route discovery: originator = " << getSelfAddress() << ", target = " << target << endl;
     ASSERT(hasOngoingRouteDiscovery(target));
     auto lt = targetAddressToDelayedPackets.lower_bound(target);
     auto ut = targetAddressToDelayedPackets.upper_bound(target);
     for (auto it = lt; it != ut; it++)
         dropDelayedDatagram(it->second);
     eraseDelayedDatagrams(target);
 }

Referenced by handleStopOperation(), and processRreqWaitRrepTimer().

◆ cancelRreqTimer()

void inet::dymo::Dymo::cancelRreqTimer ( const L3Address & target )

private

 {
     auto tt = targetAddressToRREQTimer.find(target);
     ASSERT(tt != targetAddressToRREQTimer.end());
     cancelEvent(tt->second);
 }

Referenced by processRrep(), and processRreqWaitRrepTimer().

◆ completeRouteDiscovery()

void inet::dymo::Dymo::completeRouteDiscovery ( const L3Address & target )

private

 {
     EV_INFO << "Completing route discovery: originator = " << getSelfAddress() << ", target = " << target << endl;
     ASSERT(hasOngoingRouteDiscovery(target));
     auto lt = targetAddressToDelayedPackets.lower_bound(target);
     auto ut = targetAddressToDelayedPackets.upper_bound(target);
     for (auto it = lt; it != ut; it++)
         reinjectDelayedDatagram(it->second);
     eraseDelayedDatagrams(target);
 }

Referenced by processRrep().

◆ computeRerrLength()

b inet::dymo::Dymo::computeRerrLength ( const Ptr< Rerr > & rerr )

private

 {
     // TODO validityTime, metric, metricType, TLVs
     // 1. <address-block> := <num-addr> <addr-flags> (<head-length><head>?)? (<tail-length><tail>?)? <mid>* <prefix-length>*
     int addressBlock = 8 + 8;
     // head-length and head are not used
     // tail-length and tail are not used
     // mid contains the originator and target addresses
     addressBlock += rerr->getUnreachableNodeArraySize() * 4 * 8;
     // prefix-length is not used (assuming 8 * address-length bits)
     // 2. <tlv> := <tlv-type> <tlv-flags> <tlv-type-ext>? (<index-start><index-stop>?)? (<length><value>?)?
     int addressTLV = 8 + 8;
     // tlv-type-ext is not used
     // index-start and index-stop are not used
     // length is set to 2 + added node count
     addressTLV += 8;
     // sequence number values are included
     addressTLV += rerr->getUnreachableNodeArraySize() * 2 * 8;
     // 3. <tlv-block> := <tlvs-length> <tlv>*
     int addressTLVBlock = 16;
     // there's exactly one tlv in the block
     addressTLVBlock += addressTLV;
     // 4. <tlv-block> := <tlvs-length> <tlv>*
     int messageTLVBlock = 16;
     // there's no TLV in the message TLV block
     // 5. <msg-header> := <msg-type> <msg-flags> <msg-addr-length> <msg-size> <msg-orig-addr>? <msg-hop-limit>? <msg-hop-count>? <msg-seq-num>?
     int messageHeader = 8 + 4 + 4 + 16;
     // msg-orig-addr is not used
     // msg-hop-limit is always included in the message header
     messageHeader += 8 + 8;
     // msg-hop-count is not used
     // msg-seq-num is not used
     // 6. <message> := <msg-header> <tlv-block> (<addr-block><tlv-block>)*
     int message = messageHeader + messageTLVBlock;
     // there's exactly one address-block with one tlv-block in the message
     message += (addressBlock + addressTLVBlock);
     // 7. <pkt-header> := <version> <pkt-flags> <pkt-seq-num>? <tlv-block>?
     int packetHeader = 4 + 4;
     // pkt-seq-num is not used
     // tlv-block is not used
     // 8. <packet> := <pkt-header> <message>*
     int packet = packetHeader;
     // there's exactly one message in the packet
     packet += message;
     return b(packet);
 }

Referenced by sendRerr().

◆ computeRrepLength()

b inet::dymo::Dymo::computeRrepLength ( const Ptr< Rrep > & rrep )

private

 {
     return computeRteMsgLength(rrep);
 }

Referenced by sendRrep().

◆ computeRreqBackoffTime()

simtime_t inet::dymo::Dymo::computeRreqBackoffTime ( int retryCount )

private

 {
     return pow(routeRREQWaitTime, retryCount);
 }

Referenced by scheduleRreqBackoffTimer().

◆ computeRreqLength()

b inet::dymo::Dymo::computeRreqLength ( const Ptr< Rreq > & rreq )

private

 {
     return computeRteMsgLength(rreq);
 }

Referenced by sendRreq().

◆ computeRteMsgLength()

b inet::dymo::Dymo::computeRteMsgLength ( const Ptr< RteMsg > & rteMsg )

private

 {
     // TODO validityTime, metric, metricType, TLVs
     // 1. <address-block> := <num-addr> <addr-flags> (<head-length><head>?)? (<tail-length><tail>?)? <mid>* <prefix-length>*
     int addressBlock = 8 + 8;
     // head-length and head are not used
     // tail-length and tail are not used
     // mid contains the originator and target addresses
     addressBlock += (2 + rteMsg->getAddedNodeArraySize()) * 4 * 8;
     // prefix-length is not used (assuming 8 * address-length bits)
     // 2. <tlv> := <tlv-type> <tlv-flags> <tlv-type-ext>? (<index-start><index-stop>?)? (<length><value>?)?
     int addressTLV = 8 + 8;
     // tlv-type-ext is not used
     // index-start and index-stop are not used
     // length is set to 2 + added node count
     addressTLV += 8;
     // sequence number values are included
     addressTLV += (2 + rteMsg->getAddedNodeArraySize()) * 2 * 8;
     // 3. <tlv-block> := <tlvs-length> <tlv>*
     int addressTLVBlock = 16;
     // there's exactly one tlv in the block
     addressTLVBlock += addressTLV;
     // 4. <tlv-block> := <tlvs-length> <tlv>*
     int messageTLVBlock = 16;
     // there's no TLV in the message TLV block
     // 5. <msg-header> := <msg-type> <msg-flags> <msg-addr-length> <msg-size> <msg-orig-addr>? <msg-hop-limit>? <msg-hop-count>? <msg-seq-num>?
     int messageHeader = 8 + 4 + 4 + 16;
     // msg-orig-addr is not used
     // msg-hop-limit and msg-hop-count are always included in the message header
     messageHeader += 8 + 8;
     // msg-seq-num is not used
     // 6. <message> := <msg-header> <tlv-block> (<addr-block><tlv-block>)*
     int message = messageHeader + messageTLVBlock;
     // there's exactly one address-block with one tlv-block in the message
     message += (addressBlock + addressTLVBlock);
     // 7. <pkt-header> := <version> <pkt-flags> <pkt-seq-num>? <tlv-block>?
     int packetHeader = 4 + 4;
     // pkt-seq-num is not used
     // tlv-block is not used
     // 8. <packet> := <pkt-header> <message>*
     int packet = packetHeader;
     // there's exactly one message in the packet
     packet += message;
     return b(packet);
 }

Referenced by computeRrepLength(), and computeRreqLength().

◆ configureInterfaces()

void inet::dymo::Dymo::configureInterfaces ( )

private

 {
     // join multicast groups
     cPatternMatcher interfaceMatcher(interfaces, false, true, false);
     for (int i = 0; i < interfaceTable->getNumInterfaces(); i++) {
         NetworkInterface *networkInterface = interfaceTable->getInterface(i);
         if (networkInterface->isMulticast() && interfaceMatcher.matches(networkInterface->getInterfaceName()))
             // Most AODVv2 messages are sent with the IP destination address set to the link-local
             // multicast address LL-MANET-Routers [RFC5498] unless otherwise specified. Therefore,
             // all AODVv2 routers MUST subscribe to LL-MANET-Routers [RFC5498] to receiving AODVv2 messages.
             networkInterface->joinMulticastGroup(addressType->getLinkLocalManetRoutersMulticastAddress());
     }
 }

Referenced by handleStartOperation().

◆ createRerr()

const Ptr< Rerr > inet::dymo::Dymo::createRerr ( std::vector< L3Address > & addresses )

private

 {
     auto rerr = makeShared<Rerr>(); // TODO "RERR");
     for (auto& unreachableAddresse : unreachableAddresses) {
         const L3Address& unreachableAddress = unreachableAddresse;
         AddressBlock *addressBlock = new AddressBlock();
         addressBlock->setAddress(unreachableAddress);
         addressBlock->setPrefixLength(addressType->getMaxPrefixLength());
         addressBlock->setHasValidityTime(false);
         addressBlock->setHasMetric(false);
         addressBlock->setHasMetricType(false);
         auto st = targetAddressToSequenceNumber.find(unreachableAddress);
         if (st != targetAddressToSequenceNumber.end()) {
             addressBlock->setHasSequenceNumber(true);
             addressBlock->setSequenceNumber(st->second);
         }
         else
             addressBlock->setHasSequenceNumber(false);
         int size = rerr->getUnreachableNodeArraySize();
         rerr->setUnreachableNodeArraySize(size + 1);
         rerr->setUnreachableNode(size, *addressBlock);
     }
     rerr->setHopLimit(maxHopLimit);
     return rerr;
 }

Referenced by processRerr(), sendRerrForBrokenLink(), and sendRerrForUndeliverablePacket().

◆ createRoute()

IRoute * inet::dymo::Dymo::createRoute	(	Packet *	packet,
		const Ptr< const RteMsg > &	rteMsg,
		const AddressBlock &	addressBlock
	)

private

 {
     IRoute *route = routingTable->createRoute();
     route->setSourceType(IRoute::DYMO);
     route->setSource(this);
     route->setProtocolData(new DymoRouteData());
     updateRoute(packet, rteMsg, addressBlock, route);
     return route;
 }

Referenced by updateRoutes().

◆ createRrep() [1/2]

const Ptr< Rrep > inet::dymo::Dymo::createRrep ( const Ptr< const RteMsg > & rteMsg )

private

 {
     return createRrep(rteMsg, nullptr);
 }

Referenced by processRreq().

◆ createRrep() [2/2]

const Ptr< Rrep > inet::dymo::Dymo::createRrep	(	const Ptr< const RteMsg > &	rteMsg,
		IRoute *	route
	)

private

 {
     DymoRouteData *routeData = check_and_cast<DymoRouteData *>(route->getProtocolData());
     auto rrep = makeShared<Rrep>(); // TODO "RREP");
     AddressBlock& originatorNode = rrep->getOriginatorNodeForUpdate();
     AddressBlock& targetNode = rrep->getTargetNodeForUpdate();
     // 1. RREP_Gen first uses the routing information to update its route
     //    table entry for OrigNode if necessary as specified in Section 6.2.
     // NOTE: this is already done
     // 2. RREP_Gen MUST increment its OwnSeqNum by one (1) according to
     //    the rules specified in Section 5.5.
     incrementSequenceNumber();
     // 3. RREP.AddrBlk[OrigNode] := RREQ.AddrBlk[OrigNode]
     originatorNode = AddressBlock(rteMsg->getOriginatorNode());
     // 4. RREP.AddrBlk[TargNode] := RREQ.AddrBlk[TargNode]
     targetNode = AddressBlock(rteMsg->getTargetNode());
     // 5. RREP.SeqNumTLV[OrigNode] := RREQ.SeqNumTLV[OrigNode]
     originatorNode.setHasSequenceNumber(true);
     originatorNode.setSequenceNumber(rteMsg->getOriginatorNode().getSequenceNumber());
     // 6. RREP.SeqNumTLV[TargNode] := OwnSeqNum
     targetNode.setHasSequenceNumber(true);
     targetNode.setSequenceNumber(sequenceNumber);
     // 7. If Route[TargNode].PfxLen/8 is equal to the number of bytes in
     //    the addresses of the RREQ (4 for Ipv4, 16 for Ipv6), then no
     //    <prefix-length> is included with the iRREP.  Otherwise,
     //    RREP.PfxLen[TargNode] := RREQ.PfxLen[TargNode] according to the
     //    rules of RFC 5444 AddrBlk encoding.
     // TODO implement
     // 8. RREP.MetricType[TargNode] := Route[TargNode].MetricType
     targetNode.setHasMetricType(true);
     targetNode.setMetricType(routeData->getMetricType());
     // 9. RREP.Metric[TargNode] := Route[TargNode].Metric
     targetNode.setHasMetric(true);
     targetNode.setMetric(route->getMetric());
     // 10. <msg-hop-limit> SHOULD be set to RteMsg.<msg-hop-count>.
     rrep->setHopLimit(rteMsg->getHopCount());
     // 11. IP.DestinationAddr := Route[OrigNode].NextHop
     // NOTE: can't be done here, it is done later
     return rrep;
 }

◆ createRreq()

const Ptr< Rreq > inet::dymo::Dymo::createRreq	(	const L3Address &	target,
		int	retryCount
	)

private

 {
     auto rreq = makeShared<Rreq>(); // TODO "RREQ");
     AddressBlock& originatorNode = rreq->getOriginatorNodeForUpdate();
     AddressBlock& targetNode = rreq->getTargetNodeForUpdate();
     // 7.3. RREQ Generation
     // 1. RREQ_Gen MUST increment its OwnSeqNum by one (1) according to the
     //    rules specified in Section 5.5.
     incrementSequenceNumber();
     // 2. OrigNode MUST be a unicast address.  If RREQ_Gen is not OrigNode,
     //    then OwnSeqNum will be used as the value of OrigNode.SeqNum. will
     //    be used by AODVv2 routers to create a route toward the OrigNode,
     //    enabling a RREP from TargRtr, and eventually used for proper
     //    forwarding of data packets.
     // 3. If RREQ_Gen requires that only TargRtr is allowed to generate a
     //    RREP, then RREQ_Gen includes the "Destination RREP Only" TLV as
     //    part of the RFC 5444 message header.  This also assures that
     //    TargRtr increments its sequence number.  Otherwise, intermediate
     //    AODVv2 routers MAY respond to the RREQ_Gen's RREQ if they have an
     //    valid route to TargNode (see Section 13.2).
     // 4. msg-hopcount MUST be set to 0.
     rreq->setHopCount(0);
     //    *  This RFC 5444 constraint causes the typical RteMsg payload
     //       incur additional enlargement.
     // 5. RREQ_Gen adds the TargNode.Addr to the RREQ.
     targetNode.setAddress(target);
     targetNode.setPrefixLength(addressType->getMaxPrefixLength());
     // 6. If a previous value of the TargNode's SeqNum is known RREQ_Gen SHOULD
     //    include TargNode.SeqNum in all but the last RREQ attempt.
     auto st = targetAddressToSequenceNumber.find(target);
     if (st != targetAddressToSequenceNumber.end() && retryCount < discoveryAttemptsMax - 1) {
         targetNode.setHasSequenceNumber(true);
         targetNode.setSequenceNumber(st->second);
     }
     else
         targetNode.setHasSequenceNumber(false);
     // 7. RREQ_Gen adds OrigNode.Addr, its prefix, and the RREQ_Gen.SeqNum (OwnSeqNum) to the RREQ.
     const L3Address& originator = getSelfAddress();
     originatorNode.setAddress(originator);
     originatorNode.setPrefixLength(addressType->getMaxPrefixLength());
     originatorNode.setHasSequenceNumber(true);
     originatorNode.setSequenceNumber(sequenceNumber);
     // 8. If OrigNode.Metric is included it is set to the cost of the route
     //    between OrigNode and RREQ_Gen.
     originatorNode.setHasMetric(true);
     originatorNode.setMetric(0);
     originatorNode.setHasMetricType(true);
     originatorNode.setMetricType(HOP_COUNT);
     targetNode.setHasMetricType(true);
     targetNode.setMetricType(HOP_COUNT);
     // 13.1. Expanding Rings Multicast
     int hopLimit = minHopLimit + (maxHopLimit - minHopLimit) * retryCount / discoveryAttemptsMax;
     rreq->setHopLimit(hopLimit);
     return rreq;
 }

Referenced by retryRouteDiscovery(), and startRouteDiscovery().

◆ createRreqBackoffTimer()

RreqBackoffTimer * inet::dymo::Dymo::createRreqBackoffTimer	(	const L3Address &	target,
		int	retryCount
	)

private

 {
     RreqBackoffTimer *message = new RreqBackoffTimer("RreqBackoffTimer");
     message->setRetryCount(retryCount);
     message->setTarget(target);
     return message;
 }

Referenced by processRreqWaitRrepTimer().

◆ createRreqHolddownTimer()

RreqHolddownTimer * inet::dymo::Dymo::createRreqHolddownTimer ( const L3Address & target )

private

 {
     RreqHolddownTimer *message = new RreqHolddownTimer("RreqHolddownTimer");
     message->setTarget(target);
     return message;
 }

Referenced by processRreqWaitRrepTimer().

◆ createRreqWaitRrepTimer()

RreqWaitRrepTimer * inet::dymo::Dymo::createRreqWaitRrepTimer	(	const L3Address &	target,
		int	retryCount
	)

private

 {
     RreqWaitRrepTimer *message = new RreqWaitRrepTimer("RreqWaitRrepTimer");
     message->setRetryCount(retryCount);
     message->setTarget(target);
     return message;
 }

Referenced by retryRouteDiscovery(), and startRouteDiscovery().

◆ datagramForwardHook()

virtual Result inet::dymo::Dymo::datagramForwardHook ( Packet * datagram )

inlineoverrideprivatevirtual

This is the second hook called by the network protocol before it sends a datagram to the lower layer.

This is done after the datagramPreRoutingHook or the datagramLocalInHook is called and the datagram is routed.

Implements inet::INetfilter::IHook.

206 { return ACCEPT; }

◆ datagramLocalInHook()

virtual Result inet::dymo::Dymo::datagramLocalInHook ( Packet * datagram )

inlineoverrideprivatevirtual

This is the last hook called by the network protocol before it sends a datagram to the upper layer.

This is done after the datagramPreRoutingHook is called and the datagram is routed.

Implements inet::INetfilter::IHook.

208 { return ACCEPT; }

◆ datagramLocalOutHook()

virtual Result inet::dymo::Dymo::datagramLocalOutHook ( Packet * datagram )

inlineoverrideprivatevirtual

This is the first hook called by the network protocol before it routes a datagram that was received from the upper layer.

The nextHopAddress is ignored when the outputNetworkInterface is a nullptr. After this is done

Implements inet::INetfilter::IHook.

209 { Enter_Method("datagramLocalOutHook"); return ensureRouteForDatagram(datagram); }

◆ datagramPostRoutingHook()

virtual Result inet::dymo::Dymo::datagramPostRoutingHook ( Packet * datagram )

inlineoverrideprivatevirtual

This is the last hook called by the network protocol before it sends a datagram to the lower layer.

Implements inet::INetfilter::IHook.

207 { return ACCEPT; }

◆ datagramPreRoutingHook()

virtual Result inet::dymo::Dymo::datagramPreRoutingHook ( Packet * datagram )

inlineoverrideprivatevirtual

This is the first hook called by the network protocol before it routes a datagram that was received from the lower layer.

The nextHopAddress is ignored when the outputNetworkInterface is nullptr.

Implements inet::INetfilter::IHook.

205 { Enter_Method("datagramPreRoutingHook"); return ensureRouteForDatagram(datagram); }

◆ delayDatagram()

void inet::dymo::Dymo::delayDatagram ( Packet * datagram )

private

 {
     const auto& networkHeader = getNetworkProtocolHeader(datagram);
     EV_INFO << "Queuing datagram: source = " << networkHeader->getSourceAddress() << ", destination = " << networkHeader->getDestinationAddress() << endl;
     const L3Address& target = networkHeader->getDestinationAddress();
     targetAddressToDelayedPackets.insert(std::pair<L3Address, Packet *>(target, datagram));
 }

Referenced by ensureRouteForDatagram().

◆ deleteRreqTimer()

void inet::dymo::Dymo::deleteRreqTimer ( const L3Address & target )

private

 {
     auto tt = targetAddressToRREQTimer.find(target);
     ASSERT(tt != targetAddressToRREQTimer.end());
     delete tt->second;
 }

Referenced by processRrep(), and processRreqWaitRrepTimer().

◆ dropDelayedDatagram()

void inet::dymo::Dymo::dropDelayedDatagram ( Packet * datagram )

private

 {
     const auto& networkHeader = getNetworkProtocolHeader(datagram);
     EV_WARN << "Dropping queued datagram: source = " << networkHeader->getSourceAddress() << ", destination = " << networkHeader->getDestinationAddress() << endl;
     networkProtocol->dropQueuedDatagram(const_cast<const Packet *>(datagram));
 }

Referenced by cancelRouteDiscovery().

◆ ensureRouteForDatagram()

INetfilter::IHook::Result inet::dymo::Dymo::ensureRouteForDatagram ( Packet * datagram )

private

 {
     const auto& networkHeader = getNetworkProtocolHeader(datagram);
     const L3Address& source = networkHeader->getSourceAddress();
     const L3Address& destination = networkHeader->getDestinationAddress();
     if (destination.isMulticast() || destination.isBroadcast() || routingTable->isLocalAddress(destination))
         return ACCEPT;
     else {
         EV_DETAIL << "Finding route: source = " << source << ", destination = " << destination << endl;
         IRoute *route = routingTable->findBestMatchingRoute(destination);
         DymoRouteData *routeData = route ? dynamic_cast<DymoRouteData *>(route->getProtocolData()) : nullptr;
         bool broken = routeData && routeData->getBroken();
         if (route && !route->getNextHopAsGeneric().isUnspecified() && !broken) {
             EV_DETAIL << "Route found: source = " << source << ", destination = " << destination << ", route: " << route << endl;
             if (routeData)
                 // 8.1. Handling Route Lifetimes During Packet Forwarding
                 // Route.LastUsed := Current_Time, and the packet is forwarded to the route's next hop.
                 routeData->setLastUsed(simTime());
             return ACCEPT;
         }
         else if (source.isUnspecified() || isClientAddress(source)) {
             EV_DETAIL << (broken ? "Broken" : "Missing") << " route: source = " << source << ", destination = " << destination << endl;
             delayDatagram(datagram);
             if (!hasOngoingRouteDiscovery(destination))
                 startRouteDiscovery(destination);
             else
                 EV_INFO << "Route discovery is in progress: originator = " << getSelfAddress() << ", target = " << destination << endl;
             return QUEUE;
         }
         else
             // the actual routing decision will be repeated in the network protocol
             return ACCEPT;
     }
 }

◆ eraseDelayedDatagrams()

void inet::dymo::Dymo::eraseDelayedDatagrams ( const L3Address & target )

private

 {
     EV_DEBUG << "Erasing the list of delayed datagrams: originator = " << getSelfAddress() << ", destination = " << target << endl;
     auto lt = targetAddressToDelayedPackets.lower_bound(target);
     auto ut = targetAddressToDelayedPackets.upper_bound(target);
     targetAddressToDelayedPackets.erase(lt, ut);
 }

Referenced by cancelRouteDiscovery(), and completeRouteDiscovery().

◆ eraseJitterTimerPacket()

void inet::dymo::Dymo::eraseJitterTimerPacket ( PacketJitterTimer * msg )

private

◆ eraseRreqTimer()

void inet::dymo::Dymo::eraseRreqTimer ( const L3Address & target )

private

 {
     auto tt = targetAddressToRREQTimer.find(target);
     targetAddressToRREQTimer.erase(tt);
 }

Referenced by processRrep(), processRreqHolddownTimer(), and processRreqWaitRrepTimer().

◆ expungeRoutes()

void inet::dymo::Dymo::expungeRoutes ( )

private

 {
     EV_DETAIL << "Expunging routes from routing table: routeCount = " << routingTable->getNumRoutes() << endl;
     // 6.3. Route Table Entry Timeouts
     for (int i = 0; i < routingTable->getNumRoutes(); i++) {
         IRoute *route = routingTable->getRoute(i);
         if (route->getSource() == this) {
             DymoRouteData *routeData = check_and_cast<DymoRouteData *>(route->getProtocolData());
             // An Active route MUST NOT be expunged
             // An Idle route SHOULD NOT be expunged
             // An Expired route MAY be expunged (least recently used first)
             // A route MUST be expunged if (Current_Time - Route.LastUsed) >= MAX_SEQNUM_LIFETIME.
             // A route MUST be expunged if Current_Time >= Route.ExpirationTime
             if ((getRouteState(routeData) == EXPIRED) ||
                 (simTime() - routeData->getLastUsed() >= maxSequenceNumberLifetime) ||
                 (simTime() >= routeData->getExpirationTime()))
             {
                 EV_DETAIL << "Expunging route: " << route << endl;
                 routingTable->deleteRoute(route);
                 i--;
             }
         }
     }
 }

Referenced by processExpungeTimer().

◆ getLinkCost()

int inet::dymo::Dymo::getLinkCost	(	const NetworkInterface *	networkInterface,
		DymoMetricType	metricType
	)

private

 {
     switch (metricType) {
         case HOP_COUNT:
             return 1;

         default:
             throw cRuntimeError("Unknown metric type");
     }
 }

◆ getNextExpungeTime()

simtime_t inet::dymo::Dymo::getNextExpungeTime ( )

private

 {
     simtime_t nextExpirationTime = SimTime::getMaxTime();
     for (int i = 0; i < routingTable->getNumRoutes(); i++) {
         IRoute *route = routingTable->getRoute(i);
         if (route->getSource() == this) {
             DymoRouteData *routeData = check_and_cast<DymoRouteData *>(route->getProtocolData());
             const simtime_t& expirationTime = routeData->getExpirationTime();
             if (expirationTime < nextExpirationTime)
                 nextExpirationTime = expirationTime;
             const simtime_t& defaultExpirationTime = routeData->getLastUsed() + maxSequenceNumberLifetime;
             if (defaultExpirationTime < nextExpirationTime)
                 nextExpirationTime = defaultExpirationTime;
         }
     }
     return nextExpirationTime;
 }

Referenced by scheduleExpungeTimer().

◆ getRouteState()

DymoRouteState inet::dymo::Dymo::getRouteState ( DymoRouteData * routeData )

private

 {
     simtime_t lastUsed = routeData->getLastUsed();
     if (routeData->getBroken())
         return BROKEN;
     else if (lastUsed - simTime() <= activeInterval)
         return ACTIVE;
     else if (routeData->getExpirationTime() != SimTime::getMaxTime()) {
         if (simTime() >= routeData->getExpirationTime())
             return EXPIRED;
         else
             return TIMED;
     }
     else if (lastUsed - simTime() <= maxIdleTime)
         return IDLE;
     else
         return EXPIRED;
 }

Referenced by expungeRoutes(), and sendRerrForBrokenLink().

◆ getSelfAddress()

L3Address inet::dymo::Dymo::getSelfAddress ( )

private

 {
     return routingTable->getRouterIdAsGeneric();
 }

Referenced by addSelfNode(), cancelRouteDiscovery(), completeRouteDiscovery(), createRreq(), ensureRouteForDatagram(), eraseDelayedDatagrams(), initialize(), retryRouteDiscovery(), sendDymoPacket(), startRouteDiscovery(), and updateRoutes().

◆ handleCrashOperation()

void inet::dymo::Dymo::handleCrashOperation ( LifecycleOperation * operation )

overrideprivatevirtual

Implements inet::OperationalMixin< cSimpleModule >.

 {
     targetAddressToSequenceNumber.clear();
     for (auto& elem : targetAddressToRREQTimer)
         cancelAndDelete(elem.second);
     targetAddressToRREQTimer.clear();
     for (auto& elem : targetAddressToDelayedPackets)
         delete elem.second;
     targetAddressToDelayedPackets.clear();
     for (auto& pkt_timer : packetJitterTimers)
         cancelAndDelete(pkt_timer);
     packetJitterTimers.clear();
 }

◆ handleMessageWhenUp()

void inet::dymo::Dymo::handleMessageWhenUp ( cMessage * message )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

 {
     if (message->isSelfMessage())
         processSelfMessage(message);
     else
         processMessage(message);
 }

◆ handleStartOperation()

void inet::dymo::Dymo::handleStartOperation ( LifecycleOperation * operation )

overrideprivatevirtual

Implements inet::OperationalMixin< cSimpleModule >.

 {
     configureInterfaces();
 }

◆ handleStopOperation()

void inet::dymo::Dymo::handleStopOperation ( LifecycleOperation * operation )

overrideprivatevirtual

Implements inet::OperationalMixin< cSimpleModule >.

 {
     // TODO send a RERR to notify peers about broken routes
     for (auto& elem : targetAddressToRREQTimer) {
         cancelRouteDiscovery(elem.first);
         cancelAndDelete(elem.second);
     }
     targetAddressToRREQTimer.clear();
     for (auto& pkt_timer : packetJitterTimers)
         cancelAndDelete(pkt_timer);
     packetJitterTimers.clear();
 }

◆ hasDelayedDatagrams()

bool inet::dymo::Dymo::hasDelayedDatagrams ( const L3Address & target )

private

 {
     return containsKey(targetAddressToDelayedPackets, target);
 }

Referenced by processRreqHolddownTimer().

◆ hasOngoingRouteDiscovery()

bool inet::dymo::Dymo::hasOngoingRouteDiscovery ( const L3Address & target )

private

 {
     return containsKey(targetAddressToRREQTimer, target);
 }

Referenced by cancelRouteDiscovery(), completeRouteDiscovery(), ensureRouteForDatagram(), processRrep(), retryRouteDiscovery(), and startRouteDiscovery().

◆ incrementSequenceNumber()

void inet::dymo::Dymo::incrementSequenceNumber ( )

private

 {
     // 5.5.  AODVv2 Sequence Numbers
     // Most of the time, OwnSeqNum is incremented by simply adding one (1).
     // But to increment OwnSeqNum when it has the value of the largest possible
     // number representable as a 16-bit unsigned integer (i.e., 65,535), it MUST
     // be set to one (1). In other words, the sequence number after 65,535 is 1.
     sequenceNumber++;
     if (sequenceNumber == 0)
         sequenceNumber = 1;
 }

Referenced by createRrep(), and createRreq().

◆ initialize()

void inet::dymo::Dymo::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

 {
     if (stage == INITSTAGE_ROUTING_PROTOCOLS) {
         addressType = getSelfAddress().getAddressType(); // addressType need for handleStartOperation()  and handleStartOperation() called by RoutingProtocolBase::initialize();
     }

     RoutingProtocolBase::initialize(stage);

     if (stage == INITSTAGE_LOCAL) {
         // Dymo parameters from RFC
         clientAddresses = par("clientAddresses");
         useMulticastRREP = par("useMulticastRREP");
         interfaces = par("interfaces");
         activeInterval = par("activeInterval");
         maxIdleTime = par("maxIdleTime");
         maxSequenceNumberLifetime = par("maxSequenceNumberLifetime");
         routeRREQWaitTime = par("routeRREQWaitTime");
         rreqHolddownTime = par("rreqHolddownTime");
         maxHopCount = par("maxHopCount");
         discoveryAttemptsMax = par("discoveryAttemptsMax");
         appendInformation = par("appendInformation");
         bufferSizePackets = par("bufferSizePackets");
         bufferSizeBytes = par("bufferSizeBytes");
         // Dymo extension parameters
         maxJitter = par("maxJitter");
         sendIntermediateRREP = par("sendIntermediateRREP");
         minHopLimit = par("minHopLimit");
         maxHopLimit = par("maxHopLimit");
         // context
         host = getContainingNode(this);
         interfaceTable.reference(this, "interfaceTableModule", true);
         routingTable.reference(this, "routingTableModule", true);
         networkProtocol.reference(this, "networkProtocolModule", true);
         // internal
         expungeTimer = new cMessage("ExpungeTimer");
         L3AddressResolver addressResolver;
         cStringTokenizer tokenizer(clientAddresses);
         while (tokenizer.hasMoreTokens()) {
             const char *clientAddress = tokenizer.nextToken();
             char *slash = const_cast<char *>(strchr(clientAddress, '/'));
             if (slash)
                 *slash = 0;
             const L3Address address = addressResolver.resolve(clientAddress);
             int prefixLength = address.getAddressType()->getMaxPrefixLength();
             if (slash) {
                 int pLength = atoi(slash + 1);
                 if (pLength < 0 || pLength > prefixLength)
                     throw cRuntimeError("invalid prefix length in 'clientAddresses' parameter: '%s/%s'", clientAddress, slash);
                 prefixLength = pLength;
             }
             clientAddressAndPrefixLengthPairs.push_back(std::pair<L3Address, int>(address, prefixLength));
         }
     }
     else if (stage == INITSTAGE_ROUTING_PROTOCOLS) {
         registerProtocol(Protocol::manet, gate("ipOut"), gate("ipIn"));
         host->subscribe(linkBrokenSignal, this);
         networkProtocol->registerHook(0, this);
     }
 }

◆ isClientAddress()

bool inet::dymo::Dymo::isClientAddress ( const L3Address & address )

private

 {
     if (routingTable->isLocalAddress(address))
         return true;
     else {
         for (auto& elem : clientAddressAndPrefixLengthPairs)
             // TODO check for prefix length too
             if (elem.first == address)
                 return true;

         return false;
     }
 }

Referenced by ensureRouteForDatagram(), processRrep(), and processRreq().

◆ isLoopFree()

bool inet::dymo::Dymo::isLoopFree	(	const Ptr< const RteMsg > &	rteMsg,
		IRoute *	route
	)

private

 {
     // TODO implement
     return true;
 }

Referenced by updateRoutes().

◆ numInitStages()

virtual int inet::dymo::Dymo::numInitStages ( ) const

inlineoverrideprotectedvirtual

90 { return NUM_INIT_STAGES; }

◆ permissibleRteMsg()

bool inet::dymo::Dymo::permissibleRteMsg	(	Packet *	packet,
		const Ptr< const RteMsg > &	rteMsg
	)

private

 {
     // 7.5. Handling a Received RteMsg
     const AddressBlock& originatorNode = rteMsg->getOriginatorNode();
     const AddressBlock& targetNode = rteMsg->getTargetNode();
     // 1. HandlingRtr MUST handle AODVv2 messages only from adjacent
     //    routers as specified in Section 5.4. AODVv2 messages from other
     //    sources MUST be disregarded.
     //    5.4. AODVv2 Packet Header Fields and Information Elements
     //    If a packet is received with a value other than 255, any AODVv2
     //    message contained in the packet MUST be disregarded by AODVv2.
     if (packet->getTag<HopLimitInd>()->getHopLimit() != 255)
         return false;
     // 2. If the RteMsg.<msg-hop-limit> is equal to 0, then the message is disregarded.
     if (rteMsg->getHopLimit() == 0)
         return false;
     // 3. If the RteMsg.<msg-hop-count> is present, and RteMsg.<msg-hop-
     //    count> >= MAX_HOPCOUNT, then the message is disregarded.
     if (rteMsg->getHopCount() >= maxHopCount)
         return false;
     // 4. HandlingRtr examines the RteMsg to ascertain that it contains the
     //    required information: TargNode.Addr, OrigNode.Addr,
     //    RteMsg_Gen.Metric and RteMsg_Gen.SeqNum.  If the required
     //    information does not exist, the message is disregarded.
     if (dynamicPtrCast<const Rreq>(rteMsg) && (!originatorNode.getHasMetric() || !originatorNode.getHasSequenceNumber()))
         return false;
     else if (dynamicPtrCast<const Rrep>(rteMsg) && (!targetNode.getHasMetric() || !targetNode.getHasSequenceNumber()))
         return false;
     // 5. HandlingRtr checks that OrigNode.Addr and TargNode.Addr are valid
     //    routable unicast addresses.  If not, the message is disregarded.
     const L3Address& originatorAddress = originatorNode.getAddress();
     const L3Address& targetAddress = targetNode.getAddress();
     if (originatorAddress.isUnspecified() || originatorAddress.isMulticast() || originatorAddress.isBroadcast() ||
         targetAddress.isUnspecified() || targetAddress.isMulticast() || targetAddress.isBroadcast())
         return false;
     // 6. HandlingRtr checks that the Metric Type associated with
     //    OrigNode.Metric and TargNode.Metric is known, and that Cost(L)
     //    can be computed.  If not, the message is disregarded.
     //     *  DISCUSSION: alternatively, can change the AddrBlk metric to
     //        use HopCount, measured from<msg-hop-limit>.
     if (originatorNode.getMetricType() != HOP_COUNT || targetNode.getMetricType() != HOP_COUNT)
         return false;
     // 7. If MAX_METRIC[RteMsg.MetricType] <= (RteMsg_Gen.Metric +
     //    Cost(L)), where 'L' is the incoming link, the RteMsg is
     //    disregarded.
     // TODO implement
     return true;
 }

Referenced by processRrep(), and processRreq().

◆ processDymoPacket()

void inet::dymo::Dymo::processDymoPacket	(	Packet *	packet,
		const Ptr< const DymoPacket > &	dymoPacket
	)

private

 {
     auto dymoPacketCopy = dymoPacket->dupShared();
     if (auto rreq = dynamicPtrCast<const Rreq>(dymoPacketCopy))
         processRreq(packet, rreq);
     else if (auto rrep = dynamicPtrCast<const Rrep>(dymoPacketCopy))
         processRrep(packet, rrep);
     else if (auto rerr = dynamicPtrCast<const Rerr>(dymoPacketCopy))
         processRerr(packet, rerr);
     else
         throw cRuntimeError("Unknown Dymo packet");
 }

Referenced by processUdpPacket().

◆ processExpungeTimer()

void inet::dymo::Dymo::processExpungeTimer ( )

private

 {
     EV_DETAIL << "Processing expunge timer" << endl;
     expungeRoutes();
     scheduleExpungeTimer();
 }

Referenced by processSelfMessage().

◆ processJitterTimerPacket()

void inet::dymo::Dymo::processJitterTimerPacket ( PacketJitterTimer * msg )

private

 {
     sendUdpPacket(msg->removeJitteredPacket());
     packetJitterTimers.erase(msg);
     delete msg;
 }

Referenced by processSelfMessage().

◆ processMessage()

void inet::dymo::Dymo::processMessage ( cMessage * message )

private

 {
     if (Packet *fp = dynamic_cast<Packet *>(message))
         processUdpPacket(fp);
     else
         throw cRuntimeError("Unknown message");
 }

Referenced by handleMessageWhenUp().

◆ processRerr()

void inet::dymo::Dymo::processRerr	(	Packet *	packet,
		const Ptr< const Rerr > &	rerr
	)

private

 {
     EV_DETAIL << "Processing RERR" << endl;
     // 8.4. Receiving and Handling RERR Messages
     // HandlingRtr examines the incoming RERR to assure that it contains
     // Msg.<msg-hop-limit> and at least one UnreachableNode.Address.  If the
     // required information does not exist, the incoming RERR message is
     // disregarded and further processing stopped.
     if (rerrIncoming->getHopLimit() == 0 || rerrIncoming->getUnreachableNodeArraySize() == 0)
         return;
     else {
         L3Address srcAddr = packet->getTag<L3AddressInd>()->getSrcAddress();
         auto incomingIfTag = packet->getTag<InterfaceInd>();
         // Otherwise, for each UnreachableNode.Address, HandlingRtr searches its
         // route table for a route using longest prefix matching.  If no such
         // Route is found, processing is complete for that UnreachableNode.Address.
         std::vector<L3Address> unreachableAddresses;
         for (int i = 0; i < (int)rerrIncoming->getUnreachableNodeArraySize(); i++) {
             const AddressBlock& addressBlock = rerrIncoming->getUnreachableNode(i);
             for (int j = 0; j < routingTable->getNumRoutes(); j++) {
                 IRoute *route = routingTable->getRoute(j);
                 if (route->getSource() == this) {
                     DymoRouteData *routeData = check_and_cast<DymoRouteData *>(route->getProtocolData());
                     const L3Address& unreachableAddress = addressBlock.getAddress();
                     // HandlingRtr verifies the following:
                     // 1. The UnreachableNode.Address is a routable unicast address.
                     // 2. Route.NextHopAddress is the same as RERR IP.SourceAddress.
                     // 3. Route.NextHopInterface is the same as the interface on which the
                     //    RERR was received.
                     // 4. The UnreachableNode.SeqNum is unknown, OR Route.SeqNum <=
                     //    UnreachableNode.SeqNum (using signed 16-bit arithmetic).
                     if (unreachableAddress.isUnicast() &&
                         unreachableAddress == route->getDestinationAsGeneric() &&
                         route->getNextHopAsGeneric() == srcAddr &&
                         route->getInterface()->getInterfaceId() == incomingIfTag->getInterfaceId() &&
                         (!addressBlock.getHasSequenceNumber() || routeData->getSequenceNumber() <= addressBlock.getSequenceNumber()))
                     {
                         // If the route satisfies all of the above conditions, HandlingRtr sets
                         // the Route.Broken flag for that route.
                         EV_DETAIL << "Marking route as broken: " << route << endl;
                         // TODO delete route, but save its data for later update
 //                        route->setEnabled(false);
                         routeData->setBroken(true);
                         unreachableAddresses.push_back(unreachableAddress);
                     }
                 }
             }
         }
         if (unreachableAddresses.size() == 0)
             EV_DETAIL << "No unreachable address found" << endl;
         else {
             // Furthermore, if Msg.<msg-hop-limit> is greater than 0, then HandlingRtr
             // adds the UnreachableNode address and TLV information to an AddrBlk for
             // delivery in the outgoing RERR message to one or more of HandlingRtr's
             // upstream neighbors.
             // If there are no UnreachableNode addresses to be transmitted in an
             // RERR to upstream routers, HandlingRtr MUST discard the RERR, and no
             // further action is taken.
             // Otherwise, Msg.<msg-hop-limit> is decremented by one (1) and
             auto rerrOutgoing = createRerr(unreachableAddresses);
             rerrOutgoing->setHopLimit(rerrIncoming->getHopLimit() - 1);
             // processing continues as follows:
             // o If precursor lists are (optionally) maintained, the outgoing RERR
             //   SHOULD be sent to the active precursors of the broken route as
             //   specified in Section 13.3.
             // o Otherwise, if the incoming RERR message was received at the LL-
             //   MANET-Routers [RFC5498] multicast address, the outgoing RERR
             //   SHOULD also be sent to LL-MANET-Routers.
             // o Otherwise, if the PktSource MsgTLV is present, and HandlingRtr has
             //   a Route to PktSource.Addr, then HandlingRtr MUST send the outgoing
             //   RERR to Route[PktSource.Addr].NextHop.
             // o Otherwise, the outgoing RERR MUST be sent to LL-MANET-Routers.
             sendRerr(rerrOutgoing);
         }
     }
 }

Referenced by processDymoPacket().

◆ processRrep()

void inet::dymo::Dymo::processRrep	(	Packet *	packet,
		const Ptr< const Rrep > &	rrep
	)

private

 {
     const L3Address& target = rrepIncoming->getTargetNode().getAddress();
     const L3Address& originator = rrepIncoming->getOriginatorNode().getAddress();
     EV_DETAIL << "Processing RREP: originator = " << originator << ", target = " << target << endl;
     if (permissibleRteMsg(packet, rrepIncoming)) {
         processRteMsg(packet, rrepIncoming);
         // 7.5.2. Additional Handling for Outgoing RREP
         if (isClientAddress(originator)) {
             EV_DETAIL << "Received RREP for client: originator = " << originator << ", target = " << target << endl;
             if (hasOngoingRouteDiscovery(target)) {
                 completeRouteDiscovery(target);
                 cancelRreqTimer(target);
                 deleteRreqTimer(target);
                 eraseRreqTimer(target);
             }
         }
         else {
             // o If HandlingRtr is not OrigRtr then the outgoing RREP is sent to
             //   the Route.NextHopAddress for the RREP.AddrBlk[OrigNode].  If no
             //   forwarding route exists to OrigNode, then a RERR SHOULD be
             //   transmitted to RREP.AddrBlk[TargNode].  See Table 1 for notational
             //   conventions; OrigRtr, OrigNode, and TargNode are routers named in
             //   the context of OrigRtr, that is, the router originating the RREQ
             //   to which the RREP is responding.
             EV_DETAIL << "Forwarding RREP: originator = " << originator << ", target = " << target << endl;
             auto rrepOutgoing = staticPtrCast<Rrep>(rrepIncoming->dupShared());
             if (appendInformation)
                 addSelfNode(rrepOutgoing);
             if (useMulticastRREP)
                 sendRrep(rrepOutgoing);
             else {
                 IRoute *route = routingTable->findBestMatchingRoute(originator);
                 if (route)
                     sendRrep(rrepOutgoing, route);
                 else
                     EV_WARN << "No route found toward originator, dropping RREP: originator = " << originator << ", target = " << target << endl;
             }
         }
     }
     else
         EV_WARN << "Dropping non-permissible RREQ" << endl;
 }

Referenced by processDymoPacket().

◆ processRreq()

void inet::dymo::Dymo::processRreq	(	Packet *	packet,
		const Ptr< const Rreq > &	rreq
	)

private

 {
     const L3Address& target = rreqIncoming->getTargetNode().getAddress();
     const L3Address& originator = rreqIncoming->getOriginatorNode().getAddress();
     EV_DETAIL << "Processing RREQ: originator = " << originator << ", target = " << target << endl;
     if (permissibleRteMsg(packet, rreqIncoming)) {
         processRteMsg(packet, rreqIncoming);
         // 7.5.1. Additional Handling for Outgoing RREQ
         // o If the upstream router is in the Blacklist, and Current_Time <
         //   BlacklistRmTime, then HandlingRtr MUST NOT transmit any outgoing
         //   RREQ, and processing is complete.
         // TODO implement
         // o Otherwise, if the upstream router is in the Blacklist, and
         //   Current_Time >= BlacklistRmTime, then the upstream router SHOULD
         //   be removed from the Blacklist, and message processing continued.
         // TODO implement
         if (isClientAddress(target)) {
             // o If TargNode is a client of HandlingRtr, then a RREP is generated
             //   by the HandlingRtr (i.e., TargRtr) and unicast to the upstream
             //   router towards the RREQ OrigNode, as specified in Section 7.4.
             //   Afterwards, TargRtr processing for the RREQ is complete.
             EV_DETAIL << "Received RREQ for client: originator = " << originator << ", target = " << target << endl;
             if (useMulticastRREP)
                 sendRrep(createRrep(rreqIncoming));
             else {
                 IRoute *route = routingTable->findBestMatchingRoute(originator);
                 auto rrep = createRrep(rreqIncoming, route);
                 sendRrep(rrep, route);
             }
         }
         else {
             // o If HandlingRtr is not the TargetNode, then the outgoing RREQ (as
             //   altered by the procedure defined above) SHOULD be sent to the IP
             //   multicast address LL-MANET-Routers [RFC5498].  If the RREQ is
             //   unicast, the IP.DestinationAddress is set to the NextHopAddress.
             EV_DETAIL << "Forwarding RREQ: originator = " << originator << ", target = " << target << endl;
             auto rreqOutgoing = dynamicPtrCast<Rreq>(rreqIncoming->dupShared());
             if (appendInformation)
                 addSelfNode(rreqOutgoing);
             sendRreq(rreqOutgoing);
         }
     }
     else
         EV_WARN << "Dropping non-permissible RREQ" << endl;
 }

Referenced by processDymoPacket().

◆ processRreqBackoffTimer()

void inet::dymo::Dymo::processRreqBackoffTimer ( RreqBackoffTimer * message )

private

 {
     EV_DETAIL << "Processing RREQ backoff timer" << endl;
     retryRouteDiscovery(message->getTarget(), message->getRetryCount() + 1);
     delete message;
 }

Referenced by processSelfMessage().

◆ processRreqHolddownTimer()

void inet::dymo::Dymo::processRreqHolddownTimer ( RreqHolddownTimer * message )

private

 {
     EV_DETAIL << "Processing RREQ holddown timer" << endl;
     const L3Address& target = message->getTarget();
     eraseRreqTimer(target);
     if (hasDelayedDatagrams(target))
         startRouteDiscovery(target);
     delete message;
 }

Referenced by processSelfMessage().

◆ processRreqWaitRrepTimer()

void inet::dymo::Dymo::processRreqWaitRrepTimer ( RreqWaitRrepTimer * message )

private

 {
     EV_DETAIL << "Processing RREQ wait RREP timer" << endl;
     const L3Address& target = message->getTarget();
     if (message->getRetryCount() == discoveryAttemptsMax - 1) {
         cancelRouteDiscovery(target);
         cancelRreqTimer(target);
         deleteRreqTimer(target);
         eraseRreqTimer(target);
         scheduleRreqHolddownTimer(createRreqHolddownTimer(target));
     }
     else
         scheduleRreqBackoffTimer(createRreqBackoffTimer(target, message->getRetryCount()));
     delete message;
 }

Referenced by processSelfMessage().

◆ processRteMsg()

void inet::dymo::Dymo::processRteMsg	(	Packet *	packet,
		const Ptr< const RteMsg > &	rteMsg
	)

private

 {
     // 7.5. Handling a Received RteMsg
     // 1. HandlingRtr MUST process the routing information contained in the
     //    RteMsg as speciied in Section 6.1.
     if (dynamicPtrCast<const Rreq>(rteMsg))
         updateRoutes(packet, rteMsg, rteMsg->getOriginatorNode());
     else if (dynamicPtrCast<const Rrep>(rteMsg))
         updateRoutes(packet, rteMsg, rteMsg->getTargetNode());
     // 2. HandlingRtr MAY process AddedNode routing information (if
     //    present) as specified in Section 13.7.1 Otherwise, if AddedNode
     //    information is not processed, it MUST be deleted.
     int count = rteMsg->getAddedNodeArraySize();
     for (int i = 0; i < count; i++)
         updateRoutes(packet, rteMsg, rteMsg->getAddedNode(i));
     // 3. By sending the updated RteMsg, HandlingRtr advertises that it
     //    will route for addresses contained in the outgoing RteMsg based
     //    on the information enclosed.  HandlingRtr MAY choose not to send
     //    the RteMsg, though not resending this RteMsg could decrease
     //    connectivity in the network or result in a nonoptimal path.  The
     //    circumstances under which HandlingRtr might choose to not re-
     //    transmit a RteMsg are not specified in this document.  Some
     //    examples might include the following:
     //    * HandlingRtr is already heavily loaded and does not want to
     //      advertise routing for the contained addresses
     //    * HandlingRtr recently transmitted identical routing information
     //      (e.g. in a RteMsg advertising the same metric)
     //    * HandlingRtr is low on energy and has to reduce energy expended
     //      for sending protocol messages or packet forwarding
     //    Unless HandlingRtr is prepared to send an updated RteMsg, it
     //    halts processing.  Otherwise, processing continues as follows.
     // TODO why is this here and how could we halt here?
     // 4. HandlingRtr MUST decrement RteMsg.<msg-hop-limit>.  If
     //    RteMsg.<msg-hop-limit> is then zero (0), no further action is taken.
     // KLUDGE constPtrCast<RteMsg>(rteMsg)
     constPtrCast<RteMsg>(rteMsg)->setHopLimit(rteMsg->getHopLimit() - 1);
     // 5. HandlingRtr MUST increment RteMsg.<msg-hop-count>.
     constPtrCast<RteMsg>(rteMsg)->setHopCount(rteMsg->getHopCount() + 1);
 }

Referenced by processRrep(), and processRreq().

◆ processSelfMessage()

void inet::dymo::Dymo::processSelfMessage ( cMessage * message )

private

 {
     if (message == expungeTimer)
         processExpungeTimer();
     else if (auto waitRrepTimer = dynamic_cast<RreqWaitRrepTimer *>(message))
         processRreqWaitRrepTimer(waitRrepTimer);
     else if (auto backoffTimer = dynamic_cast<RreqBackoffTimer *>(message))
         processRreqBackoffTimer(backoffTimer);
     else if (auto holddownTimer = dynamic_cast<RreqHolddownTimer *>(message))
         processRreqHolddownTimer(holddownTimer);
     else if (auto jitterTimer = dynamic_cast<PacketJitterTimer *>(message))
         processJitterTimerPacket(jitterTimer);
     else
         throw cRuntimeError("Unknown self message");
 }

Referenced by handleMessageWhenUp().

◆ processUdpPacket()

void inet::dymo::Dymo::processUdpPacket ( Packet * packet )

private

 {
     packet->popAtFront<UdpHeader>();
     processDymoPacket(packet, packet->peekDataAt<DymoPacket>(b(0), packet->getDataLength()));
     delete packet;
 }

Referenced by processMessage().

◆ receiveSignal()

void inet::dymo::Dymo::receiveSignal	(	cComponent *	source,
		simsignal_t	signalID,
		cObject *	obj,
		cObject *	details
	)

overrideprivatevirtual

 {
     Enter_Method("%s", cComponent::getSignalName(signalID));

     if (signalID == linkBrokenSignal) {
         EV_WARN << "Received link break" << endl;
         Packet *datagram = check_and_cast<Packet *>(obj);
         const auto& networkHeader = findNetworkProtocolHeader(datagram);
         if (networkHeader != nullptr) {
             const L3Address& destination = networkHeader->getDestinationAddress();
             if (destination.getAddressType() == addressType) {
                 IRoute *route = routingTable->findBestMatchingRoute(destination);
                 if (route) {
                     const L3Address& nextHop = route->getNextHopAsGeneric();
                     sendRerrForBrokenLink(route->getInterface(), nextHop);
                 }
             }
         }
     }
 }

◆ reinjectDelayedDatagram()

void inet::dymo::Dymo::reinjectDelayedDatagram ( Packet * datagram )

private

 {
     const auto& networkHeader = getNetworkProtocolHeader(datagram);
     EV_INFO << "Sending queued datagram: source = " << networkHeader->getSourceAddress() << ", destination = " << networkHeader->getDestinationAddress() << endl;
     networkProtocol->reinjectQueuedDatagram(const_cast<const Packet *>(datagram));
 }

Referenced by completeRouteDiscovery().

◆ retryRouteDiscovery()

void inet::dymo::Dymo::retryRouteDiscovery	(	const L3Address &	target,
		int	retryCount
	)

private

 {
     EV_INFO << "Retrying route discovery: originator = " << getSelfAddress() << ", target = " << target << ", retry = " << retryCount << endl;
     ASSERT(hasOngoingRouteDiscovery(target));
     sendRreq(createRreq(target, retryCount));
     scheduleRreqWaitRrepTimer(createRreqWaitRrepTimer(target, retryCount));
 }

Referenced by processRreqBackoffTimer().

◆ scheduleExpungeTimer()

void inet::dymo::Dymo::scheduleExpungeTimer ( )

private

 {
     EV_DETAIL << "Scheduling expunge timer" << endl;
     simtime_t nextExpungeTime = getNextExpungeTime();
     if (nextExpungeTime == SimTime::getMaxTime()) {
         if (expungeTimer->isScheduled())
             cancelEvent(expungeTimer);
     }
     else {
         if (!expungeTimer->isScheduled())
             scheduleAt(nextExpungeTime, expungeTimer);
         else {
             if (expungeTimer->getArrivalTime() != nextExpungeTime) {
                 rescheduleAt(nextExpungeTime, expungeTimer);
             }
         }
     }
 }

Referenced by processExpungeTimer(), and updateRoute().

◆ scheduleJitterTimerPacket()

void inet::dymo::Dymo::scheduleJitterTimerPacket	(	cPacket *	packet,
		double	delay
	)

private

 {

     if (delay == 0)
         sendUdpPacket(packet);
     else {
         PacketJitterTimer *message = new PacketJitterTimer("PacketJitterTimer");
         message->setJitteredPacket(packet);
         scheduleAfter(delay, message);
         packetJitterTimers.insert(message);
     }
 }

Referenced by sendDymoPacket().

◆ scheduleRreqBackoffTimer()

void inet::dymo::Dymo::scheduleRreqBackoffTimer ( RreqBackoffTimer * message )

private

 {
     EV_DETAIL << "Scheduling RREQ backoff timer" << endl;
     targetAddressToRREQTimer[message->getTarget()] = message;
     scheduleAfter(computeRreqBackoffTime(message->getRetryCount()), message);
 }

Referenced by processRreqWaitRrepTimer().

◆ scheduleRreqHolddownTimer()

void inet::dymo::Dymo::scheduleRreqHolddownTimer ( RreqHolddownTimer * message )

private

 {
     EV_DETAIL << "Scheduling RREQ holddown timer" << endl;
     targetAddressToRREQTimer[message->getTarget()] = message;
     scheduleAfter(rreqHolddownTime, message);
 }

Referenced by processRreqWaitRrepTimer().

◆ scheduleRreqWaitRrepTimer()

void inet::dymo::Dymo::scheduleRreqWaitRrepTimer ( RreqWaitRrepTimer * message )

private

 {
     EV_DETAIL << "Scheduling RREQ wait RREP timer" << endl;
     targetAddressToRREQTimer[message->getTarget()] = message;
     scheduleAfter(routeRREQWaitTime, message);
 }

Referenced by retryRouteDiscovery(), and startRouteDiscovery().

◆ sendDymoPacket()

void inet::dymo::Dymo::sendDymoPacket	(	const Ptr< DymoPacket > &	packet,
		const NetworkInterface *	networkInterface,
		const L3Address &	nextHop,
		double	delay
	)

private

 {
     // 5.4. AODVv2 Packet Header Fields and Information Elements
     // In addition, IP Protocol Number 138 has been reserved for MANET protocols [RFC5498].
     auto className = packet->getClassName();
     Packet *udpPacket = new Packet(!strncmp("inet::", className, 6) ? className + 6 : className);
     auto udpHeader = makeShared<UdpHeader>();
     udpPacket->addTag<PacketProtocolTag>()->setProtocol(&Protocol::manet);
     // In its default mode of operation, AODVv2 uses the Udp port 269 [RFC5498] to carry protocol packets.
     udpHeader->setSourcePort(DYMO_UDP_PORT);
     udpHeader->setDestinationPort(DYMO_UDP_PORT);
     udpHeader->setCrcMode(CRC_DISABLED);
     udpPacket->addTag<DispatchProtocolReq>()->setProtocol(addressType->getNetworkProtocol());
     if (networkInterface)
         udpPacket->addTag<InterfaceReq>()->setInterfaceId(networkInterface->getInterfaceId());
     auto addresses = udpPacket->addTag<L3AddressReq>();
     addresses->setSrcAddress(getSelfAddress());
     addresses->setDestAddress(nextHop);
     // The Ipv4 TTL (Ipv6 Hop Limit) field for all packets containing AODVv2 messages is set to 255.
     udpPacket->addTag<HopLimitReq>()->setHopLimit(255);
     udpPacket->insertAtFront(udpHeader);
     udpPacket->insertAtBack(packet);
     scheduleJitterTimerPacket(udpPacket, delay);
 }

Referenced by sendRerr(), sendRrep(), and sendRreq().

◆ sendRerr()

void inet::dymo::Dymo::sendRerr ( const Ptr< Rerr > & rerr )

private

 {
     rerr->setChunkLength(computeRerrLength(rerr));
     EV_DETAIL << "Sending RERR: unreachableNodeCount = " << rerr->getUnreachableNodeArraySize() << endl;
     sendDymoPacket(rerr, nullptr, addressType->getLinkLocalManetRoutersMulticastAddress(), 0);
 }

Referenced by processRerr(), sendRerrForBrokenLink(), and sendRerrForUndeliverablePacket().

◆ sendRerrForBrokenLink()

void inet::dymo::Dymo::sendRerrForBrokenLink	(	const NetworkInterface *	networkInterface,
		const L3Address &	nextHop
	)

private

 {
     EV_DETAIL << "Sending RERR for broken link: nextHop = " << nextHop << endl;
     // 8.3.2. Case 2: Broken Link
     // The second case happens when the link breaks to an active downstream
     // neighbor (i.e., the next hop of an active route).  In this case,
     // RERR_dest MUST be the multicast address LL-MANET-Routers, except when
     // the optional feature of maintaining precursor lists is used as
     // specified in Section 13.3.  All Active, Idle and Expired routes that
     // use the broken link MUST be marked as Broken.  The set of
     // UnreachableNodes is initialized by identifying those Active routes
     // which use the broken link.  For each such Active Route, Route.Dest is
     // added to the set of Unreachable Nodes.  After the Active Routes using
     // the broken link have all been included as UnreachableNodes, idle
     // routes MAY also be included, as long as the packet size of the RERR
     // does not exceed the MTU of the physical medium.
     // If the set of UnreachableNodes is empty, no RERR is generated.
     // Otherwise, RERR_Gen generates a new RERR, and the address of each
     // UnreachableNode (IP.DestinationAddress from a data packet or
     // RREP.TargNode.Address) is inserted into an AddrBlock.  If a prefix is
     // known for the UnreachableNode.Address, it SHOULD be included.
     // Otherwise, the UnreachableNode.Address is assumed to be a host
     // address with a full length prefix.  The value for each
     // UnreachableNode's SeqNum (UnreachableNode.SeqNum) MUST be placed in a
     // SeqNum AddrTLV.  If none of UnreachableNode.Addr entries are
     // associated with known prefix lengths, then the AddrBLK SHOULD NOT
     // include any prefix-length information.  Otherwise, for each
     // UnreachableNode.Addr that does not have any associated prefix-length
     // information, the prefix-length for that address MUST be assigned to
     // zero.
     std::vector<L3Address> unreachableAddresses;
     for (int i = 0; i < routingTable->getNumRoutes(); i++) {
         IRoute *route = routingTable->getRoute(i);
         if (route->getSource() == this) {
             DymoRouteData *routeData = check_and_cast<DymoRouteData *>(route->getProtocolData());
             DymoRouteState routeState = getRouteState(routeData);
             if (routeState != BROKEN && route->getInterface() == networkInterface && route->getNextHopAsGeneric() == nextHop) {
                 EV_DETAIL << "Marking route as broken: " << route << endl;
                 // TODO delete route, but save its data for later update
 //                route->setEnabled(false);
                 routeData->setBroken(true);
                 unreachableAddresses.push_back(route->getDestinationAsGeneric());
             }
         }
     }
     if (unreachableAddresses.size() == 0)
         EV_DETAIL << "No unreachable address found" << endl;
     else
         sendRerr(createRerr(unreachableAddresses));
 }

Referenced by receiveSignal().

◆ sendRerrForUndeliverablePacket()

void inet::dymo::Dymo::sendRerrForUndeliverablePacket ( const L3Address & destination )

private

 {
     EV_DETAIL << "Sending RERR for undeliverable packet: destination = " << destination << endl;
     // 8.3.1. Case 1: Undeliverable Packet
     // The first case happens when the router receives a packet but does not
     // have a valid route for the destination of the packet.  In this case,
     // there is exactly one UnreachableNode to be included in the RERR's
     // AddrBlk.  RERR_dest SHOULD be the multicast address LL-MANET-Routers,
     // but RERR_Gen MAY instead set RERR_dest to be the next hop towards the
     // source IP address of the packet which was undeliverable.  In the
     // latter case, the PktSource MsgTLV MUST be included, containing the
     // the source IP address of the undeliverable packet.  If a value for
     // the UnreachableNode's SeqNum (UnreachableNode.SeqNum) is known, it
     // MUST be placed in the RERR.  Otherwise, if no Seqnum AddrTLV is
     // included, all nodes handling the RERR will assume their route through
     // RERR_Gen towards the UnreachableNode is no longer valid and flag
     // those routes as broken.  RERR_Gen MUST discard the packet or message
     // that triggered generation of the RERR.
     std::vector<L3Address> unreachableAddresses;
     unreachableAddresses.push_back(destination);
     sendRerr(createRerr(unreachableAddresses));
 }

◆ sendRrep() [1/2]

void inet::dymo::Dymo::sendRrep ( const Ptr< Rrep > & rrep )

private

 {
     const L3Address& target = rrep->getTargetNode().getAddress();
     const L3Address& originator = rrep->getOriginatorNode().getAddress();
     rrep->setChunkLength(computeRrepLength(rrep));
     EV_DETAIL << "Sending broadcast RREP: originator = " << originator << ", target = " << target << endl;
     sendDymoPacket(rrep, nullptr, addressType->getLinkLocalManetRoutersMulticastAddress(), 0);
 }

Referenced by processRrep(), and processRreq().

◆ sendRrep() [2/2]

void inet::dymo::Dymo::sendRrep	(	const Ptr< Rrep > &	rrep,
		IRoute *	route
	)

private

 {
     const L3Address& target = rrep->getTargetNode().getAddress();
     const L3Address& originator = rrep->getOriginatorNode().getAddress();
     const L3Address& nextHop = route->getNextHopAsGeneric();
     rrep->setChunkLength(computeRrepLength(rrep));
     EV_DETAIL << "Sending unicast RREP: originator = " << originator << ", target = " << target << ", nextHop = " << nextHop << endl;
     sendDymoPacket(rrep, route->getInterface(), nextHop, 0);
 }

◆ sendRreq()

void inet::dymo::Dymo::sendRreq ( const Ptr< Rreq > & rreq )

private

 {
     const L3Address& target = rreq->getTargetNode().getAddress();
     const L3Address& originator = rreq->getOriginatorNode().getAddress();
     rreq->setChunkLength(computeRreqLength(rreq));
     EV_DETAIL << "Sending RREQ: originator = " << originator << ", target = " << target << endl;
     sendDymoPacket(rreq, nullptr, addressType->getLinkLocalManetRoutersMulticastAddress(), uniform(0, maxJitter).dbl());
 }

Referenced by processRreq(), retryRouteDiscovery(), and startRouteDiscovery().

◆ sendUdpPacket()

void inet::dymo::Dymo::sendUdpPacket ( cPacket * packet )

private

 {
     send(packet, "ipOut");
 }

Referenced by processJitterTimerPacket(), and scheduleJitterTimerPacket().

◆ startRouteDiscovery()

void inet::dymo::Dymo::startRouteDiscovery ( const L3Address & target )

private

 {
     EV_INFO << "Starting route discovery: originator = " << getSelfAddress() << ", target = " << target << endl;
     ASSERT(!hasOngoingRouteDiscovery(target));
     sendRreq(createRreq(target, 0));
     scheduleRreqWaitRrepTimer(createRreqWaitRrepTimer(target, 0));
 }

Referenced by ensureRouteForDatagram(), and processRreqHolddownTimer().

◆ updateRoute()

void inet::dymo::Dymo::updateRoute	(	Packet *	packet,
		const Ptr< const RteMsg > &	rteMsg,
		const AddressBlock &	addressBlock,
		IRoute *	route
	)

private

 {
     // 6.2. Applying Route Updates To Route Table Entries
     DymoRouteData *routeData = check_and_cast<DymoRouteData *>(route->getProtocolData());
     // Route.Address := RteMsg.Addr
     const L3Address& address = addressBlock.getAddress();
     route->setDestination(address);
     // If (RteMsg.PfxLen != 0), then Route.PfxLen := RteMsg.PfxLen
     route->setPrefixLength(addressBlock.getPrefixLength());
     // Route.SeqNum := RteMsg.SeqNum
     DymoSequenceNumber sequenceNumber = addressBlock.getSequenceNumber();
     routeData->setSequenceNumber(sequenceNumber);
     targetAddressToSequenceNumber[address] = sequenceNumber;
     // Route.NextHopAddress := IP.SourceAddress (i.e., an address of the node from which the RteMsg was received)
     // note that Dymo packets are not routed on the IP level, so we can use the source address here
     L3Address srcAddr = packet->getTag<L3AddressInd>()->getSrcAddress();
     route->setNextHop(srcAddr);
     // Route.NextHopInterface is set to the interface on which RteMsg was received
     NetworkInterface *networkInterface = interfaceTable->getInterfaceById((packet->getTag<InterfaceInd>())->getInterfaceId());
     if (networkInterface)
         route->setInterface(networkInterface);
     // Route.Broken flag := FALSE
     routeData->setBroken(false);
     // If RteMsg.MetricType is included, then Route.MetricType := RteMsg.MetricType.  Otherwise, Route.MetricType := DEFAULT_METRIC_TYPE.
     // Route.MetricType := RteMsg.MetricType
     if (addressBlock.getHasMetricType())
         routeData->setMetricType(addressBlock.getMetricType());
     else
         routeData->setMetricType(HOP_COUNT);
     // Route.Metric := RteMsg.Metric
     route->setMetric(addressBlock.getMetric());
     // Route.LastUsed := Current_Time
     routeData->setLastUsed(simTime());
     // If RteMsg.VALIDITY_TIME is not included, then Route.ExpirationTime := MAXTIME, otherwise Route.ExpirationTime := Current_Time + RteMsg.VALIDITY_TIME
     if (addressBlock.getHasValidityTime())
         routeData->setExpirationTime(simTime() + addressBlock.getValidityTime());
     else
         routeData->setExpirationTime(SimTime::getMaxTime());
     scheduleExpungeTimer();
 }

Referenced by createRoute(), and updateRoutes().

◆ updateRoutes()

void inet::dymo::Dymo::updateRoutes	(	Packet *	packet,
		const Ptr< const RteMsg > &	rteMsg,
		const AddressBlock &	addressBlock
	)

private

 {
     const L3Address& address = addressBlock.getAddress();
     if (address == getSelfAddress())
         // we don't need to manage routes for our own address
         return;
     else {
         // 6.1. Evaluating Incoming Routing Information
         // HandRtr searches its route table to see if there is a route table
         // entry with the same MetricType of the RteMsg, matching RteMsg.Addr.
         IRoute *route = nullptr;
         for (int i = 0; i < routingTable->getNumRoutes(); i++) {
             IRoute *routeCandidate = routingTable->getRoute(i);
             if (routeCandidate->getSource() == this) {
                 DymoRouteData *routeData = check_and_cast<DymoRouteData *>(routeCandidate->getProtocolData());
                 if (routeCandidate->getDestinationAsGeneric() == address && routeData->getMetricType() == addressBlock.getMetricType()) {
                     route = routeCandidate;
                     break;
                 }
             }
         }
         // If not, HandRtr creates a route table entry for RteMsg.Addr as described
         // in Section 6.2. Otherwise, HandRtr compares the incoming routing information
         // in RteMsg against the already stored routing information in the route table
         // entry (Route) for RteMsg.Addr, as described below.
         if (!route) {
             IRoute *route = createRoute(packet, rteMsg, addressBlock);
             EV_DETAIL << "Adding new route: " << route << endl;
             routingTable->addRoute(route);
         }
         else {
             DymoRouteData *routeData = check_and_cast<DymoRouteData *>(route->getProtocolData());
             // Offers improvement if
             // (RteMsg.SeqNum > Route.SeqNum) OR
             // {(RteMsg.SeqNum == Route.SeqNum) AND
             // [(RteMsg.Metric < Route.Metric) OR
             // ((Route.Broken == TRUE) && LoopFree (RteMsg, Route))]}    if
             if ((addressBlock.getSequenceNumber() > routeData->getSequenceNumber()) ||
                 (addressBlock.getSequenceNumber() == routeData->getSequenceNumber() && addressBlock.getMetric() < route->getMetric()) ||
                 (routeData->getBroken() && isLoopFree(rteMsg, route)))
             {
                 // it's more recent, or it's not stale and is shorter, or it can safely repair a broken route
                 // TODO should we simply update the route instead? only if the route change notification is sent exactly once
                 routingTable->removeRoute(route);
                 EV_DETAIL << "Updating existing route: " << route << endl;
                 updateRoute(packet, rteMsg, addressBlock, route);
                 EV_DETAIL << "Route updated: " << route << endl;
                 routingTable->addRoute(route);
             }
         }
     }
 }

Referenced by processRteMsg().

Member Data Documentation

◆ activeInterval

double inet::dymo::Dymo::activeInterval

private

Referenced by getRouteState(), and initialize().

◆ addressType

IL3AddressType* inet::dymo::Dymo::addressType

private

Referenced by addSelfNode(), configureInterfaces(), createRerr(), createRreq(), initialize(), receiveSignal(), sendDymoPacket(), sendRerr(), sendRrep(), and sendRreq().

◆ appendInformation

bool inet::dymo::Dymo::appendInformation

private

Referenced by initialize(), processRrep(), and processRreq().

◆ bufferSizeBytes

int inet::dymo::Dymo::bufferSizeBytes

private

Referenced by initialize().

◆ bufferSizePackets

int inet::dymo::Dymo::bufferSizePackets

private

Referenced by initialize().

◆ clientAddressAndPrefixLengthPairs

std::vector<std::pair<L3Address, int> > inet::dymo::Dymo::clientAddressAndPrefixLengthPairs

private

Referenced by initialize(), and isClientAddress().

◆ clientAddresses

const char* inet::dymo::Dymo::clientAddresses

private

Referenced by initialize().

◆ discoveryAttemptsMax

int inet::dymo::Dymo::discoveryAttemptsMax

private

Referenced by createRreq(), initialize(), and processRreqWaitRrepTimer().

◆ expungeTimer

cMessage* inet::dymo::Dymo::expungeTimer

private

Referenced by initialize(), processSelfMessage(), scheduleExpungeTimer(), and ~Dymo().

◆ host

cModule* inet::dymo::Dymo::host

private

Referenced by initialize().

◆ interfaces

const char* inet::dymo::Dymo::interfaces

private

Referenced by configureInterfaces(), and initialize().

◆ interfaceTable

ModuleRefByPar<IInterfaceTable> inet::dymo::Dymo::interfaceTable

private

Referenced by configureInterfaces(), initialize(), and updateRoute().

◆ maxHopCount

int inet::dymo::Dymo::maxHopCount

private

Referenced by initialize(), and permissibleRteMsg().

◆ maxHopLimit

int inet::dymo::Dymo::maxHopLimit

private

Referenced by createRerr(), createRreq(), and initialize().

◆ maxIdleTime

double inet::dymo::Dymo::maxIdleTime

private

Referenced by getRouteState(), and initialize().

◆ maxJitter

simtime_t inet::dymo::Dymo::maxJitter

private

Referenced by initialize(), and sendRreq().

◆ maxSequenceNumberLifetime

double inet::dymo::Dymo::maxSequenceNumberLifetime

private

Referenced by expungeRoutes(), getNextExpungeTime(), and initialize().

◆ minHopLimit

int inet::dymo::Dymo::minHopLimit

private

Referenced by createRreq(), and initialize().

◆ networkProtocol

ModuleRefByPar<INetfilter> inet::dymo::Dymo::networkProtocol

private

Referenced by dropDelayedDatagram(), initialize(), and reinjectDelayedDatagram().

◆ packetJitterTimers

std::set<PacketJitterTimer *> inet::dymo::Dymo::packetJitterTimers

private

Referenced by cancelJitterTimerPacket(), handleCrashOperation(), handleStopOperation(), processJitterTimerPacket(), scheduleJitterTimerPacket(), and ~Dymo().

◆ routeRREQWaitTime

double inet::dymo::Dymo::routeRREQWaitTime

private

Referenced by computeRreqBackoffTime(), initialize(), and scheduleRreqWaitRrepTimer().

◆ routingTable

ModuleRefByPar<IRoutingTable> inet::dymo::Dymo::routingTable

private

Referenced by createRoute(), ensureRouteForDatagram(), expungeRoutes(), getNextExpungeTime(), getSelfAddress(), initialize(), isClientAddress(), processRerr(), processRrep(), processRreq(), receiveSignal(), sendRerrForBrokenLink(), and updateRoutes().

◆ rreqHolddownTime

double inet::dymo::Dymo::rreqHolddownTime

private

Referenced by initialize(), and scheduleRreqHolddownTimer().

◆ sendIntermediateRREP

bool inet::dymo::Dymo::sendIntermediateRREP

private

Referenced by initialize().

◆ sequenceNumber

DymoSequenceNumber inet::dymo::Dymo::sequenceNumber

private

Referenced by addSelfNode(), createRrep(), createRreq(), incrementSequenceNumber(), and updateRoute().

◆ targetAddressToDelayedPackets

std::multimap<L3Address, Packet *> inet::dymo::Dymo::targetAddressToDelayedPackets

private

Referenced by cancelRouteDiscovery(), completeRouteDiscovery(), delayDatagram(), eraseDelayedDatagrams(), handleCrashOperation(), and hasDelayedDatagrams().

◆ targetAddressToRREQTimer

std::map<L3Address, RreqTimer *> inet::dymo::Dymo::targetAddressToRREQTimer

private

Referenced by cancelRreqTimer(), deleteRreqTimer(), eraseRreqTimer(), handleCrashOperation(), handleStopOperation(), hasOngoingRouteDiscovery(), scheduleRreqBackoffTimer(), scheduleRreqHolddownTimer(), scheduleRreqWaitRrepTimer(), and ~Dymo().

◆ targetAddressToSequenceNumber

std::map<L3Address, DymoSequenceNumber> inet::dymo::Dymo::targetAddressToSequenceNumber

private

Referenced by createRerr(), createRreq(), handleCrashOperation(), and updateRoute().

◆ useMulticastRREP

bool inet::dymo::Dymo::useMulticastRREP

private

Referenced by initialize(), processRrep(), and processRreq().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Dymo()

◆ ~Dymo()

Member Function Documentation

◆ addNode()

◆ addSelfNode()

◆ cancelJitterTimerPacket()

◆ cancelRouteDiscovery()

◆ cancelRreqTimer()

◆ completeRouteDiscovery()

◆ computeRerrLength()

◆ computeRrepLength()

◆ computeRreqBackoffTime()

◆ computeRreqLength()

◆ computeRteMsgLength()

◆ configureInterfaces()

◆ createRerr()

◆ createRoute()

◆ createRrep() [1/2]

◆ createRrep() [2/2]

◆ createRreq()

◆ createRreqBackoffTimer()

◆ createRreqHolddownTimer()

◆ createRreqWaitRrepTimer()

◆ datagramForwardHook()

◆ datagramLocalInHook()

◆ datagramLocalOutHook()

◆ datagramPostRoutingHook()

◆ datagramPreRoutingHook()

◆ delayDatagram()

◆ deleteRreqTimer()

◆ dropDelayedDatagram()

◆ ensureRouteForDatagram()

◆ eraseDelayedDatagrams()

◆ eraseJitterTimerPacket()

◆ eraseRreqTimer()

◆ expungeRoutes()

◆ getLinkCost()

◆ getNextExpungeTime()

◆ getRouteState()

◆ getSelfAddress()

◆ handleCrashOperation()

◆ handleMessageWhenUp()

◆ handleStartOperation()

◆ handleStopOperation()

◆ hasDelayedDatagrams()

◆ hasOngoingRouteDiscovery()

◆ incrementSequenceNumber()

◆ initialize()

◆ isClientAddress()

◆ isLoopFree()

◆ numInitStages()

◆ permissibleRteMsg()

◆ processDymoPacket()

◆ processExpungeTimer()

◆ processJitterTimerPacket()

◆ processMessage()

◆ processRerr()

◆ processRrep()

◆ processRreq()

◆ processRreqBackoffTimer()

◆ processRreqHolddownTimer()

◆ processRreqWaitRrepTimer()

◆ processRteMsg()

◆ processSelfMessage()

◆ processUdpPacket()

◆ receiveSignal()

◆ reinjectDelayedDatagram()

◆ retryRouteDiscovery()

◆ scheduleExpungeTimer()

◆ scheduleJitterTimerPacket()

◆ scheduleRreqBackoffTimer()

◆ scheduleRreqHolddownTimer()

◆ scheduleRreqWaitRrepTimer()
