inet::Topology::Node Class Reference

Supporting class for Topology, represents a node in the graph. More...

#include <Topology.h>

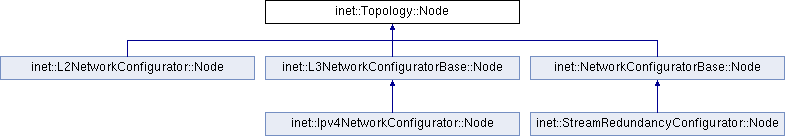

Inheritance diagram for inet::Topology::Node:

Public Member Functions
	Node (int moduleId=-1)
	Constructor. More...
virtual	~Node ()
Node attributes: weight, enabled state, correspondence to modules.
int	getModuleId () const
	Returns the ID of the network module to which this node corresponds. More...
cModule *	getModule () const
	Returns the pointer to the network module to which this node corresponds. More...
double	getWeight () const
	Returns the weight of this node. More...
void	setWeight (double d)
	Sets the weight of this node. More...
double	getNetworkId () const
	Returns the ID of the network to which this node corresponds. More...
void	setNetworkId (int g)
	Sets the ID of the network to which this node corresponds. More...
bool	isVisited () const
	Returns true if the node has been visited before in a traversal,. More...
void	setVisited (bool v)
	Marks this node as visited or not visited in a traversal. More...
bool	isEnabled () const
	Returns true of this node is enabled. More...
void	enable ()
	Enable this node. More...
void	disable ()
	Disable this node. More...
Node connectivity.
int	getNumInLinks () const
	Returns the number of incoming links to this graph node. More...
Link *	getLinkIn (int i) const
	Returns ith incoming link of graph node. More...
int	getNumOutLinks () const
	Returns the number of outgoing links from this graph node. More...
Link *	getLinkOut (int i) const
	Returns ith outgoing link of graph node. More...
Result of shortest path extraction.
double	getDistanceToTarget () const
	Returns the distance of this node to the target node. More...
int	getNumPaths () const
	Returns the number of shortest paths towards the target node. More...
Link *	getPath (int i) const
	Returns the next link in the ith shortest paths towards the target node. More...

Protected Attributes
int	moduleId
double	weight
bool	enabled
bool	visited
int	networkId
std::vector< Link * >	inLinks
std::vector< Link * >	outLinks
double	dist
std::vector< Link * >	outPaths

Friends
class	Topology

Detailed Description

Supporting class for Topology, represents a node in the graph.

Constructor & Destructor Documentation

Node()

inet::Topology::Node::Node ( int  moduleId = -1 )

inline

Constructor.

                                {
            this->moduleId = moduleId;
            weight = 0;
            enabled = true;
            visited = false;
            networkId = 0;
            dist = INFINITY;
        }

~Node()

virtual inet::Topology::Node::~Node ( )

inlinevirtual

Reimplemented in inet::L2NetworkConfigurator::Node, inet::Ipv4NetworkConfigurator::Node, inet::L3NetworkConfiguratorBase::Node, and inet::NetworkConfiguratorBase::Node.

{}

Member Function Documentation

disable()

void inet::Topology::Node::disable ( )

inline

Disable this node.

This has significance with the shortest path finder methods of Topology.

{ enabled = false; }

enable()

void inet::Topology::Node::enable ( )

inline

Enable this node.

This has significance with the shortest path finder methods of Topology.

{ enabled = true; }

getDistanceToTarget()

double inet::Topology::Node::getDistanceToTarget ( ) const

inline

Returns the distance of this node to the target node.

{ return dist; }

Referenced by inet::NextHopNetworkConfigurator::addStaticRoutes(), and inet::Ipv4NetworkConfigurator::addStaticRoutes().

getLinkIn()

Topology::Link * inet::Topology::Node::getLinkIn

(

int

i

)

const

Returns ith incoming link of graph node.

{
    if (i < 0 || i >= (int)inLinks.size())
        throw cRuntimeError("Topology::Node::getLinkIn: invalid link index %d", i);
    return inLinks[i];
}

Referenced by inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::Topology::calculateWeightedSingleShortestPathsTo(), inet::L3NetworkConfiguratorBase::dumpTopology(), inet::MacForwardingTableConfigurator::extendConfiguration(), and inet::NetworkConfiguratorBase::findLinkIn().

getLinkOut()

Topology::Link * inet::Topology::Node::getLinkOut

(

int

i

)

const

Returns ith outgoing link of graph node.

{
    if (i < 0 || i >= (int)outLinks.size())
        throw cRuntimeError("Topology::Node::getLinkOut: invalid index %d", i);
    return outLinks[i];
}

Referenced by inet::StpTester::dfsVisit(), inet::L3NetworkConfiguratorBase::dumpTopology(), inet::L3NetworkConfiguratorBase::extractDeviceNeighbors(), inet::NetworkConfiguratorBase::extractTopology(), inet::L3NetworkConfiguratorBase::extractTopology(), inet::FailureProtectionConfigurator::findConnectedNode(), inet::NetworkConfiguratorBase::findLinkOut(), inet::L2NetworkConfigurator::findLinkOut(), and inet::L3NetworkConfiguratorBase::findLinkOut().

getModule()

cModule* inet::Topology::Node::getModule ( ) const

inline

Returns the pointer to the network module to which this node corresponds.

{ return getSimulation()->getModule(moduleId); }

Referenced by inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::StpTester::dfsVisit(), inet::NetworkConfiguratorBase::extractTopology(), inet::L2NetworkConfigurator::extractTopology(), inet::L3NetworkConfiguratorBase::extractTopology(), inet::NetworkConfiguratorBase::findLinkIn(), inet::NetworkConfiguratorBase::findLinkOut(), inet::Topology::Link::getLinkInLocalGate(), inet::Topology::Link::getLinkInRemoteGate(), inet::Topology::Link::getLinkOutLocalGate(), inet::Topology::Link::getLinkOutRemoteGate(), and inet::StpTester::isForwarding().

getModuleId()

int inet::Topology::Node::getModuleId ( ) const

inline

Returns the ID of the network module to which this node corresponds.

{ return moduleId; }

getNetworkId()

double inet::Topology::Node::getNetworkId ( ) const

inline

Returns the ID of the network to which this node corresponds.

All nodes that belong to a connected network have the same network id.

{ return networkId; }

Referenced by inet::L3NetworkConfiguratorBase::extractTopology(), and inet::Topology::findNetworks().

getNumInLinks()

int inet::Topology::Node::getNumInLinks ( ) const

inline

Returns the number of incoming links to this graph node.

{ return inLinks.size(); }

Referenced by inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::Topology::calculateWeightedSingleShortestPathsTo(), inet::L3NetworkConfiguratorBase::dumpTopology(), inet::MacForwardingTableConfigurator::extendConfiguration(), and inet::NetworkConfiguratorBase::findLinkIn().

getNumOutLinks()

int inet::Topology::Node::getNumOutLinks ( ) const

inline

Returns the number of outgoing links from this graph node.

{ return outLinks.size(); }

Referenced by inet::StpTester::dfsVisit(), inet::L3NetworkConfiguratorBase::dumpTopology(), inet::L3NetworkConfiguratorBase::extractDeviceNeighbors(), inet::NetworkConfiguratorBase::extractTopology(), inet::L3NetworkConfiguratorBase::extractTopology(), inet::NetworkConfiguratorBase::findLinkOut(), inet::L2NetworkConfigurator::findLinkOut(), and inet::L3NetworkConfiguratorBase::findLinkOut().

getNumPaths()

int inet::Topology::Node::getNumPaths ( ) const

inline

Returns the number of shortest paths towards the target node.

(There may be several paths with the same length.)

{ return outPaths.size(); }

Referenced by inet::NextHopNetworkConfigurator::addStaticRoutes(), inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::FailureProtectionConfigurator::collectAllPaths(), and inet::MacForwardingTableConfigurator::extendConfiguration().

getPath()

Link* inet::Topology::Node::getPath ( int  i ) const

inline

Returns the next link in the ith shortest paths towards the target node.

(There may be several paths with the same length.)

{ return outPaths.at(i); }

Referenced by inet::NextHopNetworkConfigurator::addStaticRoutes(), inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::FailureProtectionConfigurator::collectAllPaths(), inet::NetworkConfiguratorBase::computeShortestLinkPath(), inet::NetworkConfiguratorBase::computeShortestNodePath(), and inet::MacForwardingTableConfigurator::extendConfiguration().

getWeight()

double inet::Topology::Node::getWeight ( ) const

inline

Returns the weight of this node.

Weight is used with the weighted shortest path finder methods of Topology.

{ return weight; }

Referenced by inet::Topology::calculateWeightedSingleShortestPathsTo().

isEnabled()

bool inet::Topology::Node::isEnabled ( ) const

inline

Returns true of this node is enabled.

This has significance with the shortest path finder methods of Topology.

{ return enabled; }

Referenced by inet::Topology::calculateWeightedSingleShortestPathsTo().

isVisited()

bool inet::Topology::Node::isVisited ( ) const

inline

Returns true if the node has been visited before in a traversal,.

{ return visited; }

Referenced by inet::Topology::findNetworks().

setNetworkId()

void inet::Topology::Node::setNetworkId ( int  g )

inline

Sets the ID of the network to which this node corresponds.

All nodes that belong to a connected network have the same network id.

{ networkId = g; }

Referenced by inet::Topology::extractFromNetwork(), and inet::Topology::findNetworks().

setVisited()

void inet::Topology::Node::setVisited ( bool  v )

inline

Marks this node as visited or not visited in a traversal.

{ visited = v; }

Referenced by inet::Topology::findNetworks().

setWeight()

void inet::Topology::Node::setWeight ( double  d )

inline

Sets the weight of this node.

Weight is used with the weighted shortest path finder methods of Topology.

{ weight = d; }

Referenced by inet::Ipv4NetworkConfigurator::addStaticRoutes().

Friends And Related Function Documentation

Topology

friend class Topology

friend

Member Data Documentation

dist

double inet::Topology::Node::dist

protected

Referenced by inet::Topology::calculateUnweightedSingleShortestPathsTo(), and inet::Topology::calculateWeightedSingleShortestPathsTo().

enabled

bool inet::Topology::Node::enabled

protected

Referenced by inet::Topology::calculateUnweightedSingleShortestPathsTo().

inLinks

std::vector<Link *> inet::Topology::Node::inLinks

protected

Referenced by inet::Topology::addLink(), inet::Topology::calculateUnweightedSingleShortestPathsTo(), inet::Topology::calculateWeightedSingleShortestPathsTo(), inet::Topology::deleteNode(), inet::Topology::extractFromNetwork(), getLinkIn(), and inet::Topology::unlinkFromDestNode().

moduleId

int inet::Topology::Node::moduleId

protected

Referenced by inet::Topology::addNode(), inet::Topology::extractFromNetwork(), inet::Topology::findNetworks(), inet::Topology::isModuleIdLess(), and inet::Topology::lessByModuleId().

networkId

int inet::Topology::Node::networkId

protected

outLinks

std::vector<Link *> inet::Topology::Node::outLinks

protected

Referenced by inet::Topology::addLink(), inet::Topology::deleteNode(), inet::Topology::extractFromNetwork(), and inet::Topology::unlinkFromSourceNode().

outPaths

std::vector<Link *> inet::Topology::Node::outPaths

protected

Referenced by inet::Topology::calculateUnweightedSingleShortestPathsTo(), and inet::Topology::calculateWeightedSingleShortestPathsTo().

visited

bool inet::Topology::Node::visited

protected

weight

double inet::Topology::Node::weight

protected

---

The documentation for this class was generated from the following files:

• Topology.h
• Topology.cc
