inet::NetworkConfiguratorBase Class Reference

#include <NetworkConfiguratorBase.h>

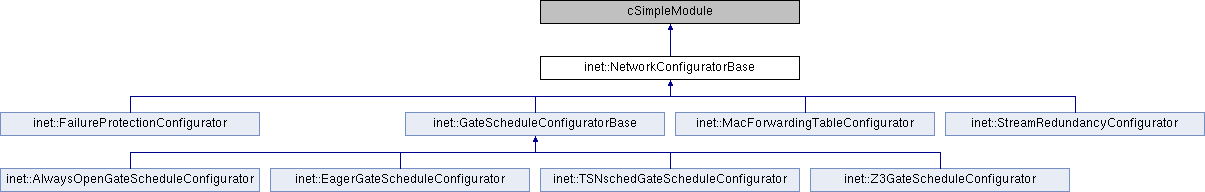

Inheritance diagram for inet::NetworkConfiguratorBase:

Classes
class	Interface
	Represents an interface in the network. More...
class	Link
class	Node
	Represents a node in the network. More...
class	Topology

Protected Member Functions
virtual	~NetworkConfiguratorBase ()
virtual int	numInitStages () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	extractTopology (Topology &topology)
	Extracts network topology by walking through the module hierarchy. More...
virtual std::vector< Node * >	computeShortestNodePath (Node *source, Node *destination) const
virtual std::vector< Link * >	computeShortestLinkPath (Node *source, Node *destination) const
virtual bool	isBridgeNode (Node *node) const
virtual Link *	findLinkIn (const Node *node, const char *neighbor) const
virtual Link *	findLinkOut (const Node *node, const char *neighbor) const
virtual Link *	findLinkOut (const Node *node, const Node *neighbor) const
virtual Link *	findLinkOut (const Interface *interface) const
virtual Topology::Link *	findLinkOut (const Node *node, int gateId) const
virtual Interface *	findInterface (const Node *node, NetworkInterface *networkInterface) const

Protected Attributes
Topology *	topology = nullptr

Constructor & Destructor Documentation

~NetworkConfiguratorBase()

virtual inet::NetworkConfiguratorBase::~NetworkConfiguratorBase ( )

inlineprotectedvirtual

{ delete topology; }

Member Function Documentation

computeShortestLinkPath()

std::vector< NetworkConfiguratorBase::Link * > inet::NetworkConfiguratorBase::computeShortestLinkPath ( Node *  source, Node *  destination  ) const

protectedvirtual

{
    std::vector<Link *> path;
    topology->calculateUnweightedSingleShortestPathsTo(destination);
    auto node = source;
    while (node != destination) {
        auto link = (Link *)node->getPath(0);
        path.push_back(link);
        node = (Node *)node->getPath(0)->getLinkOutRemoteNode();
    }
    return path;
}

computeShortestNodePath()

std::vector< NetworkConfiguratorBase::Node * > inet::NetworkConfiguratorBase::computeShortestNodePath ( Node *  source, Node *  destination  ) const

protectedvirtual

{
    std::vector<Node *> path;
    topology->calculateUnweightedSingleShortestPathsTo(destination);
    auto node = source;
    while (node != destination) {
        path.push_back(node);
        node = (Node *)node->getPath(0)->getLinkOutRemoteNode();
    }
    path.push_back(destination);
    return path;
}

Referenced by inet::GateScheduleConfiguratorBase::addFlows().

extractTopology()

void inet::NetworkConfiguratorBase::extractTopology ( Topology &  topology )

protectedvirtual

Extracts network topology by walking through the module hierarchy.

Creates nodes from modules having @networkNode property. Creates links from connections (wired and wireless) between network interfaces.

{
    topology.extractByProperty("networkNode");
    EV_DEBUG << "Topology found " << topology.getNumNodes() << " nodes\n";
    if (topology.getNumNodes() == 0)
        throw cRuntimeError("Empty network!");
    // extract nodes, fill in interfaceTable and routingTable members in node
    L3AddressResolver addressResolver;
    for (int i = 0; i < topology.getNumNodes(); i++) {
        Node *node = (Node *)topology.getNode(i);
        node->module = node->getModule();
        node->interfaceTable = addressResolver.findInterfaceTableOf(node->module);
        node->routingTable = addressResolver.findIpv4RoutingTableOf(node->module);
    }
    // extract links and interfaces
    std::set<NetworkInterface *> interfacesSeen;
    std::queue<Node *> unvisited; // unvisited nodes in the graph
    auto rootNode = (Node *)topology.getNode(0);
    unvisited.push(rootNode);
    while (!unvisited.empty()) {
        Node *node = unvisited.front();
        unvisited.pop();
        IInterfaceTable *interfaceTable = node->interfaceTable;
        if (interfaceTable) {
            // push neighbors to the queue
            for (int i = 0; i < interfaceTable->getNumInterfaces(); i++) {
                NetworkInterface *networkInterface = interfaceTable->getInterface(i);
                if (interfacesSeen.count(networkInterface) == 0) {
                    // visiting this interface
                    interfacesSeen.insert(networkInterface);
                    Topology::Link *linkOut = findLinkOut(node, networkInterface->getNodeOutputGateId());
                    Node *childNode = nullptr;
                    if (linkOut) {
                        childNode = (Node *)linkOut->getLinkOutRemoteNode();
                        unvisited.push(childNode);
                    }
                    Interface *interface = new Interface(node, networkInterface);
                    node->interfaces.push_back(interface);
                }
            }
        }
    }
    // annotate links with interfaces
    for (int i = 0; i < topology.getNumNodes(); i++) {
        Node *node = (Node *)topology.getNode(i);
        for (int j = 0; j < node->getNumOutLinks(); j++) {
            Topology::Link *linkOut = node->getLinkOut(j);
            Link *link = (Link *)linkOut;
            Node *localNode = (Node *)linkOut->getLinkOutLocalNode();
            if (localNode->interfaceTable)
                link->sourceInterface = findInterface(localNode, localNode->interfaceTable->findInterfaceByNodeOutputGateId(linkOut->getLinkOutLocalGateId()));
            Node *remoteNode = (Node *)linkOut->getLinkOutRemoteNode();
            if (remoteNode->interfaceTable)
                link->destinationInterface = findInterface(remoteNode, remoteNode->interfaceTable->findInterfaceByNodeInputGateId(linkOut->getLinkOutRemoteGateId()));
        }
    }
}

Referenced by inet::MacForwardingTableConfigurator::computeConfiguration(), inet::FailureProtectionConfigurator::computeConfiguration(), inet::StreamRedundancyConfigurator::computeConfiguration(), and inet::GateScheduleConfiguratorBase::computeConfiguration().

findInterface()

NetworkConfiguratorBase::Interface * inet::NetworkConfiguratorBase::findInterface ( const Node *  node, NetworkInterface *  networkInterface  ) const

protectedvirtual

{
    if (networkInterface == nullptr)
        return nullptr;
    for (auto& interface : node->interfaces)
        if (interface->networkInterface == networkInterface)
            return interface;
    return nullptr;
}

Referenced by inet::GateScheduleConfiguratorBase::addPorts(), extractTopology(), and inet::MacForwardingTableConfigurator::receiveSignal().

findLinkIn()

NetworkConfiguratorBase::Link * inet::NetworkConfiguratorBase::findLinkIn ( const Node *  node, const char *  neighbor  ) const

protectedvirtual

{
    for (int i = 0; i < node->getNumInLinks(); i++)
        if (!strcmp(node->getLinkIn(i)->getLinkInRemoteNode()->getModule()->getFullName(), neighbor))
            return check_and_cast<Link *>(static_cast<Topology::Link *>(node->getLinkIn(i)));
    return nullptr;
}

Referenced by inet::StreamRedundancyConfigurator::computeStreamPolicyConfigurations().

findLinkOut() [1/4]

NetworkConfiguratorBase::Link * inet::NetworkConfiguratorBase::findLinkOut ( const Interface *  interface ) const

protectedvirtual

{
    for (int i = 0; i < interface->node->getNumOutLinks(); i++) {
        auto link = check_and_cast<Link *>(static_cast<Topology::Link *>(interface->node->getLinkOut(i)));
        if (link->sourceInterface == interface)
            return link;
    }
    return nullptr;
}

findLinkOut() [2/4]

NetworkConfiguratorBase::Link * inet::NetworkConfiguratorBase::findLinkOut ( const Node *  node, const char *  neighbor  ) const

protectedvirtual

{
    for (int i = 0; i < node->getNumOutLinks(); i++)
        if (!strcmp(node->getLinkOut(i)->getLinkOutRemoteNode()->getModule()->getFullName(), neighbor))
            return check_and_cast<Link *>(static_cast<Topology::Link *>(node->getLinkOut(i)));
    return nullptr;
}

Referenced by inet::GateScheduleConfiguratorBase::addPorts(), inet::EagerGateScheduleConfigurator::computeStartOffsetForPathFragments(), inet::StreamRedundancyConfigurator::computeStreamSendersAndReceivers(), and extractTopology().

findLinkOut() [3/4]

NetworkConfiguratorBase::Link * inet::NetworkConfiguratorBase::findLinkOut ( const Node *  node, const Node *  neighbor  ) const

protectedvirtual

{
    for (int i = 0; i < node->getNumOutLinks(); i++)
        if (node->getLinkOut(i)->getLinkOutRemoteNode() == neighbor)
            return check_and_cast<Link *>(static_cast<Topology::Link *>(node->getLinkOut(i)));
    return nullptr;
}

findLinkOut() [4/4]

Topology::Link * inet::NetworkConfiguratorBase::findLinkOut ( const Node *  node, int  gateId  ) const

protectedvirtual

{
    for (int i = 0; i < node->getNumOutLinks(); i++)
        if (node->getLinkOut(i)->getLinkOutLocalGateId() == gateId)
            return node->getLinkOut(i);
    return nullptr;
}

handleMessage()

virtual void inet::NetworkConfiguratorBase::handleMessage ( cMessage *  msg )

inlineoverrideprotectedvirtual

Reimplemented in inet::GateScheduleConfiguratorBase.

{ throw cRuntimeError("Invalid operation"); }

isBridgeNode()

bool inet::NetworkConfiguratorBase::isBridgeNode ( Node *  node ) const

protectedvirtual

{
    return !node->routingTable || !node->interfaceTable;
}

Referenced by inet::GateScheduleConfiguratorBase::addDevices(), inet::GateScheduleConfiguratorBase::addSwitches(), inet::MacForwardingTableConfigurator::computeMacForwardingTables(), and inet::MacForwardingTableConfigurator::extendConfiguration().

numInitStages()

virtual int inet::NetworkConfiguratorBase::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

Member Data Documentation

topology

Topology* inet::NetworkConfiguratorBase::topology = nullptr

protected

Referenced by inet::GateScheduleConfiguratorBase::addDevices(), inet::GateScheduleConfiguratorBase::addFlows(), inet::GateScheduleConfiguratorBase::addPorts(), inet::GateScheduleConfiguratorBase::addSwitches(), inet::StreamRedundancyConfigurator::clearConfiguration(), inet::GateScheduleConfiguratorBase::clearConfiguration(), inet::MacForwardingTableConfigurator::computeConfiguration(), inet::FailureProtectionConfigurator::computeConfiguration(), inet::StreamRedundancyConfigurator::computeConfiguration(), inet::GateScheduleConfiguratorBase::computeConfiguration(), inet::MacForwardingTableConfigurator::computeMacForwardingTables(), computeShortestLinkPath(), computeShortestNodePath(), inet::EagerGateScheduleConfigurator::computeStartOffsetForPathFragments(), inet::FailureProtectionConfigurator::computeStream(), inet::StreamRedundancyConfigurator::computeStreamEncodings(), inet::StreamRedundancyConfigurator::computeStreamPolicyConfigurations(), inet::StreamRedundancyConfigurator::computeStreamSendersAndReceivers(), inet::GateScheduleConfiguratorBase::configureGateScheduling(), inet::StreamRedundancyConfigurator::configureStreams(), inet::MacForwardingTableConfigurator::extendConfiguration(), extractTopology(), inet::StreamRedundancyConfigurator::getPathFragments(), and inet::MacForwardingTableConfigurator::receiveSignal().

---

The documentation for this class was generated from the following files:

• NetworkConfiguratorBase.h
• NetworkConfiguratorBase.cc
