inet::TimeTagBase Class Reference

Class generated from inet/common/TimeTag.msg:36 by opp_msgtool. More...

#include <TimeTag_m.h>

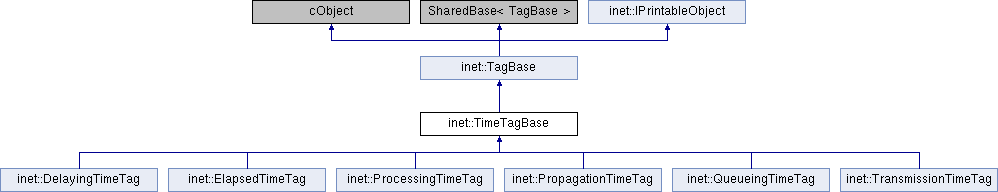

Inheritance diagram for inet::TimeTagBase:

Public Member Functions
	TimeTagBase ()
	TimeTagBase (const TimeTagBase &other)
virtual	~TimeTagBase ()
TimeTagBase &	operator= (const TimeTagBase &other)
virtual TimeTagBase *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual void	setFlowNamesArraySize (size_t size)
virtual size_t	getFlowNamesArraySize () const
virtual const char *	getFlowNames (size_t k) const
virtual void	setFlowNames (size_t k, const char *flowNames)
virtual void	insertFlowNames (size_t k, const char *flowNames)
void	insertFlowNames (const char *flowNames)
virtual void	appendFlowNames (const char *flowNames)
virtual void	eraseFlowNames (size_t k)
virtual void	setBitTotalTimesArraySize (size_t size)
virtual size_t	getBitTotalTimesArraySize () const
virtual ::omnetpp::simtime_t	getBitTotalTimes (size_t k) const
virtual void	setBitTotalTimes (size_t k, ::omnetpp::simtime_t bitTotalTimes)
virtual void	insertBitTotalTimes (size_t k, ::omnetpp::simtime_t bitTotalTimes)
void	insertBitTotalTimes (::omnetpp::simtime_t bitTotalTimes)
virtual void	appendBitTotalTimes (::omnetpp::simtime_t bitTotalTimes)
virtual void	eraseBitTotalTimes (size_t k)
virtual void	setPacketTotalTimesArraySize (size_t size)
virtual size_t	getPacketTotalTimesArraySize () const
virtual ::omnetpp::simtime_t	getPacketTotalTimes (size_t k) const
virtual void	setPacketTotalTimes (size_t k, ::omnetpp::simtime_t packetTotalTimes)
virtual void	insertPacketTotalTimes (size_t k, ::omnetpp::simtime_t packetTotalTimes)
void	insertPacketTotalTimes (::omnetpp::simtime_t packetTotalTimes)
virtual void	appendPacketTotalTimes (::omnetpp::simtime_t packetTotalTimes)
virtual void	erasePacketTotalTimes (size_t k)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const TimeTagBase &)=delete

Protected Attributes
::omnetpp::opp_string *	flowNames = nullptr
size_t	flowNames_arraysize = 0
::omnetpp::simtime_t *	bitTotalTimes = nullptr
size_t	bitTotalTimes_arraysize = 0
::omnetpp::simtime_t *	packetTotalTimes = nullptr
size_t	packetTotalTimes_arraysize = 0

Private Member Functions
void	copy (const TimeTagBase &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/common/TimeTag.msg:36 by opp_msgtool.

//
// This is a base class for various time measurement tags.
//
class TimeTagBase extends TagBase
{
    string flowNames[]; // flow names for which the times belong
    simtime_t bitTotalTimes[]; // total bit time summed up for the relevant modules
    simtime_t packetTotalTimes[]; // total packet time summed up for the relevant modules
}

Constructor & Destructor Documentation

TimeTagBase() [1/2]

inet::TimeTagBase::TimeTagBase

(

)

TimeTagBase() [2/2]

inet::TimeTagBase::TimeTagBase

(

const TimeTagBase &

other

)

~TimeTagBase()

virtual inet::TimeTagBase::~TimeTagBase ( )

virtual

Member Function Documentation

appendBitTotalTimes()

virtual void inet::TimeTagBase::appendBitTotalTimes ( ::omnetpp::simtime_t  bitTotalTimes )

virtual

appendFlowNames()

virtual void inet::TimeTagBase::appendFlowNames ( const char *  flowNames )

virtual

appendPacketTotalTimes()

virtual void inet::TimeTagBase::appendPacketTotalTimes ( ::omnetpp::simtime_t  packetTotalTimes )

virtual

copy()

void inet::TimeTagBase::copy ( const TimeTagBase &  other )

private

dup()

virtual TimeTagBase* inet::TimeTagBase::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::PropagationTimeTag, inet::TransmissionTimeTag, inet::ProcessingTimeTag, inet::QueueingTimeTag, inet::DelayingTimeTag, and inet::ElapsedTimeTag.

{return new TimeTagBase(*this);}

eraseBitTotalTimes()

virtual void inet::TimeTagBase::eraseBitTotalTimes ( size_t  k )

virtual

eraseFlowNames()

virtual void inet::TimeTagBase::eraseFlowNames ( size_t  k )

virtual

erasePacketTotalTimes()

virtual void inet::TimeTagBase::erasePacketTotalTimes ( size_t  k )

virtual

getBitTotalTimes()

virtual ::omnetpp::simtime_t inet::TimeTagBase::getBitTotalTimes

(

size_t

k

)

const

getBitTotalTimesArraySize()

virtual size_t inet::TimeTagBase::getBitTotalTimesArraySize ( ) const

virtual

getFlowNames()

virtual const char* inet::TimeTagBase::getFlowNames ( size_t  k ) const

virtual

getFlowNamesArraySize()

virtual size_t inet::TimeTagBase::getFlowNamesArraySize ( ) const

virtual

getPacketTotalTimes()

virtual ::omnetpp::simtime_t inet::TimeTagBase::getPacketTotalTimes

(

size_t

k

)

const

getPacketTotalTimesArraySize()

virtual size_t inet::TimeTagBase::getPacketTotalTimesArraySize ( ) const

virtual

insertBitTotalTimes() [1/2]

void inet::TimeTagBase::insertBitTotalTimes ( ::omnetpp::simtime_t  bitTotalTimes )

inline

{appendBitTotalTimes(bitTotalTimes);}

insertBitTotalTimes() [2/2]

virtual void inet::TimeTagBase::insertBitTotalTimes ( size_t  k, ::omnetpp::simtime_t  bitTotalTimes  )

virtual

insertFlowNames() [1/2]

void inet::TimeTagBase::insertFlowNames ( const char *  flowNames )

inline

{appendFlowNames(flowNames);}

insertFlowNames() [2/2]

virtual void inet::TimeTagBase::insertFlowNames ( size_t  k, const char *  flowNames  )

virtual

insertPacketTotalTimes() [1/2]

void inet::TimeTagBase::insertPacketTotalTimes ( ::omnetpp::simtime_t  packetTotalTimes )

inline

{appendPacketTotalTimes(packetTotalTimes);}

insertPacketTotalTimes() [2/2]

virtual void inet::TimeTagBase::insertPacketTotalTimes ( size_t  k, ::omnetpp::simtime_t  packetTotalTimes  )

virtual

operator=()

TimeTagBase& inet::TimeTagBase::operator=

(

const TimeTagBase &

other

)

operator==()

bool inet::TimeTagBase::operator== ( const TimeTagBase &  )

protecteddelete

parsimPack()

virtual void inet::TimeTagBase::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::PropagationTimeTag, inet::TransmissionTimeTag, inet::ProcessingTimeTag, inet::QueueingTimeTag, inet::DelayingTimeTag, and inet::ElapsedTimeTag.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::TimeTagBase::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::PropagationTimeTag, inet::TransmissionTimeTag, inet::ProcessingTimeTag, inet::QueueingTimeTag, inet::DelayingTimeTag, and inet::ElapsedTimeTag.

Referenced by inet::doParsimUnpacking().

setBitTotalTimes()

virtual void inet::TimeTagBase::setBitTotalTimes ( size_t  k, ::omnetpp::simtime_t  bitTotalTimes  )

virtual

setBitTotalTimesArraySize()

virtual void inet::TimeTagBase::setBitTotalTimesArraySize ( size_t  size )

virtual

setFlowNames()

virtual void inet::TimeTagBase::setFlowNames ( size_t  k, const char *  flowNames  )

virtual

setFlowNamesArraySize()

virtual void inet::TimeTagBase::setFlowNamesArraySize ( size_t  size )

virtual

setPacketTotalTimes()

virtual void inet::TimeTagBase::setPacketTotalTimes ( size_t  k, ::omnetpp::simtime_t  packetTotalTimes  )

virtual

setPacketTotalTimesArraySize()

virtual void inet::TimeTagBase::setPacketTotalTimesArraySize ( size_t  size )

virtual

Member Data Documentation

bitTotalTimes

::omnetpp::simtime_t* inet::TimeTagBase::bitTotalTimes = nullptr

protected

bitTotalTimes_arraysize

size_t inet::TimeTagBase::bitTotalTimes_arraysize = 0

protected

flowNames

::omnetpp::opp_string* inet::TimeTagBase::flowNames = nullptr

protected

flowNames_arraysize

size_t inet::TimeTagBase::flowNames_arraysize = 0

protected

packetTotalTimes

::omnetpp::simtime_t* inet::TimeTagBase::packetTotalTimes = nullptr

protected

packetTotalTimes_arraysize

size_t inet::TimeTagBase::packetTotalTimes_arraysize = 0

protected

---

The documentation for this class was generated from the following file:

• TimeTag_m.h
