Class generated from inet/common/TimeTag.msg:47 by opp_msgtool. More...

#include <TimeTag_m.h>

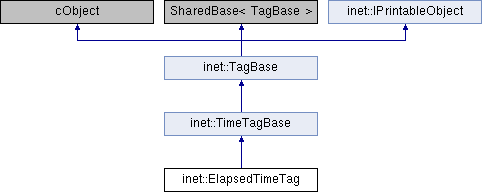

Inheritance diagram for inet::ElapsedTimeTag:

Public Member Functions
	ElapsedTimeTag ()

	ElapsedTimeTag (const ElapsedTimeTag &other)

virtual	~ElapsedTimeTag ()

ElapsedTimeTag &	operator= (const ElapsedTimeTag &other)

virtual ElapsedTimeTag *	dup () const override

virtual void	parsimPack (omnetpp::cCommBuffer *b) const override

virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override

Public Member Functions inherited from inet::TimeTagBase
	TimeTagBase ()

	TimeTagBase (const TimeTagBase &other)

virtual	~TimeTagBase ()

TimeTagBase &	operator= (const TimeTagBase &other)

virtual void	setFlowNamesArraySize (size_t size)

virtual size_t	getFlowNamesArraySize () const

virtual const char *	getFlowNames (size_t k) const

virtual void	setFlowNames (size_t k, const char *flowNames)

virtual void	insertFlowNames (size_t k, const char *flowNames)

void	insertFlowNames (const char *flowNames)

virtual void	appendFlowNames (const char *flowNames)

virtual void	eraseFlowNames (size_t k)

virtual void	setBitTotalTimesArraySize (size_t size)

virtual size_t	getBitTotalTimesArraySize () const

virtual ::omnetpp::simtime_t	getBitTotalTimes (size_t k) const

virtual void	setBitTotalTimes (size_t k, ::omnetpp::simtime_t bitTotalTimes)

virtual void	insertBitTotalTimes (size_t k, ::omnetpp::simtime_t bitTotalTimes)

void	insertBitTotalTimes (::omnetpp::simtime_t bitTotalTimes)

virtual void	appendBitTotalTimes (::omnetpp::simtime_t bitTotalTimes)

virtual void	eraseBitTotalTimes (size_t k)

virtual void	setPacketTotalTimesArraySize (size_t size)

virtual size_t	getPacketTotalTimesArraySize () const

virtual ::omnetpp::simtime_t	getPacketTotalTimes (size_t k) const

virtual void	setPacketTotalTimes (size_t k, ::omnetpp::simtime_t packetTotalTimes)

virtual void	insertPacketTotalTimes (size_t k, ::omnetpp::simtime_t packetTotalTimes)

void	insertPacketTotalTimes (::omnetpp::simtime_t packetTotalTimes)

virtual void	appendPacketTotalTimes (::omnetpp::simtime_t packetTotalTimes)

virtual void	erasePacketTotalTimes (size_t k)

Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const

virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const

virtual void	parsimPack (cCommBuffer *buffer) const override

virtual void	parsimUnpack (cCommBuffer *buffer) override

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...

virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const

virtual std::string	str () const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const ElapsedTimeTag &)=delete

Protected Member Functions inherited from inet::TimeTagBase
bool	operator== (const TimeTagBase &)=delete

Private Member Functions
void	copy (const ElapsedTimeTag &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Protected Attributes inherited from inet::TimeTagBase
::omnetpp::opp_string *	flowNames = nullptr

size_t	flowNames_arraysize = 0

::omnetpp::simtime_t *	bitTotalTimes = nullptr

size_t	bitTotalTimes_arraysize = 0

::omnetpp::simtime_t *	packetTotalTimes = nullptr

size_t	packetTotalTimes_arraysize = 0

Detailed Description

Class generated from inet/common/TimeTag.msg:47 by opp_msgtool.

//
// This tag specifies the elapsed time. It can be attached to a specific
// region of a packet in order to measure the elapsed time.
//
class ElapsedTimeTag extends TimeTagBase
{
}

Constructor & Destructor Documentation

◆ ElapsedTimeTag() [1/2]

inet::ElapsedTimeTag::ElapsedTimeTag ( )

◆ ElapsedTimeTag() [2/2]

inet::ElapsedTimeTag::ElapsedTimeTag ( const ElapsedTimeTag & other )

◆ ~ElapsedTimeTag()

virtual inet::ElapsedTimeTag::~ElapsedTimeTag ( )

virtual

Member Function Documentation

◆ copy()

void inet::ElapsedTimeTag::copy ( const ElapsedTimeTag & other )

private

◆ dup()

virtual ElapsedTimeTag* inet::ElapsedTimeTag::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::TimeTagBase.

235 {return new ElapsedTimeTag(*this);}

◆ operator=()

ElapsedTimeTag& inet::ElapsedTimeTag::operator= ( const ElapsedTimeTag & other )

◆ operator==()

bool inet::ElapsedTimeTag::operator== ( const ElapsedTimeTag & )

protecteddelete

◆ parsimPack()

virtual void inet::ElapsedTimeTag::parsimPack ( omnetpp::cCommBuffer * b ) const

overridevirtual

Reimplemented from inet::TimeTagBase.

Referenced by inet::doParsimPacking().

◆ parsimUnpack()

virtual void inet::ElapsedTimeTag::parsimUnpack ( omnetpp::cCommBuffer * b )

overridevirtual

Reimplemented from inet::TimeTagBase.

Referenced by inet::doParsimUnpacking().

The documentation for this class was generated from the following file:

TimeTag_m.h
