INET Framework for OMNeT++/OMNEST
Public Member Functions | Protected Member Functions | Protected Attributes | Private Member Functions | List of all members
inet::ProgressTag Class Reference

Class generated from inet/queueing/common/ProgressTag.msg:14 by opp_msgtool. More...

#include <ProgressTag_m.h>

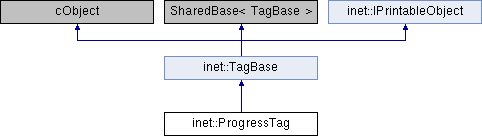

Inheritance diagram for inet::ProgressTag:
inet::TagBase inet::IPrintableObject

Public Member Functions

 ProgressTag ()

 ProgressTag (const ProgressTag &other)

virtual ~ProgressTag ()

ProgressTag & operator= (const ProgressTag &other)

virtual ProgressTag * dup () const override

virtual void parsimPack (omnetpp::cCommBuffer *b) const override

virtual void parsimUnpack (omnetpp::cCommBuffer *b) override

virtual bps getDatarate () const

virtual void setDatarate (bps datarate)

virtual b getPosition () const

virtual void setPosition (b position)

virtual b getExtraProcessableLength () const

virtual void setExtraProcessableLength (b extraProcessableLength)

virtual ::omnetpp::simtime_t getExtraProcessableDuration () const

virtual void setExtraProcessableDuration (::omnetpp::simtime_t extraProcessableDuration)

- Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase > dupShared () const

virtual const Ptr< TagBase > changeRegion (b offsetDelta, b lengthDelta) const

virtual void parsimPack (cCommBuffer *buffer) const override

virtual void parsimUnpack (cCommBuffer *buffer) override

virtual std::ostream & printToStream (std::ostream &stream, int level, int evFlags) const override
 Prints this object to the provided output stream. More...

virtual std::ostream & printFieldsToStream (std::ostream &stream, int level, int evFlags) const

virtual std::string str () const override

- Public Member Functions inherited from inet::IPrintableObject
virtual ~IPrintableObject ()

virtual std::string printToString () const

virtual std::string printToString (int level, int evFlags=0) const

virtual std::string getInfoStringRepresentation (int evFlags=0) const

virtual std::string getDetailStringRepresentation (int evFlags=0) const

virtual std::string getDebugStringRepresentation (int evFlags=0) const

virtual std::string getTraceStringRepresentation (int evFlags=0) const

virtual std::string getCompleteStringRepresentation (int evFlags=0) const


Protected Member Functions

bool operator== (const ProgressTag &)=delete


Protected Attributes

bps datarate = bps(NaN)

b position = b(-1)

b extraProcessableLength = b(-1)

::omnetpp::simtime_t extraProcessableDuration = SIMTIME_ZERO


Private Member Functions

void copy (const ProgressTag &other)


Additional Inherited Members

- Public Types inherited from inet::IPrintableObject
enum  PrintLevel {
  PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,
  PRINT_LEVEL_COMPLETE = INT_MIN
}

enum  PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }


Detailed Description

Class generated from inet/queueing/common/ProgressTag.msg:14 by opp_msgtool.

class ProgressTag extends TagBase
{
    bps datarate;
    b position;
    b extraProcessableLength;
    simtime_t extraProcessableDuration;
}

Constructor & Destructor Documentation

◆ ProgressTag() [1/2]

inet::ProgressTag::ProgressTag ( )

◆ ProgressTag() [2/2]

inet::ProgressTag::ProgressTag ( const ProgressTag &  other)

◆ ~ProgressTag()

virtual inet::ProgressTag::~ProgressTag ( )
virtual

Member Function Documentation

◆ copy()

void inet::ProgressTag::copy ( const ProgressTag &  other)
private

◆ dup()

virtual ProgressTag* inet::ProgressTag::dup ( ) const
inlineoverridevirtual
77 {return new ProgressTag(*this);}

◆ getDatarate()

virtual bps inet::ProgressTag::getDatarate ( ) const
virtual

◆ getExtraProcessableDuration()

virtual ::omnetpp::simtime_t inet::ProgressTag::getExtraProcessableDuration ( ) const

◆ getExtraProcessableLength()

virtual b inet::ProgressTag::getExtraProcessableLength ( ) const
virtual

◆ getPosition()

virtual b inet::ProgressTag::getPosition ( ) const
virtual

◆ operator=()

ProgressTag& inet::ProgressTag::operator= ( const ProgressTag &  other)

◆ operator==()

bool inet::ProgressTag::operator== ( const ProgressTag &  )
protecteddelete

◆ parsimPack()

virtual void inet::ProgressTag::parsimPack ( omnetpp::cCommBuffer *  b) const
overridevirtual

Referenced by inet::doParsimPacking().

◆ parsimUnpack()

virtual void inet::ProgressTag::parsimUnpack ( omnetpp::cCommBuffer *  b)
overridevirtual

Referenced by inet::doParsimUnpacking().

◆ setDatarate()

virtual void inet::ProgressTag::setDatarate ( bps  datarate)
virtual

Referenced by inet::InterpacketGapInserter::pushOrSendOrSchedulePacketProgress(), inet::queueing::PacketProcessorBase::pushOrSendPacketEnd(), inet::queueing::PacketProcessorBase::pushOrSendPacketProgress(), and inet::queueing::PacketProcessorBase::pushOrSendPacketStart().

◆ setExtraProcessableDuration()

virtual void inet::ProgressTag::setExtraProcessableDuration ( ::omnetpp::simtime_t  extraProcessableDuration)
virtual

◆ setExtraProcessableLength()

virtual void inet::ProgressTag::setExtraProcessableLength ( b  extraProcessableLength)
virtual

◆ setPosition()

virtual void inet::ProgressTag::setPosition ( b  position)
virtual

Member Data Documentation

◆ datarate

bps inet::ProgressTag::datarate = bps(NaN)
protected

◆ extraProcessableDuration

::omnetpp::simtime_t inet::ProgressTag::extraProcessableDuration = SIMTIME_ZERO
protected

◆ extraProcessableLength

b inet::ProgressTag::extraProcessableLength = b(-1)
protected

◆ position

b inet::ProgressTag::position = b(-1)
protected
The documentation for this class was generated from the following file:
inet::ProgressTag::ProgressTag
ProgressTag()
