inet::PacketEventTag Class Reference

Class generated from inet/common/PacketEventTag.msg:46 by opp_msgtool. More...

#include <PacketEventTag_m.h>

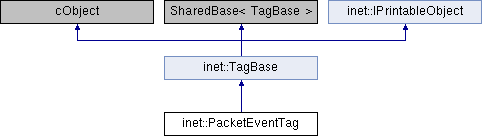

Inheritance diagram for inet::PacketEventTag:

Public Member Functions
	PacketEventTag ()
	PacketEventTag (const PacketEventTag &other)
virtual	~PacketEventTag ()
PacketEventTag &	operator= (const PacketEventTag &other)
virtual PacketEventTag *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual void	setPacketEventsArraySize (size_t size)
virtual size_t	getPacketEventsArraySize () const
virtual const PacketEvent *	getPacketEvents (size_t k) const
virtual PacketEvent *	getPacketEventsForUpdate (size_t k)
virtual void	setPacketEvents (size_t k, PacketEvent *packetEvents)
virtual void	insertPacketEvents (size_t k, PacketEvent *packetEvents)
void	insertPacketEvents (PacketEvent *packetEvents)
virtual void	appendPacketEvents (PacketEvent *packetEvents)
virtual void	erasePacketEvents (size_t k)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const PacketEventTag &)=delete

Protected Attributes
PacketEvent **	packetEvents = nullptr
size_t	packetEvents_arraysize = 0

Private Member Functions
void	copy (const PacketEventTag &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/common/PacketEventTag.msg:46 by opp_msgtool.

class PacketEventTag extends TagBase
{
    PacketEvent *packetEvents[];
}

Constructor & Destructor Documentation

PacketEventTag() [1/2]

inet::PacketEventTag::PacketEventTag

(

)

PacketEventTag() [2/2]

inet::PacketEventTag::PacketEventTag

(

const PacketEventTag &

other

)

~PacketEventTag()

virtual inet::PacketEventTag::~PacketEventTag ( )

virtual

Member Function Documentation

appendPacketEvents()

virtual void inet::PacketEventTag::appendPacketEvents ( PacketEvent *  packetEvents )

virtual

copy()

void inet::PacketEventTag::copy ( const PacketEventTag &  other )

private

dup()

virtual PacketEventTag* inet::PacketEventTag::dup ( ) const

inlineoverridevirtual

{return new PacketEventTag(*this);}

erasePacketEvents()

virtual void inet::PacketEventTag::erasePacketEvents ( size_t  k )

virtual

getPacketEvents()

virtual const PacketEvent* inet::PacketEventTag::getPacketEvents ( size_t  k ) const

virtual

getPacketEventsArraySize()

virtual size_t inet::PacketEventTag::getPacketEventsArraySize ( ) const

virtual

getPacketEventsForUpdate()

virtual PacketEvent* inet::PacketEventTag::getPacketEventsForUpdate ( size_t  k )

inlinevirtual

{ return const_cast<PacketEvent *>(const_cast<PacketEventTag*>(this)->getPacketEvents(k));}

insertPacketEvents() [1/2]

void inet::PacketEventTag::insertPacketEvents ( PacketEvent *  packetEvents )

inline

{appendPacketEvents(packetEvents);}

insertPacketEvents() [2/2]

virtual void inet::PacketEventTag::insertPacketEvents ( size_t  k, PacketEvent *  packetEvents  )

virtual

operator=()

PacketEventTag& inet::PacketEventTag::operator=

(

const PacketEventTag &

other

)

operator==()

bool inet::PacketEventTag::operator== ( const PacketEventTag &  )

protecteddelete

parsimPack()

virtual void inet::PacketEventTag::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::PacketEventTag::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Referenced by inet::doParsimUnpacking().

setPacketEvents()

virtual void inet::PacketEventTag::setPacketEvents ( size_t  k, PacketEvent *  packetEvents  )

virtual

setPacketEventsArraySize()

virtual void inet::PacketEventTag::setPacketEventsArraySize ( size_t  size )

virtual

Member Data Documentation

packetEvents

PacketEvent* * inet::PacketEventTag::packetEvents = nullptr

protected

packetEvents_arraysize

size_t inet::PacketEventTag::packetEvents_arraysize = 0

protected

---

The documentation for this class was generated from the following file:

• PacketEventTag_m.h
