inet::PacketEvent Class Reference

Class generated from inet/common/PacketEventTag.msg:24 by opp_msgtool. More...

#include <PacketEventTag_m.h>

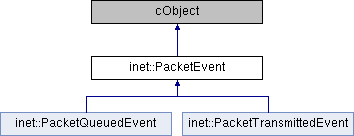

Inheritance diagram for inet::PacketEvent:

Public Member Functions
	PacketEvent ()
	PacketEvent (const PacketEvent &other)
virtual	~PacketEvent ()
PacketEvent &	operator= (const PacketEvent &other)
virtual PacketEvent *	dup () const override
virtual std::string	str () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual int	getKind () const
virtual void	setKind (int kind)
virtual const char *	getModulePath () const
virtual void	setModulePath (const char *modulePath)
virtual int64_t	getEventNumber () const
virtual void	setEventNumber (int64_t eventNumber)
virtual ::omnetpp::simtime_t	getSimulationTime () const
virtual void	setSimulationTime (::omnetpp::simtime_t simulationTime)
virtual ::omnetpp::simtime_t	getDuration () const
virtual void	setDuration (::omnetpp::simtime_t duration)
virtual b	getPacketLength () const
virtual void	setPacketLength (b packetLength)

Protected Member Functions
bool	operator== (const PacketEvent &)=delete

Protected Attributes
int	kind = PEK_UNDEFINED
::omnetpp::opp_string	modulePath
int64_t	eventNumber = -1
::omnetpp::simtime_t	simulationTime = -1
::omnetpp::simtime_t	duration = -1
b	packetLength = b(-1)

Private Member Functions
void	copy (const PacketEvent &other)

Detailed Description

Class generated from inet/common/PacketEventTag.msg:24 by opp_msgtool.

class PacketEvent extends cObject
{
    @str(getClassName());
    int kind @enum(PacketEventKind) = PEK_UNDEFINED;
    string modulePath;
    int64_t eventNumber = -1;
    simtime_t simulationTime = -1;
    simtime_t duration = -1;
    b packetLength = b(-1);
}

Constructor & Destructor Documentation

PacketEvent() [1/2]

inet::PacketEvent::PacketEvent

(

)

PacketEvent() [2/2]

inet::PacketEvent::PacketEvent

(

const PacketEvent &

other

)

~PacketEvent()

virtual inet::PacketEvent::~PacketEvent ( )

virtual

Member Function Documentation

copy()

void inet::PacketEvent::copy ( const PacketEvent &  other )

private

dup()

virtual PacketEvent* inet::PacketEvent::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::PacketTransmittedEvent, and inet::PacketQueuedEvent.

{return new PacketEvent(*this);}

Referenced by inet::insertPacketEvent().

getDuration()

virtual ::omnetpp::simtime_t inet::PacketEvent::getDuration

(

)

const

getEventNumber()

virtual int64_t inet::PacketEvent::getEventNumber ( ) const

virtual

getKind()

virtual int inet::PacketEvent::getKind ( ) const

virtual

getModulePath()

virtual const char* inet::PacketEvent::getModulePath ( ) const

virtual

getPacketLength()

virtual b inet::PacketEvent::getPacketLength ( ) const

virtual

getSimulationTime()

virtual ::omnetpp::simtime_t inet::PacketEvent::getSimulationTime

(

)

const

operator=()

PacketEvent& inet::PacketEvent::operator=

(

const PacketEvent &

other

)

operator==()

bool inet::PacketEvent::operator== ( const PacketEvent &  )

protecteddelete

parsimPack()

virtual void inet::PacketEvent::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::PacketTransmittedEvent, and inet::PacketQueuedEvent.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::PacketEvent::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::PacketTransmittedEvent, and inet::PacketQueuedEvent.

Referenced by inet::doParsimUnpacking().

setDuration()

virtual void inet::PacketEvent::setDuration ( ::omnetpp::simtime_t  duration )

virtual

setEventNumber()

virtual void inet::PacketEvent::setEventNumber ( int64_t  eventNumber )

virtual

setKind()

virtual void inet::PacketEvent::setKind ( int  kind )

virtual

Referenced by inet::insertPacketEvent().

setModulePath()

virtual void inet::PacketEvent::setModulePath ( const char *  modulePath )

virtual

setPacketLength()

virtual void inet::PacketEvent::setPacketLength ( b  packetLength )

virtual

setSimulationTime()

virtual void inet::PacketEvent::setSimulationTime ( ::omnetpp::simtime_t  simulationTime )

virtual

str()

virtual std::string inet::PacketEvent::str ( ) const

overridevirtual

Member Data Documentation

duration

::omnetpp::simtime_t inet::PacketEvent::duration = -1

protected

eventNumber

int64_t inet::PacketEvent::eventNumber = -1

protected

kind

int inet::PacketEvent::kind = PEK_UNDEFINED

protected

modulePath

::omnetpp::opp_string inet::PacketEvent::modulePath

protected

packetLength

b inet::PacketEvent::packetLength = b(-1)

protected

simulationTime

::omnetpp::simtime_t inet::PacketEvent::simulationTime = -1

protected

---

The documentation for this class was generated from the following file:

• PacketEventTag_m.h
