#include <Ns2MotionMobility.h>

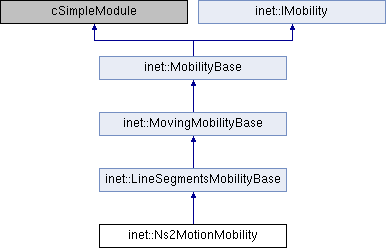

Inheritance diagram for inet::Ns2MotionMobility:

Public Member Functions
	Ns2MotionMobility ()

virtual	~Ns2MotionMobility ()

virtual double	getMaxSpeed () const override
	Returns the maximum possible speed at any future time. More...

Public Member Functions inherited from inet::LineSegmentsMobilityBase
	LineSegmentsMobilityBase ()

Public Member Functions inherited from inet::MovingMobilityBase
virtual const Coord &	getCurrentPosition () override
	Returns the position at the current simulation time. More...

virtual const Coord &	getCurrentVelocity () override
	Returns the velocity at the current simulation time. More...

virtual const Coord &	getCurrentAcceleration () override
	Returns the acceleration at the current simulation time. More...

virtual const Quaternion &	getCurrentAngularPosition () override
	Returns the angular position at the current simulation time. More...

virtual const Quaternion &	getCurrentAngularVelocity () override
	Returns the angular velocity at the current simulation time. More...

virtual const Quaternion &	getCurrentAngularAcceleration () override
	Returns the angular acceleration at the current simulation time. More...

Public Member Functions inherited from inet::MobilityBase
virtual const Coord &	getConstraintAreaMax () const override
	Returns the maximum position along each axes for. More...

virtual const Coord &	getConstraintAreaMin () const override
	Returns the minimum position along each axes for. More...

Public Member Functions inherited from inet::IMobility
virtual	~IMobility ()

Protected Member Functions
void	parseFile (const char *filename)

virtual int	numInitStages () const override
	Returns the required number of initialize stages. More...

virtual void	initialize (int stage) override
	Initializes mobility model parameters. More...

virtual void	setInitialPosition () override
	Initializes the position according to the mobility model. More...

virtual void	setTargetPosition () override
	Overridden from LineSegmentsMobilityBase. More...

virtual void	move () override
	Overridden from LineSegmentsMobilityBase. More...

virtual void	computeMaxSpeed ()

Protected Member Functions inherited from inet::LineSegmentsMobilityBase
virtual void	initializePosition () override
	Initializes mobility position. More...

Protected Member Functions inherited from inet::MovingMobilityBase
	MovingMobilityBase ()

virtual	~MovingMobilityBase ()

virtual void	handleSelfMessage (cMessage *message) override
	Called upon arrival of a self messages, subclasses must override. More...

void	scheduleUpdate ()
	Schedules the move timer that will update the mobility state. More...

void	moveAndUpdate ()
	Moves and notifies listeners. More...

virtual void	orient ()

Protected Member Functions inherited from inet::MobilityBase
	MobilityBase ()

virtual int	getId () const override

virtual void	checkPosition ()
	Checks whether the position is valid or not. More...

virtual void	initializeOrientation ()
	Initializes the orientation from module parameters. More...

virtual void	refreshDisplay () const override
	Moves the visual representation module's icon to the new position on the screen. More...

virtual void	updateDisplayStringFromMobilityState () const

virtual void	handleParameterChange (const char *name) override
	Allows changing parameters from the GUI. More...

virtual void	handleMessage (cMessage *msg) override
	This modules should only receive self-messages. More...

virtual void	emitMobilityStateChangedSignal ()
	Emits a signal with the updated mobility state. More...

virtual Coord	getRandomPosition ()
	Returns a new random position satisfying the constraint area. More...

virtual cModule *	findSubjectModule ()
	Returns the module that represents the object moved by this mobility module. More...

virtual bool	isOutside ()
	Returns true if the mobility is outside of the constraint area. More...

virtual void	reflectIfOutside (Coord &targetPosition, Coord &velocity, rad &angle, rad &elevation, Quaternion &quaternion)
	Utility function to reflect the node if it goes outside the constraint area. More...

virtual void	wrapIfOutside (Coord &targetPosition)
	Utility function to wrap the node to the opposite edge (torus) if it goes outside the constraint area. More...

virtual void	placeRandomlyIfOutside (Coord &targetPosition)
	Utility function to place the node randomly if it goes outside the constraint area. More...

virtual void	raiseErrorIfOutside ()
	Utility function to raise an error if the node gets outside the constraint area. More...

virtual void	handleIfOutside (BorderPolicy policy, Coord &targetPosition, Coord &velocity)
	Invokes one of reflectIfOutside(), wrapIfOutside() and placeRandomlyIfOutside(), depending on the given border policy. More...

virtual void	handleIfOutside (BorderPolicy policy, Coord &targetPosition, Coord &velocity, rad &heading)

virtual void	handleIfOutside (BorderPolicy policy, Coord &targetPosition, Coord &velocity, rad &heading, rad &elevation)

virtual void	handleIfOutside (BorderPolicy policy, Coord &targetPosition, Coord &velocity, rad &heading, rad &elevation, Quaternion &quaternion)

Protected Attributes
unsigned int	vecpos

Ns2MotionFile *	ns2File

int	nodeId

double	scrollX

double	scrollY

double	maxSpeed

Protected Attributes inherited from inet::LineSegmentsMobilityBase
Coord	targetPosition
	End position of current linear movement. More...

Protected Attributes inherited from inet::MovingMobilityBase
cMessage *	moveTimer
	The message used for mobility state changes. More...

simtime_t	updateInterval
	The simulation time interval used to regularly signal mobility state changes. More...

bool	stationary
	A mobility model may decide to become stationary at any time. More...

Coord	lastVelocity
	The last velocity that was reported at lastUpdate. More...

Quaternion	lastAngularVelocity
	The last angular velocity that was reported at lastUpdate. More...

simtime_t	lastUpdate
	The simulation time when the mobility state was last updated. More...

simtime_t	nextChange
	The next simulation time when the mobility module needs to update its internal state. More...

bool	faceForward

Protected Attributes inherited from inet::MobilityBase
cModule *	subjectModule
	Pointer to visual representation module, to speed up repeated access. More...

const CanvasProjection *	canvasProjection
	The 2D projection used on the canvas. More...

Coord	constraintAreaMin
	3 dimensional position and size of the constraint area (in meters). More...

Coord	constraintAreaMax

Coord	lastPosition
	The last position that was reported. More...

Quaternion	lastOrientation
	The last orientation that was reported. More...

StringFormat	format

Additional Inherited Members
Public Types inherited from inet::MobilityBase
enum	BorderPolicy { REFLECT, WRAP, PLACERANDOMLY, RAISEERROR }
	Selects how a mobility module should behave if it reaches the edge of the constraint area. More...

Static Public Attributes inherited from inet::IMobility
static simsignal_t	mobilityStateChangedSignal = cComponent::registerSignal("mobilityStateChanged")
	A signal used to publish mobility state changes. More...

Constructor & Destructor Documentation

◆ Ns2MotionMobility()

inet::Ns2MotionMobility::Ns2MotionMobility ( )

 {
     vecpos = 0;
     ns2File = nullptr;
     nodeId = 0;
     scrollX = 0;
     scrollY = 0;
     maxSpeed = 0;
 }

◆ ~Ns2MotionMobility()

inet::Ns2MotionMobility::~Ns2MotionMobility ( )

virtual

 {
     if (ns2File)
         delete ns2File;
 }

Member Function Documentation

◆ computeMaxSpeed()

void inet::Ns2MotionMobility::computeMaxSpeed ( )

protectedvirtual

 {
     unsigned int fileSize = ns2File->lines.size();
     for (unsigned int i = 0; i < fileSize; i++) {
         const Ns2MotionFile::Line& vec = ns2File->lines[i];
         if (vec[3] > maxSpeed)
             maxSpeed = vec[3];
     }
 }

◆ getMaxSpeed()

virtual double inet::Ns2MotionMobility::getMaxSpeed ( ) const

inlineoverridevirtual

Returns the maximum possible speed at any future time.

Reimplemented from inet::MobilityBase.

72 { return maxSpeed; }

◆ initialize()

void inet::Ns2MotionMobility::initialize ( int stage )

overrideprotectedvirtual

Initializes mobility model parameters.

Reimplemented from inet::MovingMobilityBase.

 {
     LineSegmentsMobilityBase::initialize(stage);

     EV_TRACE << "initializing Ns2MotionMobility stage " << stage << endl;
     if (stage == INITSTAGE_LOCAL) {
         scrollX = par("scrollX");
         scrollY = par("scrollY");
         nodeId = par("nodeId");
         if (nodeId == -1)
             nodeId = getContainingNode(this)->getIndex();
         const char *fname = par("traceFile");
         ns2File = new Ns2MotionFile;
         parseFile(fname);
         vecpos = 0;
         WATCH(nodeId);
     }
 }

◆ move()

void inet::Ns2MotionMobility::move ( )

overrideprotectedvirtual

Overridden from LineSegmentsMobilityBase.

Reimplemented from inet::LineSegmentsMobilityBase.

 {
     LineSegmentsMobilityBase::move();
     raiseErrorIfOutside();
 }

◆ numInitStages()

virtual int inet::Ns2MotionMobility::numInitStages ( ) const

inlineoverrideprotectedvirtual

Returns the required number of initialize stages.

Reimplemented from inet::MobilityBase.

53 { return NUM_INIT_STAGES; }

◆ parseFile()

void inet::Ns2MotionMobility::parseFile ( const char * filename )

protected

 {
     std::ifstream in(filename, std::ios::in);

     if (in.fail())
         throw cRuntimeError("Cannot open file '%s'", filename);
     ns2File->initial[0] = ns2File->initial[1] = ns2File->initial[2] = -1;
     std::string line;
     std::string subline;

     while (std::getline(in, line)) {
         // '#' line
         int num_node = -1;
         std::string::size_type found = line.find('#');
         if (found == 0)
             continue;
         if (found != std::string::npos)
             subline = line;
         else
             subline = line.substr(0, found);
         found = subline.find("$node_");
         if (found == std::string::npos)
             continue;
         // Node Id
         std::string::size_type pos1 = subline.find('(');
         std::string::size_type pos2 = subline.find(')');
         if (pos2 - pos1 > 1)
             num_node = std::atoi(subline.substr(pos1 + 1, pos2 - 1).c_str());
         if (num_node != nodeId)
             continue;
         // Initial position
         found = subline.find("set ");
         if (found != std::string::npos) {
             // Initial position
             found = subline.find("X_");
             if (found != std::string::npos) {
                 ns2File->initial[0] = std::atof(subline.substr(found + 3, std::string::npos).c_str());
             }
             found = subline.find("Y_");
             if (found != std::string::npos) {
                 ns2File->initial[1] = std::atof(subline.substr(found + 3, std::string::npos).c_str());
             }

             found = subline.find("Z_");
             if (found != std::string::npos) {
                 ns2File->initial[2] = std::atof(subline.substr(found + 3, std::string::npos).c_str());
             }
         }
         found = subline.find("setdest");
         if (found != std::string::npos) {
             ns2File->lines.push_back(Ns2MotionFile::Line());
             Ns2MotionFile::Line& vec = ns2File->lines.back();
             // initial time
             found = subline.find("at");
             vec.push_back(std::atof(subline.substr(found + 3).c_str()));

             std::string parameters = subline.substr(subline.find("setdest ") + 8, std::string::npos);

             std::stringstream linestream(parameters);
             double d;
             while (linestream >> d)
                 vec.push_back(d);
         }
     }
     in.close();
     // exist data?
     if (ns2File->initial[0] == -1 || ns2File->initial[1] == -1 || ns2File->initial[2] == -1)
         throw cRuntimeError("node '%d' Error ns2 motion file '%s'", nodeId, filename);
 }

Referenced by initialize().

◆ setInitialPosition()

void inet::Ns2MotionMobility::setInitialPosition ( )

overrideprotectedvirtual

Initializes the position according to the mobility model.

Reimplemented from inet::MobilityBase.

 {
     lastPosition.x = ns2File->initial[0] + scrollX;
     lastPosition.y = ns2File->initial[1] + scrollY;
 }

◆ setTargetPosition()

void inet::Ns2MotionMobility::setTargetPosition ( )

overrideprotectedvirtual

Overridden from LineSegmentsMobilityBase.

Implements inet::LineSegmentsMobilityBase.

 {
     if (ns2File->lines.size() == 0) {
         stationary = true;
         return;
     }

     if (vecpos >= ns2File->lines.size()) {
         stationary = true;
         return;
     }

     if (ns2File->lines.begin() + vecpos == ns2File->lines.end()) {
         stationary = true;
         return;
     }

     const Ns2MotionFile::Line& vec = ns2File->lines[vecpos];
     double time = vec[0];
     simtime_t now = simTime();
     // TODO this code is dubious at best
     if (now < time) {
         nextChange = time;
         targetPosition = lastPosition;
     }
     else if (vec[3] == 0) { // the node is stopped
         const Ns2MotionFile::Line& vec = ns2File->lines[vecpos + 1];
         double time = vec[0];
         nextChange = time;
         targetPosition = lastPosition;
         vecpos++;
     }
     else {
         targetPosition.x = vec[1] + scrollX;
         targetPosition.y = vec[2] + scrollY;
         double speed = vec[3];
         double distance = lastPosition.distance(targetPosition);
         double travelTime = distance / speed;
         nextChange = now + travelTime;
         vecpos++;
     }
 }

Member Data Documentation

◆ maxSpeed

double inet::Ns2MotionMobility::maxSpeed

protected

Referenced by computeMaxSpeed(), and Ns2MotionMobility().

◆ nodeId

int inet::Ns2MotionMobility::nodeId

protected

Referenced by initialize(), Ns2MotionMobility(), and parseFile().

◆ ns2File

Ns2MotionFile* inet::Ns2MotionMobility::ns2File

protected

Referenced by computeMaxSpeed(), initialize(), Ns2MotionMobility(), parseFile(), setInitialPosition(), setTargetPosition(), and ~Ns2MotionMobility().

◆ scrollX

double inet::Ns2MotionMobility::scrollX

protected

Referenced by initialize(), Ns2MotionMobility(), setInitialPosition(), and setTargetPosition().

◆ scrollY

double inet::Ns2MotionMobility::scrollY

protected

Referenced by initialize(), Ns2MotionMobility(), setInitialPosition(), and setTargetPosition().

◆ vecpos

unsigned int inet::Ns2MotionMobility::vecpos

protected

Referenced by initialize(), Ns2MotionMobility(), and setTargetPosition().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ Ns2MotionMobility()

◆ ~Ns2MotionMobility()

Member Function Documentation

◆ computeMaxSpeed()

◆ getMaxSpeed()

◆ initialize()

◆ move()

◆ numInitStages()

◆ parseFile()

◆ setInitialPosition()

◆ setTargetPosition()

Member Data Documentation

◆ maxSpeed

◆ nodeId

◆ ns2File

◆ scrollX

◆ scrollY

◆ vecpos
