inet::NextHopInterfaceData Class Reference

Next hop forwarding protocol specific data for an NetworkInterface, stores generic network address. More...

#include <NextHopInterfaceData.h>

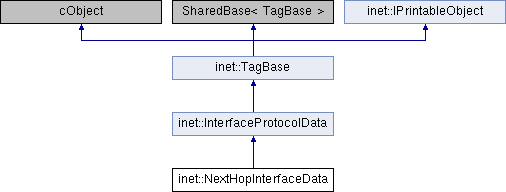

Inheritance diagram for inet::NextHopInterfaceData:

Public Types
enum	{ F_ADDRESS, F_METRIC }
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Public Member Functions
	NextHopInterfaceData ()
virtual std::string	str () const override
virtual std::string	detailedInfo () const
Getters
L3Address	getAddress () const
int	getMetric () const
Setters
virtual void	setAddress (L3Address a)
virtual void	setMetric (int m)
virtual void	joinMulticastGroup (L3Address address)
Public Member Functions inherited from inet::InterfaceProtocolData
	InterfaceProtocolData (int id)
NetworkInterface *	getNetworkInterface () const
	Returns the NetworkInterface that contains this data object, or nullptr. More...
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
void	changed1 (int fieldId)
Protected Member Functions inherited from inet::InterfaceProtocolData
virtual void	changed (simsignal_t signalID, int fieldId)

Protected Attributes
L3Address	inetAddr
	address of interface More...
int	metric
	link "cost"; see e.g. MS KB article Q299540 //TODO needed??? More...
Protected Attributes inherited from inet::InterfaceProtocolData
NetworkInterface *	ownerp = nullptr
int	id

Private Member Functions
	NextHopInterfaceData (const NextHopInterfaceData &obj)
NextHopInterfaceData &	operator= (const NextHopInterfaceData &obj)

Detailed Description

Next hop forwarding protocol specific data for an NetworkInterface, stores generic network address.

See also

NetworkInterface

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
F_ADDRESS
F_METRIC

{ F_ADDRESS, F_METRIC };

Constructor & Destructor Documentation

NextHopInterfaceData() [1/2]

inet::NextHopInterfaceData::NextHopInterfaceData ( const NextHopInterfaceData &  obj )

private

NextHopInterfaceData() [2/2]

inet::NextHopInterfaceData::NextHopInterfaceData ( )

inline

: InterfaceProtocolData(NetworkInterface::F_NEXTHOP_DATA) { metric = 0; }

Member Function Documentation

changed1()

void inet::NextHopInterfaceData::changed1 ( int  fieldId )

inlineprotected

{ changed(interfaceGnpConfigChangedSignal, fieldId); }

detailedInfo()

std::string inet::NextHopInterfaceData::detailedInfo ( ) const

virtual

{
    std::stringstream out;
    out << "generic addr:" << getAddress() << "\n"
        << "Metric: " << getMetric() << "\n";
    return out.str();
}

getAddress()

L3Address inet::NextHopInterfaceData::getAddress ( ) const

inline

{ return inetAddr; }

Referenced by detailedInfo(), inet::NextHopForwarding::routePacket(), and str().

getMetric()

int inet::NextHopInterfaceData::getMetric ( ) const

inline

{ return metric; }

Referenced by detailedInfo().

joinMulticastGroup()

virtual void inet::NextHopInterfaceData::joinMulticastGroup ( L3Address  address )

inlinevirtual

{}

operator=()

NextHopInterfaceData& inet::NextHopInterfaceData::operator= ( const NextHopInterfaceData &  obj )

private

setAddress()

virtual void inet::NextHopInterfaceData::setAddress ( L3Address  a )

inlinevirtual

{ inetAddr = a; changed1(F_ADDRESS); }

setMetric()

virtual void inet::NextHopInterfaceData::setMetric ( int  m )

inlinevirtual

{ metric = m; changed1(F_METRIC); }

Referenced by inet::NextHopRoutingTable::configureInterface().

str()

std::string inet::NextHopInterfaceData::str ( ) const

overridevirtual

Reimplemented from inet::TagBase.

{
    std::stringstream out;
    out << "generic addr:" << getAddress();
    return out.str();
}

Member Data Documentation

inetAddr

L3Address inet::NextHopInterfaceData::inetAddr

protected

address of interface

metric

int inet::NextHopInterfaceData::metric

protected

link "cost"; see e.g. MS KB article Q299540 //TODO needed???

---

The documentation for this class was generated from the following files:

• NextHopInterfaceData.h
• NextHopInterfaceData.cc
