inet::Ipv6ExtensionHeader Class Reference

Class generated from inet/networklayer/ipv6/Ipv6Header.msg:32 by opp_msgtool. More...

#include <Ipv6Header_m.h>

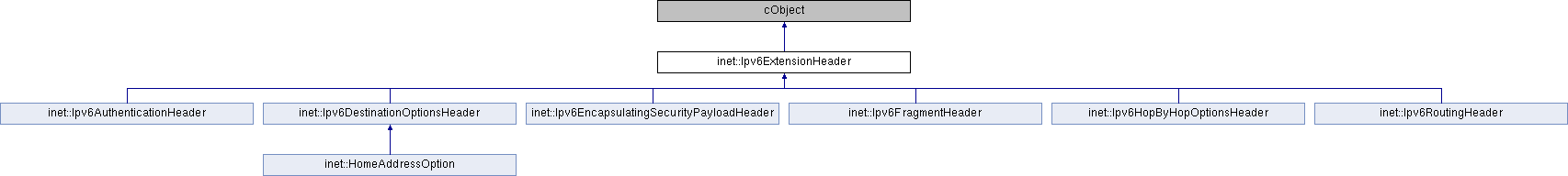

Inheritance diagram for inet::Ipv6ExtensionHeader:

Public Member Functions
	Ipv6ExtensionHeader ()
	Ipv6ExtensionHeader (const Ipv6ExtensionHeader &other)
virtual	~Ipv6ExtensionHeader ()
Ipv6ExtensionHeader &	operator= (const Ipv6ExtensionHeader &other)
virtual Ipv6ExtensionHeader *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual uint8_t	getExtensionType () const
virtual void	setExtensionType (uint8_t extensionType)
virtual B	getByteLength () const
virtual void	setByteLength (B byteLength)
int	getOrder () const

Protected Member Functions
bool	operator== (const Ipv6ExtensionHeader &)=delete

Protected Attributes
uint8_t	extensionType = 0
B	byteLength = B(0)

Private Member Functions
void	copy (const Ipv6ExtensionHeader &other)

Detailed Description

Class generated from inet/networklayer/ipv6/Ipv6Header.msg:32 by opp_msgtool.

//
// This serves as the base class for all the Ipv6 extension headers.
//
class Ipv6ExtensionHeader extends cObject
{
    @packetData;
    uint8_t extensionType;
    B byteLength = B(0);   // byteLength = n * 8;
}

Constructor & Destructor Documentation

Ipv6ExtensionHeader() [1/2]

inet::Ipv6ExtensionHeader::Ipv6ExtensionHeader

(

)

Ipv6ExtensionHeader() [2/2]

inet::Ipv6ExtensionHeader::Ipv6ExtensionHeader

(

const Ipv6ExtensionHeader &

other

)

~Ipv6ExtensionHeader()

virtual inet::Ipv6ExtensionHeader::~Ipv6ExtensionHeader ( )

virtual

Member Function Documentation

copy()

void inet::Ipv6ExtensionHeader::copy ( const Ipv6ExtensionHeader &  other )

private

dup()

virtual Ipv6ExtensionHeader* inet::Ipv6ExtensionHeader::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::HomeAddressOption, inet::Ipv6EncapsulatingSecurityPayloadHeader, inet::Ipv6AuthenticationHeader, inet::Ipv6DestinationOptionsHeader, inet::Ipv6FragmentHeader, inet::Ipv6RoutingHeader, and inet::Ipv6HopByHopOptionsHeader.

{return new Ipv6ExtensionHeader(*this);}

getByteLength()

virtual B inet::Ipv6ExtensionHeader::getByteLength ( ) const

virtual

Referenced by inet::Ipv6Header::addExtensionHeader(), inet::Ipv6Header::calculateFragmentLength(), and inet::Ipv6HeaderSerializer::serialize().

getExtensionType()

virtual uint8_t inet::Ipv6ExtensionHeader::getExtensionType ( ) const

virtual

Referenced by inet::Ipv6Header::addExtensionHeader(), inet::Ipv6Header::calculateUnfragmentableHeaderByteLength(), and inet::Ipv6HeaderSerializer::serialize().

getOrder()

int inet::Ipv6ExtensionHeader::getOrder

(

)

const

{
    switch (extensionType) {
        case IP_PROT_IPv6EXT_HOP:
            return 0;

        case IP_PROT_IPv6EXT_DEST:
            return 1;

        case IP_PROT_IPv6EXT_ROUTING:
            return 2;

        case IP_PROT_IPv6EXT_FRAGMENT:
            return 3;

        case IP_PROT_IPv6EXT_AUTH:
            return 4;

        case IP_PROT_IPv6EXT_ESP:
            return 5;

        // second IP_PROT_IPv6EXT_DEST has order 6

        case IP_PROT_IPv6EXT_MOB:
            return 7;

        default:
            return -1;
    }
}

Referenced by inet::Ipv6Header::addExtensionHeader().

operator=()

Ipv6ExtensionHeader& inet::Ipv6ExtensionHeader::operator=

(

const Ipv6ExtensionHeader &

other

)

operator==()

bool inet::Ipv6ExtensionHeader::operator== ( const Ipv6ExtensionHeader &  )

protecteddelete

parsimPack()

virtual void inet::Ipv6ExtensionHeader::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::HomeAddressOption, inet::Ipv6EncapsulatingSecurityPayloadHeader, inet::Ipv6AuthenticationHeader, inet::Ipv6DestinationOptionsHeader, inet::Ipv6FragmentHeader, inet::Ipv6RoutingHeader, and inet::Ipv6HopByHopOptionsHeader.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::Ipv6ExtensionHeader::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::HomeAddressOption, inet::Ipv6EncapsulatingSecurityPayloadHeader, inet::Ipv6AuthenticationHeader, inet::Ipv6DestinationOptionsHeader, inet::Ipv6FragmentHeader, inet::Ipv6RoutingHeader, and inet::Ipv6HopByHopOptionsHeader.

Referenced by inet::doParsimUnpacking().

setByteLength()

virtual void inet::Ipv6ExtensionHeader::setByteLength ( B  byteLength )

virtual

Referenced by inet::Ipv6HeaderSerializer::deserialize(), inet::Ipv6Tunneling::encapsulateDatagram(), and inet::Gpsr::setGpsrOptionOnNetworkDatagram().

setExtensionType()

virtual void inet::Ipv6ExtensionHeader::setExtensionType ( uint8_t  extensionType )

virtual

Referenced by inet::Ipv6HeaderSerializer::deserialize().

Member Data Documentation

byteLength

B inet::Ipv6ExtensionHeader::byteLength = B(0)

protected

extensionType

uint8_t inet::Ipv6ExtensionHeader::extensionType = 0

protected

Referenced by getOrder().

---

The documentation for this class was generated from the following files:

• Ipv6Header_m.h
• Ipv6Header.cc
