inet::GptpIngressTimeInd Class Reference

Class generated from inet/linklayer/ieee8021as/GptpPacket.msg:248 by opp_msgtool. More...

#include <GptpPacket_m.h>

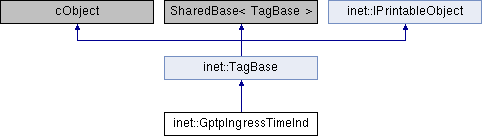

Inheritance diagram for inet::GptpIngressTimeInd:

Public Member Functions
	GptpIngressTimeInd ()
	GptpIngressTimeInd (const GptpIngressTimeInd &other)
virtual	~GptpIngressTimeInd ()
GptpIngressTimeInd &	operator= (const GptpIngressTimeInd &other)
virtual GptpIngressTimeInd *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual clocktime_t	getArrivalClockTime () const
virtual void	setArrivalClockTime (clocktime_t arrivalClockTime)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const GptpIngressTimeInd &)=delete

Protected Attributes
clocktime_t	arrivalClockTime = CLOCKTIME_ZERO

Private Member Functions
void	copy (const GptpIngressTimeInd &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/linklayer/ieee8021as/GptpPacket.msg:248 by opp_msgtool.

class GptpIngressTimeInd extends TagBase
{
    clocktime_t arrivalClockTime;
}

Constructor & Destructor Documentation

GptpIngressTimeInd() [1/2]

inet::GptpIngressTimeInd::GptpIngressTimeInd

(

)

GptpIngressTimeInd() [2/2]

inet::GptpIngressTimeInd::GptpIngressTimeInd

(

const GptpIngressTimeInd &

other

)

~GptpIngressTimeInd()

virtual inet::GptpIngressTimeInd::~GptpIngressTimeInd ( )

virtual

Member Function Documentation

copy()

void inet::GptpIngressTimeInd::copy ( const GptpIngressTimeInd &  other )

private

dup()

virtual GptpIngressTimeInd* inet::GptpIngressTimeInd::dup ( ) const

inlineoverridevirtual

{return new GptpIngressTimeInd(*this);}

getArrivalClockTime()

virtual clocktime_t inet::GptpIngressTimeInd::getArrivalClockTime ( ) const

virtual

Referenced by inet::Gptp::processPdelayReq().

operator=()

GptpIngressTimeInd& inet::GptpIngressTimeInd::operator=

(

const GptpIngressTimeInd &

other

)

operator==()

bool inet::GptpIngressTimeInd::operator== ( const GptpIngressTimeInd &  )

protecteddelete

parsimPack()

virtual void inet::GptpIngressTimeInd::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::GptpIngressTimeInd::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Referenced by inet::doParsimUnpacking().

setArrivalClockTime()

virtual void inet::GptpIngressTimeInd::setArrivalClockTime ( clocktime_t  arrivalClockTime )

virtual

Referenced by inet::Gptp::receiveSignal().

Member Data Documentation

arrivalClockTime

clocktime_t inet::GptpIngressTimeInd::arrivalClockTime = CLOCKTIME_ZERO

protected

---

The documentation for this class was generated from the following file:

• GptpPacket_m.h
