inet::ieee80211::Ieee80211MgmtSta::ApInfo Struct Reference

#include <Ieee80211MgmtSta.h>

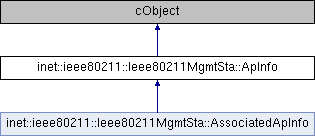

Inheritance diagram for inet::ieee80211::Ieee80211MgmtSta::ApInfo:

Public Member Functions
	ApInfo ()

Public Attributes
int	channel
MacAddress	address
std::string	ssid
Ieee80211SupportedRatesElement	supportedRates
simtime_t	beaconInterval
double	rxPower
bool	isAuthenticated
int	authSeqExpected
cMessage *	authTimeoutMsg

Constructor & Destructor Documentation

ApInfo()

inet::ieee80211::Ieee80211MgmtSta::ApInfo::ApInfo ( )

inline

        {
            channel = -1;
            beaconInterval = rxPower = 0;
            authSeqExpected = -1;
            isAuthenticated = false;
            authTimeoutMsg = nullptr;
        }

Member Data Documentation

address

MacAddress inet::ieee80211::Ieee80211MgmtSta::ApInfo::address

Referenced by inet::ieee80211::Ieee80211MgmtSta::handleAssociationResponseFrame(), inet::ieee80211::Ieee80211MgmtSta::handleTimer(), inet::ieee80211::operator<<(), inet::ieee80211::Ieee80211MgmtSta::sendAuthenticationConfirm(), inet::ieee80211::Ieee80211MgmtSta::sendScanConfirm(), inet::ieee80211::Ieee80211MgmtSta::startAssociation(), inet::ieee80211::Ieee80211MgmtSta::startAuthentication(), and inet::ieee80211::Ieee80211MgmtSta::storeAPInfo().

authSeqExpected

int inet::ieee80211::Ieee80211MgmtSta::ApInfo::authSeqExpected

Referenced by inet::ieee80211::Ieee80211MgmtSta::handleAuthenticationFrame(), inet::ieee80211::operator<<(), and inet::ieee80211::Ieee80211MgmtSta::startAuthentication().

authTimeoutMsg

cMessage* inet::ieee80211::Ieee80211MgmtSta::ApInfo::authTimeoutMsg

Referenced by inet::ieee80211::Ieee80211MgmtSta::handleAuthenticationFrame(), inet::ieee80211::Ieee80211MgmtSta::handleDeauthenticationFrame(), inet::ieee80211::Ieee80211MgmtSta::processDeauthenticateCommand(), and inet::ieee80211::Ieee80211MgmtSta::startAuthentication().

beaconInterval

simtime_t inet::ieee80211::Ieee80211MgmtSta::ApInfo::beaconInterval

Referenced by inet::ieee80211::operator<<(), inet::ieee80211::Ieee80211MgmtSta::sendScanConfirm(), and inet::ieee80211::Ieee80211MgmtSta::storeAPInfo().

channel

int inet::ieee80211::Ieee80211MgmtSta::ApInfo::channel

Referenced by inet::ieee80211::operator<<(), inet::ieee80211::Ieee80211MgmtSta::sendScanConfirm(), inet::ieee80211::Ieee80211MgmtSta::startAssociation(), inet::ieee80211::Ieee80211MgmtSta::startAuthentication(), and inet::ieee80211::Ieee80211MgmtSta::storeAPInfo().

isAuthenticated

bool inet::ieee80211::Ieee80211MgmtSta::ApInfo::isAuthenticated

Referenced by inet::ieee80211::Ieee80211MgmtSta::handleAuthenticationFrame(), inet::ieee80211::Ieee80211MgmtSta::handleDeauthenticationFrame(), inet::ieee80211::operator<<(), inet::ieee80211::Ieee80211MgmtSta::processDeauthenticateCommand(), inet::ieee80211::Ieee80211MgmtSta::startAssociation(), and inet::ieee80211::Ieee80211MgmtSta::startAuthentication().

rxPower

double inet::ieee80211::Ieee80211MgmtSta::ApInfo::rxPower

Referenced by inet::ieee80211::operator<<(), inet::ieee80211::Ieee80211MgmtSta::sendScanConfirm(), and inet::ieee80211::Ieee80211MgmtSta::storeAPInfo().

ssid

std::string inet::ieee80211::Ieee80211MgmtSta::ApInfo::ssid

Referenced by inet::ieee80211::Ieee80211MgmtSta::handleAssociationResponseFrame(), inet::ieee80211::operator<<(), inet::ieee80211::Ieee80211MgmtSta::sendScanConfirm(), and inet::ieee80211::Ieee80211MgmtSta::storeAPInfo().

supportedRates

Ieee80211SupportedRatesElement inet::ieee80211::Ieee80211MgmtSta::ApInfo::supportedRates

Referenced by inet::ieee80211::Ieee80211MgmtSta::sendScanConfirm(), and inet::ieee80211::Ieee80211MgmtSta::storeAPInfo().

---

The documentation for this struct was generated from the following file:

• Ieee80211MgmtSta.h
