inet::PimSm::PimsmInterface Struct Reference

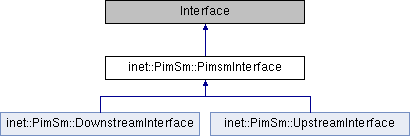

Inheritance diagram for inet::PimSm::PimsmInterface:

Public Types
enum	Flags { RECEIVER_INCLUDE = 1 << 0, RECEIVER_EXCLUDE = 1 << 1, COULD_ASSERT = 1 << 2, ASSERT_TRACKING_DESIRED = 1 << 3 }

Public Member Functions
	PimsmInterface (Route *owner, NetworkInterface *ie)
virtual	~PimsmInterface ()
Route *	route () const
PimSm *	pimsm () const
void	startExpiryTimer (double holdTime)
bool	localReceiverInclude () const
void	setLocalReceiverInclude (bool value)
bool	localReceiverExclude () const
void	setLocalReceiverExclude (bool value)
bool	couldAssert () const
void	setCouldAssert (bool value)
bool	assertTrackingDesired () const
void	setAssertTrackingDesired (bool value)
bool	pimInclude () const
bool	pimExclude () const

Public Attributes
cMessage *	expiryTimer

Member Enumeration Documentation

Flags

enum inet::PimSm::PimsmInterface::Flags

Enumerator
RECEIVER_INCLUDE
RECEIVER_EXCLUDE
COULD_ASSERT
ASSERT_TRACKING_DESIRED

                   {
            RECEIVER_INCLUDE        = 1 << 0, // local_receiver_include(S,G,I) or local_receiver_include(*,G,I)
            RECEIVER_EXCLUDE        = 1 << 1, // local_receiver_exclude(S,G,I)
            COULD_ASSERT            = 1 << 2, // CouldAssert(S,G,I)
            ASSERT_TRACKING_DESIRED = 1 << 3, // AssertTrackingDesired(S,G,I)
        };

Constructor & Destructor Documentation

PimsmInterface()

inet::PimSm::PimsmInterface::PimsmInterface	(	Route *	owner,
		NetworkInterface *	ie
	)

    : Interface(owner, ie), expiryTimer(nullptr)
{
}

~PimsmInterface()

inet::PimSm::PimsmInterface::~PimsmInterface ( )

virtual

{
    pimsm()->cancelAndDelete(expiryTimer);
    pimsm()->cancelAndDelete(assertTimer);
}

Member Function Documentation

assertTrackingDesired()

bool inet::PimSm::PimsmInterface::assertTrackingDesired ( ) const

inline

{ return isFlagSet(ASSERT_TRACKING_DESIRED); }

Referenced by inet::PimSm::processAssertG(), and inet::PimSm::processAssertSG().

couldAssert()

bool inet::PimSm::PimsmInterface::couldAssert ( ) const

inline

{ return isFlagSet(COULD_ASSERT); }

Referenced by inet::PimSm::multicastPacketArrivedOnNonRpfInterface(), inet::PimSm::processAssertG(), and inet::PimSm::processAssertSG().

localReceiverExclude()

bool inet::PimSm::PimsmInterface::localReceiverExclude ( ) const

inline

{ return isFlagSet(RECEIVER_EXCLUDE); }

localReceiverInclude()

bool inet::PimSm::PimsmInterface::localReceiverInclude ( ) const

inline

{ return isFlagSet(RECEIVER_INCLUDE); }

pimExclude()

bool inet::PimSm::PimsmInterface::pimExclude ( ) const

inline

        {
            return localReceiverExclude() &&
                   (( /*I_am_DR AND*/ assertState != I_LOST_ASSERT) || assertState == I_WON_ASSERT);
        }

pimInclude()

bool inet::PimSm::PimsmInterface::pimInclude ( ) const

inline

        {
            return localReceiverInclude() &&
                   (( /*I_am_DR AND*/ assertState != I_LOST_ASSERT) || assertState == I_WON_ASSERT);
        }

Referenced by inet::PimSm::DownstreamInterface::isInInheritedOlist().

pimsm()

PimSm* inet::PimSm::PimsmInterface::pimsm ( ) const

inline

{ return check_and_cast<PimSm *>(owner->owner); }

route()

Route* inet::PimSm::PimsmInterface::route ( ) const

inline

{ return check_and_cast<Route *>(owner); }

Referenced by inet::PimSm::processAssertG(), inet::PimSm::processAssertSG(), inet::PimSm::processAssertTimer(), and inet::PimSm::processPrunePendingTimer().

setAssertTrackingDesired()

void inet::PimSm::PimsmInterface::setAssertTrackingDesired ( bool  value )

inline

{ setFlag(ASSERT_TRACKING_DESIRED, value); }

setCouldAssert()

void inet::PimSm::PimsmInterface::setCouldAssert ( bool  value )

inline

{ setFlag(COULD_ASSERT, value); }

setLocalReceiverExclude()

void inet::PimSm::PimsmInterface::setLocalReceiverExclude ( bool  value )

inline

{ setFlag(RECEIVER_EXCLUDE, value); }

setLocalReceiverInclude()

void inet::PimSm::PimsmInterface::setLocalReceiverInclude ( bool  value )

inline

{ setFlag(RECEIVER_INCLUDE, value); }

Referenced by inet::PimSm::multicastReceiverAdded(), and inet::PimSm::multicastReceiverRemoved().

startExpiryTimer()

void inet::PimSm::PimsmInterface::startExpiryTimer

(

double

holdTime

)

{
    expiryTimer = new cMessage("PIMExpiryTimer", ExpiryTimer);
    expiryTimer->setContextPointer(this);
    pimsm()->scheduleAfter(holdTime, expiryTimer);
}

Referenced by inet::PimSm::processJoinG(), and inet::PimSm::processJoinSG().

Member Data Documentation

expiryTimer

cMessage* inet::PimSm::PimsmInterface::expiryTimer

Referenced by inet::PimSm::processExpiryTimer(), inet::PimSm::processJoinG(), inet::PimSm::processJoinSG(), inet::PimSm::processPrunePendingTimer(), and inet::PimSm::restartExpiryTimer().

---

The documentation for this struct was generated from the following files:

• PimSm.h
• PimSm.cc
