inet::tcp::TcpStateVariables Class Reference

Contains state variables ("TCB") for TCP. More...

#include <TcpConnection.h>

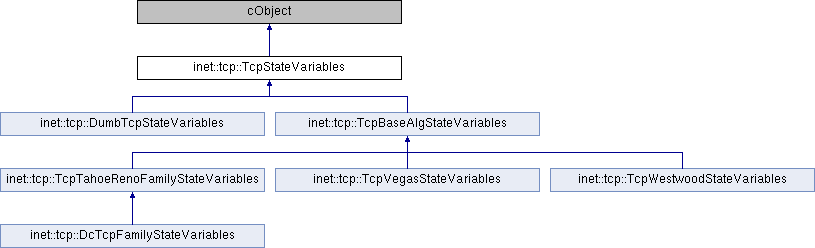

Inheritance diagram for inet::tcp::TcpStateVariables:

Public Member Functions
	TcpStateVariables ()
virtual std::string	str () const override
virtual std::string	detailedInfo () const

Public Attributes
bool	active
bool	fork
uint32_t	snd_mss
uint32_t	snd_una
uint32_t	snd_nxt
uint32_t	snd_max
uint32_t	snd_wnd
uint32_t	snd_up
uint32_t	snd_wl1
uint32_t	snd_wl2
uint32_t	iss
uint32_t	rcv_nxt
uint32_t	rcv_wnd
uint32_t	rcv_up
uint32_t	irs
uint32_t	rcv_adv
int	syn_rexmit_count
simtime_t	syn_rexmit_timeout
bool	fin_ack_rcvd
bool	send_fin
uint32_t	snd_fin_seq
bool	fin_rcvd
uint32_t	rcv_fin_seq
bool	nagle_enabled
bool	delayed_acks_enabled
bool	limited_transmit_enabled
bool	increased_IW_enabled
uint32_t	full_sized_segment_counter
bool	ack_now
bool	afterRto
bool	ws_support
bool	ws_enabled
int	ws_manual_scale
bool	snd_ws
bool	rcv_ws
uint	rcv_wnd_scale
uint	snd_wnd_scale
bool	ts_support
bool	ts_enabled
bool	snd_initial_ts
bool	rcv_initial_ts
uint32_t	ts_recent
uint32_t	last_ack_sent
simtime_t	time_last_data_sent
bool	sack_support
bool	sack_enabled
bool	snd_sack_perm
bool	rcv_sack_perm
uint32_t	start_seqno
uint32_t	end_seqno
bool	snd_sack
bool	snd_dsack
SackList	sacks_array
uint32_t	highRxt
uint32_t	pipe
uint32_t	recoveryPoint
uint32_t	sackedBytes
uint32_t	sackedBytes_old
bool	lossRecovery
uint32_t	sendQueueLimit
bool	queueUpdate
uint32_t	dupacks
uint32_t	snd_sacks
uint32_t	rcv_sacks
uint32_t	rcv_oooseg
uint32_t	rcv_naseg
uint32_t	maxRcvBuffer
uint32_t	usedRcvBuffer
uint32_t	freeRcvBuffer
uint32_t	tcpRcvQueueDrops
bool	ecnEchoState
bool	sndCwr
bool	gotEce
bool	gotCeIndication
bool	ect
bool	endPointIsWillingECN
bool	ecnSynSent
bool	ecnWillingness
bool	sndAck
bool	rexmit
simtime_t	eceReactionTime
uint32_t	dupthresh

Detailed Description

Contains state variables ("TCB") for TCP.

TcpStateVariables is effectively a "struct" – it only contains public data members. (Only declared as a class so that we can use cObject as base class and make it possible to inspect it in Tkenv.)

TcpStateVariables only contains variables needed to implement the "base" (RFC 793) TCP. More advanced TCP variants are encapsulated into TcpAlgorithm subclasses which can have their own state blocks, subclassed from TcpStateVariables. See TcpAlgorithm::createStateVariables().

Constructor & Destructor Documentation

TcpStateVariables()

inet::tcp::TcpStateVariables::TcpStateVariables

(

)

{
    // set everything to 0 -- real init values will be set manually
    active = false;
    fork = false;
    snd_mss = 0; // will initially be set from configureStateVariables() and probably reset during connection setup
    snd_una = 0;
    snd_nxt = 0;
    snd_max = 0;
    snd_wnd = 0;
    snd_up = 0;
    snd_wl1 = 0;
    snd_wl2 = 0;
    iss = 0;

    rcv_nxt = 0;
    rcv_wnd = 0; // will be set from configureStateVariables()
    rcv_up = 0;
    irs = 0;
    rcv_adv = 0; // will be set from configureStateVariables()

    syn_rexmit_count = 0;
    syn_rexmit_timeout = 0;

    fin_ack_rcvd = false;
    send_fin = false;
    snd_fin_seq = 0;
    fin_rcvd = false;
    rcv_fin_seq = 0;

    nagle_enabled = false; // will be set from configureStateVariables()
    delayed_acks_enabled = false; // will be set from configureStateVariables()
    limited_transmit_enabled = false; // will be set from configureStateVariables()
    increased_IW_enabled = false; // will be set from configureStateVariables()
    full_sized_segment_counter = 0;
    ack_now = false;

    afterRto = false;

    time_last_data_sent = 0;

    ws_support = false; // will be set from configureStateVariables()
    ws_enabled = false;
    ws_manual_scale = -1;

    snd_ws = false;
    rcv_ws = false;
    rcv_wnd_scale = 0; // will be set from configureStateVariables()
    snd_wnd_scale = 0;

    ts_support = false; // will be set from configureStateVariables()
    ts_enabled = false;
    snd_initial_ts = false;
    rcv_initial_ts = false;
    ts_recent = 0;
    last_ack_sent = 0;

    sack_support = false; // will be set from configureStateVariables()
    sack_enabled = false;
    snd_sack_perm = false;
    rcv_sack_perm = false;

    snd_sack = false;
    snd_dsack = false;
    start_seqno = 0;
    end_seqno = 0;
    highRxt = 0;
    pipe = 0;
    recoveryPoint = 0;
    sackedBytes = 0;
    sackedBytes_old = 0;
    lossRecovery = false;

    dupacks = 0;
    snd_sacks = 0;
    rcv_sacks = 0;
    rcv_oooseg = 0;
    rcv_naseg = 0;

    maxRcvBuffer = 0; // will be set from configureStateVariables()
    usedRcvBuffer = 0;
    freeRcvBuffer = 0;
    tcpRcvQueueDrops = 0;
    sendQueueLimit = 0;
    queueUpdate = true;

    sndCwr = false;
    ecnEchoState = false;
    gotEce = false;
    gotCeIndication = false;
    ect = false;
    endPointIsWillingECN = false;
    ecnSynSent = false;
    ecnWillingness = false;
    sndAck = false;
    rexmit = false;
    eceReactionTime = 0;
}

Member Function Documentation

detailedInfo()

std::string inet::tcp::TcpStateVariables::detailedInfo ( ) const

virtual

Reimplemented in inet::tcp::TcpWestwoodStateVariables, inet::tcp::TcpVegasStateVariables, inet::tcp::TcpBaseAlgStateVariables, inet::tcp::TcpTahoeRenoFamilyStateVariables, and inet::tcp::DcTcpFamilyStateVariables.

{
    std::stringstream out;
    out << "active=" << active << "\n";
    out << "snd_mss=" << snd_mss << "\n";
    out << "snd_una=" << snd_una << "\n";
    out << "snd_nxt=" << snd_nxt << "\n";
    out << "snd_max=" << snd_max << "\n";
    out << "snd_wnd=" << snd_wnd << "\n";
    out << "snd_up=" << snd_up << "\n";
    out << "snd_wl1=" << snd_wl1 << "\n";
    out << "snd_wl2=" << snd_wl2 << "\n";
    out << "iss=" << iss << "\n";
    out << "rcv_nxt=" << rcv_nxt << "\n";
    out << "rcv_wnd=" << rcv_wnd << "\n";
    out << "rcv_up=" << rcv_up << "\n";
    out << "irs=" << irs << "\n";
    out << "rcv_adv=" << rcv_adv << "\n";
    out << "fin_ack_rcvd=" << fin_ack_rcvd << "\n";
    out << "nagle_enabled=" << nagle_enabled << "\n";
    out << "limited_transmit_enabled=" << limited_transmit_enabled << "\n";
    out << "increased_IW_enabled=" << increased_IW_enabled << "\n";
    out << "delayed_acks_enabled=" << delayed_acks_enabled << "\n";
    out << "ws_support=" << ws_support << "\n";
    out << "ws_enabled=" << ws_enabled << "\n";
    out << "ts_support=" << ts_support << "\n";
    out << "ts_enabled=" << ts_enabled << "\n";
    out << "sack_support=" << sack_support << "\n";
    out << "sack_enabled=" << sack_enabled << "\n";
    out << "snd_sack_perm=" << snd_sack_perm << "\n";
    out << "snd_sacks=" << snd_sacks << "\n";
    out << "rcv_sacks=" << rcv_sacks << "\n";
    out << "dupacks=" << dupacks << "\n";
    out << "rcv_oooseg=" << rcv_oooseg << "\n";
    out << "rcv_naseg=" << rcv_naseg << "\n";
    return out.str();
}

Referenced by inet::tcp::TcpBaseAlgStateVariables::detailedInfo().

str()

std::string inet::tcp::TcpStateVariables::str ( ) const

overridevirtual

Reimplemented in inet::tcp::TcpWestwoodStateVariables, inet::tcp::TcpVegasStateVariables, inet::tcp::TcpBaseAlgStateVariables, inet::tcp::TcpTahoeRenoFamilyStateVariables, and inet::tcp::DcTcpFamilyStateVariables.

{
    std::stringstream out;
    out << "snd_una=" << snd_una;
    out << " snd_nxt=" << snd_nxt;
    out << " snd_max=" << snd_max;
    out << " snd_wnd=" << snd_wnd;
    out << " rcv_nxt=" << rcv_nxt;
    out << " rcv_wnd=" << rcv_wnd;
    return out.str();
}

Referenced by inet::tcp::operator<<(), inet::tcp::TcpConnection::process_RCV_SEGMENT(), and inet::tcp::TcpBaseAlgStateVariables::str().

Member Data Documentation

ack_now

bool inet::tcp::TcpStateVariables::ack_now

Referenced by inet::tcp::TcpBaseAlg::ackSent(), inet::tcp::TcpBaseAlg::processDelayedAckTimer(), inet::tcp::DcTcp::processEcnInEstablished(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::TcpConnection::processSynInListen(), inet::tcp::TcpBaseAlg::receivedOutOfOrderSegment(), inet::tcp::TcpBaseAlg::receiveSeqChanged(), and TcpStateVariables().

active

bool inet::tcp::TcpStateVariables::active

Referenced by detailedInfo(), inet::tcp::TcpConnection::initClonedConnection(), inet::tcp::TcpConnection::performStateTransition(), inet::tcp::TcpConnection::process_OPEN_ACTIVE(), inet::tcp::TcpConnection::process_OPEN_PASSIVE(), inet::tcp::TcpConnection::process_SEND(), inet::tcp::TcpConnection::process_TIMEOUT_CONN_ESTAB(), inet::tcp::TcpConnection::processRstInSynReceived(), and TcpStateVariables().

afterRto

bool inet::tcp::TcpStateVariables::afterRto

Referenced by inet::tcp::TcpConnection::isSegmentAcceptable(), inet::tcp::TcpNewReno::processRexmitTimer(), inet::tcp::TcpReno::processRexmitTimer(), inet::tcp::TcpTahoe::processRexmitTimer(), inet::tcp::TcpWestwood::processRexmitTimer(), inet::tcp::TcpVegas::processRexmitTimer(), inet::tcp::TcpConnection::sendData(), inet::tcp::TcpConnection::sendOneNewSegment(), inet::tcp::TcpConnection::sendSegment(), and TcpStateVariables().

delayed_acks_enabled

bool inet::tcp::TcpStateVariables::delayed_acks_enabled

Referenced by inet::tcp::TcpConnection::configureStateVariables(), detailedInfo(), inet::tcp::TcpBaseAlg::receiveSeqChanged(), and TcpStateVariables().

dupacks

uint32_t inet::tcp::TcpStateVariables::dupacks

Referenced by detailedInfo(), inet::tcp::TcpConnection::processAckInEstabEtc(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpReno::receivedDataAck(), inet::tcp::TcpWestwood::receivedDataAck(), inet::tcp::TcpVegas::receivedDataAck(), inet::tcp::TcpNewReno::receivedDuplicateAck(), inet::tcp::TcpReno::receivedDuplicateAck(), inet::tcp::TcpTahoe::receivedDuplicateAck(), inet::tcp::DumbTcp::receivedDuplicateAck(), inet::tcp::TcpWestwood::receivedDuplicateAck(), inet::tcp::TcpVegas::receivedDuplicateAck(), inet::tcp::TcpBaseAlg::receivedDuplicateAck(), and TcpStateVariables().

dupthresh

uint32_t inet::tcp::TcpStateVariables::dupthresh

Referenced by inet::tcp::TcpConnection::configureStateVariables(), inet::tcp::TcpConnection::isLost(), inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpReno::receivedDataAck(), inet::tcp::TcpWestwood::receivedDataAck(), inet::tcp::TcpVegas::receivedDataAck(), inet::tcp::TcpNewReno::receivedDuplicateAck(), inet::tcp::TcpReno::receivedDuplicateAck(), inet::tcp::TcpTahoe::receivedDuplicateAck(), inet::tcp::TcpWestwood::receivedDuplicateAck(), inet::tcp::TcpVegas::receivedDuplicateAck(), and inet::tcp::TcpBaseAlg::receivedDuplicateAck().

eceReactionTime

simtime_t inet::tcp::TcpStateVariables::eceReactionTime

Referenced by inet::tcp::TcpReno::receivedDataAck(), and TcpStateVariables().

ecnEchoState

bool inet::tcp::TcpStateVariables::ecnEchoState

Referenced by inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpBaseAlg::shouldMarkAck(), and TcpStateVariables().

ecnSynSent

bool inet::tcp::TcpStateVariables::ecnSynSent

Referenced by inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::TcpConnection::sendSyn(), and TcpStateVariables().

ecnWillingness

bool inet::tcp::TcpStateVariables::ecnWillingness

Referenced by inet::tcp::TcpConnection::configureStateVariables(), inet::tcp::TcpConnection::sendSyn(), inet::tcp::TcpConnection::sendSynAck(), and TcpStateVariables().

ect

bool inet::tcp::TcpStateVariables::ect

Referenced by inet::tcp::Tcp::handleLowerPacket(), inet::tcp::TcpConnection::processAckInEstabEtc(), inet::tcp::DcTcp::processEcnInEstablished(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpReno::receivedDataAck(), inet::tcp::TcpConnection::retransmitData(), inet::tcp::TcpConnection::retransmitOneSegment(), inet::tcp::TcpConnection::sendAck(), inet::tcp::TcpConnection::sendSegment(), inet::tcp::TcpConnection::sendSynAck(), inet::tcp::TcpConnection::sendToIP(), inet::tcp::TcpBaseAlg::shouldMarkAck(), and TcpStateVariables().

end_seqno

uint32_t inet::tcp::TcpStateVariables::end_seqno

Referenced by inet::tcp::TcpConnection::addSacks(), inet::tcp::TcpConnection::processSegment1stThru8th(), and TcpStateVariables().

endPointIsWillingECN

bool inet::tcp::TcpStateVariables::endPointIsWillingECN

Referenced by inet::tcp::TcpConnection::processSynInListen(), inet::tcp::TcpConnection::sendSynAck(), and TcpStateVariables().

fin_ack_rcvd

bool inet::tcp::TcpStateVariables::fin_ack_rcvd

Referenced by detailedInfo(), inet::tcp::TcpConnection::process_STATUS(), inet::tcp::TcpConnection::processAckInEstabEtc(), inet::tcp::TcpConnection::processSegment1stThru8th(), and TcpStateVariables().

fin_rcvd

bool inet::tcp::TcpStateVariables::fin_rcvd

Referenced by inet::tcp::TcpConnection::processSegment1stThru8th(), and TcpStateVariables().

fork

bool inet::tcp::TcpStateVariables::fork

Referenced by inet::tcp::TcpConnection::initClonedConnection(), inet::tcp::TcpConnection::process_OPEN_PASSIVE(), inet::tcp::TcpConnection::processSegmentInListen(), and TcpStateVariables().

freeRcvBuffer

uint32_t inet::tcp::TcpStateVariables::freeRcvBuffer

Referenced by TcpStateVariables(), inet::tcp::TcpConnection::updateRcvQueueVars(), and inet::tcp::TcpConnection::updateRcvWnd().

full_sized_segment_counter

uint32_t inet::tcp::TcpStateVariables::full_sized_segment_counter

Referenced by inet::tcp::TcpBaseAlg::ackSent(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpBaseAlg::receiveSeqChanged(), and TcpStateVariables().

gotCeIndication

bool inet::tcp::TcpStateVariables::gotCeIndication

Referenced by inet::tcp::Tcp::handleLowerPacket(), inet::tcp::DcTcp::processEcnInEstablished(), inet::tcp::TcpBaseAlg::shouldMarkAck(), and TcpStateVariables().

gotEce

bool inet::tcp::TcpStateVariables::gotEce

Referenced by inet::tcp::TcpConnection::processAckInEstabEtc(), inet::tcp::TcpReno::receivedDataAck(), inet::tcp::DcTcp::receivedDataAck(), and TcpStateVariables().

highRxt

uint32_t inet::tcp::TcpStateVariables::highRxt

Referenced by inet::tcp::TcpConnection::nextSeg(), inet::tcp::TcpConnection::retransmitOneSegment(), inet::tcp::TcpConnection::sendData(), inet::tcp::TcpConnection::sendSegmentDuringLossRecoveryPhase(), inet::tcp::TcpConnection::setPipe(), and TcpStateVariables().

increased_IW_enabled

bool inet::tcp::TcpStateVariables::increased_IW_enabled

Referenced by inet::tcp::TcpConnection::configureStateVariables(), detailedInfo(), inet::tcp::TcpBaseAlg::established(), inet::tcp::TcpBaseAlg::sendData(), and TcpStateVariables().

irs

uint32_t inet::tcp::TcpStateVariables::irs

Referenced by detailedInfo(), inet::tcp::TcpConnection::process_STATUS(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::TcpConnection::processSynInListen(), and TcpStateVariables().

iss

uint32_t inet::tcp::TcpStateVariables::iss

Referenced by detailedInfo(), inet::tcp::TcpConnection::process_STATUS(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::TcpVegas::receivedDataAck(), inet::tcp::TcpConnection::selectInitialSeqNum(), inet::tcp::TcpConnection::sendSyn(), inet::tcp::TcpConnection::sendSynAck(), inet::tcp::TcpBaseAlgStateVariables::TcpBaseAlgStateVariables(), and TcpStateVariables().

last_ack_sent

uint32_t inet::tcp::TcpStateVariables::last_ack_sent

Referenced by inet::tcp::TcpBaseAlg::ackSent(), inet::tcp::TcpConnection::processTSOption(), inet::tcp::TcpBaseAlg::receiveSeqChanged(), and TcpStateVariables().

limited_transmit_enabled

bool inet::tcp::TcpStateVariables::limited_transmit_enabled

Referenced by inet::tcp::TcpConnection::configureStateVariables(), detailedInfo(), inet::tcp::TcpBaseAlg::receivedDuplicateAck(), inet::tcp::TcpConnection::sendOneNewSegment(), and TcpStateVariables().

lossRecovery

bool inet::tcp::TcpStateVariables::lossRecovery

Referenced by inet::tcp::TcpNewReno::processRexmitTimer(), inet::tcp::TcpBaseAlg::processRexmitTimer(), inet::tcp::TcpNewReno::receivedDataAck(), inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpReno::receivedDataAck(), inet::tcp::TcpNewReno::receivedDuplicateAck(), inet::tcp::TcpReno::receivedDuplicateAck(), inet::tcp::TcpBaseAlg::receiveSeqChanged(), inet::tcp::TcpConnection::sendData(), inet::tcp::TcpConnection::sendDataDuringLossRecoveryPhase(), inet::tcp::TcpConnection::sendSegmentDuringLossRecoveryPhase(), and TcpStateVariables().

maxRcvBuffer

uint32_t inet::tcp::TcpStateVariables::maxRcvBuffer

Referenced by inet::tcp::TcpConnection::configureStateVariables(), inet::tcp::TcpConnection::hasEnoughSpaceForSegmentInReceiveQueue(), TcpStateVariables(), inet::tcp::TcpConnection::updateRcvQueueVars(), inet::tcp::TcpConnection::updateRcvWnd(), and inet::tcp::TcpConnection::writeHeaderOptions().

nagle_enabled

bool inet::tcp::TcpStateVariables::nagle_enabled

Referenced by inet::tcp::TcpConnection::configureStateVariables(), detailedInfo(), inet::tcp::TcpBaseAlg::receivedDuplicateAck(), inet::tcp::TcpNoCongestionControl::sendData(), inet::tcp::TcpConnection::sendData(), and TcpStateVariables().

pipe

uint32_t inet::tcp::TcpStateVariables::pipe

Referenced by inet::tcp::TcpConnection::nextSeg(), inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpReno::receivedDataAck(), inet::tcp::TcpReno::receivedDuplicateAck(), inet::tcp::TcpConnection::sendDataDuringLossRecoveryPhase(), inet::tcp::TcpConnection::setPipe(), and TcpStateVariables().

queueUpdate

bool inet::tcp::TcpStateVariables::queueUpdate

Referenced by inet::tcp::TcpConnection::process_SEND(), inet::tcp::TcpConnection::sendSegment(), and TcpStateVariables().

rcv_adv

uint32_t inet::tcp::TcpStateVariables::rcv_adv

Referenced by inet::tcp::TcpConnection::configureStateVariables(), detailedInfo(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::TcpConnection::processSynInListen(), TcpStateVariables(), and inet::tcp::TcpConnection::updateRcvWnd().

rcv_fin_seq

uint32_t inet::tcp::TcpStateVariables::rcv_fin_seq

Referenced by inet::tcp::TcpConnection::processSegment1stThru8th(), and TcpStateVariables().

rcv_initial_ts

bool inet::tcp::TcpStateVariables::rcv_initial_ts

Referenced by inet::tcp::TcpConnection::processTSOption(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

rcv_naseg

uint32_t inet::tcp::TcpStateVariables::rcv_naseg

Referenced by detailedInfo(), inet::tcp::TcpConnection::processSegment1stThru8th(), and TcpStateVariables().

rcv_nxt

uint32_t inet::tcp::TcpStateVariables::rcv_nxt

Referenced by inet::tcp::TcpBaseAlg::ackSent(), inet::tcp::TcpConnection::addSacks(), detailedInfo(), inet::tcp::TcpConnection::isSegmentAcceptable(), inet::tcp::TcpConnection::process_READ_REQUEST(), inet::tcp::TcpConnection::process_STATUS(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::TcpConnection::processSynInListen(), inet::tcp::DumbTcp::receiveSeqChanged(), inet::tcp::TcpBaseAlg::receiveSeqChanged(), inet::tcp::TcpConnection::sendAck(), inet::tcp::TcpConnection::sendAvailableDataToApp(), inet::tcp::TcpConnection::sendFin(), inet::tcp::TcpConnection::sendSegment(), inet::tcp::TcpConnection::sendSynAck(), str(), TcpStateVariables(), inet::tcp::TcpConnection::updateRcvWnd(), and inet::tcp::TcpConnection::writeHeaderOptions().

rcv_oooseg

uint32_t inet::tcp::TcpStateVariables::rcv_oooseg

Referenced by detailedInfo(), inet::tcp::TcpConnection::processSegment1stThru8th(), and TcpStateVariables().

rcv_sack_perm

bool inet::tcp::TcpStateVariables::rcv_sack_perm

Referenced by inet::tcp::TcpConnection::processSACKPermittedOption(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

rcv_sacks

uint32_t inet::tcp::TcpStateVariables::rcv_sacks

Referenced by detailedInfo(), inet::tcp::TcpConnection::processSACKOption(), and TcpStateVariables().

rcv_up

uint32_t inet::tcp::TcpStateVariables::rcv_up

Referenced by detailedInfo(), inet::tcp::TcpConnection::process_STATUS(), and TcpStateVariables().

rcv_wnd

uint32_t inet::tcp::TcpStateVariables::rcv_wnd

Referenced by inet::tcp::TcpConnection::configureStateVariables(), detailedInfo(), inet::tcp::TcpConnection::isSegmentAcceptable(), inet::tcp::TcpConnection::process_STATUS(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::TcpConnection::processSynInListen(), inet::tcp::TcpConnection::sendSyn(), inet::tcp::TcpConnection::sendSynAck(), str(), TcpStateVariables(), and inet::tcp::TcpConnection::updateRcvWnd().

rcv_wnd_scale

uint inet::tcp::TcpStateVariables::rcv_wnd_scale

Referenced by TcpStateVariables(), inet::tcp::TcpConnection::updateRcvWnd(), and inet::tcp::TcpConnection::writeHeaderOptions().

rcv_ws

bool inet::tcp::TcpStateVariables::rcv_ws

Referenced by inet::tcp::TcpConnection::processWSOption(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

recoveryPoint

uint32_t inet::tcp::TcpStateVariables::recoveryPoint

Referenced by inet::tcp::TcpBaseAlg::processRexmitTimer(), inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpReno::receivedDataAck(), inet::tcp::TcpReno::receivedDuplicateAck(), and TcpStateVariables().

rexmit

bool inet::tcp::TcpStateVariables::rexmit

Referenced by inet::tcp::TcpConnection::retransmitData(), inet::tcp::TcpConnection::retransmitOneSegment(), inet::tcp::TcpConnection::sendToIP(), and TcpStateVariables().

sack_enabled

bool inet::tcp::TcpStateVariables::sack_enabled

Referenced by detailedInfo(), inet::tcp::TcpConnection::isLost(), inet::tcp::TcpConnection::nextSeg(), inet::tcp::TcpConnection::processAckInEstabEtc(), inet::tcp::TcpBaseAlg::processRexmitTimer(), inet::tcp::TcpConnection::processRstInSynReceived(), inet::tcp::TcpConnection::processSACKOption(), inet::tcp::TcpConnection::processSACKPermittedOption(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpReno::receivedDataAck(), inet::tcp::TcpReno::receivedDuplicateAck(), inet::tcp::TcpConnection::retransmitOneSegment(), inet::tcp::TcpConnection::sendData(), inet::tcp::TcpConnection::sendDataDuringLossRecoveryPhase(), inet::tcp::TcpConnection::sendOneNewSegment(), inet::tcp::TcpConnection::sendSegment(), inet::tcp::TcpConnection::sendSegmentDuringLossRecoveryPhase(), inet::tcp::TcpConnection::setPipe(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

sack_support

bool inet::tcp::TcpStateVariables::sack_support

Referenced by inet::tcp::TcpConnection::configureStateVariables(), detailedInfo(), inet::tcp::TcpConnection::processSACKPermittedOption(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

sackedBytes

uint32_t inet::tcp::TcpStateVariables::sackedBytes

Referenced by inet::tcp::TcpConnection::processSACKOption(), inet::tcp::TcpConnection::sendOneNewSegment(), and TcpStateVariables().

sackedBytes_old

uint32_t inet::tcp::TcpStateVariables::sackedBytes_old

Referenced by inet::tcp::TcpConnection::processSACKOption(), inet::tcp::TcpConnection::sendOneNewSegment(), and TcpStateVariables().

sacks_array

SackList inet::tcp::TcpStateVariables::sacks_array

Referenced by inet::tcp::TcpConnection::addSacks().

send_fin

bool inet::tcp::TcpStateVariables::send_fin

Referenced by inet::tcp::TcpConnection::process_CLOSE(), inet::tcp::TcpConnection::processAckInEstabEtc(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpConnection::retransmitData(), inet::tcp::TcpConnection::retransmitOneSegment(), inet::tcp::TcpConnection::sendData(), inet::tcp::TcpConnection::sendSegment(), inet::tcp::TcpConnection::sendSegmentDuringLossRecoveryPhase(), and TcpStateVariables().

sendQueueLimit

uint32_t inet::tcp::TcpStateVariables::sendQueueLimit

Referenced by inet::tcp::TcpConnection::process_QUEUE_BYTES_LIMIT(), inet::tcp::TcpConnection::process_SEND(), inet::tcp::TcpConnection::sendSegment(), inet::tcp::TcpTahoeRenoFamilyStateVariables::setSendQueueLimit(), and TcpStateVariables().

snd_dsack

bool inet::tcp::TcpStateVariables::snd_dsack

Referenced by inet::tcp::TcpConnection::addSacks(), inet::tcp::TcpConnection::processSegment1stThru8th(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

snd_fin_seq

uint32_t inet::tcp::TcpStateVariables::snd_fin_seq

Referenced by inet::tcp::TcpConnection::process_CLOSE(), inet::tcp::TcpConnection::processAckInEstabEtc(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpConnection::retransmitData(), inet::tcp::TcpConnection::retransmitOneSegment(), inet::tcp::TcpConnection::sendData(), inet::tcp::TcpConnection::sendSegment(), inet::tcp::TcpConnection::sendSegmentDuringLossRecoveryPhase(), and TcpStateVariables().

snd_initial_ts

bool inet::tcp::TcpStateVariables::snd_initial_ts

Referenced by inet::tcp::TcpConnection::processTSOption(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

snd_max

uint32_t inet::tcp::TcpStateVariables::snd_max

Referenced by inet::tcp::TcpWestwood::dataSent(), inet::tcp::TcpVegas::dataSent(), detailedInfo(), inet::tcp::TcpConnection::isSegmentAcceptable(), inet::tcp::TcpConnection::nextSeg(), inet::tcp::TcpConnection::process_CLOSE(), inet::tcp::TcpConnection::process_SEND(), inet::tcp::TcpConnection::process_STATUS(), inet::tcp::TcpConnection::processAckInEstabEtc(), inet::tcp::TcpNewReno::processRexmitTimer(), inet::tcp::TcpBaseAlg::processRexmitTimer(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::TcpNewReno::receivedDataAck(), inet::tcp::TcpVegas::receivedDataAck(), inet::tcp::TcpBaseAlg::receivedDataAck(), inet::tcp::TcpNewReno::receivedDuplicateAck(), inet::tcp::TcpReno::receivedDuplicateAck(), inet::tcp::TcpBaseAlg::receivedDuplicateAck(), inet::tcp::TcpConnection::retransmitData(), inet::tcp::TcpConnection::retransmitOneSegment(), inet::tcp::TcpConnection::selectInitialSeqNum(), inet::tcp::TcpNoCongestionControl::sendData(), inet::tcp::TcpConnection::sendData(), inet::tcp::TcpConnection::sendOneNewSegment(), inet::tcp::TcpConnection::sendProbe(), inet::tcp::TcpConnection::sendSegment(), inet::tcp::TcpConnection::sendSegmentDuringLossRecoveryPhase(), inet::tcp::TcpConnection::sendSyn(), inet::tcp::TcpConnection::sendSynAck(), inet::tcp::TcpConnection::setPipe(), str(), and TcpStateVariables().

snd_mss

uint32_t inet::tcp::TcpStateVariables::snd_mss

Referenced by inet::tcp::TcpConnection::configureStateVariables(), detailedInfo(), inet::tcp::TcpBaseAlg::established(), inet::tcp::TcpConnection::isLost(), inet::tcp::TcpConnection::nextSeg(), inet::tcp::TcpConnection::process_STATUS(), inet::tcp::TcpConnection::processMSSOption(), inet::tcp::TcpNewReno::processRexmitTimer(), inet::tcp::TcpReno::processRexmitTimer(), inet::tcp::TcpTahoe::processRexmitTimer(), inet::tcp::TcpWestwood::processRexmitTimer(), inet::tcp::TcpVegas::processRexmitTimer(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpNewReno::recalculateSlowStartThreshold(), inet::tcp::TcpReno::recalculateSlowStartThreshold(), inet::tcp::TcpTahoe::recalculateSlowStartThreshold(), inet::tcp::TcpVegas::recalculateSlowStartThreshold(), inet::tcp::TcpNewReno::receivedDataAck(), inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpReno::receivedDataAck(), inet::tcp::TcpTahoe::receivedDataAck(), inet::tcp::TcpWestwood::receivedDataAck(), inet::tcp::TcpVegas::receivedDataAck(), inet::tcp::TcpNewReno::receivedDuplicateAck(), inet::tcp::TcpReno::receivedDuplicateAck(), inet::tcp::TcpTahoe::receivedDuplicateAck(), inet::tcp::TcpWestwood::receivedDuplicateAck(), inet::tcp::TcpVegas::receivedDuplicateAck(), inet::tcp::TcpConnection::retransmitData(), inet::tcp::TcpConnection::retransmitOneSegment(), inet::tcp::TcpBaseAlg::sendData(), inet::tcp::TcpConnection::sendData(), inet::tcp::TcpConnection::sendDataDuringLossRecoveryPhase(), inet::tcp::TcpConnection::sendOneNewSegment(), inet::tcp::TcpConnection::sendSegment(), inet::tcp::TcpConnection::sendSegmentDuringLossRecoveryPhase(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

snd_nxt

uint32_t inet::tcp::TcpStateVariables::snd_nxt

Referenced by detailedInfo(), inet::tcp::TcpConnection::isSegmentAcceptable(), inet::tcp::TcpConnection::isSendQueueEmpty(), inet::tcp::TcpConnection::process_ABORT(), inet::tcp::TcpConnection::process_CLOSE(), inet::tcp::TcpConnection::process_STATUS(), inet::tcp::TcpConnection::processAckInEstabEtc(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpVegas::receivedDataAck(), inet::tcp::TcpVegas::receivedDuplicateAck(), inet::tcp::TcpConnection::retransmitData(), inet::tcp::TcpConnection::retransmitOneSegment(), inet::tcp::TcpConnection::selectInitialSeqNum(), inet::tcp::TcpConnection::sendAck(), inet::tcp::TcpConnection::sendData(), inet::tcp::TcpConnection::sendFin(), inet::tcp::TcpConnection::sendOneNewSegment(), inet::tcp::TcpConnection::sendProbe(), inet::tcp::TcpConnection::sendSegment(), inet::tcp::TcpConnection::sendSegmentDuringLossRecoveryPhase(), inet::tcp::TcpConnection::sendSyn(), inet::tcp::TcpConnection::sendSynAck(), str(), and TcpStateVariables().

snd_sack

bool inet::tcp::TcpStateVariables::snd_sack

Referenced by inet::tcp::TcpConnection::addSacks(), inet::tcp::TcpConnection::processSegment1stThru8th(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

snd_sack_perm

bool inet::tcp::TcpStateVariables::snd_sack_perm

Referenced by detailedInfo(), inet::tcp::TcpConnection::processSACKPermittedOption(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

snd_sacks

uint32_t inet::tcp::TcpStateVariables::snd_sacks

Referenced by inet::tcp::TcpConnection::addSacks(), detailedInfo(), and TcpStateVariables().

snd_una

uint32_t inet::tcp::TcpStateVariables::snd_una

Referenced by inet::tcp::TcpWestwood::dataSent(), inet::tcp::TcpVegas::dataSent(), inet::tcp::DcTcpFamilyStateVariables::DcTcpFamilyStateVariables(), detailedInfo(), inet::tcp::TcpConnection::isLost(), inet::tcp::TcpConnection::isSegmentAcceptable(), inet::tcp::TcpConnection::process_CLOSE(), inet::tcp::TcpConnection::process_SEND(), inet::tcp::TcpConnection::process_STATUS(), inet::tcp::TcpConnection::processAckInEstabEtc(), inet::tcp::TcpConnection::processSACKOption(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::TcpNewReno::receivedDataAck(), inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpReno::receivedDataAck(), inet::tcp::TcpWestwood::receivedDataAck(), inet::tcp::TcpVegas::receivedDataAck(), inet::tcp::TcpBaseAlg::receivedDataAck(), inet::tcp::TcpNewReno::receivedDuplicateAck(), inet::tcp::TcpReno::receivedDuplicateAck(), inet::tcp::TcpVegas::receivedDuplicateAck(), inet::tcp::TcpBaseAlg::receivedDuplicateAck(), inet::tcp::TcpConnection::retransmitData(), inet::tcp::TcpConnection::retransmitOneSegment(), inet::tcp::TcpConnection::selectInitialSeqNum(), inet::tcp::TcpNoCongestionControl::sendData(), inet::tcp::TcpConnection::sendData(), inet::tcp::TcpConnection::sendOneNewSegment(), inet::tcp::TcpConnection::sendProbe(), inet::tcp::TcpConnection::sendSegmentDuringLossRecoveryPhase(), inet::tcp::TcpConnection::setPipe(), str(), and TcpStateVariables().

snd_up

uint32_t inet::tcp::TcpStateVariables::snd_up

Referenced by detailedInfo(), inet::tcp::TcpConnection::process_STATUS(), and TcpStateVariables().

snd_wl1

uint32_t inet::tcp::TcpStateVariables::snd_wl1

Referenced by detailedInfo(), inet::tcp::TcpConnection::process_STATUS(), TcpStateVariables(), and inet::tcp::TcpConnection::updateWndInfo().

snd_wl2

uint32_t inet::tcp::TcpStateVariables::snd_wl2

Referenced by detailedInfo(), inet::tcp::TcpConnection::process_STATUS(), TcpStateVariables(), and inet::tcp::TcpConnection::updateWndInfo().

snd_wnd

uint32_t inet::tcp::TcpStateVariables::snd_wnd

Referenced by detailedInfo(), inet::tcp::TcpConnection::nextSeg(), inet::tcp::TcpConnection::process_STATUS(), inet::tcp::TcpNewReno::recalculateSlowStartThreshold(), inet::tcp::TcpReno::recalculateSlowStartThreshold(), inet::tcp::TcpTahoe::recalculateSlowStartThreshold(), inet::tcp::TcpVegas::recalculateSlowStartThreshold(), inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpBaseAlg::receivedDataAck(), inet::tcp::TcpVegas::receivedDuplicateAck(), inet::tcp::TcpConnection::sendData(), inet::tcp::TcpConnection::sendOneNewSegment(), str(), TcpStateVariables(), and inet::tcp::TcpConnection::updateWndInfo().

snd_wnd_scale

uint inet::tcp::TcpStateVariables::snd_wnd_scale

Referenced by inet::tcp::TcpConnection::processWSOption(), TcpStateVariables(), and inet::tcp::TcpConnection::updateWndInfo().

snd_ws

bool inet::tcp::TcpStateVariables::snd_ws

Referenced by inet::tcp::TcpConnection::processWSOption(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

sndAck

bool inet::tcp::TcpStateVariables::sndAck

Referenced by inet::tcp::TcpConnection::sendAck(), inet::tcp::TcpConnection::sendToIP(), and TcpStateVariables().

sndCwr

bool inet::tcp::TcpStateVariables::sndCwr

Referenced by inet::tcp::DcTcp::receivedDataAck(), inet::tcp::TcpReno::receivedDataAck(), inet::tcp::TcpConnection::sendSegment(), and TcpStateVariables().

start_seqno

uint32_t inet::tcp::TcpStateVariables::start_seqno

Referenced by inet::tcp::TcpConnection::addSacks(), inet::tcp::TcpConnection::processSegment1stThru8th(), and TcpStateVariables().

syn_rexmit_count

int inet::tcp::TcpStateVariables::syn_rexmit_count

Referenced by inet::tcp::TcpBaseAlg::established(), inet::tcp::TcpConnection::process_TIMEOUT_SYN_REXMIT(), inet::tcp::TcpConnection::startSynRexmitTimer(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

syn_rexmit_timeout

simtime_t inet::tcp::TcpStateVariables::syn_rexmit_timeout

Referenced by inet::tcp::TcpConnection::process_TIMEOUT_SYN_REXMIT(), inet::tcp::TcpConnection::startSynRexmitTimer(), and TcpStateVariables().

tcpRcvQueueDrops

uint32_t inet::tcp::TcpStateVariables::tcpRcvQueueDrops

Referenced by inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpConnection::processSegmentInSynSent(), inet::tcp::TcpConnection::processSynInListen(), and TcpStateVariables().

time_last_data_sent

simtime_t inet::tcp::TcpStateVariables::time_last_data_sent

Referenced by inet::tcp::TcpBaseAlg::dataSent(), inet::tcp::TcpBaseAlg::processRexmitTimer(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpConnection::processTSOption(), inet::tcp::TcpBaseAlg::sendData(), and TcpStateVariables().

ts_enabled

bool inet::tcp::TcpStateVariables::ts_enabled

Referenced by inet::tcp::TcpBaseAlg::dataSent(), detailedInfo(), inet::tcp::TcpConnection::nextSeg(), inet::tcp::TcpConnection::processAckInEstabEtc(), inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpConnection::processTSOption(), inet::tcp::TcpBaseAlg::receivedDataAck(), inet::tcp::TcpBaseAlg::rttMeasurementCompleteUsingTS(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

ts_recent

uint32_t inet::tcp::TcpStateVariables::ts_recent

Referenced by inet::tcp::TcpConnection::processSegment1stThru8th(), inet::tcp::TcpConnection::processTSOption(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

ts_support

bool inet::tcp::TcpStateVariables::ts_support

Referenced by inet::tcp::TcpConnection::configureStateVariables(), detailedInfo(), inet::tcp::TcpConnection::processTSOption(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

usedRcvBuffer

uint32_t inet::tcp::TcpStateVariables::usedRcvBuffer

Referenced by inet::tcp::TcpConnection::processSegment1stThru8th(), TcpStateVariables(), and inet::tcp::TcpConnection::updateRcvQueueVars().

ws_enabled

bool inet::tcp::TcpStateVariables::ws_enabled

Referenced by detailedInfo(), inet::tcp::TcpConnection::processWSOption(), TcpStateVariables(), inet::tcp::TcpConnection::updateRcvWnd(), inet::tcp::TcpConnection::updateWndInfo(), and inet::tcp::TcpConnection::writeHeaderOptions().

ws_manual_scale

int inet::tcp::TcpStateVariables::ws_manual_scale

Referenced by inet::tcp::TcpConnection::configureStateVariables(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

ws_support

bool inet::tcp::TcpStateVariables::ws_support

Referenced by inet::tcp::TcpConnection::configureStateVariables(), detailedInfo(), inet::tcp::TcpConnection::processWSOption(), TcpStateVariables(), and inet::tcp::TcpConnection::writeHeaderOptions().

---

The documentation for this class was generated from the following files:

• TcpConnection.h
• TcpConnectionBase.cc
