inet::tcp::TcpOption Class Reference

Class generated from inet/transportlayer/tcp_common/TcpHeader.msg:102 by opp_msgtool. More...

#include <TcpHeader_m.h>

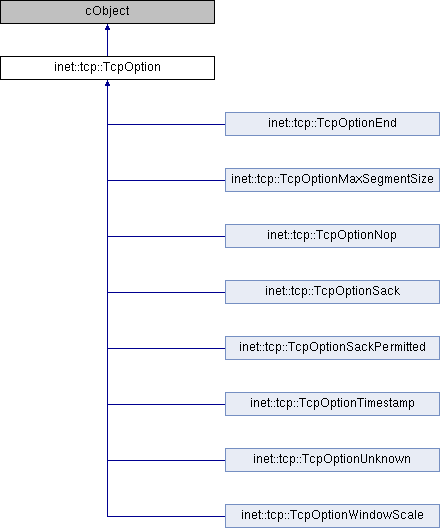

Inheritance diagram for inet::tcp::TcpOption:

Public Member Functions
	TcpOption ()
	TcpOption (const TcpOption &other)
virtual	~TcpOption ()
TcpOption &	operator= (const TcpOption &other)
virtual TcpOption *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual TcpOptionNumbers	getKind () const
virtual void	setKind (TcpOptionNumbers kind)
virtual unsigned short	getLength () const
virtual void	setLength (unsigned short length)

Protected Member Functions
bool	operator== (const TcpOption &)=delete

Protected Attributes
TcpOptionNumbers	kind = static_cast<inet::tcp::TcpOptionNumbers>(-1)
unsigned short	length = 1

Private Member Functions
void	copy (const TcpOption &other)

Detailed Description

Class generated from inet/transportlayer/tcp_common/TcpHeader.msg:102 by opp_msgtool.

// Header Options (optional):
class TcpOption extends cObject
{
    @packetData;
    TcpOptionNumbers kind;            // option kind
    unsigned short length = 1;                    // option length
}

Constructor & Destructor Documentation

TcpOption() [1/2]

inet::tcp::TcpOption::TcpOption

(

)

TcpOption() [2/2]

inet::tcp::TcpOption::TcpOption

(

const TcpOption &

other

)

~TcpOption()

virtual inet::tcp::TcpOption::~TcpOption ( )

virtual

Member Function Documentation

copy()

void inet::tcp::TcpOption::copy ( const TcpOption &  other )

private

dup()

virtual TcpOption* inet::tcp::TcpOption::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::tcp::TcpOptionUnknown, inet::tcp::TcpOptionTimestamp, inet::tcp::TcpOptionSack, inet::tcp::TcpOptionSackPermitted, inet::tcp::TcpOptionWindowScale, inet::tcp::TcpOptionMaxSegmentSize, inet::tcp::TcpOptionNop, and inet::tcp::TcpOptionEnd.

{return new TcpOption(*this);}

getKind()

virtual TcpOptionNumbers inet::tcp::TcpOption::getKind ( ) const

virtual

Referenced by inet::tcp::TcpConnection::getTSecr(), inet::tcp::TcpConnection::getTSval(), inet::tcp::TcpConnection::printSegmentBrief(), inet::tcp::TcpConnection::readHeaderOptions(), and inet::tcp::TcpHeaderSerializer::serializeOption().

getLength()

virtual unsigned short inet::tcp::TcpOption::getLength ( ) const

virtual

Referenced by inet::tcp::TcpHeader::getHeaderOptionArrayLength(), inet::tcp::TcpConnection::processMSSOption(), inet::tcp::TcpConnection::processSACKOption(), inet::tcp::TcpConnection::processSACKPermittedOption(), inet::tcp::TcpConnection::processTSOption(), inet::tcp::TcpConnection::processWSOption(), inet::tcp::TcpConnection::readHeaderOptions(), inet::tcp::TcpHeaderSerializer::serialize(), and inet::tcp::TcpHeaderSerializer::serializeOption().

operator=()

TcpOption& inet::tcp::TcpOption::operator=

(

const TcpOption &

other

)

operator==()

bool inet::tcp::TcpOption::operator== ( const TcpOption &  )

protecteddelete

parsimPack()

virtual void inet::tcp::TcpOption::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::tcp::TcpOptionUnknown, inet::tcp::TcpOptionTimestamp, inet::tcp::TcpOptionSack, inet::tcp::TcpOptionSackPermitted, inet::tcp::TcpOptionWindowScale, inet::tcp::TcpOptionMaxSegmentSize, inet::tcp::TcpOptionNop, and inet::tcp::TcpOptionEnd.

Referenced by inet::tcp::doParsimPacking().

parsimUnpack()

virtual void inet::tcp::TcpOption::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::tcp::TcpOptionUnknown, inet::tcp::TcpOptionTimestamp, inet::tcp::TcpOptionSack, inet::tcp::TcpOptionSackPermitted, inet::tcp::TcpOptionWindowScale, inet::tcp::TcpOptionMaxSegmentSize, inet::tcp::TcpOptionNop, and inet::tcp::TcpOptionEnd.

Referenced by inet::tcp::doParsimUnpacking().

setKind()

virtual void inet::tcp::TcpOption::setKind ( TcpOptionNumbers  kind )

virtual

setLength()

virtual void inet::tcp::TcpOption::setLength ( unsigned short  length )

virtual

Referenced by inet::tcp::TcpConnection::addSacks().

Member Data Documentation

kind

TcpOptionNumbers inet::tcp::TcpOption::kind = static_cast<inet::tcp::TcpOptionNumbers>(-1)

protected

length

unsigned short inet::tcp::TcpOption::length = 1

protected

---

The documentation for this class was generated from the following file:

• TcpHeader_m.h
