inet::tcp::TcpLwip Class Reference

Module for using the LwIP TCP stack. More...

#include <TcpLwip.h>

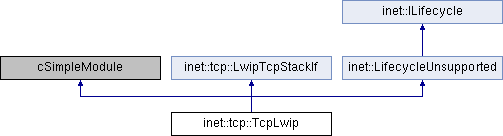

Inheritance diagram for inet::tcp::TcpLwip:

Public Member Functions
	TcpLwip ()
virtual	~TcpLwip ()
Public Member Functions inherited from inet::tcp::LwipTcpStackIf
virtual	~LwipTcpStackIf ()
Public Member Functions inherited from inet::LifecycleUnsupported
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Protected Member Functions
cSimpleModule redefinitions
virtual void	initialize (int stage) override
virtual int	numInitStages () const override
virtual void	handleMessage (cMessage *msgP) override
virtual void	finish () override
virtual void	refreshDisplay () const override
LwipTcpStackIf functions
virtual void	ip_output (LwipTcpLayer::tcp_pcb *pcb, L3Address const &src, L3Address const &dest, void *tcpseg, int len) override
	TCP layer send a packet to IP layer. More...
virtual err_t	lwip_tcp_event (void *arg, LwipTcpLayer::tcp_pcb *pcb, LwipTcpLayer::lwip_event event, struct pbuf *p, u16_t size, err_t err) override
	TCP layer events. More...
virtual void	lwip_free_pcb_event (LwipTcpLayer::tcp_pcb *pcb) override
	TCP layer event called before LWIP freeing a pcb. More...
virtual netif *	ip_route (L3Address const &ipAddr) override
	Get the network interface. More...
virtual void	notifyAboutIncomingSegmentProcessing (LwipTcpLayer::tcp_pcb *pcb, uint32_t seqNo, const void *dataptr, int len) override
internal event functions
err_t	tcp_event_accept (TcpLwipConnection &conn, LwipTcpLayer::tcp_pcb *pcb, err_t err)
err_t	tcp_event_sent (TcpLwipConnection &conn, u16_t size)
err_t	tcp_event_recv (TcpLwipConnection &conn, struct pbuf *p, err_t err)
err_t	tcp_event_conn (TcpLwipConnection &conn, err_t err)
err_t	tcp_event_poll (TcpLwipConnection &conn)
err_t	tcp_event_err (TcpLwipConnection &conn, err_t err)

internal utility functions
typedef std::map< int, TcpLwipConnection * >	TcpAppConnMap
TcpAppConnMap	tcpAppConnMapM
cMessage *	pLwipFastTimerM = nullptr
struct netif	netIf
LwipTcpLayer *	pLwipTcpLayerM = nullptr
bool	isAliveM = false
Packet *	pCurTcpSegM = nullptr
CrcMode	crcMode = CRC_MODE_UNDEFINED
LwipTcpLayer *	getLwipTcpLayer ()
virtual TcpLwipSendQueue *	createSendQueue ()
	To be called from TcpLwipConnection: create a new send queue. More...
virtual TcpLwipReceiveQueue *	createReceiveQueue ()
	To be called from TcpLwipConnection: create a new receive queue. More...
TcpLwipConnection *	findAppConn (int connIdP)
TcpLwipConnection *	findConnByPcb (LwipTcpLayer::tcp_pcb *pcb)
void	removeConnection (TcpLwipConnection &conn)
void	printConnBrief (TcpLwipConnection &connP)
void	handleUpperCommand (cMessage *msgP)
void	handleLowerPacket (Packet *packet)

Detailed Description

Module for using the LwIP TCP stack.

Member Typedef Documentation

TcpAppConnMap

typedef std::map<int, TcpLwipConnection *> inet::tcp::TcpLwip::TcpAppConnMap

protected

Constructor & Destructor Documentation

TcpLwip()

inet::tcp::TcpLwip::TcpLwip

(

)

{
    netIf.gw.addr = L3Address();
    netIf.flags = 0;
    netIf.input = nullptr;
    netIf.ip_addr.addr = L3Address();
    netIf.linkoutput = nullptr;
    netIf.mtu = 1500;
    netIf.name[0] = 'T';
    netIf.name[1] = 'C';
    netIf.netmask.addr = L3Address();
    netIf.next = nullptr;
    netIf.num = 0;
    netIf.output = nullptr;
    netIf.state = nullptr;
}

~TcpLwip()

inet::tcp::TcpLwip::~TcpLwip ( )

virtual

{
    EV_TRACE << this << ": destructor\n";
    isAliveM = false;

    while (!tcpAppConnMapM.empty()) {
        auto i = tcpAppConnMapM.begin();
        tcpAppConnMapM.erase(i);
    }

    if (pLwipFastTimerM)
        cancelAndDelete(pLwipFastTimerM);

    if (pLwipTcpLayerM)
        delete pLwipTcpLayerM;
}

Member Function Documentation

createReceiveQueue()

TcpLwipReceiveQueue * inet::tcp::TcpLwip::createReceiveQueue ( )

virtual

To be called from TcpLwipConnection: create a new receive queue.

{
    return new TcpLwipReceiveQueue();
}

Referenced by inet::tcp::TcpLwipConnection::initConnection().

createSendQueue()

TcpLwipSendQueue * inet::tcp::TcpLwip::createSendQueue ( )

virtual

To be called from TcpLwipConnection: create a new send queue.

{
    return new TcpLwipSendQueue();
}

Referenced by inet::tcp::TcpLwipConnection::initConnection().

findAppConn()

TcpLwipConnection * inet::tcp::TcpLwip::findAppConn ( int  connIdP )

protected

{
    auto i = tcpAppConnMapM.find(connIdP);
    return i == tcpAppConnMapM.end() ? nullptr : (i->second);
}

Referenced by handleUpperCommand().

findConnByPcb()

TcpLwipConnection* inet::tcp::TcpLwip::findConnByPcb ( LwipTcpLayer::tcp_pcb *  pcb )

protected

finish()

void inet::tcp::TcpLwip::finish ( )

overrideprotectedvirtual

{
    isAliveM = false;
}

getLwipTcpLayer()

LwipTcpLayer* inet::tcp::TcpLwip::getLwipTcpLayer ( )

inline

{ return pLwipTcpLayerM; }

Referenced by inet::tcp::TcpLwipConnection::abort(), inet::tcp::TcpLwipConnection::close(), inet::tcp::TcpLwipConnection::connect(), inet::tcp::TcpLwipConnection::do_SEND(), inet::tcp::TcpLwipConnection::initConnection(), inet::tcp::TcpLwipConnection::listen(), inet::tcp::TcpLwipConnection::process_OPEN_ACTIVE(), inet::tcp::TcpLwipConnection::process_OPEN_PASSIVE(), inet::tcp::TcpLwipConnection::send_data(), and inet::tcp::TcpLwipConnection::~TcpLwipConnection().

handleLowerPacket()

void inet::tcp::TcpLwip::handleLowerPacket ( Packet *  packet )

protected

{
    L3Address srcAddr, destAddr;
    int interfaceId = -1;

    auto tcpsegP = packet->peekAtFront<TcpHeader>();
    srcAddr = packet->getTag<L3AddressInd>()->getSrcAddress();
    destAddr = packet->getTag<L3AddressInd>()->getDestAddress();
    interfaceId = (packet->getTag<InterfaceInd>())->getInterfaceId();

    switch (tcpsegP->getCrcMode()) {
        case CRC_DECLARED_INCORRECT:
            EV_WARN << "CRC error, packet dropped\n";
            delete packet;
            return;
        case CRC_DECLARED_CORRECT: {
            // modify to calculated, for serializing
            packet->trimFront();
            const auto& newTcpsegP = packet->removeAtFront<TcpHeader>();
            newTcpsegP->setCrcMode(CRC_COMPUTED);
            newTcpsegP->setCrc(0);
            packet->insertAtFront(newTcpsegP);
            tcpsegP = newTcpsegP;
            break;
        }
        default:
            break;
    }

    // process segment
    size_t ipHdrLen = sizeof(ip_hdr);
    size_t const maxBufferSize = 4096;
    char *data = new char[maxBufferSize];
    memset(data, 0, maxBufferSize);

    ip_hdr *ih = (ip_hdr *)(data);

    // set the modified lwip IP header:
    ih->_hl = ipHdrLen / 4;
    ASSERT((ih->_hl) * 4 == ipHdrLen);
    ih->_chksum = 0;
    ih->src.addr = srcAddr;
    ih->dest.addr = destAddr;

    size_t totalTcpLen = maxBufferSize - ipHdrLen;

    const auto& bytes = packet->peekDataAsBytes();
    totalTcpLen = bytes->copyToBuffer((uint8_t *)data + ipHdrLen, totalTcpLen);

    size_t totalIpLen = ipHdrLen + totalTcpLen;
    ih->_chksum = 0;

    // search unfilled local addr in pcb-s for this connection.
    L3Address laddr = ih->dest.addr;
    L3Address raddr = ih->src.addr;
    u16_t lport = tcpsegP->getDestPort();
    u16_t rport = tcpsegP->getSrcPort();

    if (tcpsegP->getSynBit() && tcpsegP->getAckBit()) {
        for (auto& elem : tcpAppConnMapM) {
            LwipTcpLayer::tcp_pcb *pcb = elem.second->pcbM;
            if (pcb) {
                if ((pcb->state == LwipTcpLayer::SYN_SENT)
                    && (pcb->local_ip.addr.isUnspecified())
                    && (pcb->local_port == lport)
                    && (pcb->remote_ip.addr == raddr)
                    && (pcb->remote_port == rport)
                    )
                {
                    pcb->local_ip.addr = laddr;
                }
            }
        }
    }

    ASSERT(pCurTcpSegM == nullptr);
    pCurTcpSegM = packet;
    // receive msg from network
    pLwipTcpLayerM->if_receive_packet(interfaceId, data, totalIpLen);
    // lwip call back the notifyAboutIncomingSegmentProcessing() for store incoming messages
    pCurTcpSegM = nullptr;

    // LwipTcpLayer will call the tcp_event_recv() / tcp_event_err() and/or send a packet to sender

    delete[] data;
    delete packet;
}

Referenced by handleMessage().

handleMessage()

void inet::tcp::TcpLwip::handleMessage ( cMessage *  msgP )

overrideprotectedvirtual

{
    if (msgP->isSelfMessage()) {
        // timer expired
        if (msgP == pLwipFastTimerM) { // lwip fast timer
            EV_TRACE << "Call tcp_fasttmr()\n";
            pLwipTcpLayerM->tcp_fasttmr();
            if (simTime() == roundTime(simTime(), 2)) {
                EV_TRACE << "Call tcp_slowtmr()\n";
                pLwipTcpLayerM->tcp_slowtmr();
            }
        }
        else {
            throw cRuntimeError("Unknown self message");
        }
    }
    else if (msgP->arrivedOn("ipIn")) {
        // must be a Packet
        Packet *pk = check_and_cast<Packet *>(msgP);
        auto protocol = pk->getTag<PacketProtocolTag>()->getProtocol();
        if (protocol == &Protocol::tcp) {
            EV_TRACE << this << ": handle tcp segment: " << msgP->getName() << "\n";
            handleLowerPacket(pk);
        }
        else if (protocol == &Protocol::icmpv4 || protocol == &Protocol::icmpv6) {
            EV_WARN << "ICMP error received -- discarding\n"; // FIXME can ICMP packets really make it up to TCP???
            delete msgP;
        }
        else
            throw cRuntimeError("Unknown protocol: %s(%d)", protocol->getName(), protocol->getId());
    }
    else { // must be from app
        EV_TRACE << this << ": handle msg: " << msgP->getName() << "\n";
        handleUpperCommand(msgP);
    }

    if (!pLwipFastTimerM->isScheduled()) { // lwip fast timer
        if (nullptr != pLwipTcpLayerM->tcp_active_pcbs || nullptr != pLwipTcpLayerM->tcp_tw_pcbs)
            scheduleAfter(roundTime(simTime() + 0.250, 4) - simTime(), pLwipFastTimerM);
    }
}

handleUpperCommand()

void inet::tcp::TcpLwip::handleUpperCommand ( cMessage *  msgP )

protected

{
    auto& tags = check_and_cast<ITaggedObject *>(msgP)->getTags();
    int connId = tags.getTag<SocketReq>()->getSocketId();

    TcpLwipConnection *conn = findAppConn(connId);

    if (!conn) {
        // add into appConnMap

        auto moduleType = cModuleType::get("inet.transportlayer.tcp_lwip.TcpLwipConnection");
        char submoduleName[24];
        sprintf(submoduleName, "conn-%d", connId);
        conn = check_and_cast<TcpLwipConnection *>(moduleType->create(submoduleName, this));
        conn->finalizeParameters();
        conn->buildInside();
        conn->initConnection(*this, connId);
        conn->callInitialize();

        tcpAppConnMapM[connId] = conn;

        EV_INFO << this << ": TCP connection created for " << msgP << "\n";
    }

    printConnBrief(*conn);
    conn->processAppCommand(msgP);
}

Referenced by handleMessage().

initialize()

void inet::tcp::TcpLwip::initialize ( int  stage )

overrideprotectedvirtual

{
    cSimpleModule::initialize(stage);

    EV_TRACE << this << ": initialize stage " << stage << endl;

    if (stage == INITSTAGE_LOCAL) {
        const char *q;
        q = par("sendQueueClass");
        if (*q != '\0')
            throw cRuntimeError("Don't use obsolete sendQueueClass = \"%s\" parameter", q);

        q = par("receiveQueueClass");
        if (*q != '\0')
            throw cRuntimeError("Don't use obsolete receiveQueueClass = \"%s\" parameter", q);

        const char *crcModeString = par("crcMode");
        crcMode = parseCrcMode(crcModeString, false);

        WATCH_MAP(tcpAppConnMapM);

        pLwipTcpLayerM = new LwipTcpLayer(*this);
        pLwipFastTimerM = new cMessage("lwip_fast_timer");
        EV_INFO << "TcpLwip " << this << " has stack " << pLwipTcpLayerM << "\n";
    }
    else if (stage == INITSTAGE_TRANSPORT_LAYER) {
        cModule *node = findContainingNode(this);
        NodeStatus *nodeStatus = node ? check_and_cast_nullable<NodeStatus *>(node->getSubmodule("status")) : nullptr;
        bool isOperational = (!nodeStatus) || nodeStatus->getState() == NodeStatus::UP;
        if (!isOperational)
            throw cRuntimeError("This module doesn't support starting in node DOWN state");
        registerService(Protocol::tcp, gate("appIn"), gate("appOut"));
        registerProtocol(Protocol::tcp, gate("ipOut"), gate("ipIn"));

        if (crcMode == CRC_COMPUTED) {
            cModuleType *moduleType = cModuleType::get("inet.transportlayer.tcp_common.TcpCrcInsertionHook");
            auto *crcInsertion = check_and_cast<TcpCrcInsertionHook *>(moduleType->create("crcInsertion", this));
            crcInsertion->finalizeParameters();
            crcInsertion->callInitialize();

#ifdef INET_WITH_IPv4
            auto ipv4 = dynamic_cast<INetfilter *>(findModuleByPath("^.ipv4.ip"));
            if (ipv4 != nullptr)
                ipv4->registerHook(0, crcInsertion);
#endif
#ifdef INET_WITH_IPv6
            auto ipv6 = dynamic_cast<INetfilter *>(findModuleByPath("^.ipv6.ipv6"));
            if (ipv6 != nullptr)
                ipv6->registerHook(0, crcInsertion);
#endif
        }
    }
    else if (stage == INITSTAGE_LAST) {
        isAliveM = true;
    }
}

ip_output()

void inet::tcp::TcpLwip::ip_output ( LwipTcpLayer::tcp_pcb *  pcb, L3Address const &  src, L3Address const &  dest, void *  tcpseg, int  len  )

overrideprotectedvirtual

TCP layer send a packet to IP layer.

Parameters

pcb	the lwip pcb or nullptr (tipically when send a RESET )
src	the source IP addr
dest	the destination IP addr
tcpseg	pointer to TCP segment (message)
len	length of tcpseg

Implements inet::tcp::LwipTcpStackIf.

{
    TcpLwipConnection *conn = (pcb != nullptr) ? static_cast<TcpLwipConnection *>(pcb->callback_arg) : nullptr;

    Packet *packet = nullptr;

    if (conn) {
        packet = conn->sendQueueM->createSegmentWithBytes(dataP, lenP);
    }
    else {
        const auto& bytes = makeShared<BytesChunk>((const uint8_t *)dataP, lenP);
        packet = new Packet(nullptr, bytes);
        const auto& tcpHdr = packet->popAtFront<TcpHeader>();
        packet->trimFront();
        int64_t numBytes = packet->getByteLength();
        ASSERT(numBytes == 0);
        packet->insertAtFront(tcpHdr);
    }

    ASSERT(packet);

    auto tcpHdr = packet->removeAtFront<TcpHeader>();
    tcpHdr->setCrc(0);
    tcpHdr->setCrcMode(crcMode);
    insertTransportProtocolHeader(packet, Protocol::tcp, tcpHdr);

    EV_TRACE << this << ": Sending: conn=" << conn << ", data: " << dataP << " of len " << lenP
             << " from " << srcP << " to " << destP << "\n";

    IL3AddressType *addressType = destP.getAddressType();

    packet->addTag<DispatchProtocolReq>()->setProtocol(addressType->getNetworkProtocol());
    auto addresses = packet->addTag<L3AddressReq>();
    addresses->setSrcAddress(srcP);
    addresses->setDestAddress(destP);
    if (conn) {
        conn->notifyAboutSending(*tcpHdr);
    }

    EV_INFO << this << ": Send segment:";
    if (conn)
        EV_INFO << "conn ID=" << conn->connIdM;
    EV_INFO << " from " << srcP << " to " << destP << " SEQ=" << tcpHdr->getSequenceNo();
    if (tcpHdr->getSynBit())
        EV_INFO << " SYN";
    if (tcpHdr->getAckBit())
        EV_INFO << " ACK=" << tcpHdr->getAckNo();
    if (tcpHdr->getFinBit())
        EV_INFO << " FIN";
    if (tcpHdr->getRstBit())
        EV_INFO << " RST";
    if (tcpHdr->getPshBit())
        EV_INFO << " PSH";
    if (tcpHdr->getUrgBit())
        EV_INFO << " URG";
    EV_INFO << " len=" << B(packet->getDataLength()) - tcpHdr->getHeaderLength() << "\n";

    send(packet, "ipOut");
}

ip_route()

struct netif * inet::tcp::TcpLwip::ip_route ( L3Address const &  ipAddr )

overrideprotectedvirtual

Get the network interface.

Implements inet::tcp::LwipTcpStackIf.

{
    return &netIf;
}

lwip_free_pcb_event()

void inet::tcp::TcpLwip::lwip_free_pcb_event ( LwipTcpLayer::tcp_pcb *  pcb )

overrideprotectedvirtual

TCP layer event called before LWIP freeing a pcb.

Parameters

pcb	pointer to pcb

Implements inet::tcp::LwipTcpStackIf.

{
    TcpLwipConnection *conn = static_cast<TcpLwipConnection *>(pcb->callback_arg);
    if (conn != nullptr && conn->pcbM == pcb) {
//        conn->sendIndicationToApp(TCP_I_????); // TODO send some indication when need
        removeConnection(*conn);
    }
}

lwip_tcp_event()

err_t inet::tcp::TcpLwip::lwip_tcp_event ( void *  arg, LwipTcpLayer::tcp_pcb *  pcb, LwipTcpLayer::lwip_event  , struct pbuf *  p, u16_t  size, err_t  err  )

overrideprotectedvirtual

TCP layer events.

Implements inet::tcp::LwipTcpStackIf.

{
    TcpLwipConnection *conn = static_cast<TcpLwipConnection *>(arg);
    ASSERT(conn != nullptr);

    switch (event) {
        case LwipTcpLayer::LWIP_EVENT_ACCEPT:
            err = tcp_event_accept(*conn, pcb, err);
            break;

        case LwipTcpLayer::LWIP_EVENT_SENT:
            ASSERT(conn->pcbM == pcb);
            err = tcp_event_sent(*conn, size);
            break;

        case LwipTcpLayer::LWIP_EVENT_RECV:
            ASSERT(conn->pcbM == pcb);
            err = tcp_event_recv(*conn, p, err);
            break;

        case LwipTcpLayer::LWIP_EVENT_CONNECTED:
            ASSERT(conn->pcbM == pcb);
            err = tcp_event_conn(*conn, err);
            break;

        case LwipTcpLayer::LWIP_EVENT_POLL:
            // it's called also when conn->pcbM point to a LISTEN pcb, and pcb point to a SYN_RCVD
            if (conn->pcbM == pcb)
                err = tcp_event_poll(*conn);
            break;

        case LwipTcpLayer::LWIP_EVENT_ERR:
            err = tcp_event_err(*conn, err);
            break;

        default:
            throw cRuntimeError("Invalid lwip_event: %d", event);
            break;
    }

    return err;
}

notifyAboutIncomingSegmentProcessing()

void inet::tcp::TcpLwip::notifyAboutIncomingSegmentProcessing ( LwipTcpLayer::tcp_pcb *  pcb, uint32_t  seqNo, const void *  dataptr, int  len  )

overrideprotectedvirtual

Implements inet::tcp::LwipTcpStackIf.

{
    TcpLwipConnection *conn = (pcb != nullptr) ? static_cast<TcpLwipConnection *>(pcb->callback_arg) : nullptr;
    if (conn) {
        conn->receiveQueueM->notifyAboutIncomingSegmentProcessing(pCurTcpSegM, seqNo, dataptr, len);
    }
    else {
        const auto& tcpHdr = pCurTcpSegM->peekAtFront<TcpHeader>();
        if (B(pCurTcpSegM->getByteLength()) > tcpHdr->getHeaderLength())
            throw cRuntimeError("conn is null, and received packet has data");

        EV_WARN << "notifyAboutIncomingSegmentProcessing: conn is null\n";
    }
}

numInitStages()

virtual int inet::tcp::TcpLwip::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

printConnBrief()

void inet::tcp::TcpLwip::printConnBrief ( TcpLwipConnection &  connP )

protected

{
    EV_TRACE << this << ": connId=" << connP.connIdM;
}

Referenced by handleUpperCommand().

refreshDisplay()

void inet::tcp::TcpLwip::refreshDisplay ( ) const

overrideprotectedvirtual

{
    if (getEnvir()->isExpressMode()) {
        // in express mode, we don't bother to update the display
        // (std::map's iteration is not very fast if map is large)
        getDisplayString().setTagArg("t", 0, "");
        return;
    }

    int numINIT = 0, numCLOSED = 0, numLISTEN = 0, numSYN_SENT = 0, numSYN_RCVD = 0,
        numESTABLISHED = 0, numCLOSE_WAIT = 0, numLAST_ACK = 0, numFIN_WAIT_1 = 0,
        numFIN_WAIT_2 = 0, numCLOSING = 0, numTIME_WAIT = 0;

    for (auto& elem : tcpAppConnMapM) {
        LwipTcpLayer::tcp_pcb *pcb = (elem).second->pcbM;

        if (nullptr == pcb) {
            numINIT++;
        }
        else {
            enum LwipTcpLayer::tcp_state state = pcb->state;

            switch (state) {
                case LwipTcpLayer::CLOSED:
                    numCLOSED++;
                    break;

                case LwipTcpLayer::LISTEN:
                    numLISTEN++;
                    break;

                case LwipTcpLayer::SYN_SENT:
                    numSYN_SENT++;
                    break;

                case LwipTcpLayer::SYN_RCVD:
                    numSYN_RCVD++;
                    break;

                case LwipTcpLayer::ESTABLISHED:
                    numESTABLISHED++;
                    break;

                case LwipTcpLayer::CLOSE_WAIT:
                    numCLOSE_WAIT++;
                    break;

                case LwipTcpLayer::LAST_ACK:
                    numLAST_ACK++;
                    break;

                case LwipTcpLayer::FIN_WAIT_1:
                    numFIN_WAIT_1++;
                    break;

                case LwipTcpLayer::FIN_WAIT_2:
                    numFIN_WAIT_2++;
                    break;

                case LwipTcpLayer::CLOSING:
                    numCLOSING++;
                    break;

                case LwipTcpLayer::TIME_WAIT:
                    numTIME_WAIT++;
                    break;
            }
        }
    }

    char buf2[200];
    buf2[0] = '\0';
    if (numINIT > 0)
        sprintf(buf2 + strlen(buf2), "init:%d ", numINIT);
    if (numCLOSED > 0)
        sprintf(buf2 + strlen(buf2), "closed:%d ", numCLOSED);
    if (numLISTEN > 0)
        sprintf(buf2 + strlen(buf2), "listen:%d ", numLISTEN);
    if (numSYN_SENT > 0)
        sprintf(buf2 + strlen(buf2), "syn_sent:%d ", numSYN_SENT);
    if (numSYN_RCVD > 0)
        sprintf(buf2 + strlen(buf2), "syn_rcvd:%d ", numSYN_RCVD);
    if (numESTABLISHED > 0)
        sprintf(buf2 + strlen(buf2), "estab:%d ", numESTABLISHED);
    if (numCLOSE_WAIT > 0)
        sprintf(buf2 + strlen(buf2), "close_wait:%d ", numCLOSE_WAIT);
    if (numLAST_ACK > 0)
        sprintf(buf2 + strlen(buf2), "last_ack:%d ", numLAST_ACK);
    if (numFIN_WAIT_1 > 0)
        sprintf(buf2 + strlen(buf2), "fin_wait_1:%d ", numFIN_WAIT_1);
    if (numFIN_WAIT_2 > 0)
        sprintf(buf2 + strlen(buf2), "fin_wait_2:%d ", numFIN_WAIT_2);
    if (numCLOSING > 0)
        sprintf(buf2 + strlen(buf2), "closing:%d ", numCLOSING);
    if (numTIME_WAIT > 0)
        sprintf(buf2 + strlen(buf2), "time_wait:%d ", numTIME_WAIT);

    getDisplayString().setTagArg("t", 0, buf2);
}

removeConnection()

void inet::tcp::TcpLwip::removeConnection ( TcpLwipConnection &  conn )

protected

{
    conn.pcbM->callback_arg = nullptr;
    conn.pcbM = nullptr;
    tcpAppConnMapM.erase(conn.connIdM);
    conn.deleteModule();
}

Referenced by lwip_free_pcb_event(), and tcp_event_err().

tcp_event_accept()

err_t inet::tcp::TcpLwip::tcp_event_accept ( TcpLwipConnection &  conn, LwipTcpLayer::tcp_pcb *  pcb, err_t  err  )

protected

{
    int newConnId = getEnvir()->getUniqueNumber();

    auto moduleType = cModuleType::get("inet.transportlayer.tcp_lwip.TcpLwipConnection");
    char submoduleName[24];
    sprintf(submoduleName, "conn-%d", newConnId);
    auto newConn = check_and_cast<TcpLwipConnection *>(moduleType->create(submoduleName, this));
    newConn->finalizeParameters();
    newConn->buildInside();
    newConn->initConnection(conn, newConnId, pcb);
    newConn->callInitialize();

    // add into appConnMap
    tcpAppConnMapM[newConnId] = newConn;

    newConn->sendAvailableIndicationToApp(conn.connIdM);

    EV_DETAIL << this << ": TcpLwip: got accept!\n";
    return err;
}

Referenced by lwip_tcp_event().

tcp_event_conn()

err_t inet::tcp::TcpLwip::tcp_event_conn ( TcpLwipConnection &  conn, err_t  err  )

protected

{
    conn.sendEstablishedMsg();
    conn.do_SEND();
    return err;
}

Referenced by lwip_tcp_event().

tcp_event_err()

err_t inet::tcp::TcpLwip::tcp_event_err ( TcpLwipConnection &  conn, err_t  err  )

protected

{
    switch (err) {
        case ERR_ABRT:
            EV_INFO << "Connection " << conn.connIdM << " aborted, closed\n";
            conn.sendIndicationToApp(TCP_I_CLOSED);
            removeConnection(conn);
            break;

        case ERR_RST:
            EV_INFO << "Connection " << conn.connIdM << " reset\n";
            conn.sendIndicationToApp(TCP_I_CONNECTION_RESET);
            removeConnection(conn);
            break;

        default:
            throw cRuntimeError("Invalid LWIP error code: %d", err);
    }

    return err;
}

Referenced by lwip_tcp_event().

tcp_event_poll()

err_t inet::tcp::TcpLwip::tcp_event_poll ( TcpLwipConnection &  conn )

protected

{
    conn.do_SEND();
    return ERR_OK;
}

Referenced by lwip_tcp_event().

tcp_event_recv()

err_t inet::tcp::TcpLwip::tcp_event_recv ( TcpLwipConnection &  conn, struct pbuf *  p, err_t  err  )

protected

{
    if (p == nullptr) {
        // Received FIN:
        EV_DETAIL << this << ": tcp_event_recv(" << conn.connIdM
                  << ", pbuf[nullptr], " << (int)err << "):FIN\n";
        TcpStatusInd ind = (conn.pcbM->state == LwipTcpLayer::TIME_WAIT) ? TCP_I_CLOSED : TCP_I_PEER_CLOSED;
        EV_INFO << "Connection " << conn.connIdM << ((ind == TCP_I_CLOSED) ? " closed" : "closed by peer") << endl;
        conn.sendIndicationToApp(ind);
        // TODO is it good?
        pLwipTcpLayerM->tcp_recved(conn.pcbM, 0);
    }
    else {
        EV_DETAIL << this << ": tcp_event_recv(" << conn.connIdM << ", pbuf[" << p->len << ", "
                  << p->tot_len << "], " << (int)err << ")\n";
        for (auto c = p; c; c = c->next)
            conn.receiveQueueM->enqueueTcpLayerData(c->payload, c->len);
        pLwipTcpLayerM->tcp_recved(conn.pcbM, p->tot_len);
        pbuf_free(p);
    }

    conn.sendUpData();
    conn.do_SEND();
    return err;
}

Referenced by lwip_tcp_event().

tcp_event_sent()

err_t inet::tcp::TcpLwip::tcp_event_sent ( TcpLwipConnection &  conn, u16_t  size  )

protected

{
    conn.do_SEND();
    return ERR_OK;
}

Referenced by lwip_tcp_event().

Member Data Documentation

crcMode

CrcMode inet::tcp::TcpLwip::crcMode = CRC_MODE_UNDEFINED

protected

Referenced by initialize(), and ip_output().

isAliveM

bool inet::tcp::TcpLwip::isAliveM = false

protected

Referenced by finish(), initialize(), and ~TcpLwip().

netIf

struct netif inet::tcp::TcpLwip::netIf

protected

Referenced by ip_route(), and TcpLwip().

pCurTcpSegM

Packet* inet::tcp::TcpLwip::pCurTcpSegM = nullptr

protected

Referenced by handleLowerPacket(), and notifyAboutIncomingSegmentProcessing().

pLwipFastTimerM

cMessage* inet::tcp::TcpLwip::pLwipFastTimerM = nullptr

protected

Referenced by handleMessage(), initialize(), and ~TcpLwip().

pLwipTcpLayerM

LwipTcpLayer* inet::tcp::TcpLwip::pLwipTcpLayerM = nullptr

protected

Referenced by handleLowerPacket(), handleMessage(), initialize(), tcp_event_recv(), and ~TcpLwip().

tcpAppConnMapM

TcpAppConnMap inet::tcp::TcpLwip::tcpAppConnMapM

protected

Referenced by findAppConn(), handleLowerPacket(), handleUpperCommand(), initialize(), refreshDisplay(), removeConnection(), tcp_event_accept(), and ~TcpLwip().

---

The documentation for this class was generated from the following files:

• TcpLwip.h
• TcpLwip.cc
