Class generated from inet/transportlayer/sctp/SctpHeader.msg:259 by opp_msgtool. More...

#include <SctpHeader_m.h>

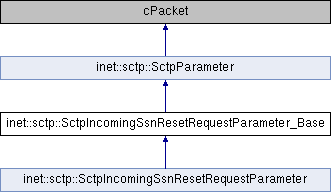

Inheritance diagram for inet::sctp::SctpIncomingSsnResetRequestParameter_Base:

Public Member Functions
virtual	~SctpIncomingSsnResetRequestParameter_Base ()

virtual SctpIncomingSsnResetRequestParameter_Base *	dup () const override

virtual void	parsimPack (omnetpp::cCommBuffer *b) const override

virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override

virtual uint32_t	getSrReqSn () const

virtual void	setSrReqSn (uint32_t srReqSn)

virtual void	setStreamNumbersArraySize (size_t size)

virtual size_t	getStreamNumbersArraySize () const

virtual uint16_t	getStreamNumbers (size_t k) const

virtual void	setStreamNumbers (size_t k, uint16_t streamNumbers)

virtual void	insertStreamNumbers (size_t k, uint16_t streamNumbers)

void	insertStreamNumbers (uint16_t streamNumbers)

virtual void	appendStreamNumbers (uint16_t streamNumbers)

virtual void	eraseStreamNumbers (size_t k)

Public Member Functions inherited from inet::sctp::SctpParameter
	SctpParameter (const char *name=nullptr)

	SctpParameter (const SctpParameter &other)

virtual	~SctpParameter ()

SctpParameter &	operator= (const SctpParameter &other)

virtual uint16_t	getParameterType () const

virtual void	setParameterType (uint16_t parameterType)

Protected Member Functions
bool	operator== (const SctpIncomingSsnResetRequestParameter_Base &)=delete

	SctpIncomingSsnResetRequestParameter_Base (const char *name=nullptr)

	SctpIncomingSsnResetRequestParameter_Base (const SctpIncomingSsnResetRequestParameter_Base &other)

SctpIncomingSsnResetRequestParameter_Base &	operator= (const SctpIncomingSsnResetRequestParameter_Base &other)

Protected Member Functions inherited from inet::sctp::SctpParameter
bool	operator== (const SctpParameter &)=delete

Protected Attributes
uint32_t	srReqSn = 0

uint16_t *	streamNumbers = nullptr

size_t	streamNumbers_arraysize = 0

Protected Attributes inherited from inet::sctp::SctpParameter
uint16_t	parameterType = 0

Private Member Functions
void	copy (const SctpIncomingSsnResetRequestParameter_Base &other)

Detailed Description

Class generated from inet/transportlayer/sctp/SctpHeader.msg:259 by opp_msgtool.

class SctpIncomingSsnResetRequestParameter extends SctpParameter
{
    @customize;
    uint32_t srReqSn; //Stream Reset Request Sequence Number
    uint16_t streamNumbers[];
}

SctpIncomingSsnResetRequestParameter_Base is only useful if it gets subclassed, and SctpIncomingSsnResetRequestParameter is derived from it. The minimum code to be written for SctpIncomingSsnResetRequestParameter is the following:

class INET_API SctpIncomingSsnResetRequestParameter : public SctpIncomingSsnResetRequestParameter_Base
{
  private:
    void copy(const SctpIncomingSsnResetRequestParameter& other) { ... }

  public:
    SctpIncomingSsnResetRequestParameter(const char *name=nullptr) : SctpIncomingSsnResetRequestParameter_Base(name) {}
    SctpIncomingSsnResetRequestParameter(const SctpIncomingSsnResetRequestParameter& other) : SctpIncomingSsnResetRequestParameter_Base(other) {copy(other);}
    SctpIncomingSsnResetRequestParameter& operator=(const SctpIncomingSsnResetRequestParameter& other) {if (this==&other) return *this; SctpIncomingSsnResetRequestParameter_Base::operator=(other); copy(other); return *this;}
    virtual SctpIncomingSsnResetRequestParameter *dup() const override {return new SctpIncomingSsnResetRequestParameter(*this);}
    // ADD CODE HERE to redefine and implement pure virtual functions from SctpIncomingSsnResetRequestParameter_Base
};

The following should go into a .cc (.cpp) file:

Register_Class(SctpIncomingSsnResetRequestParameter)

Constructor & Destructor Documentation

◆ SctpIncomingSsnResetRequestParameter_Base() [1/2]

inet::sctp::SctpIncomingSsnResetRequestParameter_Base::SctpIncomingSsnResetRequestParameter_Base ( const char * name = nullptr )

protected

◆ SctpIncomingSsnResetRequestParameter_Base() [2/2]

inet::sctp::SctpIncomingSsnResetRequestParameter_Base::SctpIncomingSsnResetRequestParameter_Base ( const SctpIncomingSsnResetRequestParameter_Base & other )

protected

◆ ~SctpIncomingSsnResetRequestParameter_Base()

virtual inet::sctp::SctpIncomingSsnResetRequestParameter_Base::~SctpIncomingSsnResetRequestParameter_Base ( )

virtual

Member Function Documentation

◆ appendStreamNumbers()

virtual void inet::sctp::SctpIncomingSsnResetRequestParameter_Base::appendStreamNumbers ( uint16_t streamNumbers )

virtual

◆ copy()

void inet::sctp::SctpIncomingSsnResetRequestParameter_Base::copy ( const SctpIncomingSsnResetRequestParameter_Base & other )

private

◆ dup()

virtual SctpIncomingSsnResetRequestParameter_Base* inet::sctp::SctpIncomingSsnResetRequestParameter_Base::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::sctp::SctpParameter.

Reimplemented in inet::sctp::SctpIncomingSsnResetRequestParameter.

1759 {throw omnetpp::cRuntimeError("You forgot to manually add a dup() function to class SctpIncomingSsnResetRequestParameter");}

◆ eraseStreamNumbers()

virtual void inet::sctp::SctpIncomingSsnResetRequestParameter_Base::eraseStreamNumbers ( size_t k )

virtual

◆ getSrReqSn()

virtual uint32_t inet::sctp::SctpIncomingSsnResetRequestParameter_Base::getSrReqSn ( ) const

virtual

Referenced by inet::sctp::SctpIncomingSsnResetRequestParameter::copy(), inet::sctp::SctpAssociation::processInAndOutResetRequestArrived(), inet::sctp::SctpAssociation::processIncomingResetRequestArrived(), inet::sctp::SctpAssociation::processStreamResetArrived(), inet::sctp::SctpAssociation::sendBundledOutgoingResetAndResponse(), inet::sctp::SctpAssociation::sendOutgoingRequestAndResponse(), inet::sctp::SctpAssociation::sendOutgoingResetRequest(), and inet::sctp::SctpHeaderSerializer::serialize().

◆ getStreamNumbers()

virtual uint16_t inet::sctp::SctpIncomingSsnResetRequestParameter_Base::getStreamNumbers ( size_t k ) const

virtual

Referenced by inet::sctp::SctpIncomingSsnResetRequestParameter::copy(), inet::sctp::SctpAssociation::makeIncomingStreamResetParameter(), inet::sctp::SctpAssociation::processInAndOutResetRequestArrived(), inet::sctp::SctpAssociation::processIncomingResetRequestArrived(), inet::sctp::SctpAssociation::processStreamResetArrived(), inet::sctp::SctpAssociation::sendBundledOutgoingResetAndResponse(), inet::sctp::SctpAssociation::sendOutgoingRequestAndResponse(), inet::sctp::SctpAssociation::sendOutgoingResetRequest(), and inet::sctp::SctpHeaderSerializer::serialize().

◆ getStreamNumbersArraySize()

virtual size_t inet::sctp::SctpIncomingSsnResetRequestParameter_Base::getStreamNumbersArraySize ( ) const

virtual

Referenced by inet::sctp::SctpIncomingSsnResetRequestParameter::copy(), inet::sctp::SctpAssociation::processInAndOutResetRequestArrived(), inet::sctp::SctpAssociation::processIncomingResetRequestArrived(), inet::sctp::SctpAssociation::processStreamResetArrived(), inet::sctp::SctpAssociation::sendBundledOutgoingResetAndResponse(), inet::sctp::SctpAssociation::sendOutgoingRequestAndResponse(), inet::sctp::SctpAssociation::sendOutgoingResetRequest(), and inet::sctp::SctpHeaderSerializer::serialize().

◆ insertStreamNumbers() [1/2]

virtual void inet::sctp::SctpIncomingSsnResetRequestParameter_Base::insertStreamNumbers	(	size_t	k,
		uint16_t	streamNumbers
	)

virtual

◆ insertStreamNumbers() [2/2]

void inet::sctp::SctpIncomingSsnResetRequestParameter_Base::insertStreamNumbers ( uint16_t streamNumbers )

inline

1771 {appendStreamNumbers(streamNumbers);}

◆ operator=()

SctpIncomingSsnResetRequestParameter_Base& inet::sctp::SctpIncomingSsnResetRequestParameter_Base::operator= ( const SctpIncomingSsnResetRequestParameter_Base & other )

protected

Referenced by inet::sctp::SctpIncomingSsnResetRequestParameter::operator=().

◆ operator==()

bool inet::sctp::SctpIncomingSsnResetRequestParameter_Base::operator== ( const SctpIncomingSsnResetRequestParameter_Base & )

protecteddelete

◆ parsimPack()

virtual void inet::sctp::SctpIncomingSsnResetRequestParameter_Base::parsimPack ( omnetpp::cCommBuffer * b ) const

overridevirtual

Reimplemented from inet::sctp::SctpParameter.

◆ parsimUnpack()

virtual void inet::sctp::SctpIncomingSsnResetRequestParameter_Base::parsimUnpack ( omnetpp::cCommBuffer * b )

overridevirtual

Reimplemented from inet::sctp::SctpParameter.

◆ setSrReqSn()

virtual void inet::sctp::SctpIncomingSsnResetRequestParameter_Base::setSrReqSn ( uint32_t srReqSn )

virtual

Referenced by inet::sctp::SctpIncomingSsnResetRequestParameter::copy(), inet::sctp::SctpHeaderSerializer::deserialize(), and inet::sctp::SctpAssociation::makeIncomingStreamResetParameter().

◆ setStreamNumbers()

virtual void inet::sctp::SctpIncomingSsnResetRequestParameter_Base::setStreamNumbers	(	size_t	k,
		uint16_t	streamNumbers
	)

virtual

Referenced by inet::sctp::SctpIncomingSsnResetRequestParameter::copy(), inet::sctp::SctpHeaderSerializer::deserialize(), and inet::sctp::SctpAssociation::makeIncomingStreamResetParameter().

◆ setStreamNumbersArraySize()

virtual void inet::sctp::SctpIncomingSsnResetRequestParameter_Base::setStreamNumbersArraySize ( size_t size )

virtual

Referenced by inet::sctp::SctpIncomingSsnResetRequestParameter::copy(), inet::sctp::SctpHeaderSerializer::deserialize(), and inet::sctp::SctpAssociation::makeIncomingStreamResetParameter().

Member Data Documentation

◆ srReqSn

uint32_t inet::sctp::SctpIncomingSsnResetRequestParameter_Base::srReqSn = 0

protected

◆ streamNumbers

uint16_t* inet::sctp::SctpIncomingSsnResetRequestParameter_Base::streamNumbers = nullptr

protected

◆ streamNumbers_arraysize

size_t inet::sctp::SctpIncomingSsnResetRequestParameter_Base::streamNumbers_arraysize = 0

protected

The documentation for this class was generated from the following file:

SctpHeader_m.h
