inet::sctp::SctpChunk Class Reference

Class generated from inet/transportlayer/sctp/SctpHeader.msg:33 by opp_msgtool. More...

#include <SctpHeader_m.h>

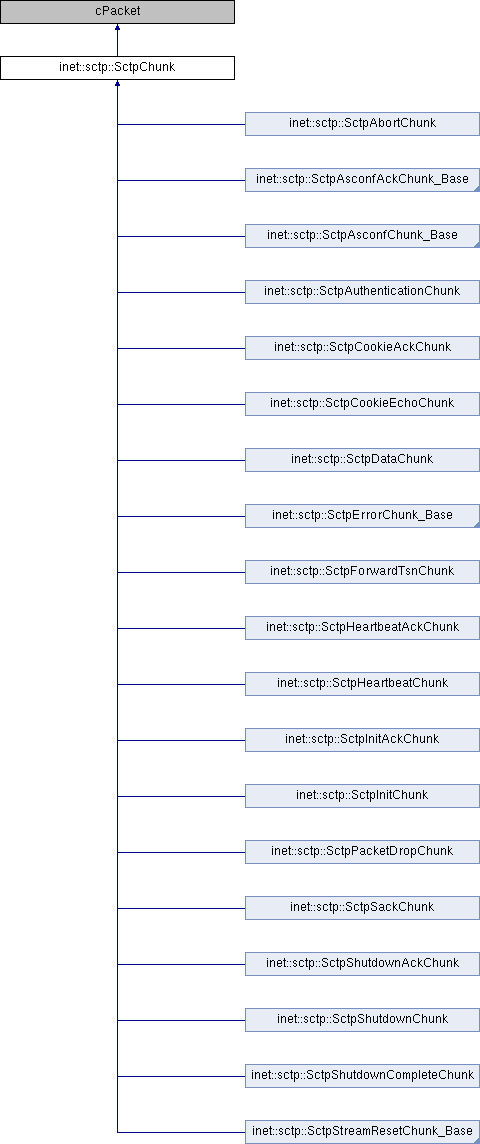

Inheritance diagram for inet::sctp::SctpChunk:

Public Member Functions
	SctpChunk (const char *name=nullptr)
	SctpChunk (const SctpChunk &other)
virtual	~SctpChunk ()
SctpChunk &	operator= (const SctpChunk &other)
virtual SctpChunk *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual uint8_t	getSctpChunkType () const
virtual void	setSctpChunkType (uint8_t sctpChunkType)
virtual uint32_t	getFlags () const
virtual void	setFlags (uint32_t flags)
virtual unsigned short	getLength () const
virtual void	setLength (unsigned short length)
virtual void	setChunkNameArraySize (size_t size)
virtual size_t	getChunkNameArraySize () const
virtual char	getChunkName (size_t k) const
virtual void	setChunkName (size_t k, char chunkName)
virtual void	insertChunkName (size_t k, char chunkName)
void	insertChunkName (char chunkName)
virtual void	appendChunkName (char chunkName)
virtual void	eraseChunkName (size_t k)

Protected Member Functions
bool	operator== (const SctpChunk &)=delete

Protected Attributes
uint8_t	sctpChunkType = 0
uint32_t	flags = 0
unsigned short	length = 0
char *	chunkName = nullptr
size_t	chunkName_arraysize = 0

Private Member Functions
void	copy (const SctpChunk &other)

Detailed Description

Class generated from inet/transportlayer/sctp/SctpHeader.msg:33 by opp_msgtool.

class SctpChunk extends cPacket
{
    @packetData;
    // Chunk Type
    uint8_t sctpChunkType;
    uint32_t flags;
    unsigned short length = 0;
    char chunkName[];
}

Constructor & Destructor Documentation

SctpChunk() [1/2]

inet::sctp::SctpChunk::SctpChunk

(

const char *

name = nullptr

)

SctpChunk() [2/2]

inet::sctp::SctpChunk::SctpChunk

(

const SctpChunk &

other

)

~SctpChunk()

virtual inet::sctp::SctpChunk::~SctpChunk ( )

virtual

Member Function Documentation

appendChunkName()

virtual void inet::sctp::SctpChunk::appendChunkName ( char  chunkName )

virtual

copy()

void inet::sctp::SctpChunk::copy ( const SctpChunk &  other )

private

dup()

virtual SctpChunk* inet::sctp::SctpChunk::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::sctp::SctpAsconfAckChunk_Base, inet::sctp::SctpAsconfChunk_Base, inet::sctp::SctpAuthenticationChunk, inet::sctp::SctpStreamResetChunk_Base, inet::sctp::SctpPacketDropChunk, inet::sctp::SctpErrorChunk_Base, inet::sctp::SctpShutdownCompleteChunk, inet::sctp::SctpShutdownAckChunk, inet::sctp::SctpShutdownChunk, inet::sctp::SctpHeartbeatAckChunk, inet::sctp::SctpHeartbeatChunk, inet::sctp::SctpAbortChunk, inet::sctp::SctpSackChunk, inet::sctp::SctpForwardTsnChunk, inet::sctp::SctpDataChunk, inet::sctp::SctpCookieAckChunk, inet::sctp::SctpCookieEchoChunk, inet::sctp::SctpInitAckChunk, inet::sctp::SctpInitChunk, inet::sctp::SctpAsconfAckChunk, inet::sctp::SctpAsconfChunk, inet::sctp::SctpStreamResetChunk, and inet::sctp::SctpErrorChunk.

{return new SctpChunk(*this);}

eraseChunkName()

virtual void inet::sctp::SctpChunk::eraseChunkName ( size_t  k )

virtual

getChunkName()

virtual char inet::sctp::SctpChunk::getChunkName ( size_t  k ) const

virtual

getChunkNameArraySize()

virtual size_t inet::sctp::SctpChunk::getChunkNameArraySize ( ) const

virtual

getFlags()

virtual uint32_t inet::sctp::SctpChunk::getFlags ( ) const

virtual

getLength()

virtual unsigned short inet::sctp::SctpChunk::getLength ( ) const

virtual

getSctpChunkType()

virtual uint8_t inet::sctp::SctpChunk::getSctpChunkType ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::loadPacket(), inet::sctp::SctpAssociation::process_RCV_Message(), inet::sctp::SctpAssociation::sendPacketDrop(), inet::sctp::SctpHeaderSerializer::serialize(), and inet::sctp::SctpAssociation::storePacket().

insertChunkName() [1/2]

void inet::sctp::SctpChunk::insertChunkName ( char  chunkName )

inline

{appendChunkName(chunkName);}

insertChunkName() [2/2]

virtual void inet::sctp::SctpChunk::insertChunkName ( size_t  k, char  chunkName  )

virtual

operator=()

SctpChunk& inet::sctp::SctpChunk::operator=

(

const SctpChunk &

other

)

operator==()

bool inet::sctp::SctpChunk::operator== ( const SctpChunk &  )

protecteddelete

parsimPack()

virtual void inet::sctp::SctpChunk::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::sctp::SctpAsconfAckChunk_Base, inet::sctp::SctpAsconfChunk_Base, inet::sctp::SctpAuthenticationChunk, inet::sctp::SctpStreamResetChunk_Base, inet::sctp::SctpPacketDropChunk, inet::sctp::SctpErrorChunk_Base, inet::sctp::SctpShutdownCompleteChunk, inet::sctp::SctpShutdownAckChunk, inet::sctp::SctpShutdownChunk, inet::sctp::SctpHeartbeatAckChunk, inet::sctp::SctpHeartbeatChunk, inet::sctp::SctpAbortChunk, inet::sctp::SctpSackChunk, inet::sctp::SctpForwardTsnChunk, inet::sctp::SctpDataChunk, inet::sctp::SctpCookieAckChunk, inet::sctp::SctpCookieEchoChunk, inet::sctp::SctpInitAckChunk, and inet::sctp::SctpInitChunk.

Referenced by inet::sctp::doParsimPacking().

parsimUnpack()

virtual void inet::sctp::SctpChunk::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::sctp::SctpAsconfAckChunk_Base, inet::sctp::SctpAsconfChunk_Base, inet::sctp::SctpAuthenticationChunk, inet::sctp::SctpStreamResetChunk_Base, inet::sctp::SctpPacketDropChunk, inet::sctp::SctpErrorChunk_Base, inet::sctp::SctpShutdownCompleteChunk, inet::sctp::SctpShutdownAckChunk, inet::sctp::SctpShutdownChunk, inet::sctp::SctpHeartbeatAckChunk, inet::sctp::SctpHeartbeatChunk, inet::sctp::SctpAbortChunk, inet::sctp::SctpSackChunk, inet::sctp::SctpForwardTsnChunk, inet::sctp::SctpDataChunk, inet::sctp::SctpCookieAckChunk, inet::sctp::SctpCookieEchoChunk, inet::sctp::SctpInitAckChunk, and inet::sctp::SctpInitChunk.

Referenced by inet::sctp::doParsimUnpacking().

setChunkName()

virtual void inet::sctp::SctpChunk::setChunkName ( size_t  k, char  chunkName  )

virtual

setChunkNameArraySize()

virtual void inet::sctp::SctpChunk::setChunkNameArraySize ( size_t  size )

virtual

setFlags()

virtual void inet::sctp::SctpChunk::setFlags ( uint32_t  flags )

virtual

setLength()

virtual void inet::sctp::SctpChunk::setLength ( unsigned short  length )

virtual

Referenced by inet::sctp::SctpAssociation::transformDataChunk().

setSctpChunkType()

virtual void inet::sctp::SctpChunk::setSctpChunkType ( uint8_t  sctpChunkType )

virtual

Referenced by inet::sctp::SctpAssociation::createAsconfAckChunk(), inet::sctp::SctpAssociation::createAuthChunk(), inet::sctp::SctpAssociation::createForwardTsnChunk(), inet::sctp::SctpAssociation::createSack(), inet::sctp::SctpHeaderSerializer::deserialize(), inet::sctp::SctpAssociation::processAddInAndOutResetRequestArrived(), inet::sctp::SctpAssociation::retransmitAsconf(), inet::sctp::SctpAssociation::retransmitReset(), inet::sctp::SctpAssociation::sendAbort(), inet::sctp::Sctp::sendAbortFromMain(), inet::sctp::SctpAssociation::sendAddInAndOutStreamsRequest(), inet::sctp::SctpAssociation::sendAddOutgoingStreamsRequest(), inet::sctp::SctpAssociation::sendAsconf(), inet::sctp::SctpAssociation::sendAsconfAck(), inet::sctp::SctpNatHook::sendBackError(), inet::sctp::SctpAssociation::sendBundledOutgoingResetAndResponse(), inet::sctp::SctpAssociation::sendCookieAck(), inet::sctp::SctpAssociation::sendCookieEcho(), inet::sctp::SctpAssociation::sendDoubleStreamResetResponse(), inet::sctp::SctpAssociation::sendHeartbeat(), inet::sctp::SctpAssociation::sendHeartbeatAck(), inet::sctp::SctpAssociation::sendHMacError(), inet::sctp::SctpAssociation::sendInit(), inet::sctp::SctpAssociation::sendInitAck(), inet::sctp::SctpAssociation::sendInvalidStreamError(), inet::sctp::SctpAssociation::sendOutgoingRequestAndResponse(), inet::sctp::SctpAssociation::sendOutgoingResetRequest(), inet::sctp::SctpAssociation::sendPacketDrop(), inet::sctp::SctpAssociation::sendShutdown(), inet::sctp::SctpAssociation::sendShutdownAck(), inet::sctp::SctpAssociation::sendShutdownComplete(), inet::sctp::Sctp::sendShutdownCompleteFromMain(), inet::sctp::SctpAssociation::sendStreamResetRequest(), inet::sctp::SctpAssociation::sendStreamResetResponse(), and inet::sctp::SctpAssociation::transformDataChunk().

Member Data Documentation

chunkName

char* inet::sctp::SctpChunk::chunkName = nullptr

protected

chunkName_arraysize

size_t inet::sctp::SctpChunk::chunkName_arraysize = 0

protected

flags

uint32_t inet::sctp::SctpChunk::flags = 0

protected

length

unsigned short inet::sctp::SctpChunk::length = 0

protected

sctpChunkType

uint8_t inet::sctp::SctpChunk::sctpChunkType = 0

protected

---

The documentation for this class was generated from the following file:

• SctpHeader_m.h
