inet::rtp::RtpSessionControlInfo Class Reference

Class generated from inet/transportlayer/rtp/RtpInterfacePacket.msg:51 by opp_msgtool. More...

#include <RtpInterfacePacket_m.h>

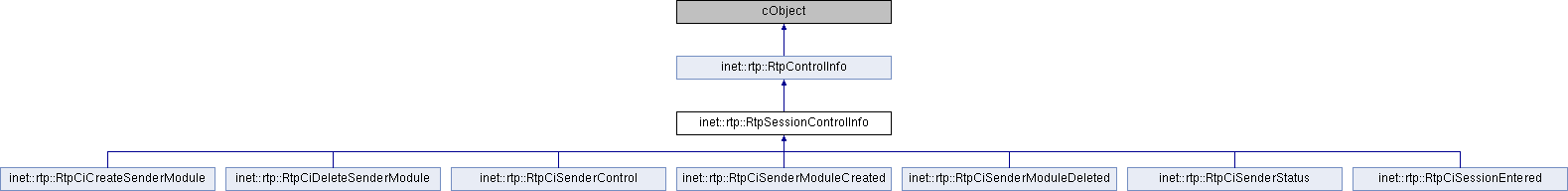

Inheritance diagram for inet::rtp::RtpSessionControlInfo:

Public Member Functions
	RtpSessionControlInfo ()
	RtpSessionControlInfo (const RtpSessionControlInfo &other)
virtual	~RtpSessionControlInfo ()
RtpSessionControlInfo &	operator= (const RtpSessionControlInfo &other)
virtual RtpSessionControlInfo *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual uint32_t	getSsrc () const
virtual void	setSsrc (uint32_t ssrc)
Public Member Functions inherited from inet::rtp::RtpControlInfo
	RtpControlInfo ()
	RtpControlInfo (const RtpControlInfo &other)
virtual	~RtpControlInfo ()
RtpControlInfo &	operator= (const RtpControlInfo &other)
virtual RtpIfpType	getType () const
virtual void	setType (RtpIfpType type)

Protected Member Functions
bool	operator== (const RtpSessionControlInfo &)=delete
Protected Member Functions inherited from inet::rtp::RtpControlInfo
bool	operator== (const RtpControlInfo &)=delete

Protected Attributes
uint32_t	ssrc = 0
Protected Attributes inherited from inet::rtp::RtpControlInfo
RtpIfpType	type = static_cast<inet::rtp::RtpIfpType>(-1)

Private Member Functions
void	copy (const RtpSessionControlInfo &other)

Detailed Description

Class generated from inet/transportlayer/rtp/RtpInterfacePacket.msg:51 by opp_msgtool.

// base class
class RtpSessionControlInfo extends RtpControlInfo
{
    uint32_t ssrc;
}

Constructor & Destructor Documentation

RtpSessionControlInfo() [1/2]

inet::rtp::RtpSessionControlInfo::RtpSessionControlInfo

(

)

RtpSessionControlInfo() [2/2]

inet::rtp::RtpSessionControlInfo::RtpSessionControlInfo

(

const RtpSessionControlInfo &

other

)

~RtpSessionControlInfo()

virtual inet::rtp::RtpSessionControlInfo::~RtpSessionControlInfo ( )

virtual

Member Function Documentation

copy()

void inet::rtp::RtpSessionControlInfo::copy ( const RtpSessionControlInfo &  other )

private

dup()

virtual RtpSessionControlInfo* inet::rtp::RtpSessionControlInfo::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::rtp::RtpControlInfo.

Reimplemented in inet::rtp::RtpCiSenderModuleDeleted, inet::rtp::RtpCiDeleteSenderModule, inet::rtp::RtpCiSenderModuleCreated, inet::rtp::RtpCiCreateSenderModule, inet::rtp::RtpCiSenderStatus, inet::rtp::RtpCiSenderControl, and inet::rtp::RtpCiSessionEntered.

{return new RtpSessionControlInfo(*this);}

getSsrc()

virtual uint32_t inet::rtp::RtpSessionControlInfo::getSsrc ( ) const

virtual

Referenced by inet::rtp::Rtp::createSenderModule(), and inet::rtp::Rtp::deleteSenderModule().

operator=()

RtpSessionControlInfo& inet::rtp::RtpSessionControlInfo::operator=

(

const RtpSessionControlInfo &

other

)

operator==()

bool inet::rtp::RtpSessionControlInfo::operator== ( const RtpSessionControlInfo &  )

protecteddelete

parsimPack()

virtual void inet::rtp::RtpSessionControlInfo::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::rtp::RtpControlInfo.

Reimplemented in inet::rtp::RtpCiSenderModuleDeleted, inet::rtp::RtpCiDeleteSenderModule, inet::rtp::RtpCiSenderModuleCreated, inet::rtp::RtpCiCreateSenderModule, inet::rtp::RtpCiSenderStatus, inet::rtp::RtpCiSenderControl, and inet::rtp::RtpCiSessionEntered.

Referenced by inet::rtp::doParsimPacking().

parsimUnpack()

virtual void inet::rtp::RtpSessionControlInfo::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::rtp::RtpControlInfo.

Reimplemented in inet::rtp::RtpCiSenderModuleDeleted, inet::rtp::RtpCiDeleteSenderModule, inet::rtp::RtpCiSenderModuleCreated, inet::rtp::RtpCiCreateSenderModule, inet::rtp::RtpCiSenderStatus, inet::rtp::RtpCiSenderControl, and inet::rtp::RtpCiSessionEntered.

Referenced by inet::rtp::doParsimUnpacking().

setSsrc()

virtual void inet::rtp::RtpSessionControlInfo::setSsrc ( uint32_t  ssrc )

virtual

Referenced by inet::rtp::Rtp::rtcpInitialized(), inet::rtp::Rtp::senderModuleCreated(), inet::rtp::Rtp::senderModuleDeleted(), and inet::rtp::Rtp::senderModuleStatus().

Member Data Documentation

ssrc

uint32_t inet::rtp::RtpSessionControlInfo::ssrc = 0

protected

---

The documentation for this class was generated from the following file:

• RtpInterfacePacket_m.h
