inet::rtp::RtpParticipantInfo_Base Class Reference

Class generated from inet/transportlayer/rtp/RtpParticipantInfo.msg:24 by opp_msgtool. More...

#include <RtpParticipantInfo_m.h>

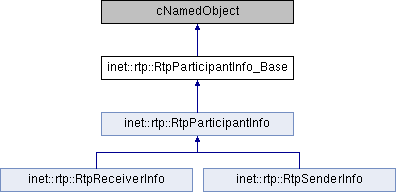

Inheritance diagram for inet::rtp::RtpParticipantInfo_Base:

Public Member Functions
virtual	~RtpParticipantInfo_Base ()
virtual RtpParticipantInfo_Base *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual uint32_t	getSsrc () const =0
virtual void	setSsrc (uint32_t ssrc)=0
virtual const ::inet::Ipv4Address &	getAddress () const
virtual ::inet::Ipv4Address &	getAddressForUpdate ()
virtual void	setAddress (const ::inet::Ipv4Address &address)
virtual int	getRTPPort () const
virtual void	setRTPPort (int RTPPort)
virtual int	getRTCPPort () const
virtual void	setRTCPPort (int RTCPPort)

Protected Member Functions
bool	operator== (const RtpParticipantInfo_Base &)=delete
	RtpParticipantInfo_Base (const char *name=nullptr)
	RtpParticipantInfo_Base (const RtpParticipantInfo_Base &other)
RtpParticipantInfo_Base &	operator= (const RtpParticipantInfo_Base &other)

Protected Attributes
::inet::Ipv4Address	address = Ipv4Address::UNSPECIFIED_ADDRESS
int	RTPPort = PORT_UNDEF
int	RTCPPort = PORT_UNDEF

Private Member Functions
void	copy (const RtpParticipantInfo_Base &other)

Detailed Description

Class generated from inet/transportlayer/rtp/RtpParticipantInfo.msg:24 by opp_msgtool.

//
// This class is a super class for classes intended for storing information
// about ~RTP end systems.
// It has two subclasses: RTPReceiverInformation which is used for storing
// information about other system participating in an ~RTP session.
// RTPSenderInformation is used by an ~RTP endsystem for storing information
// about itself.
// sa RTPReceiverInformation
// sa RTPSenderInformation
//
class RtpParticipantInfo extends cNamedObject
{
    @customize;  //FIXME need revise, several custommized functions should be moved to a processing module

    abstract uint32_t ssrc;

    // Used for storing the ip address of this endsystem.
    Ipv4Address address = Ipv4Address::UNSPECIFIED_ADDRESS;

    // Used for storing the port for ~RTP by this endsystem.
    int RTPPort = PORT_UNDEF;

    // Used for storing the port for ~RTCP by this endsystem.
    int RTCPPort = PORT_UNDEF;
}

RtpParticipantInfo_Base is only useful if it gets subclassed, and RtpParticipantInfo is derived from it. The minimum code to be written for RtpParticipantInfo is the following:

class INET_API RtpParticipantInfo : public RtpParticipantInfo_Base
{
  private:
    void copy(const RtpParticipantInfo& other) { ... }

  public:
    RtpParticipantInfo(const char *name=nullptr) : RtpParticipantInfo_Base(name) {}
    RtpParticipantInfo(const RtpParticipantInfo& other) : RtpParticipantInfo_Base(other) {copy(other);}
    RtpParticipantInfo& operator=(const RtpParticipantInfo& other) {if (this==&other) return *this; RtpParticipantInfo_Base::operator=(other); copy(other); return *this;}
    virtual RtpParticipantInfo *dup() const override {return new RtpParticipantInfo(*this);}
    // ADD CODE HERE to redefine and implement pure virtual functions from RtpParticipantInfo_Base
};

The following should go into a .cc (.cpp) file:

Register_Class(RtpParticipantInfo)

Constructor & Destructor Documentation

RtpParticipantInfo_Base() [1/2]

inet::rtp::RtpParticipantInfo_Base::RtpParticipantInfo_Base ( const char *  name = nullptr )

protected

RtpParticipantInfo_Base() [2/2]

inet::rtp::RtpParticipantInfo_Base::RtpParticipantInfo_Base ( const RtpParticipantInfo_Base &  other )

protected

~RtpParticipantInfo_Base()

virtual inet::rtp::RtpParticipantInfo_Base::~RtpParticipantInfo_Base ( )

virtual

Member Function Documentation

copy()

void inet::rtp::RtpParticipantInfo_Base::copy ( const RtpParticipantInfo_Base &  other )

private

dup()

virtual RtpParticipantInfo_Base* inet::rtp::RtpParticipantInfo_Base::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::rtp::RtpParticipantInfo, inet::rtp::RtpReceiverInfo, and inet::rtp::RtpSenderInfo.

{throw omnetpp::cRuntimeError("You forgot to manually add a dup() function to class RtpParticipantInfo");}

getAddress()

virtual const ::inet::Ipv4Address& inet::rtp::RtpParticipantInfo_Base::getAddress ( ) const

virtual

Referenced by inet::rtp::Rtcp::processIncomingRTCPReceiverReportPacket(), inet::rtp::Rtcp::processIncomingRTCPSenderReportPacket(), and inet::rtp::Rtcp::processIncomingRTPPacket().

getAddressForUpdate()

virtual ::inet::Ipv4Address& inet::rtp::RtpParticipantInfo_Base::getAddressForUpdate ( )

inline

{ return const_cast<::inet::Ipv4Address&>(const_cast<RtpParticipantInfo_Base*>(this)->getAddress());}

getRTCPPort()

virtual int inet::rtp::RtpParticipantInfo_Base::getRTCPPort ( ) const

virtual

Referenced by inet::rtp::Rtcp::processIncomingRTCPReceiverReportPacket(), and inet::rtp::Rtcp::processIncomingRTCPSenderReportPacket().

getRTPPort()

virtual int inet::rtp::RtpParticipantInfo_Base::getRTPPort ( ) const

virtual

Referenced by inet::rtp::Rtcp::processIncomingRTPPacket().

getSsrc()

virtual uint32_t inet::rtp::RtpParticipantInfo_Base::getSsrc ( ) const

pure virtual

Implemented in inet::rtp::RtpParticipantInfo.

operator=()

RtpParticipantInfo_Base& inet::rtp::RtpParticipantInfo_Base::operator= ( const RtpParticipantInfo_Base &  other )

protected

Referenced by inet::rtp::RtpParticipantInfo::operator=().

operator==()

bool inet::rtp::RtpParticipantInfo_Base::operator== ( const RtpParticipantInfo_Base &  )

protecteddelete

parsimPack()

virtual void inet::rtp::RtpParticipantInfo_Base::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

parsimUnpack()

virtual void inet::rtp::RtpParticipantInfo_Base::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

setAddress()

virtual void inet::rtp::RtpParticipantInfo_Base::setAddress ( const ::inet::Ipv4Address &  address )

virtual

Referenced by inet::rtp::Rtcp::processIncomingRTCPReceiverReportPacket(), inet::rtp::Rtcp::processIncomingRTCPSDESPacket(), inet::rtp::Rtcp::processIncomingRTCPSenderReportPacket(), and inet::rtp::Rtcp::processIncomingRTPPacket().

setRTCPPort()

virtual void inet::rtp::RtpParticipantInfo_Base::setRTCPPort ( int  RTCPPort )

virtual

Referenced by inet::rtp::Rtcp::processIncomingRTCPReceiverReportPacket(), inet::rtp::Rtcp::processIncomingRTCPSDESPacket(), and inet::rtp::Rtcp::processIncomingRTCPSenderReportPacket().

setRTPPort()

virtual void inet::rtp::RtpParticipantInfo_Base::setRTPPort ( int  RTPPort )

virtual

Referenced by inet::rtp::Rtcp::processIncomingRTPPacket().

setSsrc()

virtual void inet::rtp::RtpParticipantInfo_Base::setSsrc ( uint32_t  ssrc )

pure virtual

Implemented in inet::rtp::RtpParticipantInfo.

Member Data Documentation

address

::inet::Ipv4Address inet::rtp::RtpParticipantInfo_Base::address = Ipv4Address::UNSPECIFIED_ADDRESS

protected

RTCPPort

int inet::rtp::RtpParticipantInfo_Base::RTCPPort = PORT_UNDEF

protected

RTPPort

int inet::rtp::RtpParticipantInfo_Base::RTPPort = PORT_UNDEF

protected

---

The documentation for this class was generated from the following file:

• RtpParticipantInfo_m.h
