inet::power::AlternatingEpEnergyGenerator Class Reference

This class implements a simple power based alternating energy generator. More...

#include <AlternatingEpEnergyGenerator.h>

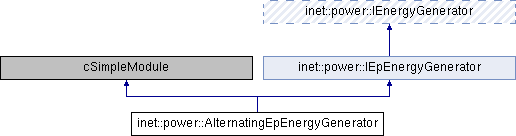

Inheritance diagram for inet::power::AlternatingEpEnergyGenerator:

Public Member Functions
virtual	~AlternatingEpEnergyGenerator ()
virtual IEnergySink *	getEnergySink () const override
	Returns the energy sink that absorbs energy from this energy generator. More...
virtual W	getPowerGeneration () const override
	Returns the power generation in the range [0, +infinity). More...
Public Member Functions inherited from inet::power::IEnergyGenerator
virtual	~IEnergyGenerator ()

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *message) override
virtual void	updatePowerGeneration ()
virtual void	scheduleIntervalTimer ()

Protected Attributes
IEpEnergySink *	energySink = nullptr
cMessage *	timer = nullptr
bool	isSleeping = false
W	powerGeneration = W(NaN)

Additional Inherited Members
Static Public Attributes inherited from inet::power::IEpEnergyGenerator
static simsignal_t	powerGenerationChangedSignal = cComponent::registerSignal("powerGenerationChanged")
	The signal that is used to publish power generation changes. More...

Detailed Description

This class implements a simple power based alternating energy generator.

See the corresponding NED file for more details.

Constructor & Destructor Documentation

~AlternatingEpEnergyGenerator()

inet::power::AlternatingEpEnergyGenerator::~AlternatingEpEnergyGenerator ( )

virtual

{
    cancelAndDelete(timer);
}

Member Function Documentation

getEnergySink()

virtual IEnergySink* inet::power::AlternatingEpEnergyGenerator::getEnergySink ( ) const

inlineoverridevirtual

Returns the energy sink that absorbs energy from this energy generator.

This function never returns nullptr.

Implements inet::power::IEnergyGenerator.

{ return energySink; }

getPowerGeneration()

virtual W inet::power::AlternatingEpEnergyGenerator::getPowerGeneration ( ) const

inlineoverridevirtual

Returns the power generation in the range [0, +infinity).

Implements inet::power::IEpEnergyGenerator.

{ return powerGeneration; }

handleMessage()

void inet::power::AlternatingEpEnergyGenerator::handleMessage ( cMessage *  message )

overrideprotectedvirtual

{
    if (message == timer) {
        isSleeping = !isSleeping;
        updatePowerGeneration();
        scheduleIntervalTimer();
    }
    else
        throw cRuntimeError("Unknown message");
}

initialize()

void inet::power::AlternatingEpEnergyGenerator::initialize ( int  stage )

overrideprotectedvirtual

{
    if (stage == INITSTAGE_LOCAL) {
        const char *energySinkModule = par("energySinkModule");
        energySink = dynamic_cast<IEpEnergySink *>(getModuleByPath(energySinkModule));
        if (!energySink)
            throw cRuntimeError("Energy sink module '%s' not found", energySinkModule);
        timer = new cMessage("timer");
        updatePowerGeneration();
        scheduleIntervalTimer();
        WATCH(isSleeping);
        WATCH(powerGeneration);
    }
    else if (stage == INITSTAGE_POWER)
        energySink->addEnergyGenerator(this);
}

numInitStages()

virtual int inet::power::AlternatingEpEnergyGenerator::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

scheduleIntervalTimer()

void inet::power::AlternatingEpEnergyGenerator::scheduleIntervalTimer ( )

protectedvirtual

{
    scheduleAfter((isSleeping ? par("sleepInterval") : par("generationInterval")), timer);
}

Referenced by handleMessage(), and initialize().

updatePowerGeneration()

void inet::power::AlternatingEpEnergyGenerator::updatePowerGeneration ( )

protectedvirtual

{
    powerGeneration = isSleeping ? W(0) : W(par("powerGeneration"));
    emit(IEpEnergySink::powerGenerationChangedSignal, powerGeneration.get());
    auto text = "power: " + powerGeneration.str();
    getDisplayString().setTagArg("t", 0, text.c_str());
}

Referenced by handleMessage(), and initialize().

Member Data Documentation

energySink

IEpEnergySink* inet::power::AlternatingEpEnergyGenerator::energySink = nullptr

protected

Referenced by initialize().

isSleeping

bool inet::power::AlternatingEpEnergyGenerator::isSleeping = false

protected

Referenced by handleMessage(), initialize(), scheduleIntervalTimer(), and updatePowerGeneration().

powerGeneration

W inet::power::AlternatingEpEnergyGenerator::powerGeneration = W(NaN)

protected

Referenced by initialize(), and updatePowerGeneration().

timer

cMessage* inet::power::AlternatingEpEnergyGenerator::timer = nullptr

protected

Referenced by handleMessage(), initialize(), scheduleIntervalTimer(), and ~AlternatingEpEnergyGenerator().

---

The documentation for this class was generated from the following files:

• AlternatingEpEnergyGenerator.h
• AlternatingEpEnergyGenerator.cc
