inet::physicallayer::SignalSampleModel Class Reference

#include <SignalSampleModel.h>

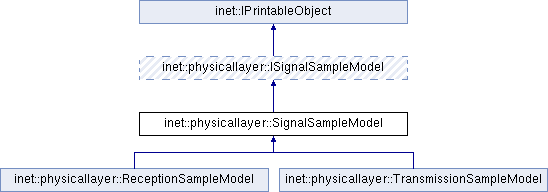

Inheritance diagram for inet::physicallayer::SignalSampleModel:

Public Member Functions
	SignalSampleModel (int sampleLength, double sampleRate, const std::vector< W > *samples)
virtual	~SignalSampleModel ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual int	getSampleLength () const override
virtual double	getSampleRate () const override
virtual const std::vector< W > *	getSamples () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const int	sampleLength
const double	sampleRate
const std::vector< W > *	samples

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

SignalSampleModel()

inet::physicallayer::SignalSampleModel::SignalSampleModel	(	int	sampleLength,
		double	sampleRate,
		const std::vector< W > *	samples
	)

                                                                                                     :
    sampleLength(sampleLength),
    sampleRate(sampleRate),
    samples(samples)
{
}

~SignalSampleModel()

inet::physicallayer::SignalSampleModel::~SignalSampleModel ( )

virtual

{
    delete samples;
}

Member Function Documentation

getSampleLength()

virtual int inet::physicallayer::SignalSampleModel::getSampleLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ISignalSampleModel.

{ return sampleLength; }

getSampleRate()

virtual double inet::physicallayer::SignalSampleModel::getSampleRate ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ISignalSampleModel.

{ return sampleRate; }

getSamples()

virtual const std::vector<W>* inet::physicallayer::SignalSampleModel::getSamples ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ISignalSampleModel.

{ return samples; }

printToStream()

std::ostream & inet::physicallayer::SignalSampleModel::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    stream << "SignalSampleModel";
    if (level <= PRINT_LEVEL_TRACE)
        stream << EV_FIELD(sampleLength)
               << EV_FIELD(sampleRate);
    return stream;
}

Member Data Documentation

sampleLength

const int inet::physicallayer::SignalSampleModel::sampleLength

protected

Referenced by printToStream().

sampleRate

const double inet::physicallayer::SignalSampleModel::sampleRate

protected

Referenced by printToStream().

samples

const std::vector<W>* inet::physicallayer::SignalSampleModel::samples

protected

Referenced by ~SignalSampleModel().

---

The documentation for this class was generated from the following files:

• SignalSampleModel.h
• SignalSampleModel.cc
