inet::physicallayer::SignalPacketModel Class Reference

#include <SignalPacketModel.h>

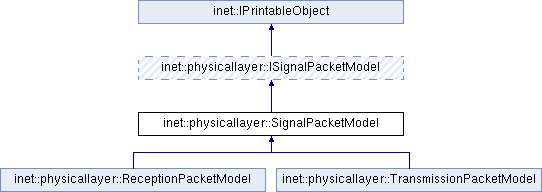

Inheritance diagram for inet::physicallayer::SignalPacketModel:

Public Member Functions
	SignalPacketModel (const Packet *packet, bps bitrate)
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const Packet *	getPacket () const override
virtual bps	getBitrate () const override
	Returns the net bitrate (datarate) of the packet. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const Packet *	packet
const bps	bitrate

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

SignalPacketModel()

inet::physicallayer::SignalPacketModel::SignalPacketModel	(	const Packet *	packet,
		bps	bitrate
	)

                                                                      :
    packet(packet),
    bitrate(bitrate)
{
}

Member Function Documentation

getBitrate()

virtual bps inet::physicallayer::SignalPacketModel::getBitrate ( ) const

inlineoverridevirtual

Returns the net bitrate (datarate) of the packet.

Implements inet::physicallayer::ISignalPacketModel.

{ return bitrate; }

getPacket()

virtual const Packet* inet::physicallayer::SignalPacketModel::getPacket ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ISignalPacketModel.

{ return packet; }

printToStream()

std::ostream & inet::physicallayer::SignalPacketModel::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    stream << "SignalPacketModel";
    if (level <= PRINT_LEVEL_TRACE)
        stream << EV_FIELD(packet);
    return stream;
}

Member Data Documentation

bitrate

const bps inet::physicallayer::SignalPacketModel::bitrate

protected

packet

const Packet* inet::physicallayer::SignalPacketModel::packet

protected

Referenced by printToStream().

---

The documentation for this class was generated from the following files:

• SignalPacketModel.h
• SignalPacketModel.cc
