inet::physicallayer::ReceptionResult Class Reference

#include <ReceptionResult.h>

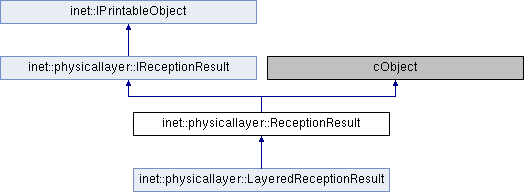

Inheritance diagram for inet::physicallayer::ReceptionResult:

Public Member Functions
	ReceptionResult (const IReception *reception, const std::vector< const IReceptionDecision * > *decisions, const Packet *packet)
virtual	~ReceptionResult ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const IReception *	getReception () const override
	Returns the corresponding reception that also specifies the receiver and the received transmission. More...
virtual const std::vector< const IReceptionDecision * > *	getDecisions () const override
	Returns the reception decisions made by the receiver in the order of received signal parts. More...
virtual const Packet *	getPacket () const override
	Returns the packet corresponding to this reception. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const IReception *	reception
const std::vector< const IReceptionDecision * > *	decisions
const Packet *	packet

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

ReceptionResult()

inet::physicallayer::ReceptionResult::ReceptionResult	(	const IReception *	reception,
		const std::vector< const IReceptionDecision * > *	decisions,
		const Packet *	packet
	)

                                                                                                                                          :
    reception(reception),
    decisions(decisions),
    packet(packet)
{
}

~ReceptionResult()

inet::physicallayer::ReceptionResult::~ReceptionResult ( )

virtual

{
    delete packet;
    delete decisions;
}

Member Function Documentation

getDecisions()

virtual const std::vector<const IReceptionDecision *>* inet::physicallayer::ReceptionResult::getDecisions ( ) const

inlineoverridevirtual

Returns the reception decisions made by the receiver in the order of received signal parts.

This function never returns an empty vector.

Implements inet::physicallayer::IReceptionResult.

{ return decisions; }

getPacket()

const Packet * inet::physicallayer::ReceptionResult::getPacket ( ) const

overridevirtual

Returns the packet corresponding to this reception.

This function never returns nullptr.

Implements inet::physicallayer::IReceptionResult.

Reimplemented in inet::physicallayer::LayeredReceptionResult.

{
    return packet;
}

getReception()

virtual const IReception* inet::physicallayer::ReceptionResult::getReception ( ) const

inlineoverridevirtual

Returns the corresponding reception that also specifies the receiver and the received transmission.

This function never returns nullptr.

Implements inet::physicallayer::IReceptionResult.

{ return reception; }

printToStream()

std::ostream & inet::physicallayer::ReceptionResult::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::LayeredReceptionResult.

{
    stream << "ReceptionResult";
    return stream;
}

Member Data Documentation

decisions

const std::vector<const IReceptionDecision *>* inet::physicallayer::ReceptionResult::decisions

protected

Referenced by ~ReceptionResult().

packet

const Packet* inet::physicallayer::ReceptionResult::packet

protected

Referenced by getPacket(), and ~ReceptionResult().

reception

const IReception* inet::physicallayer::ReceptionResult::reception

protected

---

The documentation for this class was generated from the following files:

• ReceptionResult.h
• ReceptionResult.cc
