inet::physicallayer::ReceptionDecision Class Reference

#include <ReceptionDecision.h>

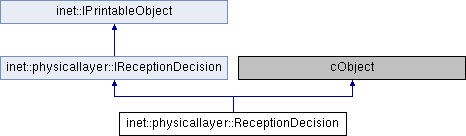

Inheritance diagram for inet::physicallayer::ReceptionDecision:

Public Member Functions
	ReceptionDecision (const IReception *reception, IRadioSignal::SignalPart part, bool isReceptionPossible, bool isReceptionAttempted, bool isReceptionSuccessful)
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const IReception *	getReception () const override
	Returns the corresponding reception that also specifies the receiver and the received transmission. More...
virtual IRadioSignal::SignalPart	getSignalPart () const override
	Returns the signal part of this decision. More...
virtual bool	isReceptionPossible () const override
	Returns whether reception was possible according to the physical properties of the received radio signal. More...
virtual bool	isReceptionAttempted () const override
	Returns whether the receiver decided to attempt the reception or it decided to ignore it. More...
virtual bool	isReceptionSuccessful () const override
	Returns whether the reception was completely successful or not. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const IReception *	reception
IRadioSignal::SignalPart	part
const bool	isReceptionPossible_
const bool	isReceptionAttempted_
const bool	isReceptionSuccessful_

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

ReceptionDecision()

inet::physicallayer::ReceptionDecision::ReceptionDecision	(	const IReception *	reception,
		IRadioSignal::SignalPart	part,
		bool	isReceptionPossible,
		bool	isReceptionAttempted,
		bool	isReceptionSuccessful
	)

                                                                                                                                                                              :
    reception(reception),
    part(part),
    isReceptionPossible_(isReceptionPossible),
    isReceptionAttempted_(isReceptionAttempted),
    isReceptionSuccessful_(isReceptionSuccessful)
{
}

Member Function Documentation

getReception()

virtual const IReception* inet::physicallayer::ReceptionDecision::getReception ( ) const

inlineoverridevirtual

Returns the corresponding reception that also specifies the receiver and the received transmission.

This function never returns nullptr.

Implements inet::physicallayer::IReceptionDecision.

{ return reception; }

getSignalPart()

virtual IRadioSignal::SignalPart inet::physicallayer::ReceptionDecision::getSignalPart ( ) const

inlineoverridevirtual

Returns the signal part of this decision.

Implements inet::physicallayer::IReceptionDecision.

{ return part; }

isReceptionAttempted()

virtual bool inet::physicallayer::ReceptionDecision::isReceptionAttempted ( ) const

inlineoverridevirtual

Returns whether the receiver decided to attempt the reception or it decided to ignore it.

Implements inet::physicallayer::IReceptionDecision.

{ return isReceptionAttempted_; }

isReceptionPossible()

virtual bool inet::physicallayer::ReceptionDecision::isReceptionPossible ( ) const

inlineoverridevirtual

Returns whether reception was possible according to the physical properties of the received radio signal.

Implements inet::physicallayer::IReceptionDecision.

{ return isReceptionPossible_; }

isReceptionSuccessful()

virtual bool inet::physicallayer::ReceptionDecision::isReceptionSuccessful ( ) const

inlineoverridevirtual

Returns whether the reception was completely successful or not.

Implements inet::physicallayer::IReceptionDecision.

{ return isReceptionSuccessful_; }

printToStream()

std::ostream & inet::physicallayer::ReceptionDecision::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    stream << "ReceptionDecision";
    if (level <= PRINT_LEVEL_DETAIL)
        stream << (isReceptionPossible_ ? ", possible" : ", impossible")
               << (isReceptionAttempted_ ? ", attempted" : ", ignored")
               << (isReceptionSuccessful_ ? ", successful" : ", unsuccessful");
    return stream;
}

Member Data Documentation

isReceptionAttempted_

const bool inet::physicallayer::ReceptionDecision::isReceptionAttempted_

protected

Referenced by printToStream().

isReceptionPossible_

const bool inet::physicallayer::ReceptionDecision::isReceptionPossible_

protected

Referenced by printToStream().

isReceptionSuccessful_

const bool inet::physicallayer::ReceptionDecision::isReceptionSuccessful_

protected

Referenced by printToStream().

part

IRadioSignal::SignalPart inet::physicallayer::ReceptionDecision::part

protected

reception

const IReception* inet::physicallayer::ReceptionDecision::reception

protected

---

The documentation for this class was generated from the following files:

• ReceptionDecision.h
• ReceptionDecision.cc
