inet::physicallayer::IsotropicDimensionalBackgroundNoise Class Reference

#include <IsotropicDimensionalBackgroundNoise.h>

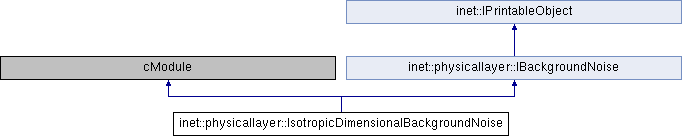

Inheritance diagram for inet::physicallayer::IsotropicDimensionalBackgroundNoise:

Public Member Functions
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const INoise *	computeNoise (const IListening *listening) const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

Protected Attributes
WpHz	powerSpectralDensity = WpHz(NaN)
W	power = W(NaN)
Hz	bandwidth = Hz(NaN)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Member Function Documentation

computeNoise()

const INoise * inet::physicallayer::IsotropicDimensionalBackgroundNoise::computeNoise ( const IListening *  listening ) const

overridevirtual

Implements inet::physicallayer::IBackgroundNoise.

{
    const BandListening *bandListening = check_and_cast<const BandListening *>(listening);
    Hz centerFrequency = bandListening->getCenterFrequency();
    Hz listeningBandwidth = bandListening->getBandwidth();
    WpHz noisePowerSpectralDensity;
    if (!std::isnan(powerSpectralDensity.get()))
        noisePowerSpectralDensity = powerSpectralDensity;
    else {
        if (std::isnan(bandwidth.get()))
            bandwidth = listeningBandwidth;
        else if (bandwidth != listeningBandwidth)
            throw cRuntimeError("The powerSpectralDensity parameter is not specified and the power parameter cannot be used, because background noise bandwidth doesn't match listening bandwidth");
        // NOTE: dividing by the bandwidth here makes sure the total background noise power in the listening band is the given power
        noisePowerSpectralDensity = power / bandwidth;
    }
    const Ptr<const IFunction<WpHz, Domain<simsec, Hz>>>& powerFunction = makeShared<ConstantFunction<WpHz, Domain<simsec, Hz>>>(noisePowerSpectralDensity);
    const simtime_t startTime = listening->getStartTime();
    const simtime_t endTime = listening->getEndTime();
    return new DimensionalNoise(startTime, endTime, centerFrequency, bandwidth, makeFirstQuadrantLimitedFunction(powerFunction));
}

initialize()

void inet::physicallayer::IsotropicDimensionalBackgroundNoise::initialize ( int  stage )

overrideprotectedvirtual

{
    cModule::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        powerSpectralDensity = WpHz(dBmWpMHz2WpHz(par("powerSpectralDensity")));
        power = mW(dBmW2mW(par("power")));
        bandwidth = Hz(par("bandwidth"));
        if (std::isnan(powerSpectralDensity.get()) && std::isnan(power.get()))
            throw cRuntimeError("One of powerSpectralDensity or power parameters must be specified");
        if (!std::isnan(powerSpectralDensity.get()) && !std::isnan(power.get()))
            throw cRuntimeError("Both of powerSpectralDensity and power parameters cannot be specified");
    }
}

printToStream()

std::ostream & inet::physicallayer::IsotropicDimensionalBackgroundNoise::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    stream << "IsotropicDimensionalBackgroundNoise";
    if (level <= PRINT_LEVEL_DETAIL) {
        if (!std::isnan(powerSpectralDensity.get()))
            stream << EV_FIELD(powerSpectralDensity);
        else {
            stream << EV_FIELD(power);
            stream << EV_FIELD(bandwidth);
        }
    }
    return stream;
}

Member Data Documentation

bandwidth

Hz inet::physicallayer::IsotropicDimensionalBackgroundNoise::bandwidth = Hz(NaN)

mutableprotected

Referenced by computeNoise(), initialize(), and printToStream().

power

W inet::physicallayer::IsotropicDimensionalBackgroundNoise::power = W(NaN)

protected

Referenced by computeNoise(), initialize(), and printToStream().

powerSpectralDensity

WpHz inet::physicallayer::IsotropicDimensionalBackgroundNoise::powerSpectralDensity = WpHz(NaN)

protected

Referenced by computeNoise(), initialize(), and printToStream().

---

The documentation for this class was generated from the following files:

• IsotropicDimensionalBackgroundNoise.h
• IsotropicDimensionalBackgroundNoise.cc
