#include <Ieee80211OfdmSymbolModel.h>

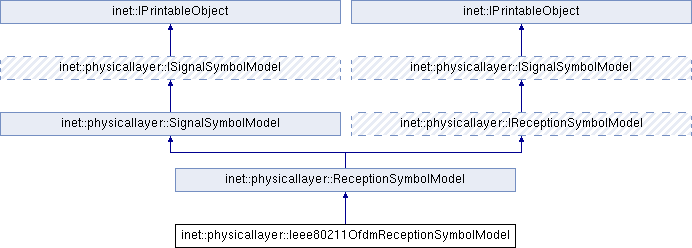

Inheritance diagram for inet::physicallayer::Ieee80211OfdmReceptionSymbolModel:

Public Member Functions
	Ieee80211OfdmReceptionSymbolModel (int headerSymbolLength, double headerSymbolRate, int payloadSymbolLength, double payloadSymbolRate, const std::vector< const ISymbol * > *symbols)

virtual	~Ieee80211OfdmReceptionSymbolModel ()

Public Member Functions inherited from inet::physicallayer::ReceptionSymbolModel
	ReceptionSymbolModel (int headerSymbolLength, double headerSymbolRate, int payloadSymbolLength, double payloadSymbolRate, const std::vector< const ISymbol * > *symbols, double symbolErrorRate)

virtual double	getSymbolErrorRate () const override

Public Member Functions inherited from inet::physicallayer::SignalSymbolModel
	SignalSymbolModel (int headerSymbolLength, double headerSymbolRate, int payloadSymbolLength, double payloadSymbolRate, const std::vector< const ISymbol * > *symbols)

virtual	~SignalSymbolModel ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual int	getPayloadSymbolLength () const override

virtual double	getPayloadSymbolRate () const override

virtual int	getHeaderSymbolLength () const override

virtual double	getHeaderSymbolRate () const override

virtual const std::vector< const ISymbol * > *	getSymbols () const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Protected Attributes inherited from inet::physicallayer::ReceptionSymbolModel
double	symbolErrorRate

Protected Attributes inherited from inet::physicallayer::SignalSymbolModel
const int	headerSymbolLength

const int	payloadSymbolLength

const double	headerSymbolRate

const double	payloadSymbolRate

const std::vector< const ISymbol * > *	symbols

Constructor & Destructor Documentation

◆ Ieee80211OfdmReceptionSymbolModel()

inet::physicallayer::Ieee80211OfdmReceptionSymbolModel::Ieee80211OfdmReceptionSymbolModel	(	int	headerSymbolLength,
		double	headerSymbolRate,
		int	payloadSymbolLength,
		double	payloadSymbolRate,
		const std::vector< const ISymbol * > *	symbols
	)

                                                                                                                                                                                                                   :
     ReceptionSymbolModel(headerSymbolLength, headerSymbolRate, payloadSymbolLength, payloadSymbolRate, symbols, NaN)
 {
 }

◆ ~Ieee80211OfdmReceptionSymbolModel()

inet::physicallayer::Ieee80211OfdmReceptionSymbolModel::~Ieee80211OfdmReceptionSymbolModel ( )

virtual

 {
     if (symbols) {
         for (auto it : *symbols)
             delete it;
     }
 }

The documentation for this class was generated from the following files:
